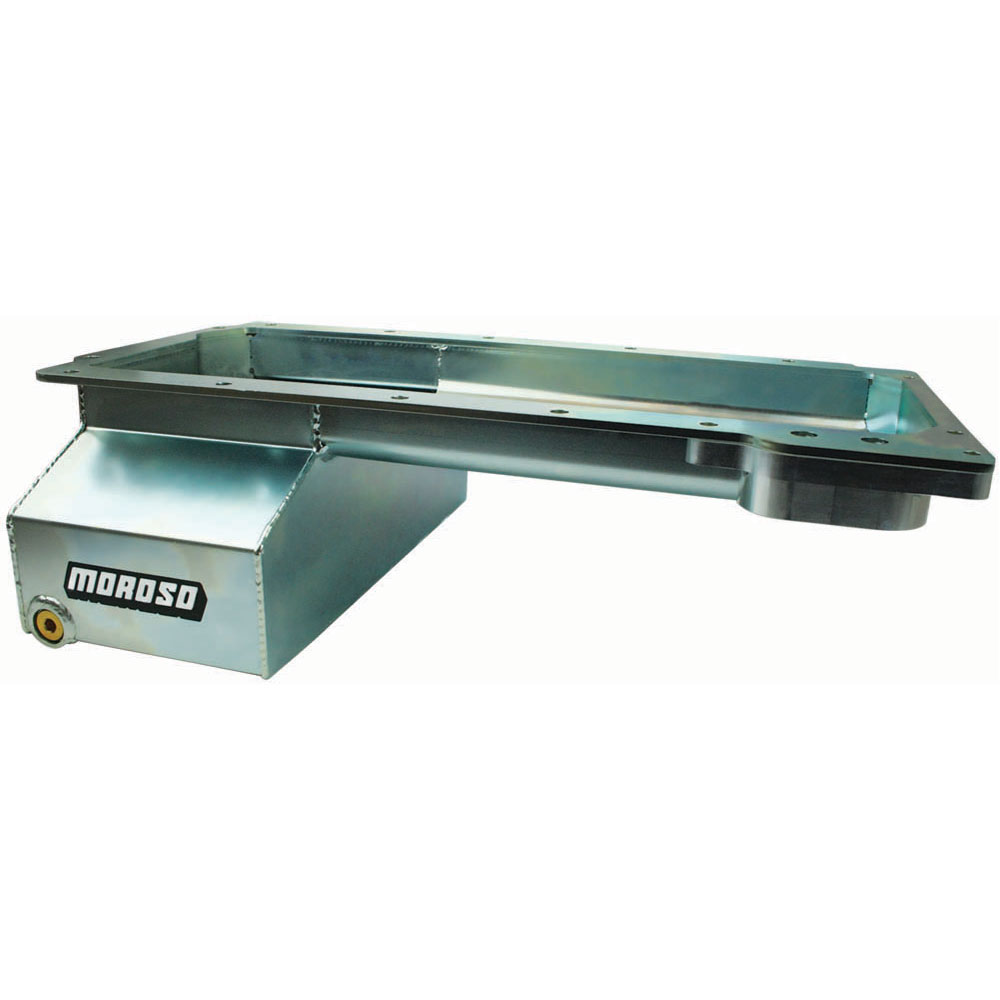

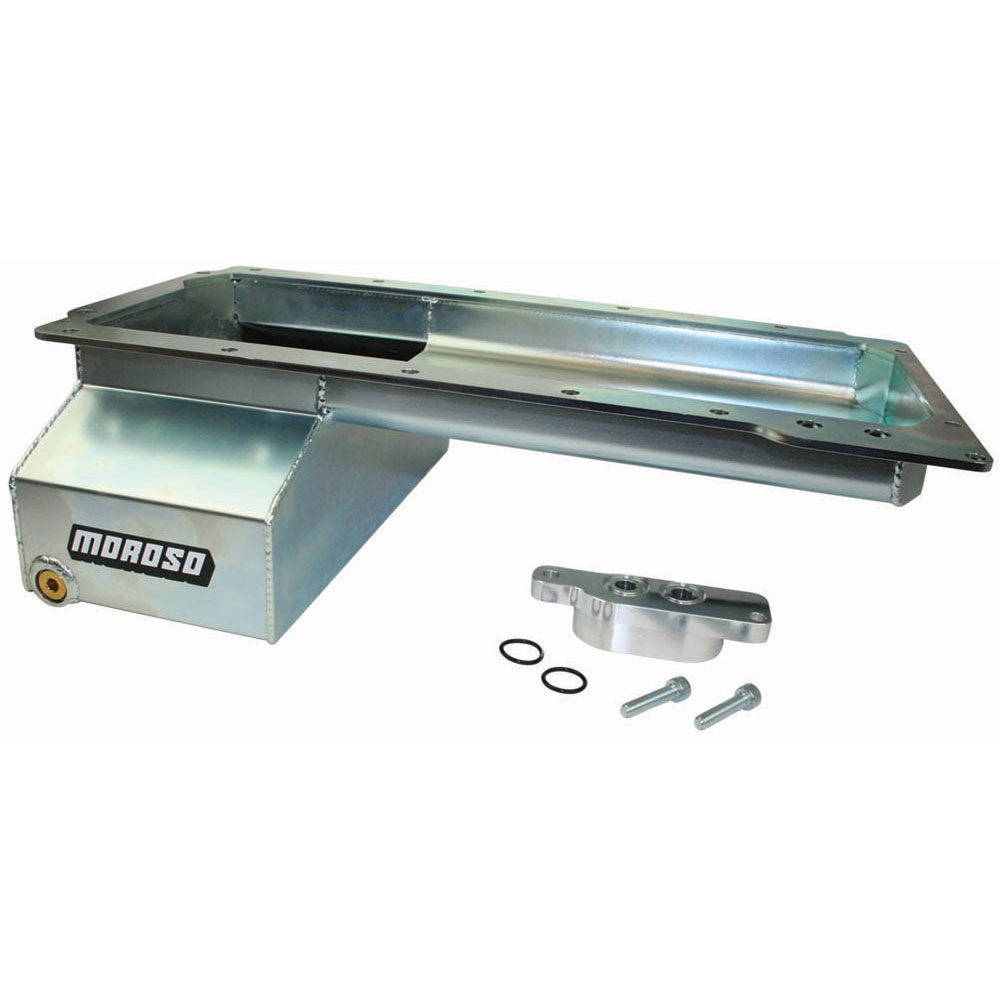

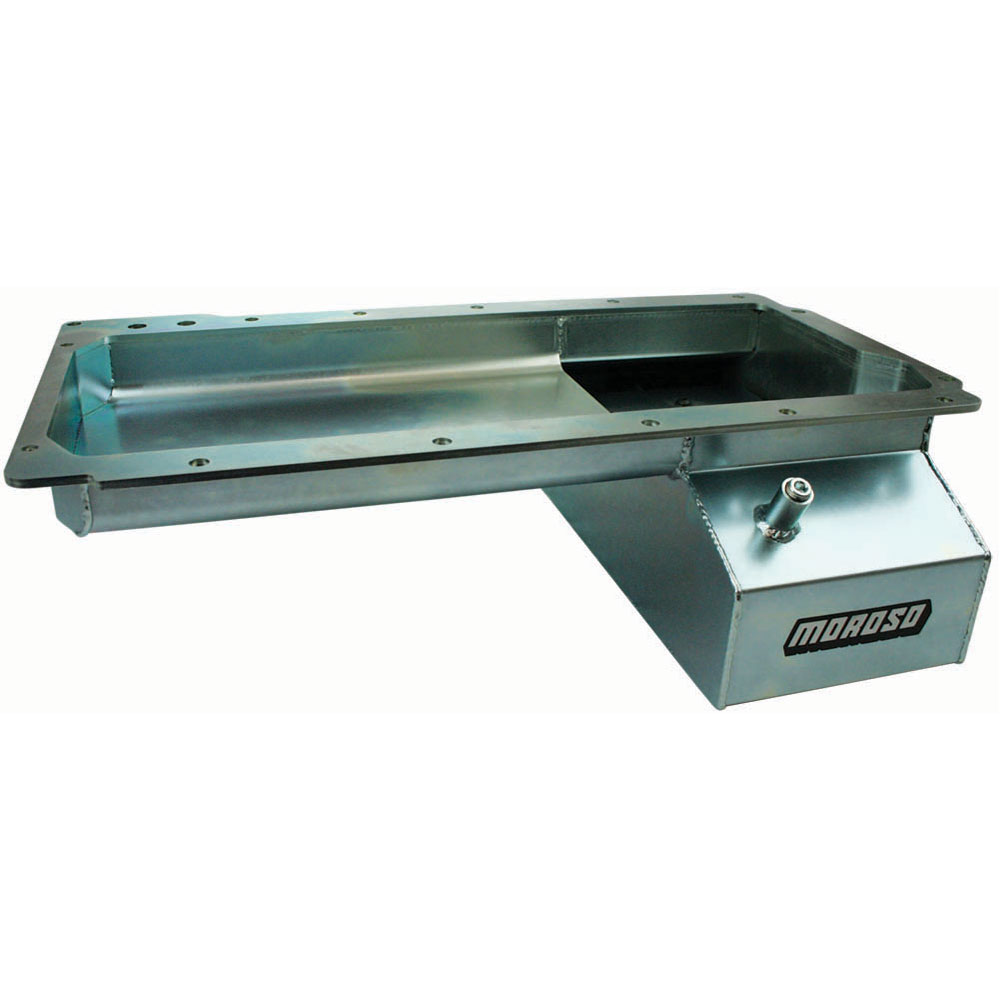

Moroso Oil Pan 20146; Road Race Wet Sump 6.5 Quart Clear Zinc for GM LS
$429.99
$499.99 On Sale
Save 14%
This item is not eligible for our Free Freight program because either this part type is excluded or its price is already at our lowest. However, it will still count toward the total when you purchase other items that do qualify for Free Freight.
See our shipping policy for more details.
Details
- Steel, Wet Sump, 6.5 Quart Capacity, 6" Deep, Baffled
- Engine Application: GM LS Series
- Fits: LS Engine Conversions that require a Front Sump (Check Measurements)
- Oil pan has a thick precision laser cut steel rail with a clear zinc finish
- Clears 4.25" stroke with most steel rods
- Features a race proven diamond shape four trap door assembly and removable anti-slosh baffle that keeps oil contained in oil pump pickup area during Drifting, Road Racing and Drag Racing
- Oil Pan Design moves oil away from the rotating assembly for oil control and horsepower saving
- Accepts GM Part 12558253 Windage Tray with modification
- Designed to be used with 2004-2006 Pontiac GTO O.E.M. Oil Pump Pickup, GM Part 12572654
- Two straight 10AN fittings for remote filter installation
- Dipstick Fitting for required oil pan mounted dipstick
- Magnetic Drain Plug
- Dipstick Fitting for required oil pan mounted dipstick
- Magnetic Drain Plug
- PART # DESCRIPTION
- 20146 GM LS, Front Sump Swap, Race Baffled, Fully Fabricated, Steel, Oil Pan
- REQUIRES THE FOLLOWING GM PARTS TO COMPLETE THE INSTALLATION OF PART NO. 20146 ON ENGINE
- GM PART DESCRIPTION
- 12572654 Oil Pump Pick Up
- 12558253 Windage Tray
- Clears 4.25" stroke with most steel rods
- Features a race proven diamond shape four trap door assembly and removable anti-slosh baffle that keeps oil contained in oil pump pickup area during Drifting, Road Racing and Drag Racing
- Oil Pan Design moves oil away from the rotating assembly for oil control and horsepower saving
- Accepts GM Part 12558253 Windage Tray with modification
- Designed to be used with 2004-2006 Pontiac GTO O.E.M. Oil Pump Pickup, GM Part 12572654
- Two straight 10AN fittings for remote filter installation
- Dipstick Fitting for required oil pan mounted dipstick
- Magnetic Drain Plug
- Dipstick Fitting for required oil pan mounted dipstick
- Magnetic Drain Plug
- PART # DESCRIPTION
- 20146 GM LS, Front Sump Swap, Race Baffled, Fully Fabricated, Steel, Oil Pan
- REQUIRES THE FOLLOWING GM PARTS TO COMPLETE THE INSTALLATION OF PART NO. 20146 ON ENGINE
- GM PART DESCRIPTION
- 12572654 Oil Pump Pick Up
- 12558253 Windage Tray
Product Description
Oil Pan, Steel, Clear Zinc, GM LS, Front Sump, Road Race Baffled Swap.
Specifications
- Oil Pan Series:
- Road Race
- Make:
- GM
- Engine:
- LS
- Pan Style:
- Wet Sump
- Dip Stick Location:
- Passenger Side
- Capacity:
- 6.5 Quart
- Depth:
- 6.000 in.
- Material:
- Steel
- Finish:
- Clear Zinc
- Kick Out:
- Yes
- Sump Location:
- Front
- Baffled:
- Yes
- Includes Pickup:
- No
- Standard Pickup Part Number:
- GM 12572654
- Includes Windage Tray:
- No
- Includes Crank Scraper:
- No
- Includes Gasket:
- No
- Includes Hardware:
- No
- Notes:
- Engine swap pan, Includes (2) -10AN fittings for remote filter installation.
- Quantity:
- Sold As Each
