Edelbrock Intake Manifold 7118; Performer RPM LS1 Cathedral Port Dual Plane 1500 to 6500 Satin Aluminum for Chevy LS
$978.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Edelbrock products offer improved performance and aesthetics for a broad array of vehicles and engines. 'Proven performance' is the philosophy by which Edelbrock was founded and it continues to this day with the highest standards for performance and quality. Edelbrock core products are engineered, manufactured, and tested in the USA to ensure the best quality possible. This is further backed by some of the best warranties in the industry and a highly qualified technical support staff.
Product Description

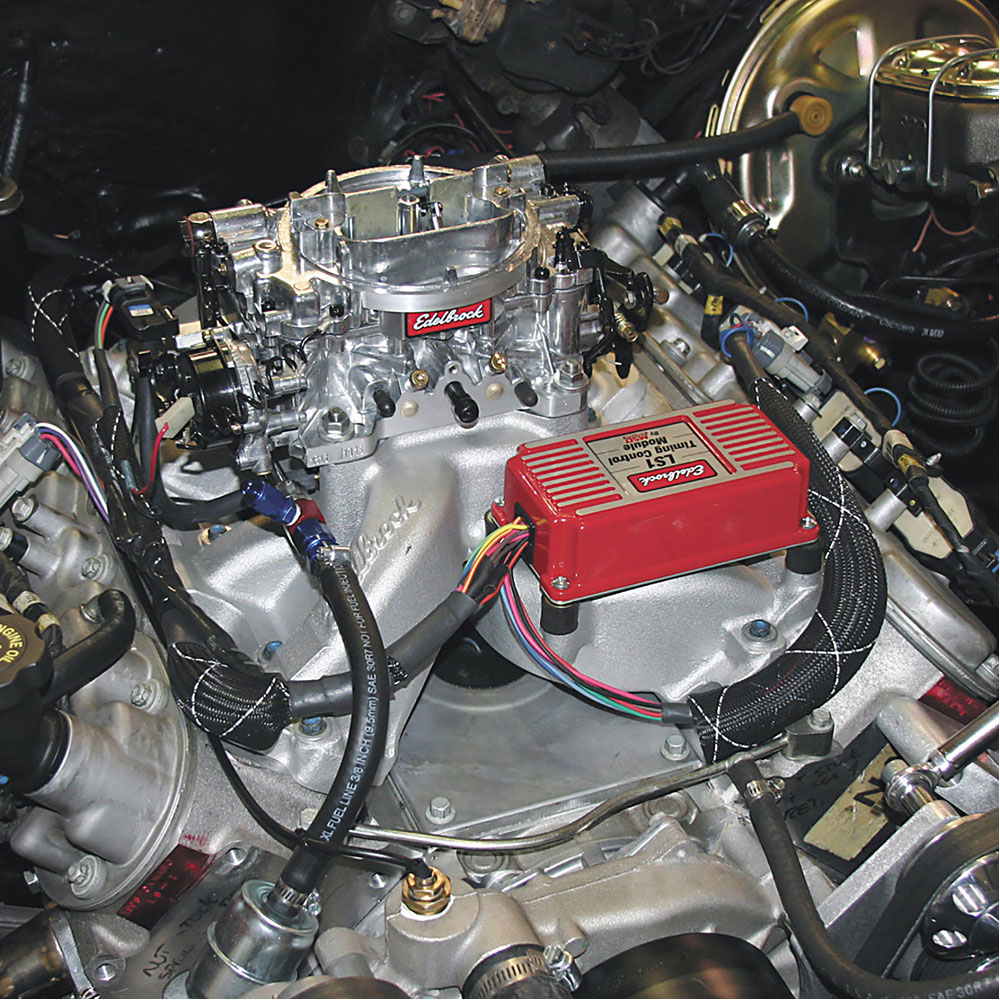

Edelbrock part #7118 Performer RPM Cathedral Port LS intake manifold with timing control module is an easy solution for those looking to swap a LS engine into their early carbureted vehicle. It allows the use of a carburetor on these originally computer-controlled engines, offering maximum power and a broad torque curve from 1500 to 6500 rpm. The 7118 intake manifold kit comes with a wiring harness and electronic Timing Control Module made by MSD. The ignition module has an internal MAP sensor, and works with either 24x (Gen II) or 58x (Gen IV) OE sensors to fire the Coil-on-Plug ignition system. A rotary dial offers a choice of six timing curves. More extensive programming of rev limits, nitrous retard etc. available via laptop connection. A special throttle and transmission cable bracket that works with 700R-4, 200R-4 and Turbo 350 transmissions is included, making the LS1 engine an easy retro-fit into any muscle car or street rod application. Uses GM individual o-ring gaskets PN 12533587. Manifold hold down bolts included. For LS rectangle port (LS3) applications see PN 71196.
Specifications
- Intake Manifold Model or Series:
- Performer RPM LS1
- Make:
- Chevy
- Engine:
- LS
- Deck Height:
- 9.240 in.
- Port Style:
- Cathedral Port
- Intake Style:
- Dual Plane
- Carburetor or Throttle Body Flange:
- 4150 Square Flange
- RPM Range:
- 1500 to 6500
- EGR or Non-EGR:
- Non EGR
- Material:
- Aluminum
- Finish:
- Satin
- Includes Gaskets:
- No
- Front Height:
- 4.500 in.
- Fuel System Type:
- Carbureted
- Requires Aftermarket Fuel Rails:
- No
- Includes Fuel Rails:
- No
- Rear Height:
- 5.400 in.
- Notes:
- With timing control module
- Quantity:
- Sold As Each
