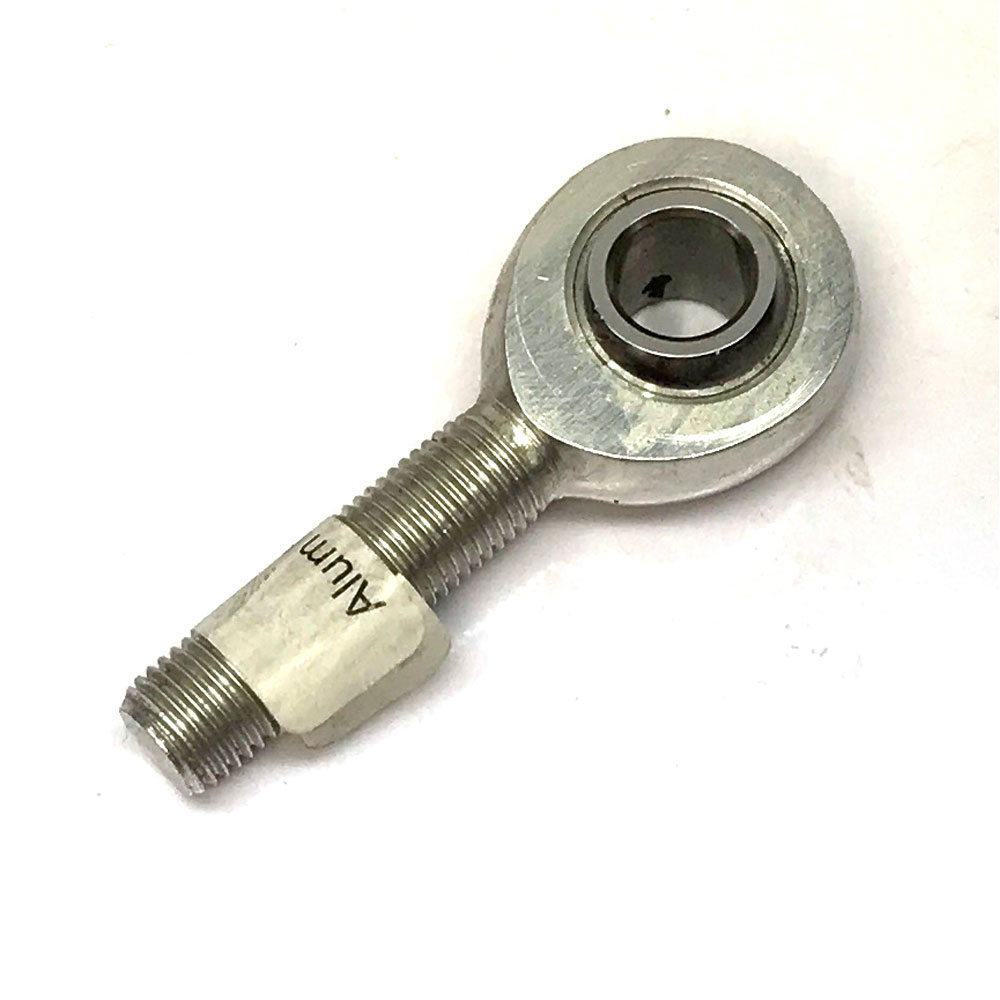

Photo for Rod End Supply Suspension Rod End Bearing AMR6; 3/8 in. 3/8 in. -24 Right Hand Male 7075-T6 Aluminum Body, 52100 Steel Bearing 12 deg. Click to enlarge

Rod End Supply Suspension Rod End Bearing AMR6; 3/8 in. 3/8 in. -24 Right Hand Male 7075-T6 Aluminum Body, 52100 Steel Bearing 12 deg.

$11.75

Part #: AMR6

Brand: Rod End Supply

Estimated Ship Date: This part is unavailable with no ETA

Specifications Alternative Parts

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Endura design
  • Precision ground, hard chromed and heat treated 52100 Bearing Steel ball
  • High strength carbon fiber-reinforced PTFE/Nylon compound race
  • Red anodized 7075 aircraft aluminum
  • Metal to metal support for heavy shock loads
  • Increased cross-sectional thickness
  • Same wear properties and construction as the X-Series, but with an aluminum body.
  • Self-lubricating and safer than 3-piece aluminum designs
  • Commonly used for sprint car radius rods, front splitters, rear spoiners, and rear wing support braces.

Product Description

AM Aluminum Series rod ends from QA1 are male rod ends that are designed specifically to save weight on performance applications. They feature a Nylon/PTFE injection molded race and are completely self-sealing and self-lubricating, keeping dirt and debris out. The AM Series rod ends are over 10% lighter than traditional three-piece aluminum rod ends and are the most wear-resistant aluminum design available. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , RACE, Nylon/PTFE, Self-Lubricating, Self-Sealing, , BODY, Aircraft Aluminum, Color Anodized Red as Standard, , EXCLUSIVE FEATURES, Metal to Metal Support for Heavy Shock Loads, Increased Cross-Sectional Thickness for Greater Tensile Strength.

Specifications

Material:
7075-T6 Aluminum Body, 52100 Steel Bearing
Finish:
Clear Anodized
Heat Treated:
Yes
Greasable:
No
Bore:
3/8 in.
Ball Width:
0.500 in.
Housing Width:
0.406 in.
Housing OD:
1.000 in.
Centerline Length:
1.938 in.
Shank Style:
Right Hand Male
Shank Thread Size:
3/8 in. -24
Shank Thread Length:
1.250 in.
Includes Jam Nut:
No
Load Capacity:
4,500lbs.
Misalign Angle:
12 deg.
Quantity:
Sold As Each
