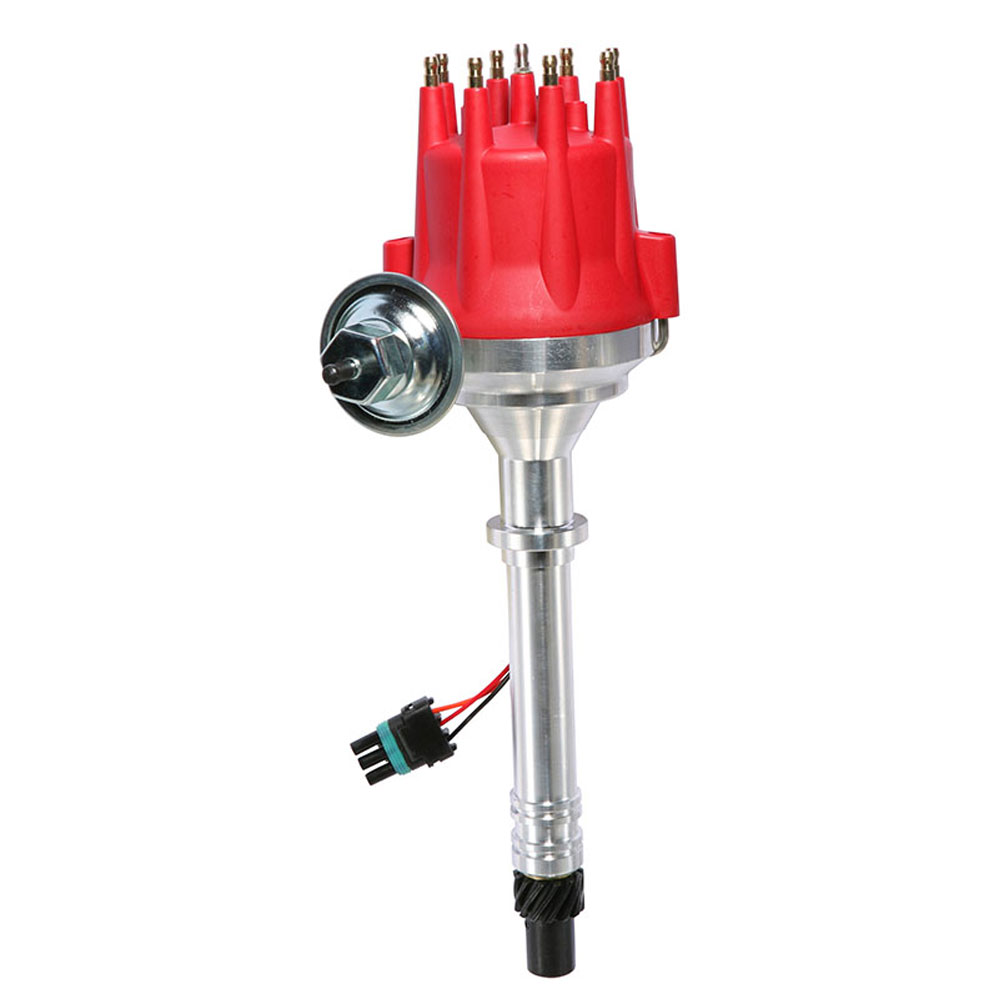

Renegade Distributor 98360-1; Hi Energy Ready to Run Vacuum, Mechanical Magnetic for Chevy 262 to 400, 396 to 454

Details

• Hot Forged 2-Piece CNC-Machined 6061-T6 Billet Aluminum Housing
• Centerless ground shaft
• Paddle wheel reluctor and race-reliable magnetic pickup for an accurate trigger signal at all RPM Levels
• PBT (glass reinforced polyester) cap, rotor, and wire retainer is stronger than the competitions PET components
• Brass spark plug wire contacts for maximum conductivity
• Top mounted mechanical advance
• Precision stamped and blanked cam plate and weights
• Nitrocarburized surface treated mechanical advance componentry
• Nylon rub pads for advance weights ensure long life
• Advance springs and stop bushings included for the most common advance configurations
• Adjustable vacuum advance for up to an additional 10 degrees of ignition advance - perfect for light throttle cruising and fuel economy
• Removable vacuum advance can be replaced with the included lock-out
• Module output up to 480 volts - compare to the 400 volt output of the competition
• Renegade Ready-to-Run require the use of a high performance coil with .3-.6 ohm primary resistance, like the Renegade 98207-1, 98202-5, 98202-2, or 98202-1; Other coils will inhibit performance at high RPMs, and possible damage the ignition module
• Requires 12 volts to operate - do not use with ballast resistors, resistor wires, or mechanical voltage regulators

• Brass spark plug wire contacts for maximum conductivity
• Top mounted mechanical advance
• Precision stamped and blanked cam plate and weights
• Nitrocarburized surface treated mechanical advance componentry
• Nylon rub pads for advance weights ensure long life
• Advance springs and stop bushings included for the most common advance configurations
• Adjustable vacuum advance for up to an additional 10 degrees of ignition advance - perfect for light throttle cruising and fuel economy
• Removable vacuum advance can be replaced with the included lock-out
• Module output up to 480 volts - compare to the 400 volt output of the competition
• Renegade Ready-to-Run require the use of a high performance coil with .3-.6 ohm primary resistance, like the Renegade 98207-1, 98202-5, 98202-2, or 98202-1; Other coils will inhibit performance at high RPMs, and possible damage the ignition module
• Requires 12 volts to operate - do not use with ballast resistors, resistor wires, or mechanical voltage regulators
