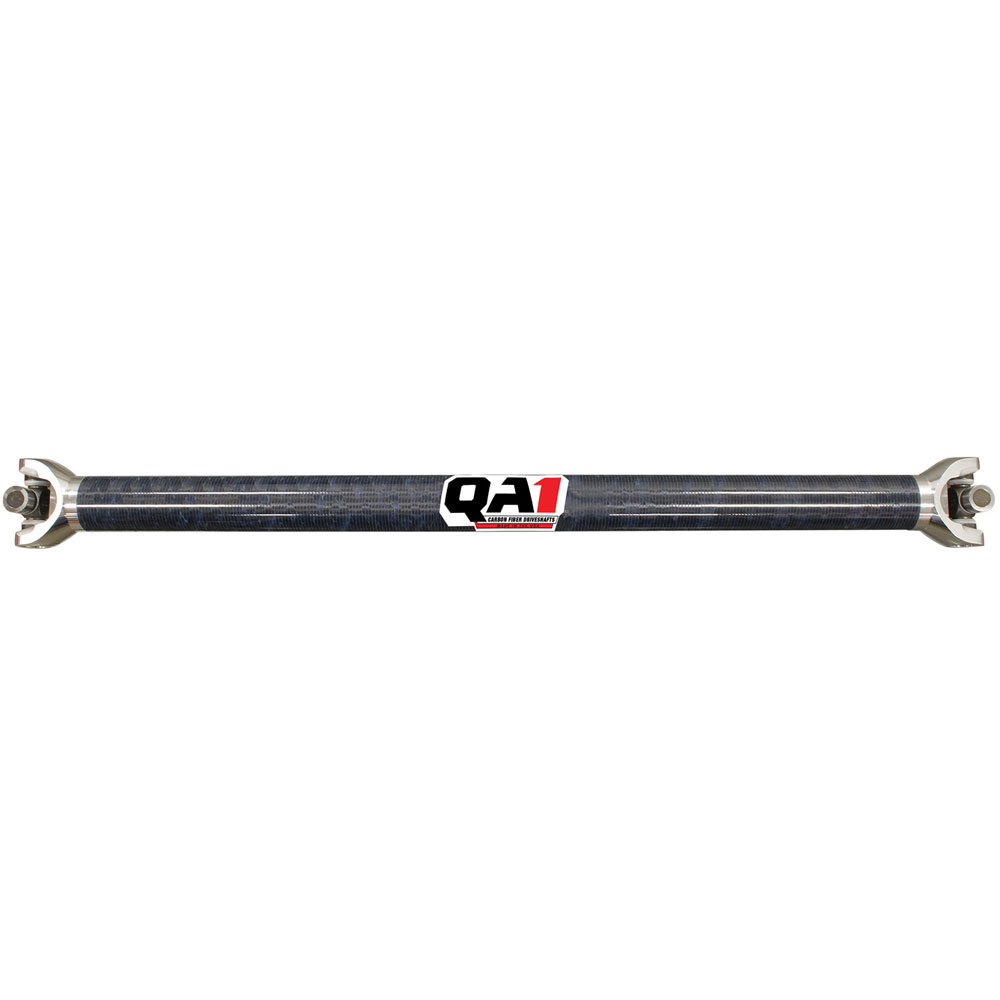

QA1 Drive Shaft JJ-11247; Circle Track, Dirt Crate Late Model 35.000 in. 2.250 in. Carbon Fiber
$964.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Product Description
With a 2.25" diameter, and available in all popular lengths with U-joints and an optional slip yoke, QA1 carbon fiber driveshafts are lighter, stronger and safer than aluminum and steel driveshafts. QA1 specially winds the driveshafts with 3M Matrix Resin that is exclusive to QA1 driveshafts. 3M Matrix Resin uses spherical nanoscale silica that provides improved abrasion resistance and longevity, higher compressive strength and minimal water absorption for increased torque capacity and longevity. This resin is what gives a QA1 driveshaft its distinctive blue tint. The driveshafts have a uniform wall thickness created by optimum fiber lay up that ensures high RPM stability as well as extreme torque capacities. A thoroughly engineered surface protection is used to withstand extreme racing environments and provide a worry-free performance. These driveshafts also feature Spicer Life Series Universal Joints that are high strength alloy and provide durability, high torque capacity and are sealed for maximum strength and no maintenance. The high-misalignment 7075 aluminum tube yokes are precision CNC machined and are specially developed for QA1's 11 step bonding procedure that ensures a better balance. With their incredible strength and durable surface protection, you get worry-free performance season after season. Made in the U.S.A., Made with 3M Matrix Resin, Precision Balanced , Track Tested, Tested During and After Production, Spicer Life Series Universal Joints, High-Misalignment 7075 Aluminum Tube Yokes, Lighter, Stronger and Safer than Steel or Aluminum Driveshafts, Custom Lengths Also Available.
Specifications
- Drive Shaft Model or Series:
- Circle Track, Dirt Crate Late Model
- Drive Shaft Length:
- 35.000 in.
- Drive Shaft Diameter:
- 2.250 in.
- Shaft Material:
- Carbon Fiber
- Includes Transmission Side Joint:
- Yes
- Joint Style (Trans):
- 1310 U Joint
- Includes Differential Side Joint:
- Yes
- Joint Style (Diff):
- 1310 U Joint
- Maximum Recommended Horsepower:
- 750 HP
- Maximum Recommended Torque:
- 500 lbs/ft.
- Quantity:
- Sold As Each
