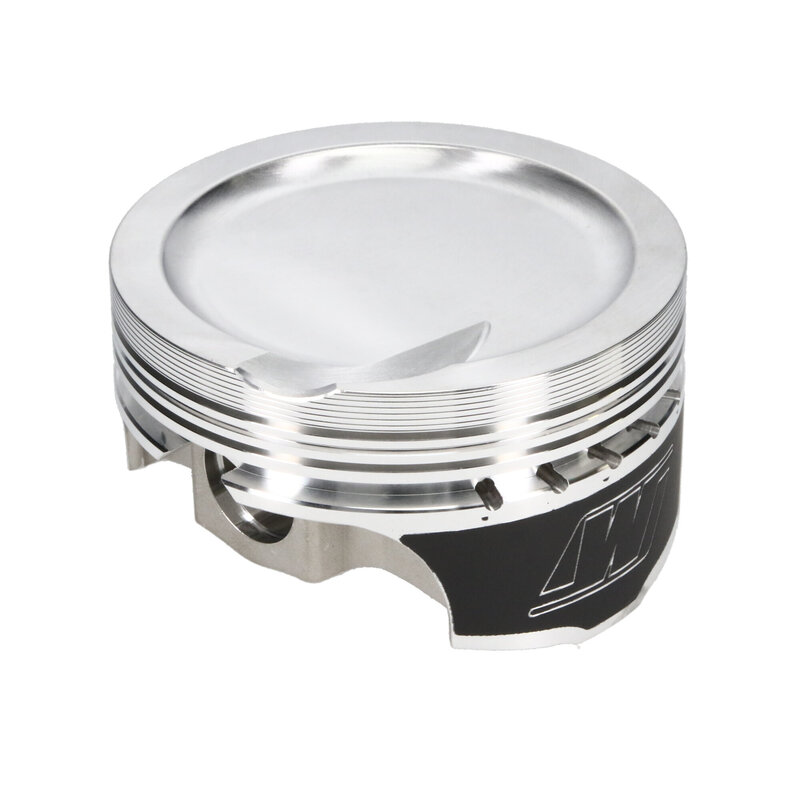

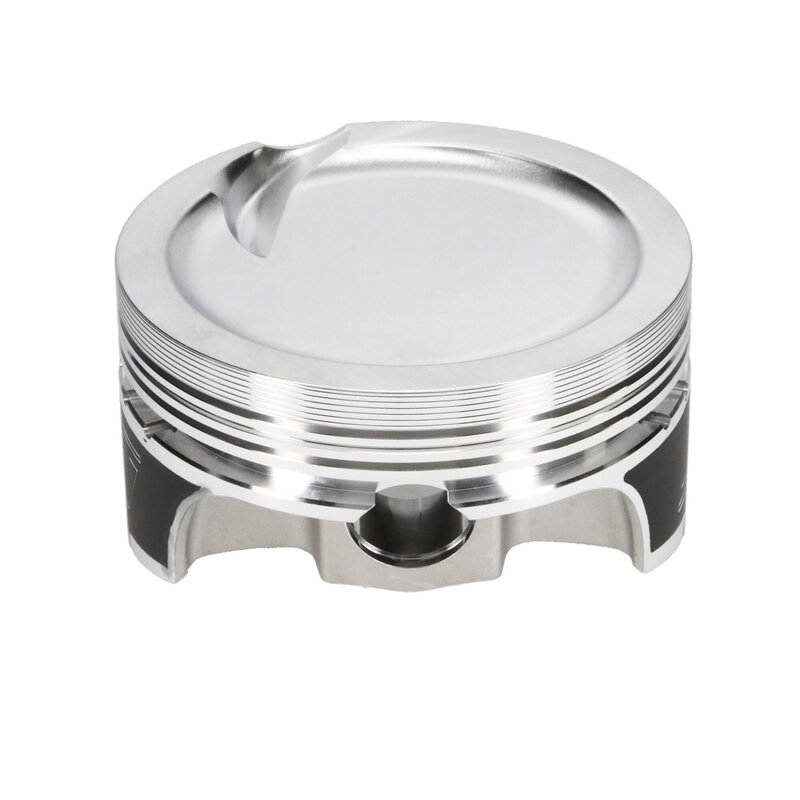

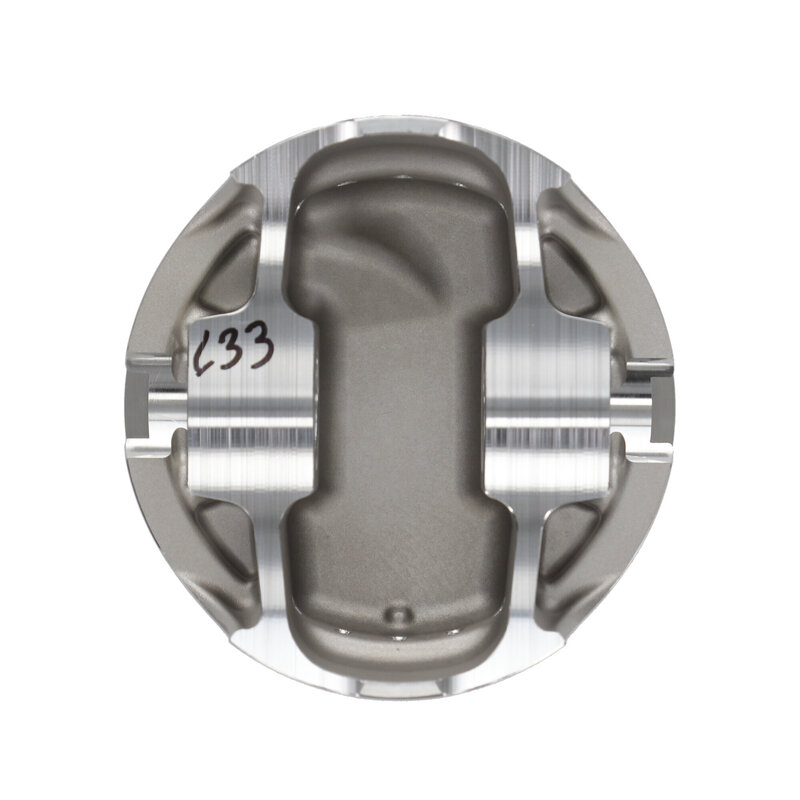

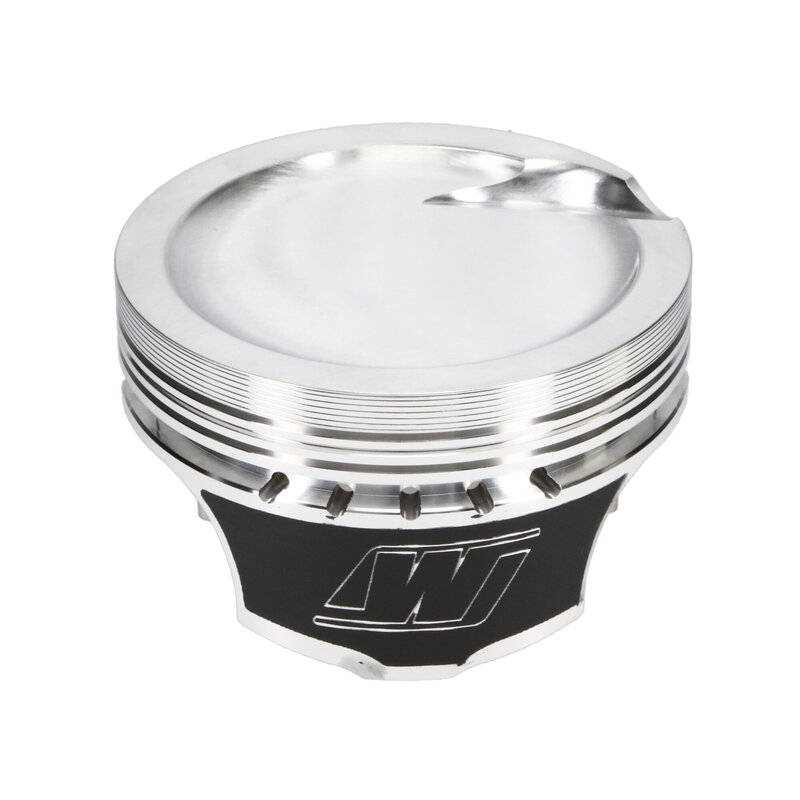

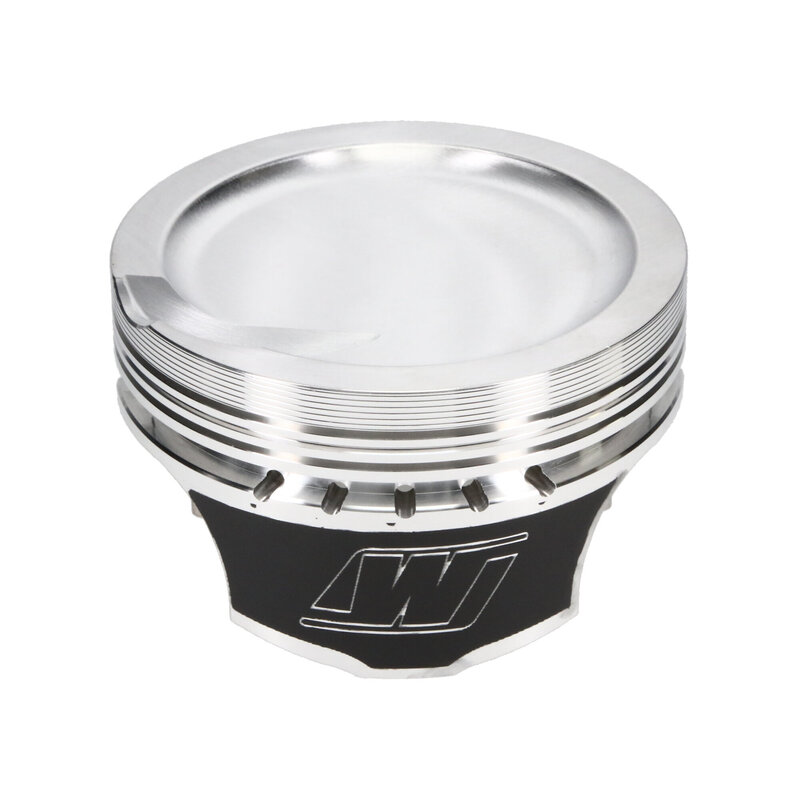

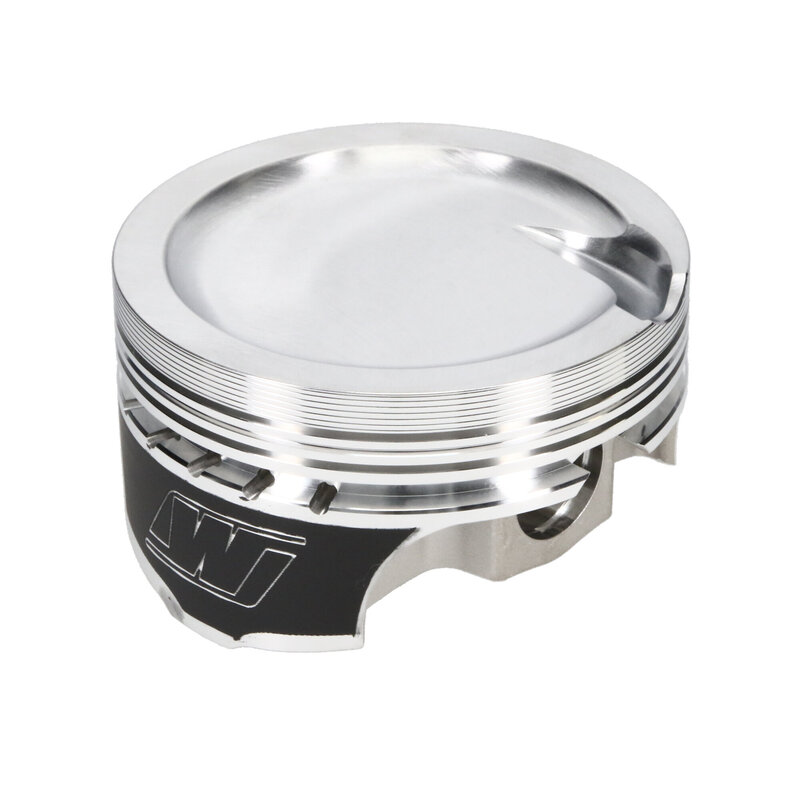

Wiseco Pistons Piston 60135A6; Professional Series 24 deg. 4.560 in. -19.00 cc Dish for Chevy 541
$162.99
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Engineered, forged, and machined in the USA from 2618 aluminum for improved tensile strength
- ArmorGlide Skirt Coating: seizure resistant, friction reduction, and quieter operation
- Fully machined crown features
- Precision ring grooves, anti-detonation groove, and additional ring seal improving features
- Forced pin oiling
- Designed and built to withstand heavy to severe duty performance applications
- Recommended ring set J820H8-4560-5 (sold separately)
- Forced pin oiling
- Designed and built to withstand heavy to severe duty performance applications
- Recommended ring set J820H8-4560-5 (sold separately)
Product Description
Professional Series forged racing pistons from Wiseco are no-expense-spared pistons designed for the serious racers and builders. Packed full of custom-level performance and durability features and provided with premium rings, Professional Series pistons are designed and built for use in heavy to severe duty race builds. Remove your limits with Wiseco?s Professional Series.
Specifications
- Engine Piston Model or Series:
- Professional Series 24 deg.
- Make:
- Chevy
- Engine:
- 541
- Bore:
- 4.560 in.
- Stroke:
- 4.250 in.
- Rod Length:
- 6.385 in.
- Compression Height:
- 1.270 in.
- Crown Volume:
- -19.00 cc Dish
- Weight:
- 616 g
- Cylinder Head Volume to Calculate Compression Ratio:
- 119.00 cc
- Compression Ratio:
- 8.5:1
- Pin Diameter:
- 0.990 in.
- Piston Material:
- Forged 2618 Alloy
- Ring Lands:
- 1/16, 1/16, 3/16 in.
- Skirt Type:
- ArmorGlide Coated Strutted
- Quantity:
- Sold As Each
