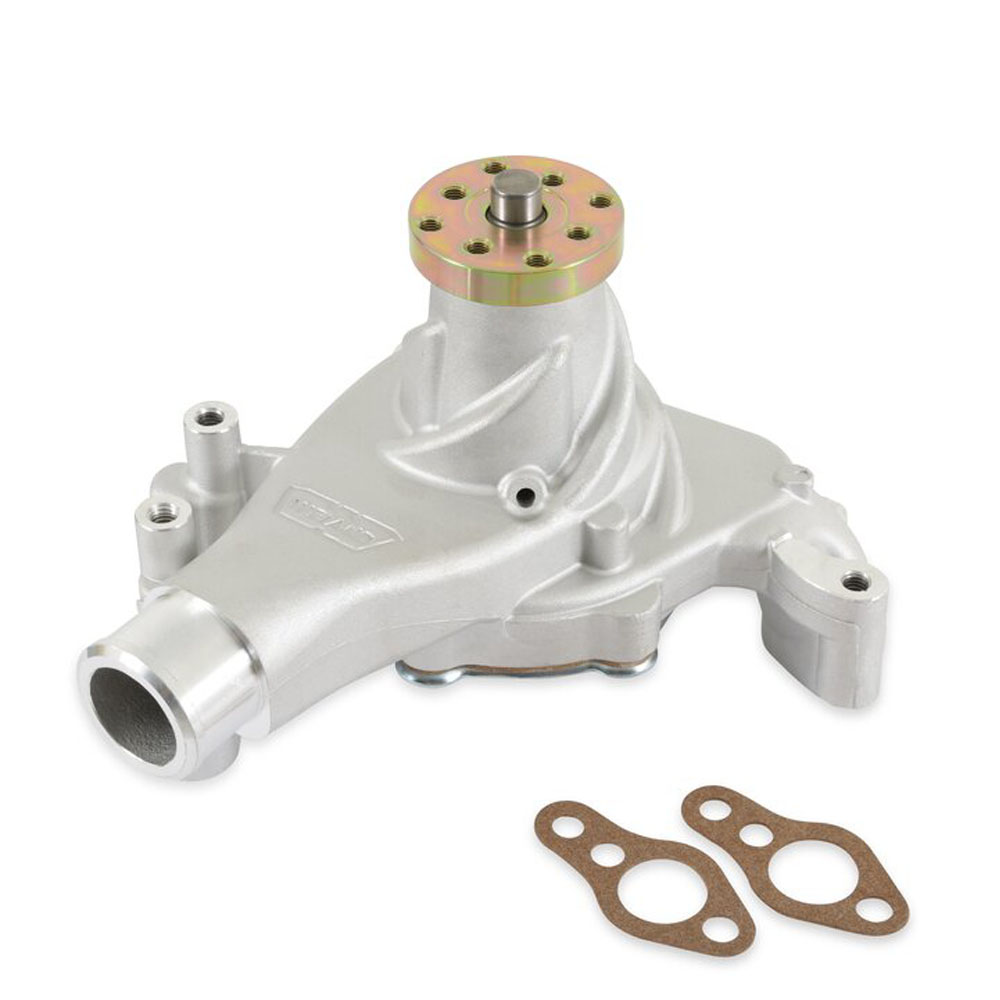

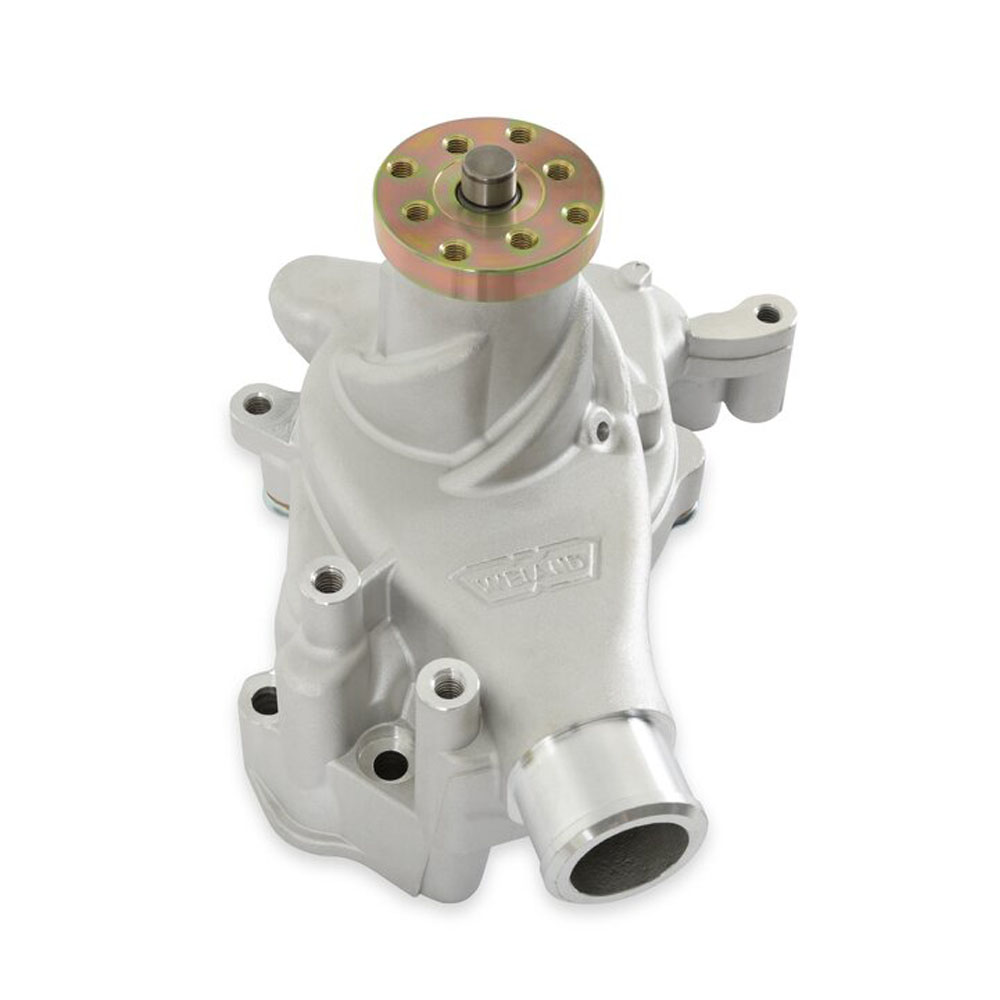

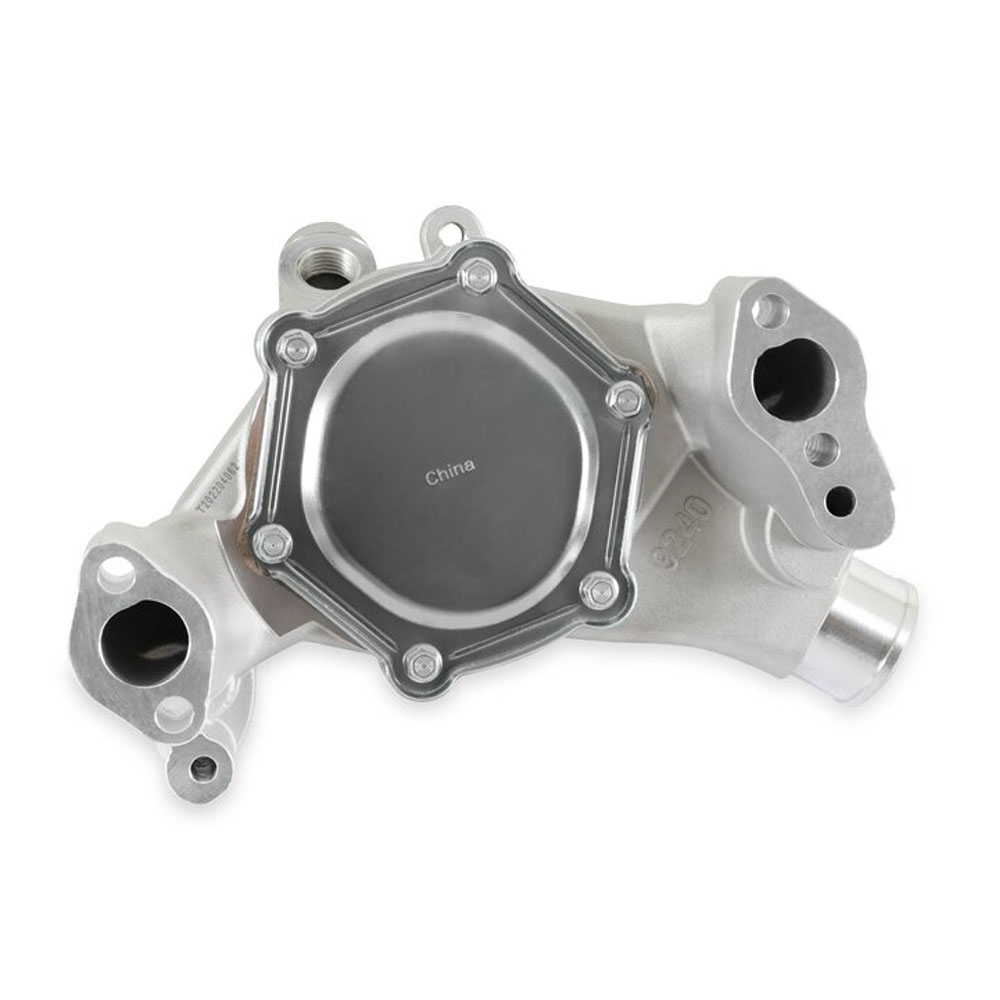

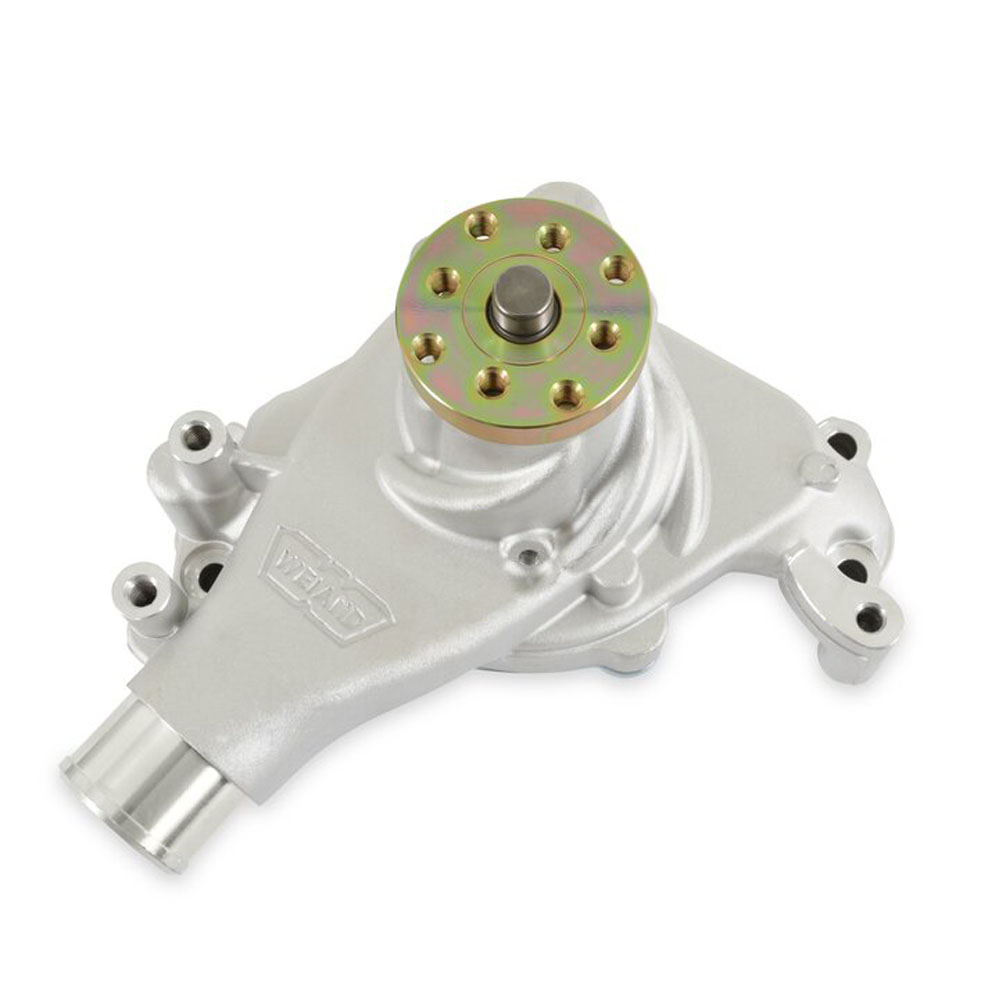

Weiand Mechanical Water Pump 9240; Action Plus High Volume Natural Aluminum with Twisted Snout Mechanical Long for Chevy 262 to 400

$164.99

$185.95 On Sale

Save 11%

Part #: 9240

Brand: Weiand

UPC: 090127630976

Estimated Ship Date: Today

Specifications Tech Resources

This item is not eligible for our Free Freight program because either this part type is excluded or its price is already at our lowest. However, it will still count toward the total when you purchase other items that do qualify for Free Freight.
See our shipping policy for more details.

Details

Lightweight Aluminum
CNC Machined
Heavy Duty Shaft with 5/8 in. Pilot
Six Blade Stamped Steel Anti-Cavitation Impeller For Max Flow
100% Leak Tested
Best Value In Water Pumps/Unbelievable Low Price
Twisted Snout Design For Updated Style
Permanent Mold Castings For Improved Appearance
Extra HD 1/2 in. Thick Pulley Hubs For Max. Durability
Zinc Plated Back Covers/Hdw For Long Life/Corrosion Resistance

Product Description

Weiand's light weight, performance aluminum mechanical Action–Plus water pumps give a weight saving of 30 percent to 50 percent over stock cast–iron pumps. These pumps feature a premium quality bearing and seal that have twice the load capacity of stock pumps. Weiand's exclusive housing counter bore keeps the bearing form walking out. All pumps are designed with the necessary bracket bosses and water connections to fit popular street applications.

Specifications

Mechanical Water Pump Series:
Action Plus: Make:
Chevy: Engine:
262 to 400: Water Pump Style:
Mechanical Long: Water Pump Material:
Aluminum with Twisted Snout: Water Pump Finish:
Natural: Water Pump Flow:
High Volume: Inlet Adapter Included:
No: Standard or Reverse Rotation:
Standard: Pilot Diameter:
0.625 in.: Includes Mounting Gaskets/Seals:
Yes: Includes Mounting Hardware:
No: Hub Height:
6.938 in.: Notes:
Long Style pump: Quantity:
Sold As Each
