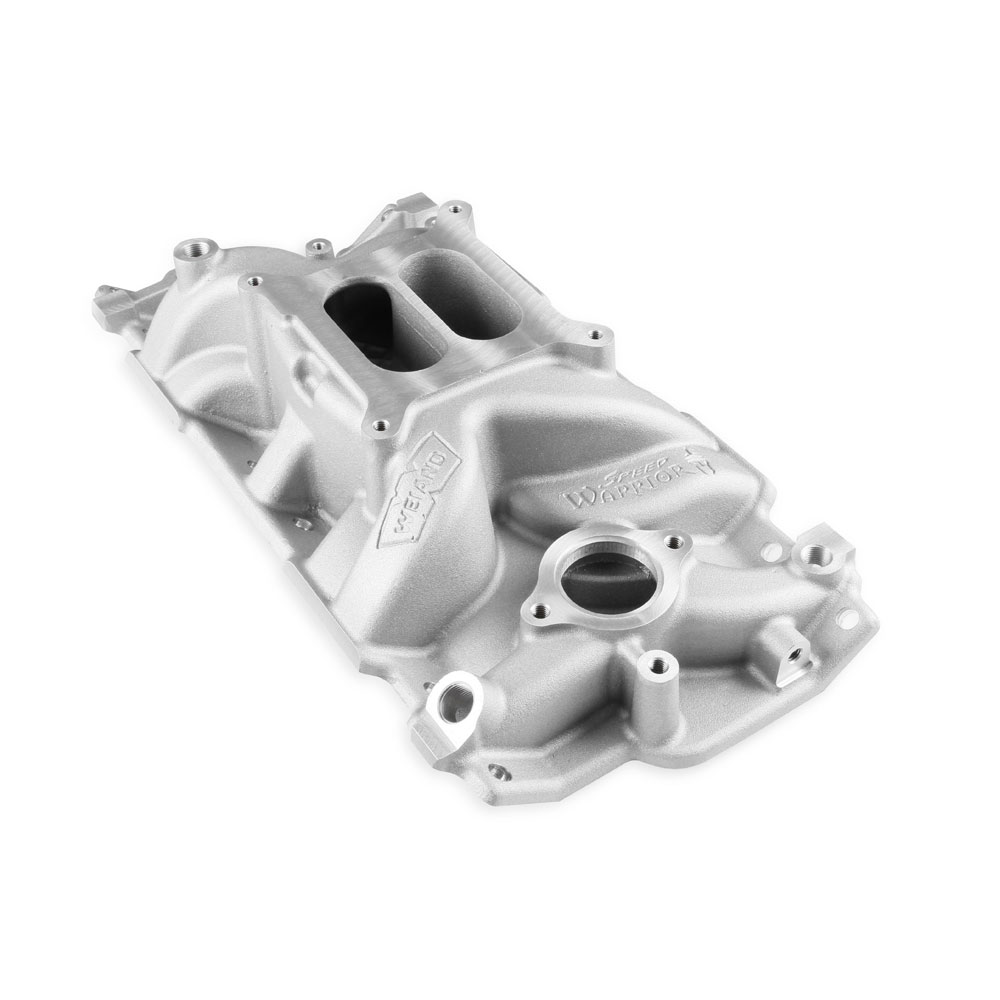

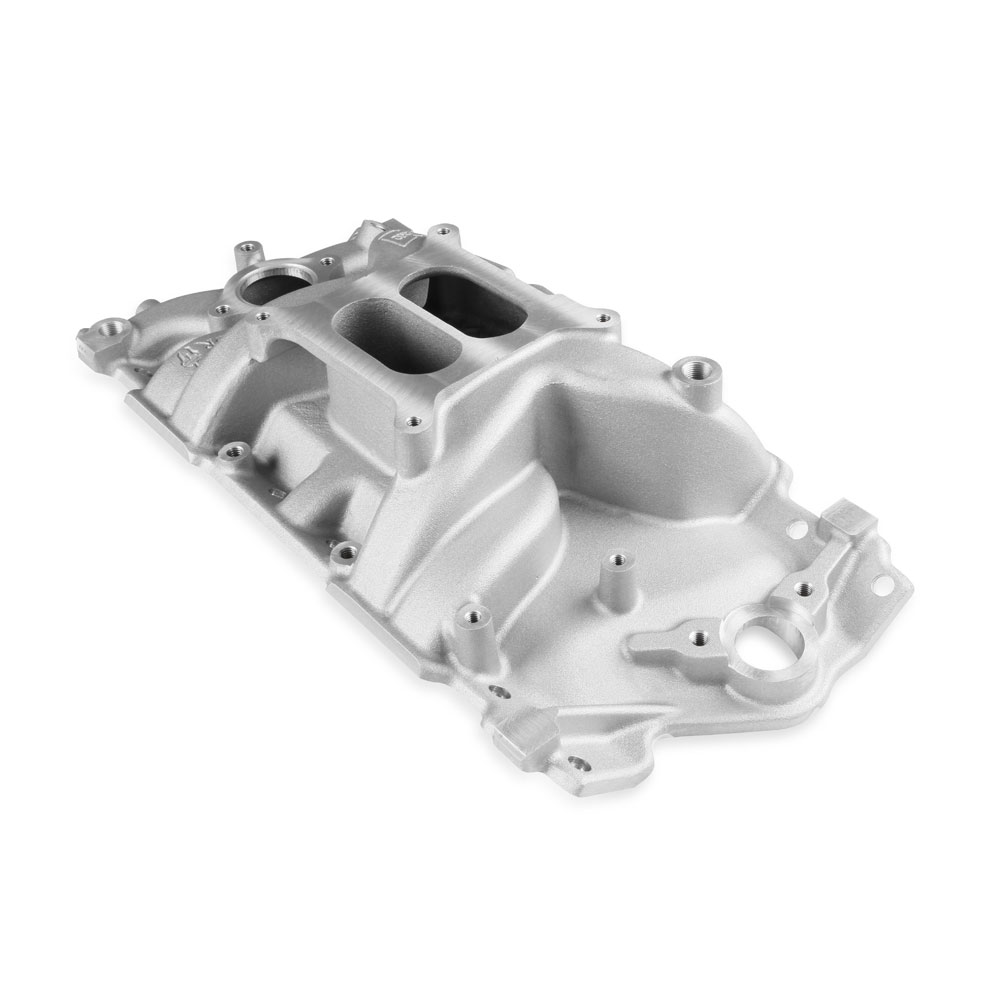

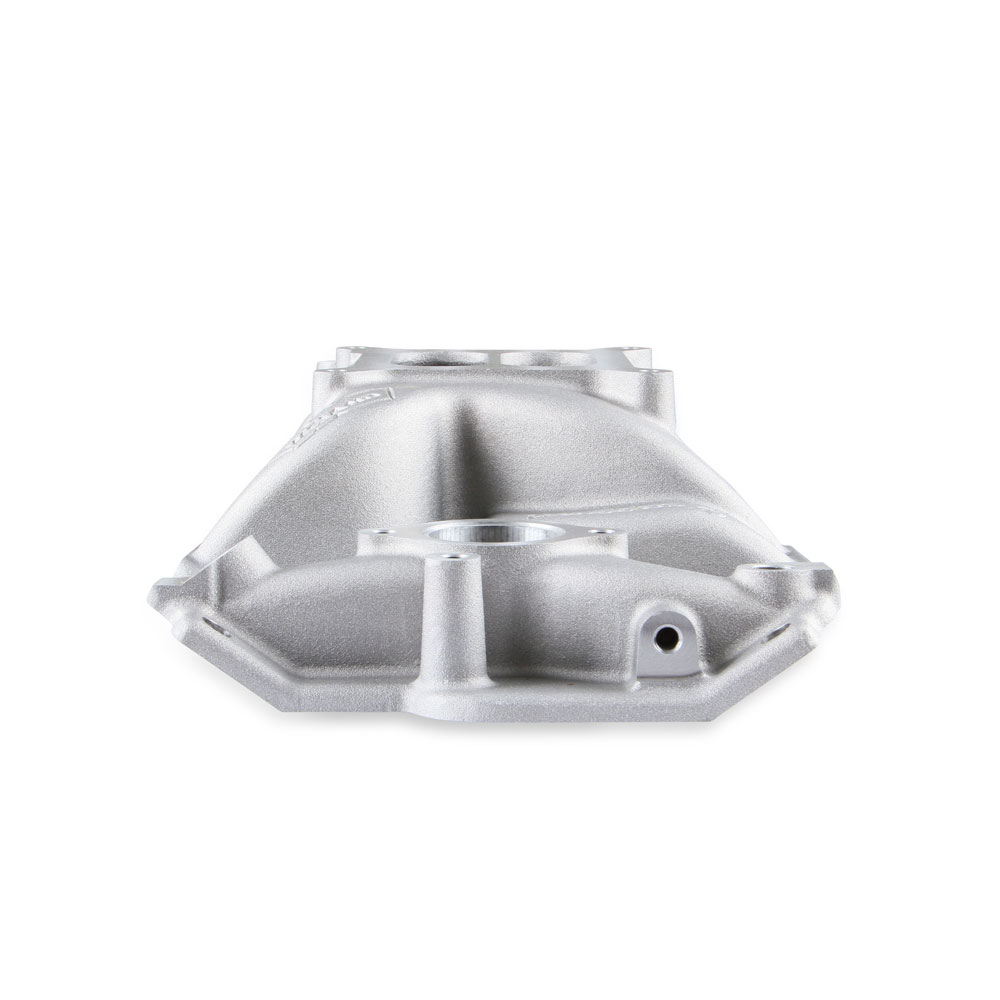

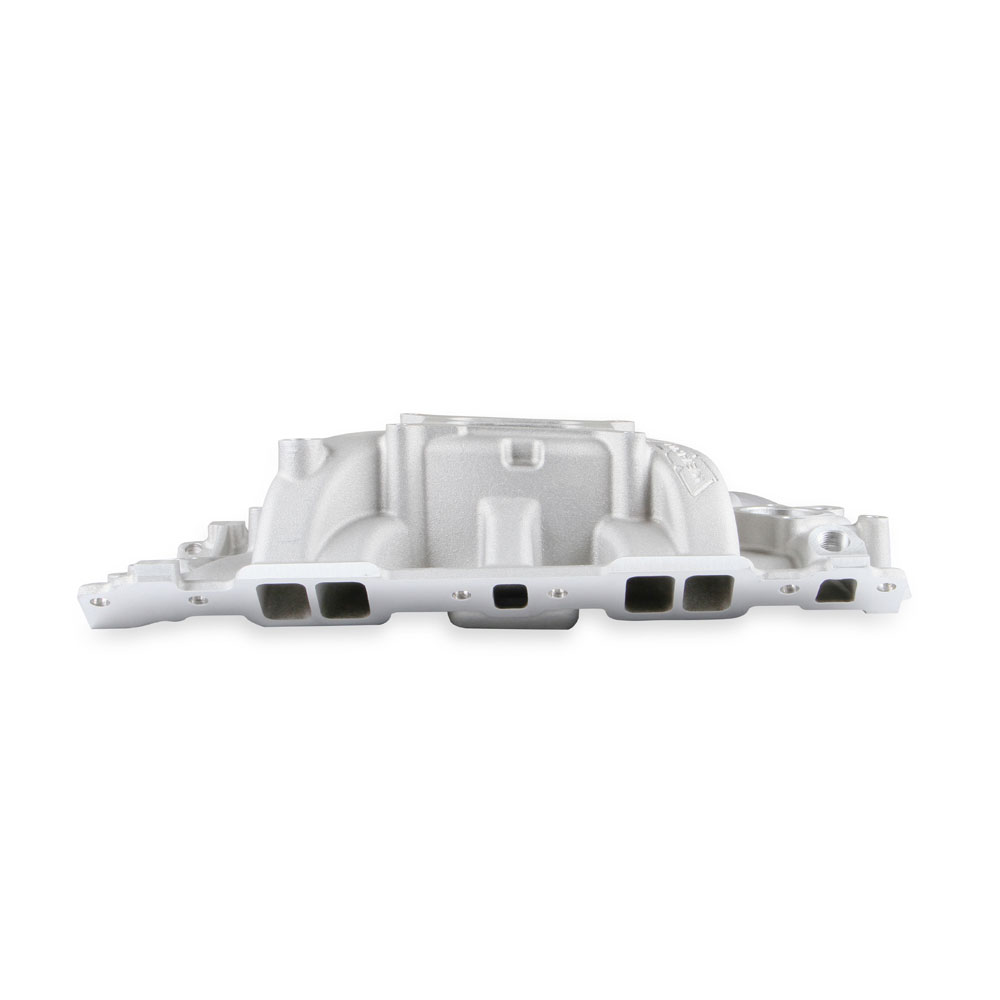

Weiand Intake Manifold 8150; Speed Warrior Rectangular Dual Plane 1500 to 6700 Satin Aluminum for 1957 to 1986 Chevy 262 to 400
$251.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Satin - As Cast - Finish For An Even Surface Texture
- Precision CNC Machining
- High Rise/Dual Plane Design
- Square Bore Carburetor Flange
- Exhst Crossover For Improved Street Drivability (Std. SBC Heads)
- 1500-6700 RPM Power Band
- Height Front 4.19 in.
- Rear 5.27 in.
- Port Size 1.92 in. Height x 1.16 in. Width
- Exhst Crossover For Improved Street Drivability (Std. SBC Heads)
- 1500-6700 RPM Power Band
- Height Front 4.19 in.
- Rear 5.27 in.
- Port Size 1.92 in. Height x 1.16 in. Width
Product Description
The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod! Weiand developed the first ever aluminum intake manifold in 1937. Thirty years later Weiand developed complete blower drives for the GMC 6–71 supercharger. Today, Weiand is still at the forefront of intake manifold and blower development as well as high flow water pumps. To make more power you have to get more air to your engine. Look to Weiand as your power source! *** Utilizes late model alternator an A/C bracket mounting provisions. Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G ** Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16". To the bottom of the lower plenum is 4-1/16".
Specifications
- Intake Manifold Model or Series:
- Speed Warrior
- Year:
- 1957 to 1986
- Make:
- Chevy
- Engine:
- 262 to 400
- Deck Height:
- Standard
- Port Style:
- Rectangular
- Intake Style:
- Dual Plane
- Carburetor or Throttle Body Flange:
- 4150 Square Flange
- RPM Range:
- 1500 to 6700
- EGR or Non-EGR:
- Non EGR
- Material:
- Aluminum
- Finish:
- Satin
- Includes Gaskets:
- No
- Front Height:
- 4.190 in.
- Fuel System Type:
- Carbureted
- Requires Aftermarket Fuel Rails:
- No
- Includes Fuel Rails:
- No
- Rear Height:
- 5.270 in.
- Quantity:
- Sold As Each
