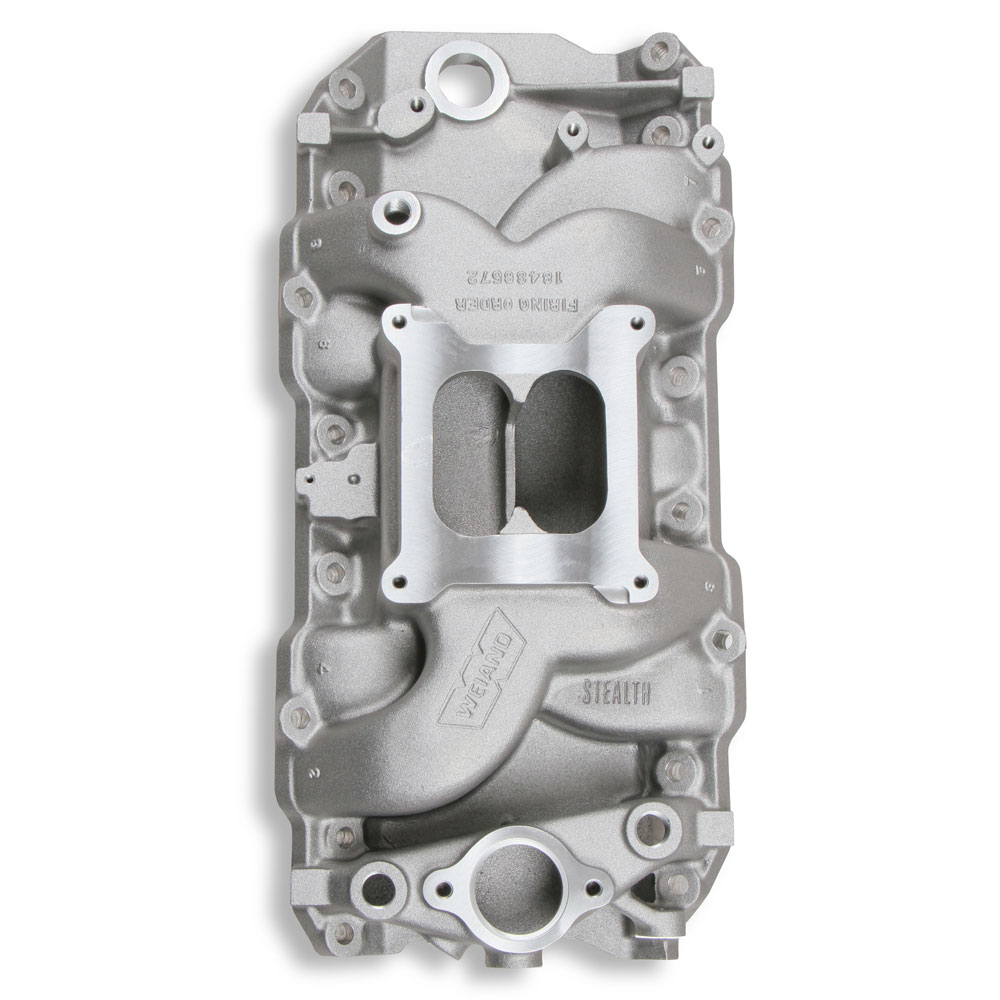

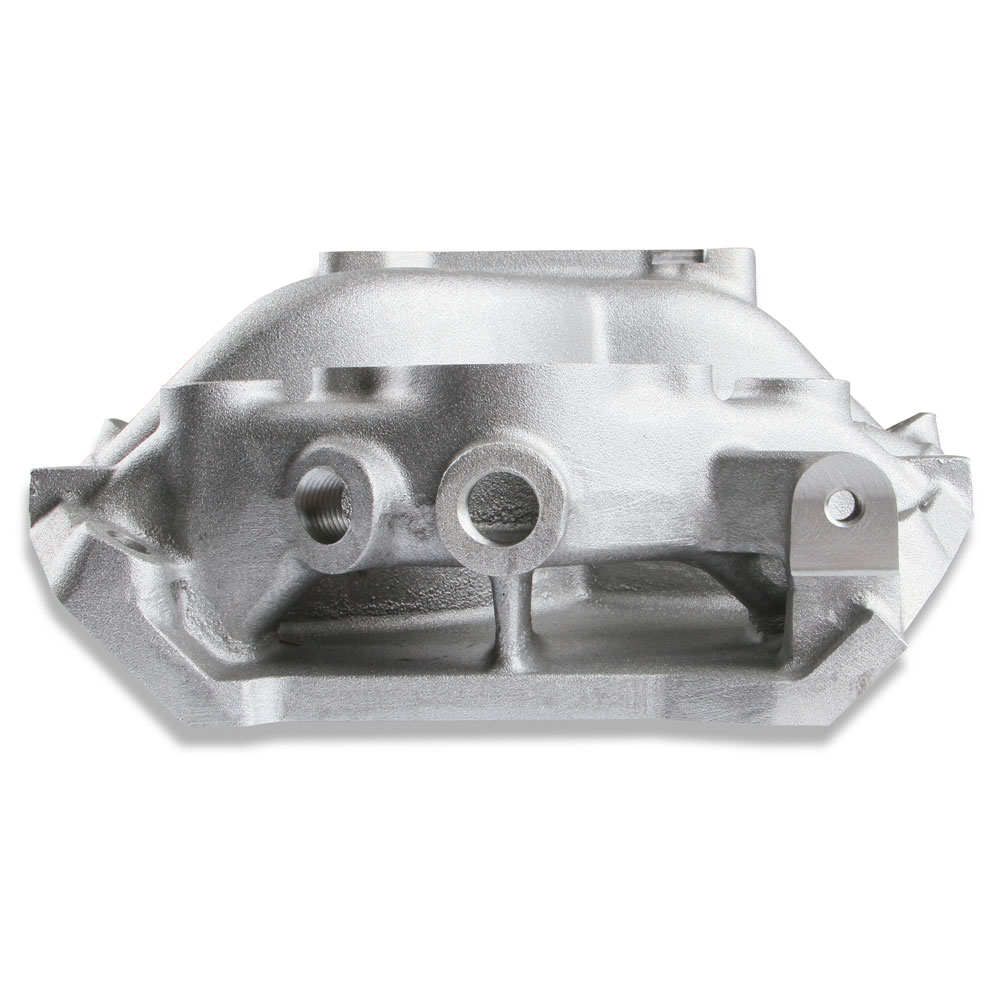

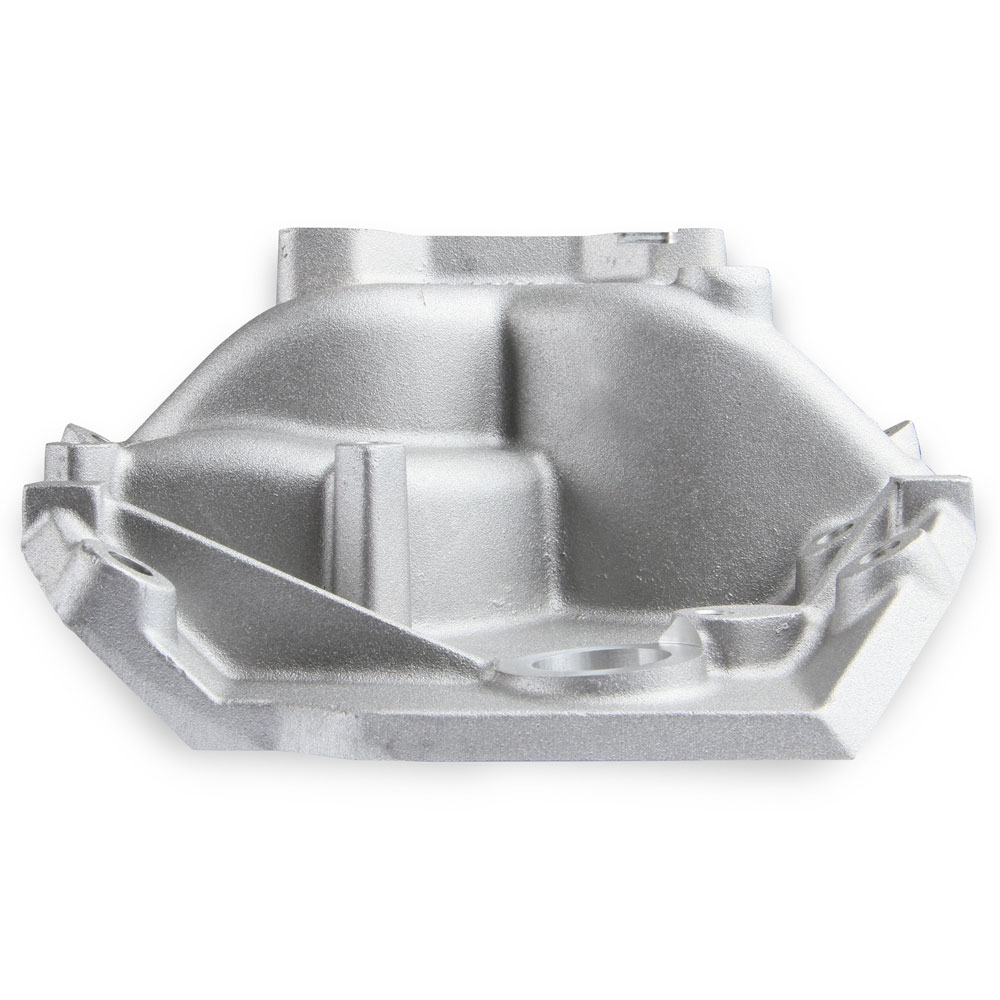

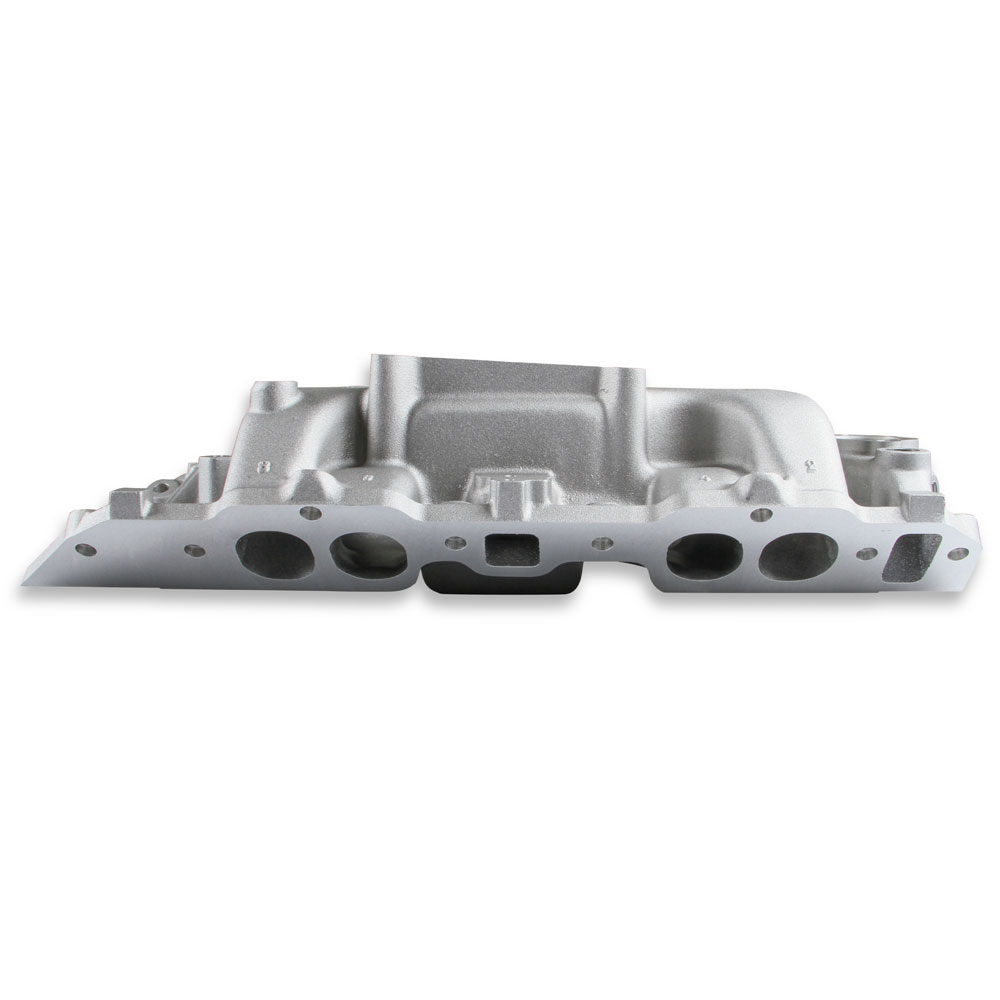

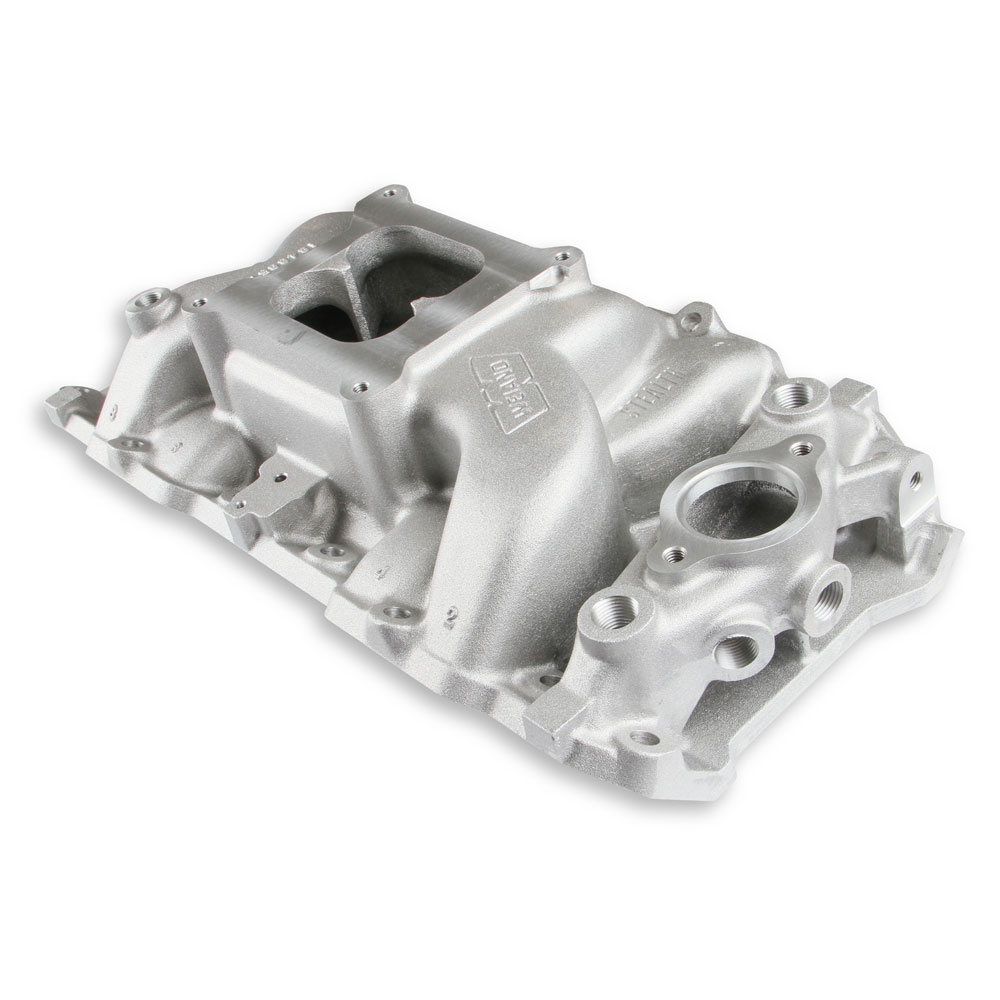

Weiand Intake Manifold 8019; Stealth Series Oval Dual Plane Idle to 6500 Satin Aluminum for Chevy 396 to 454
$398.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- High Rise/Dual Plane Design
- Port Size 1.84 in. Height x 1.64 in. Width
- Height Front 4.75 in.
- Rear 5.75 in.
- Idle-6800 RPM Power Band
- Machined For Standard Deck BLocks
- 4150 Style Square Bore Mounting Flange
- Idle-6800 RPM Power Band
- Machined For Standard Deck BLocks
- 4150 Style Square Bore Mounting Flange
Product Description
This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! ** Will clear HEI Distributor
Specifications
- Intake Manifold Model or Series:
- Stealth Series
- Make:
- Chevy
- Engine:
- 396 to 454
- Deck Height:
- Standard
- Port Style:
- Oval
- Intake Style:
- Dual Plane
- Carburetor or Throttle Body Flange:
- 4150 Square Flange
- RPM Range:
- Idle to 6500
- EGR or Non-EGR:
- Non EGR
- Material:
- Aluminum
- Finish:
- Satin
- Includes Gaskets:
- No
- Front Height:
- 4.750 in.
- Fuel System Type:
- Carbureted
- Requires Aftermarket Fuel Rails:
- No
- Includes Fuel Rails:
- No
- Rear Height:
- 5.750 in.
- Notes:
- Nostalgia Series intake.
- Quantity:
- Sold As Each
