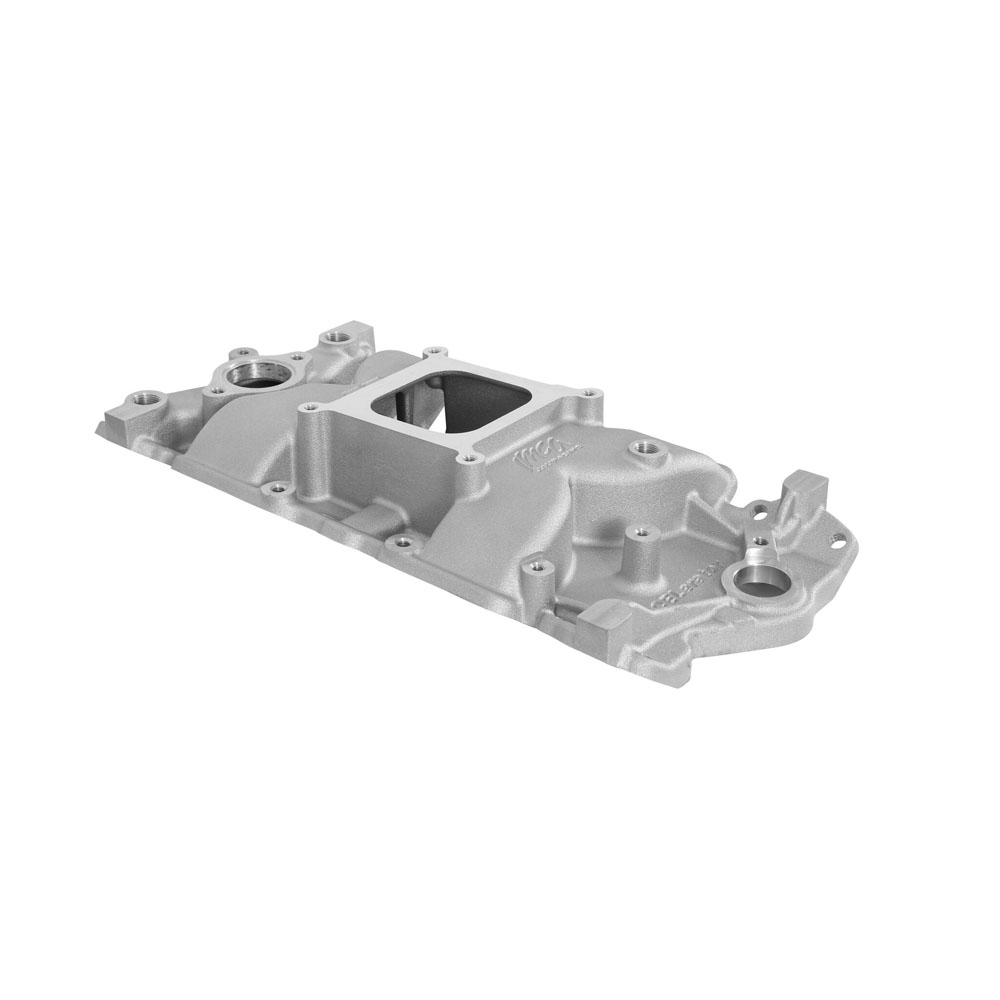

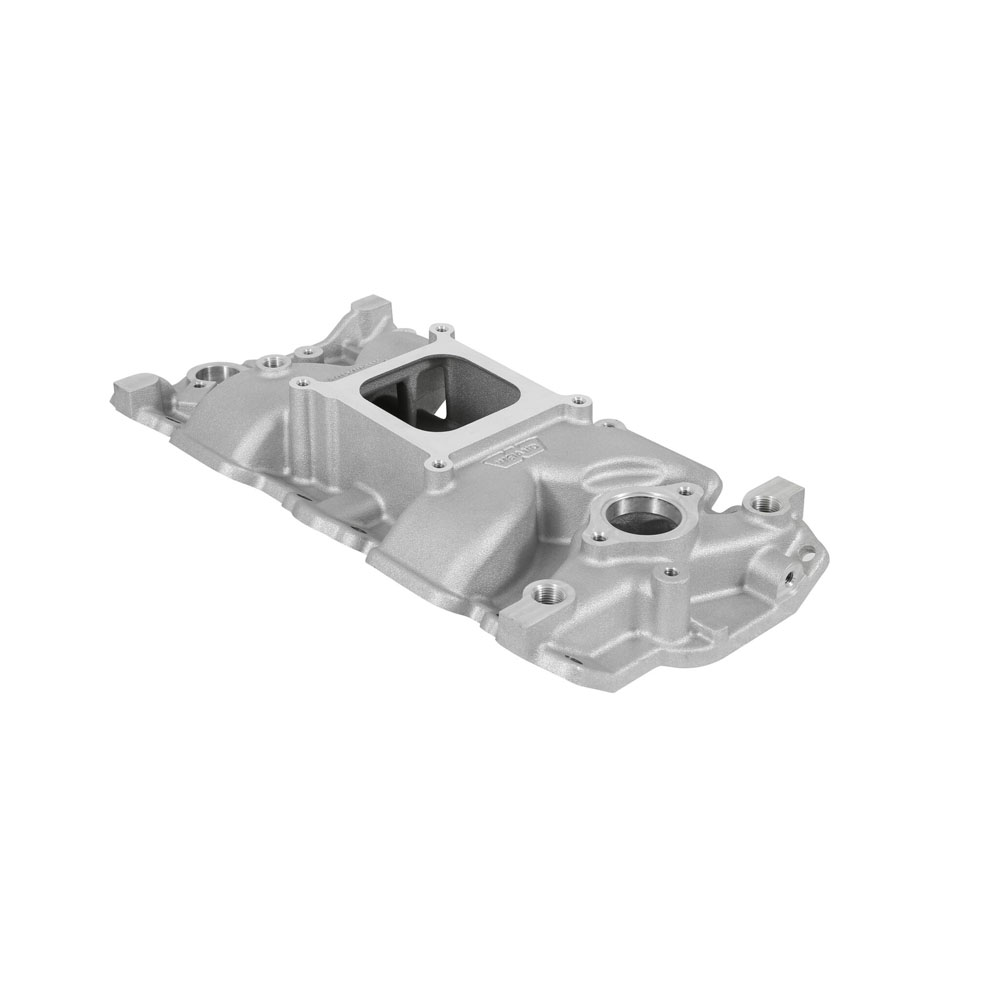

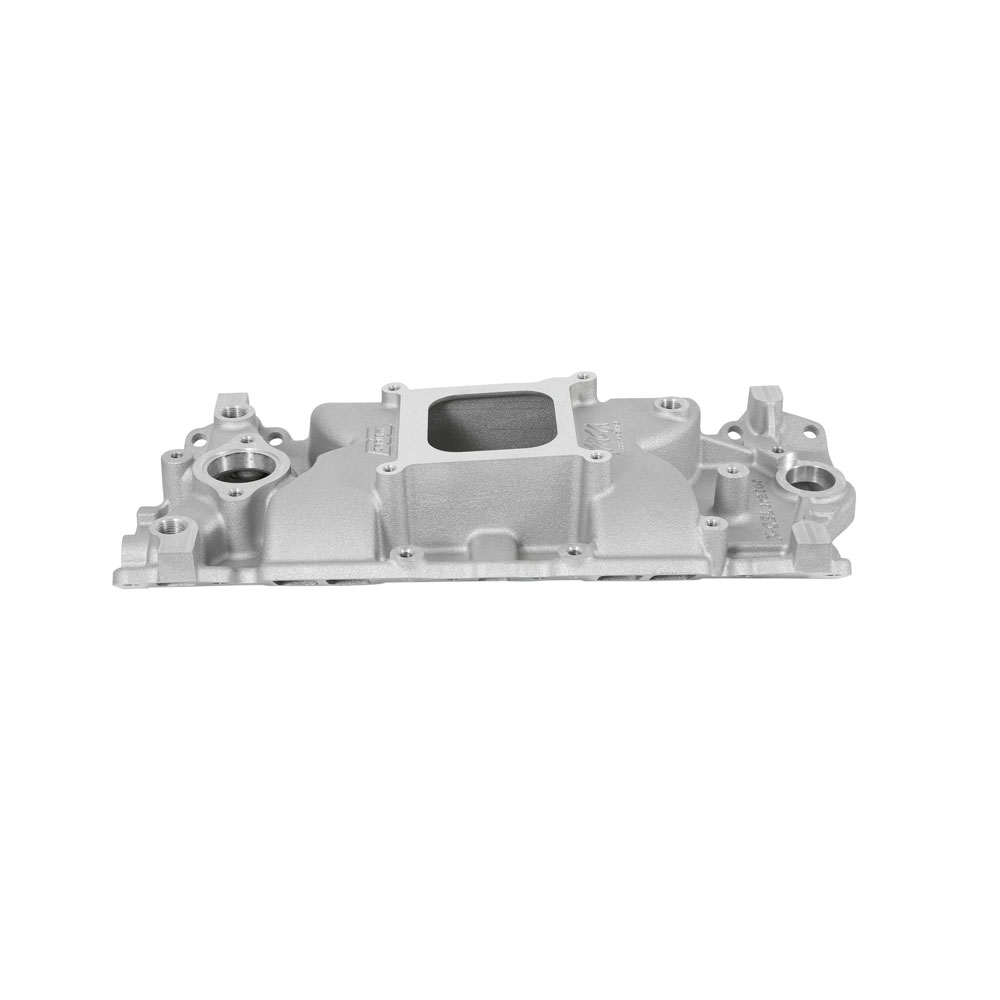

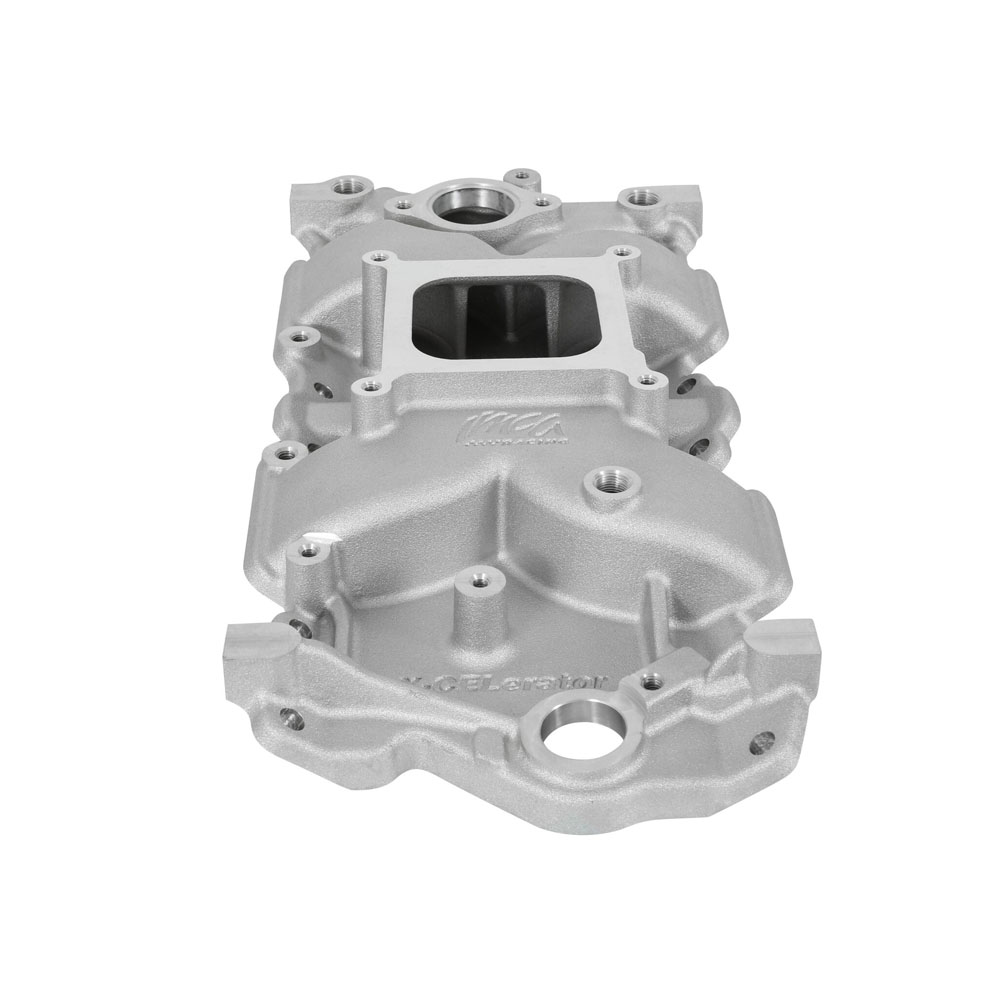

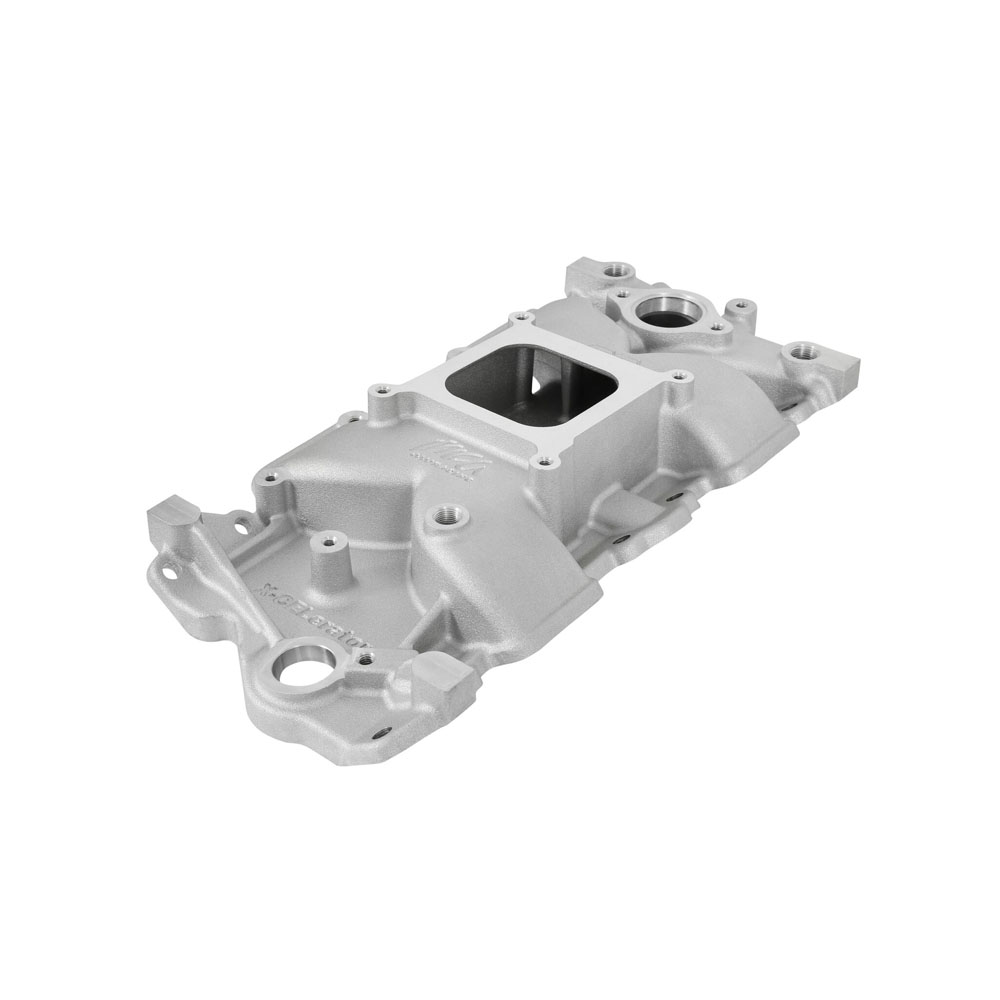

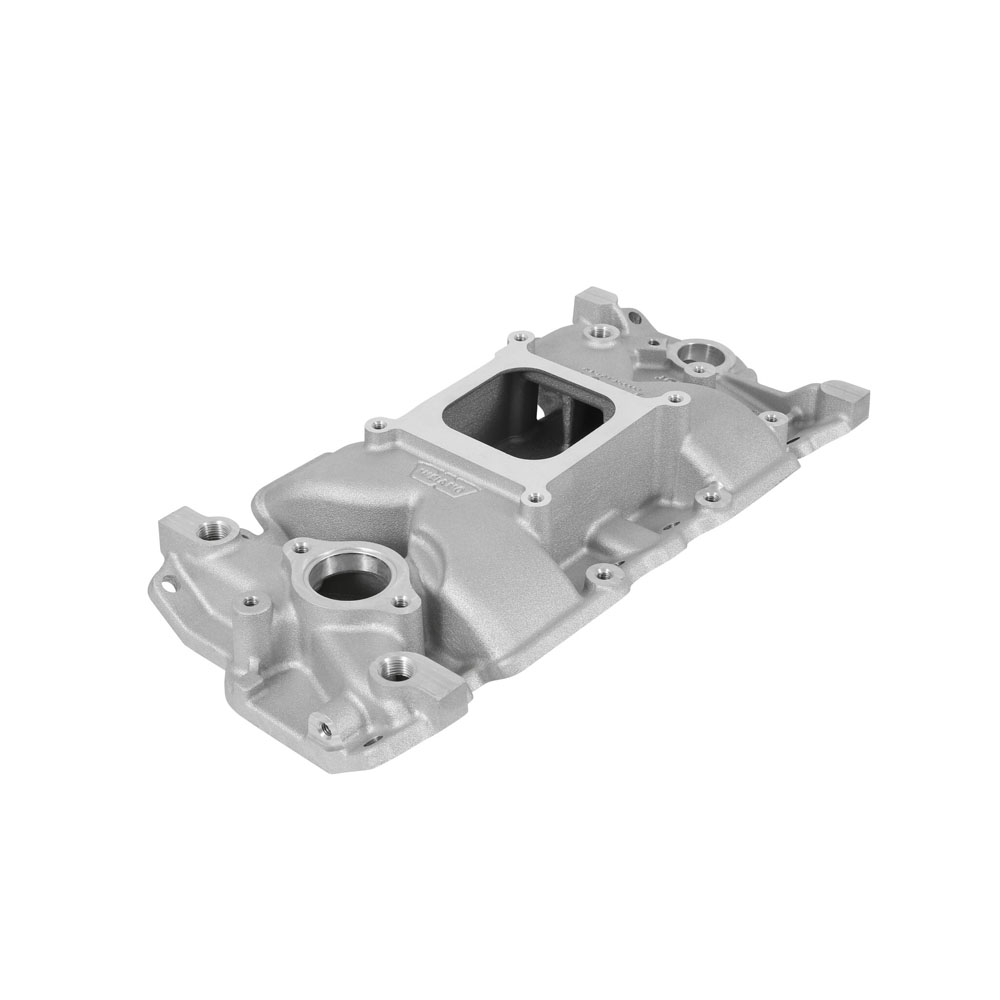

Weiand Intake Manifold 7547-1; X Celerator Single Plane 2500 to 7000 Satin Aluminum for 1957 to 1986 Chevy 262 to 400
$296.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Single Plane Design
- Square Flange Carburetor Mounting
- IMCA Approved
- Power Band 2500-7000 RPM
- Height 3.09 in. Front
- 4.06 in. Rear
- Port Size 1.85 in. Height x 1.15 in. Width
- No Provision For Divorced Or Hot Air Choke
- Height 3.09 in. Front
- 4.06 in. Rear
- Port Size 1.85 in. Height x 1.15 in. Width
- No Provision For Divorced Or Hot Air Choke
Product Description
This Weiand X-CELerator manifold was specifically designed with the IMCA racer in mind. It is fully legal for use in IMCA Stock Car and Sportmod Competition! This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand!
Specifications
- Intake Manifold Series:
- X Celerator
- Year:
- 1957 to 1986
- Make:
- Chevy
- Engine:
- 262 to 400
- Deck Height:
- Standard
- Port Style:
- Rectangular
- Intake Style:
- Single Plane
- Carburetor or Throttle Body Flange:
- 4150 Square Flange
- RPM Range:
- 2500 to 7000
- EGR or Non-EGR:
- Non EGR
- Material:
- Aluminum
- Finish:
- Satin
- Includes Gaskets:
- No
- Front Height:
- 3.090 in.
- Fuel System Type:
- Carbureted
- Requires Aftermarket Fuel Rails:
- No
- Includes Fuel Rails:
- No
- Rear Height:
- 4.060 in.
- Notes:
- IMCA Legal. Nostalgia Series intake.
- Quantity:
- Sold As Each
