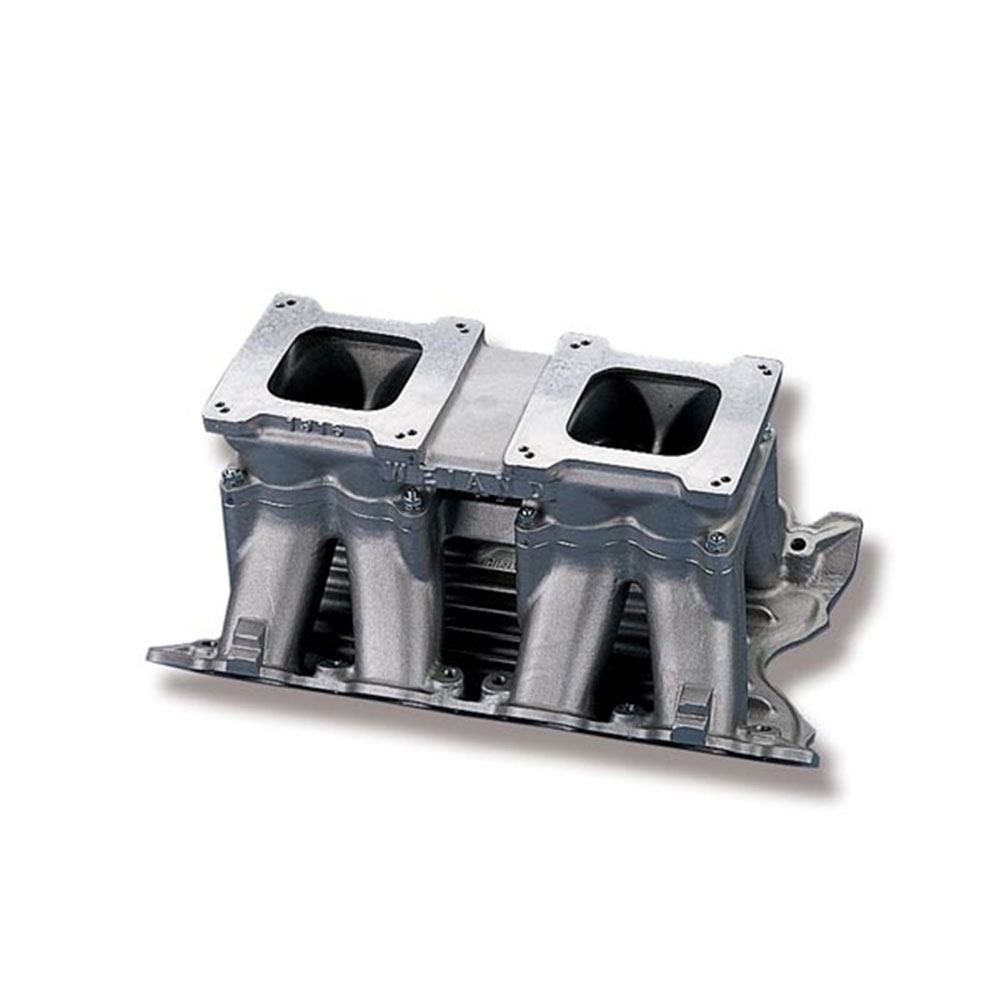

Photo for Weiand Intake Manifold 1994WND; Satin Aluminum for Ford SBF

Weiand Intake Manifold 1994WND; Satin Aluminum for Ford SBF

$838.95

Part #: 1994WND

Brand: Weiand

UPC: 032474199409

Estimated Ship Date: This part is unavailable with no ETA

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • 2 x 4 Carburetor Top
  • Square Flange Carburetor Mounting
  • Special D-Shaped Port Runner Design
  • Large Volume Plenum
  • 3200-9000 RPM Power Band
  • Height Front 8.81 in.
  • Rear 9.18 in.
  • Port Size 2.36 in. Height x 1.63 in. Width
  • Carb Flange Center-To-Center 8 3/4 in.

Product Description

HI-RAM SERIES: These tunnel ram manifolds are used primarily in drag racing, tractor/truck pulls and performance marine applications where high RPM performance is required. The effective RPM range is between 2,800 to 9,000 RPM. The WEIAND Hi-Ram, with it''s patented D-shaped port runners and large plenum chamber, provides optimum velocity of the air/fuel mixture to the cylinder head intake ports. For maximum performance in a naturally aspirated competition application, the WEIAND Hi-Ram is the manifold of choice! This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling. Weiand Nostalgia series intakes are proudly cast and machined in the USA. We support all areas of the vintage, show, and nostalgia car hobby, and want to continue to produce these lower volume manifolds using the original tools. There is no need to search for that vintage intake at swap meets or on the internet when you can buy the real deal new from Weiand! *** Stock electronic ignition will NOT clear.

Specifications

Make:
Ford
Engine:
SBF
Material:
Aluminum
Finish:
Satin
Front Height:
8.810 in.
Fuel System Type:
Carbureted
Quantity:
Sold As Each
