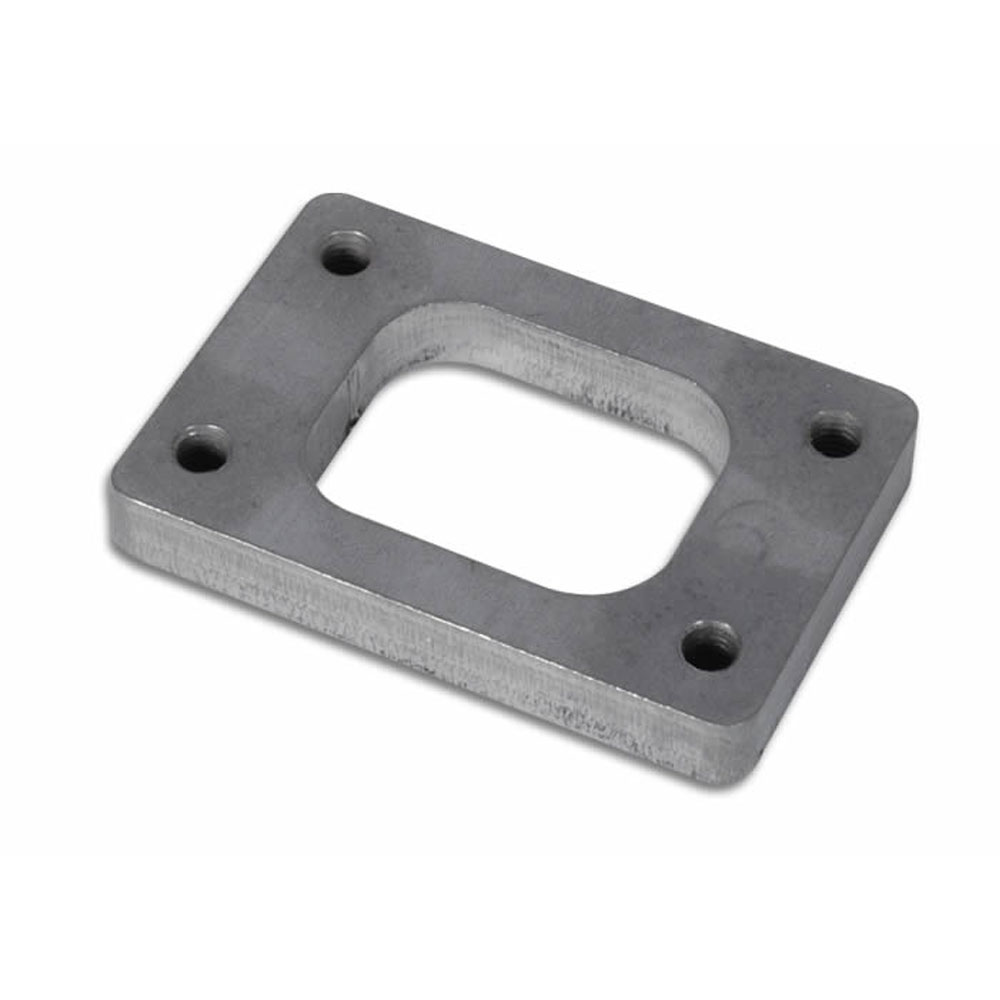

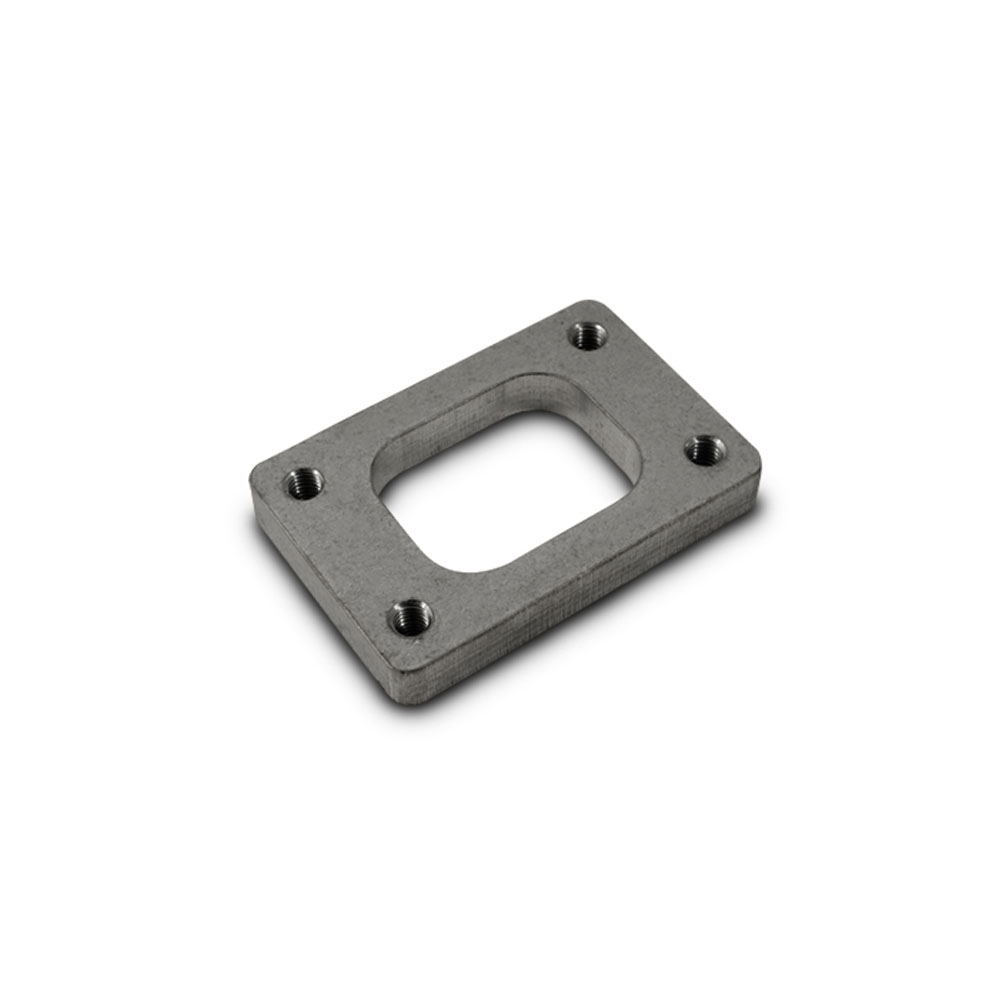

Vibrant Turbocharger Flange 14300; Open Mild Steel Garrett GT1548, 25 to 550, G25, 660 (T25 Inlet), Borg Warner EFR6758, EFR7163 Turbine Inlet
$38.50
Details
- Precision laser cut and CNC machined to ensure a perfect fit to your turbo components
Product Description
Vibrant Performance mild steel turbo flanges are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, complex multi bolt and block off turbo flanges are all available.
Specifications
- Fits Turbocharger Models:
- Garrett GT1548, 25 to 550, G25, 660 (T25 Inlet), Borg Warner EFR6758, EFR7163
- Flange Material:
- Mild Steel
- Flange Thickness:
- 0.500 in.
- Flange Type:
- Turbine Inlet
- Open or Divided:
- Open
- Number of Bolt Holes:
- 4 Bolt
- Bolt Holes Tapped or Un-Tapped:
- Tapped
- Bolt Pattern:
- 39.900 x 72.800 mm
- Bolt Size:
- M8 x 1.25
- Overall Height:
- 62.700 mm
- Overall Port Width:
- 50.800 mm
- Overall Width:
- 91.610 mm
- Quantity:
- Sold As Each
