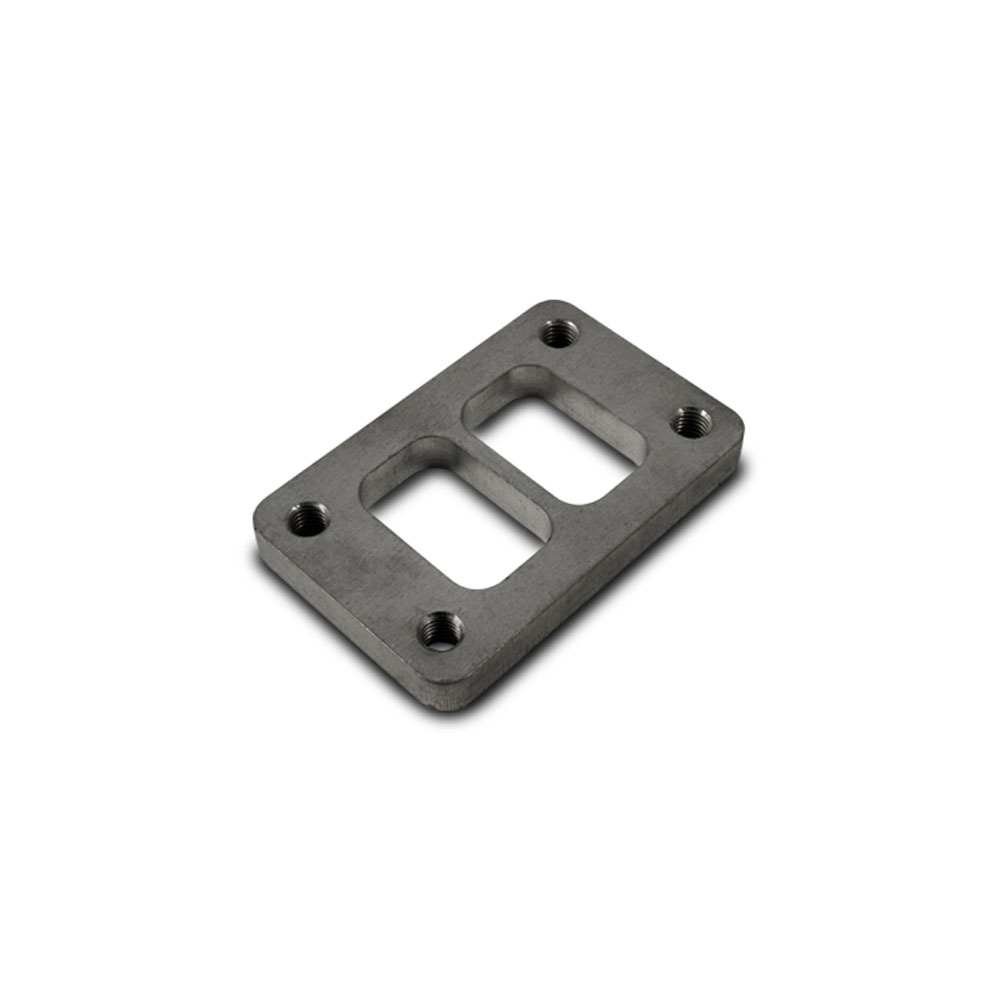

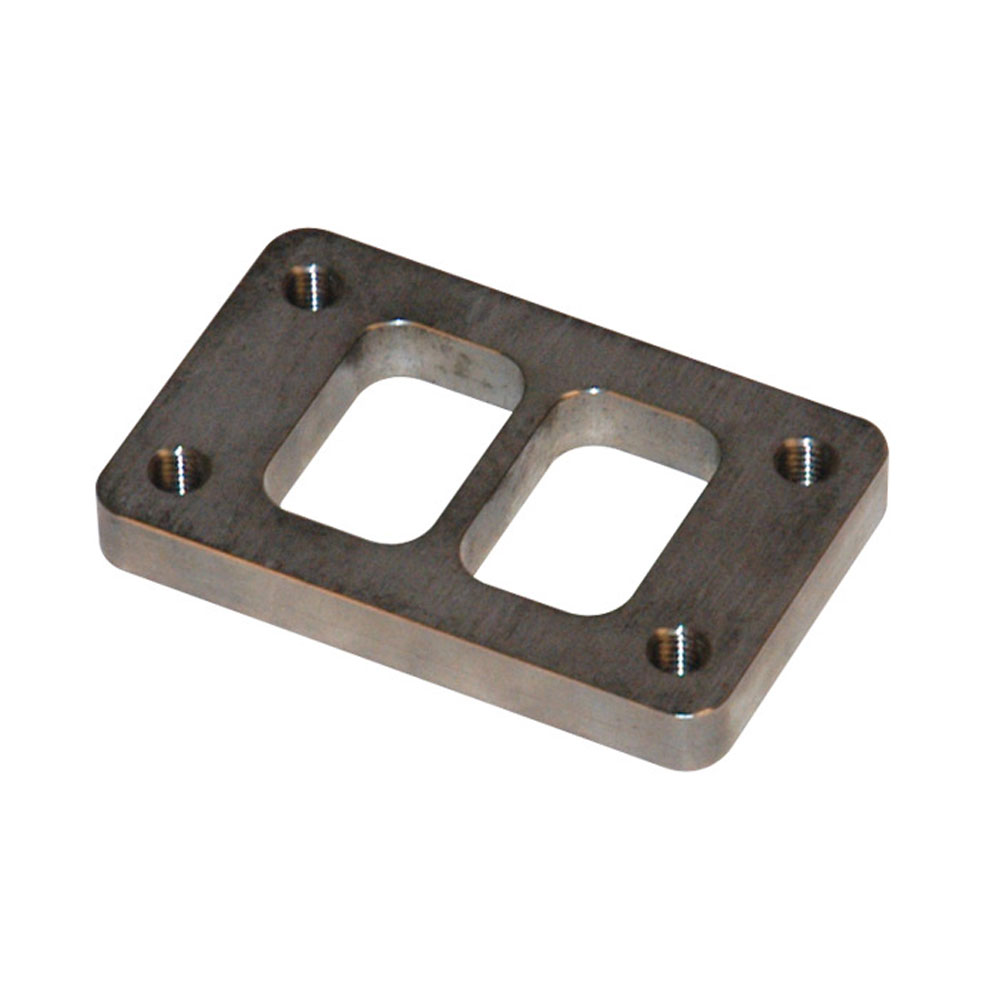

Vibrant Performance Turbocharger Flange 14450; Divided Mild Steel Garrett GT3271, T3 Turbine Inlet
$47.99
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Precision laser cut and CNC machined to ensure a perfect fit to your turbo components
Product Description
Vibrant Performance mild steel turbo flanges are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, complex multi bolt and block off turbo flanges are all available.
Specifications
- Fits Turbocharger Models:
- Garrett GT3271, T3
- Flange Material:
- Mild Steel
- Flange Thickness:
- 0.500 in.
- Flange Type:
- Turbine Inlet
- Open or Divided:
- Divided
- Number of Bolt Holes:
- 4 Bolt
- Bolt Holes Tapped or Un-Tapped:
- Tapped
- Inlet Diameter:
- 1.500 in.
- Bolt Pattern:
- 44.500 x 86.000 mm
- Bolt Size:
- M10 x 1.50
- Overall Height:
- 69.900 mm
- Overall Port Width:
- 62.580 mm
- Overall Width:
- 108.000 mm
- Quantity:
- Sold As Each
