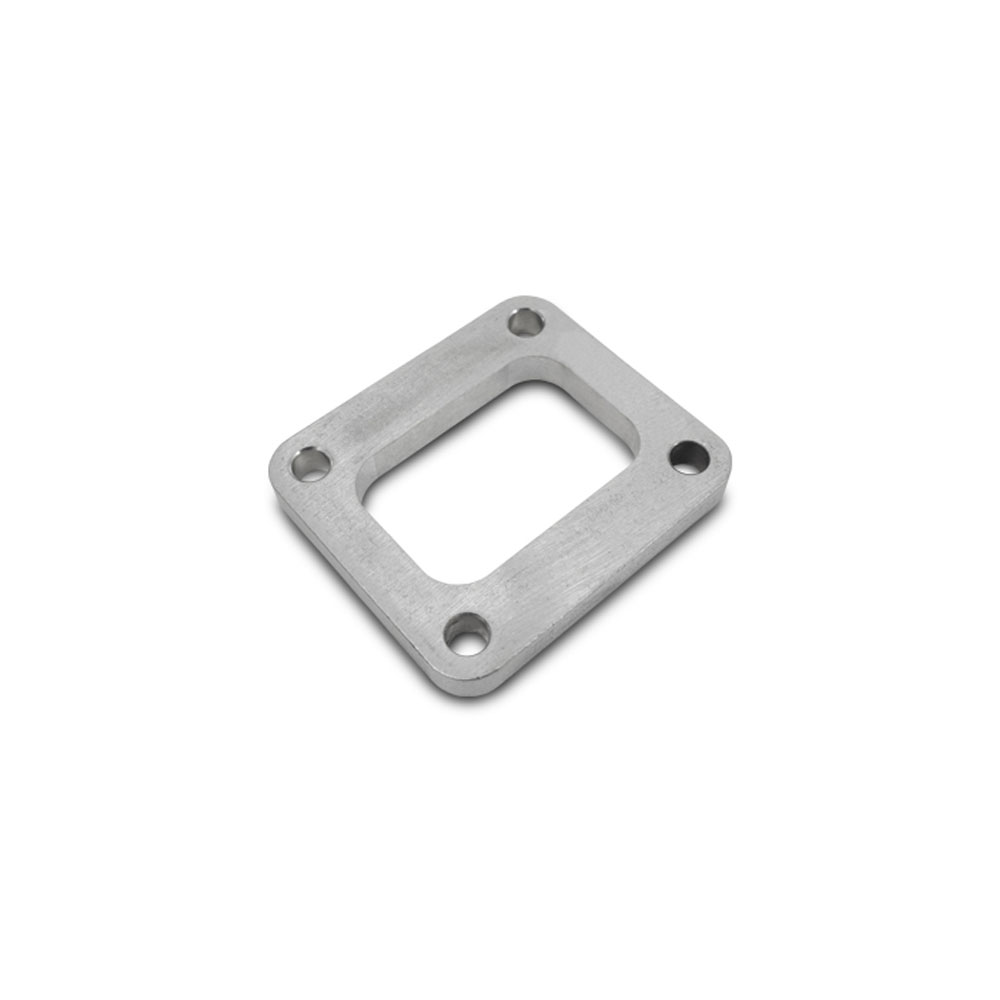

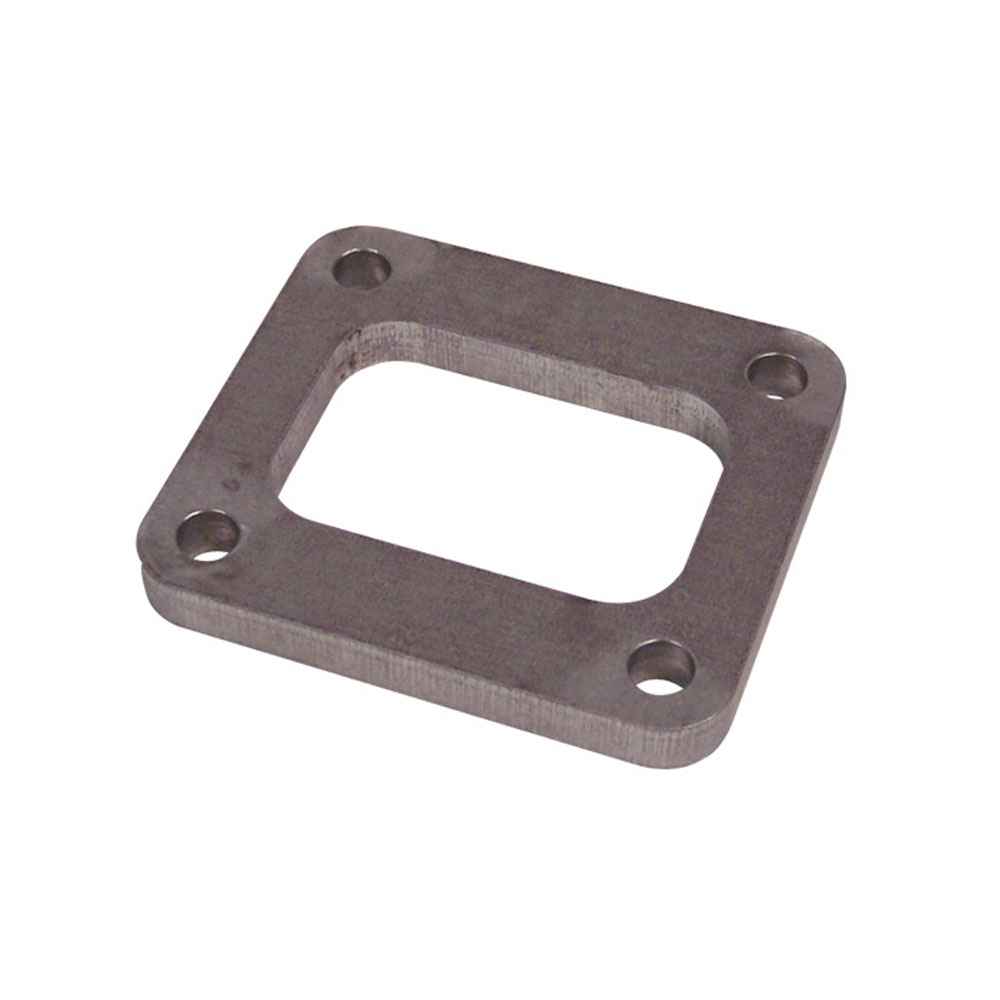

Vibrant Performance Turbocharger Flange 1441; Open Stainless Steel Generic T4, T04 Turbine Inlet
$59.99
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Precision laser cut and CNC machined to ensure a perfect fit to your turbo components
Product Description
Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.
Specifications
- Fits Turbocharger Models:
- Generic T4, T04
- Flange Material:
- Stainless Steel
- Flange Thickness:
- 0.500 in.
- Flange Type:
- Turbine Inlet
- Open or Divided:
- Open
- Number of Bolt Holes:
- 4 Bolt
- Bolt Holes Tapped or Un-Tapped:
- Untapped
- Inlet Diameter:
- 1.500 in.
- Bolt Pattern:
- 69.850 x 82.490 mm
- Overall Height:
- 95.870 mm
- Overall Port Width:
- 76.820 mm
- Overall Width:
- 108.000 mm
- Quantity:
- Sold As Each
