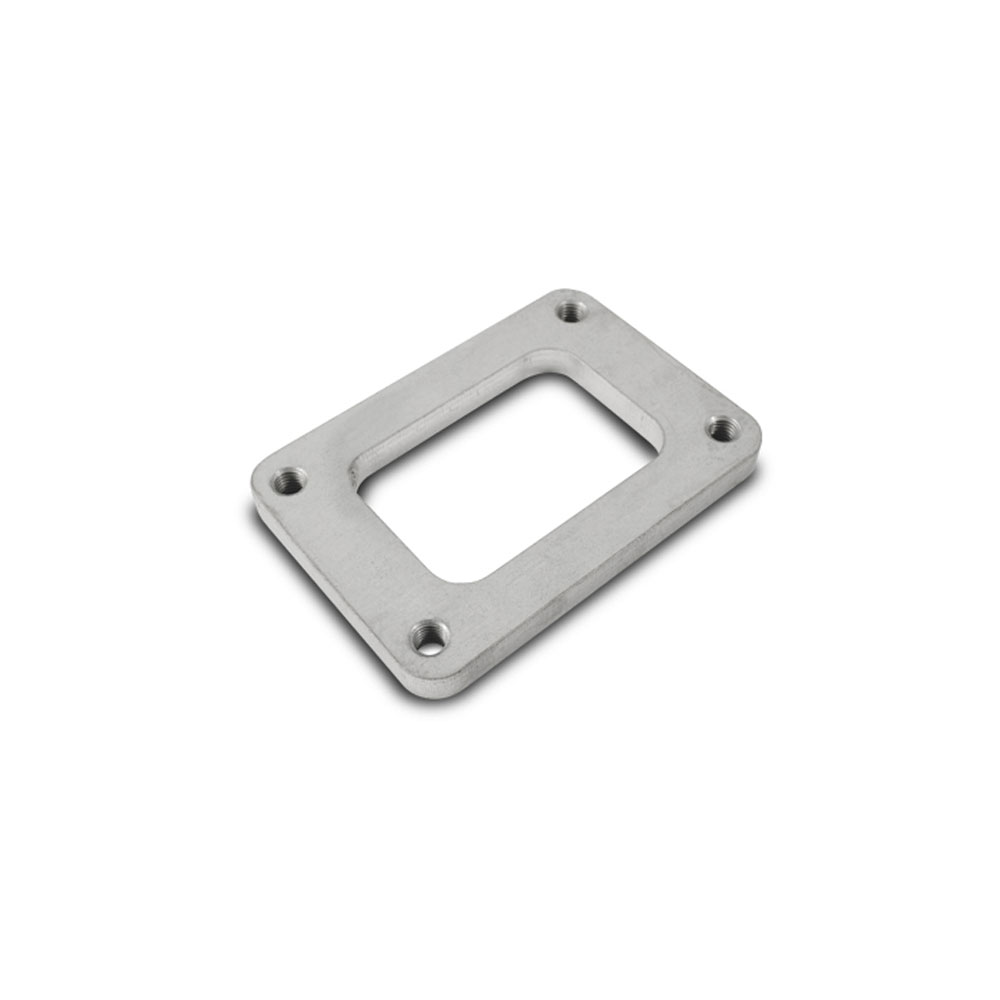

Vibrant Performance Turbocharger Flange 1417; Open Stainless Steel Garrett GT47, GTX47, GT50, GTX50, GTX55, GT60 Turbine Inlet
$57.99
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Precision laser cut and CNC machined to ensure a perfect fit to your turbo components
Product Description
Vibrant Performance stainless steel turbo flanges are constructed entirely from 304 stainless steel and are designed with the turbo fabricator in mind. Vibrant Performance turbo flanges are available for all of the industry leading turbo chargers and are offered for turbo inlet, external Wastegate, and turbo discharge applications. Standard 4-bolt, V-Band, divided, transition, complex multi bolt and block off turbo flanges are all available.
Specifications
- Fits Turbocharger Models:
- Garrett GT47, GTX47, GT50, GTX50, GTX55, GT60
- Flange Material:
- Stainless Steel
- Flange Thickness:
- 0.500 in.
- Flange Type:
- Turbine Inlet
- Open or Divided:
- Open
- Number of Bolt Holes:
- 4 Bolt
- Bolt Holes Tapped or Un-Tapped:
- Tapped
- Bolt Pattern:
- 69.850 x 114.300 mm
- Bolt Size:
- M10 x 1.50
- Overall Height:
- 95.900 mm
- Overall Port Width:
- 87.400 mm
- Overall Width:
- 136.700 mm
- Quantity:
- Sold As Each
