Vibrant Performance Air Intake Tubing Coupler 2754B;
$75.99
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Capable of withstanding extreme temperatures and heavy duty pressure conditions without swelling or bursting
- Hand wrapped and feature 4-ply reinforcement
- Meets or exceeds SAE J20 specifications
- Rated for temperatures ranging from -65 F to 350 F
- Suitable for coolant service
- UV and Ozone resistant
- Suitable for coolant service
- UV and Ozone resistant

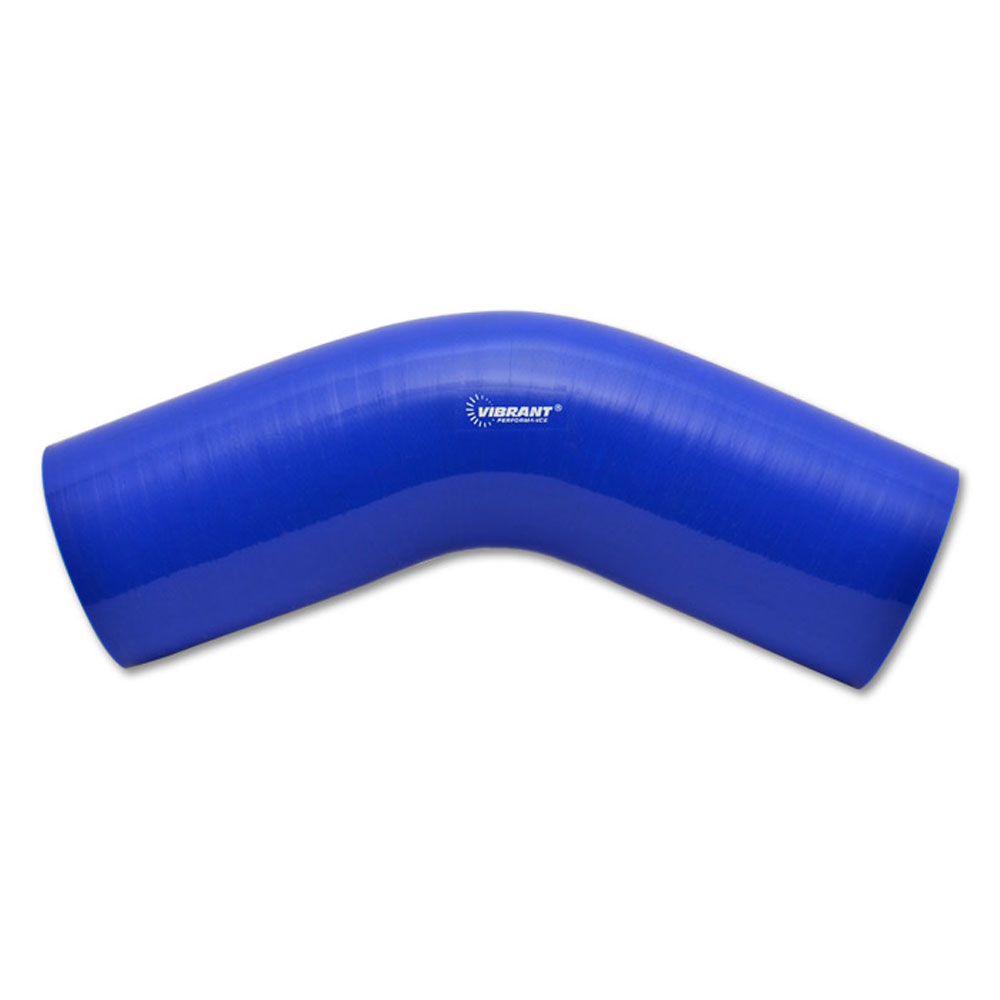

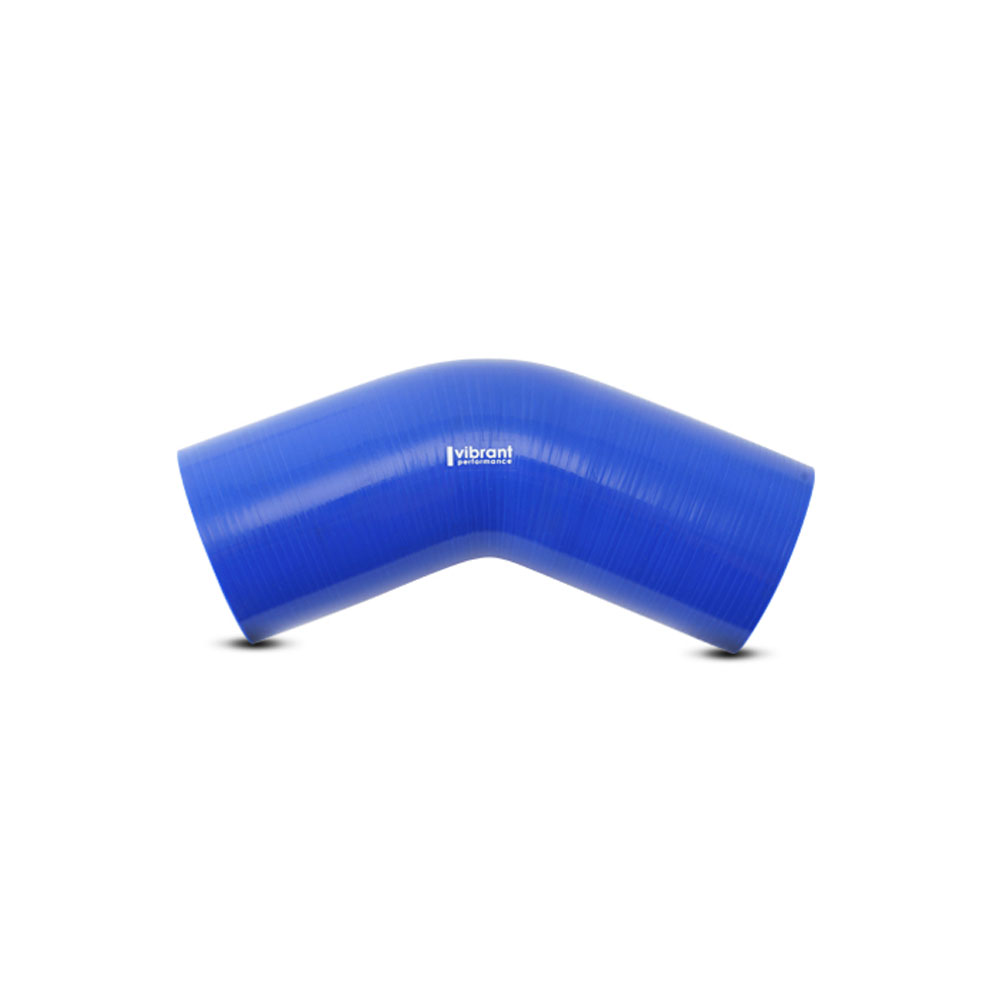

Product Description
Vibrant Performance Aramid Reinforced Silicone 45 Degree Elbows feature Long leg lengths and a 1-to-1 bend ratio. This elbow is intended for use in applications where pressurized tubing and connection points require a tight radius bend to accommodate the installation of piping in limited space. Our Elbows are commonly found off of turbo compressor housings, intercooler end tanks, and charge pipe assemblies.
Specifications
- Coupler Style:
- Elbow
- Coupler Material:
- 4 Ply Aramid Reinforced Silicone
- Coupler Finish:
- Blue
- Coupler Inlet ID:
- 3.000 in.
- Coupler Outlet ID:
- 3.000 in.
- Angle:
- 45 deg.
- Leg 1 Length:
- 4.500 in.
- Leg 2 Length:
- 4.500 in.
- Centerline Radius:
- 3.000 in.
- Maximum Operating Pressure:
- 35 PSI
- Wall Thickness:
- 0.200 in.
- Operating Temperature:
- -60 to 500 deg. F
- Externally Reinforced:
- No
- Quantity:
- Sold As Each
