Vibrant Performance Air Intake Tubing Coupler 2740B;

$54.99

Part #: 2740B

Brand: Vibrant Performance

UPC: 690092115814

Estimated Ship Date: Special Order

Specifications Videos Recommended

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

Capable of withstanding extreme temperatures and heavy duty pressure conditions without swelling or bursting
Hand wrapped and feature 4-ply reinforcement
Meets or exceeds SAE J20 specifications
Rated for temperatures ranging from -65 F to 350 F
Suitable for coolant service
UV and Ozone resistant

Product Description

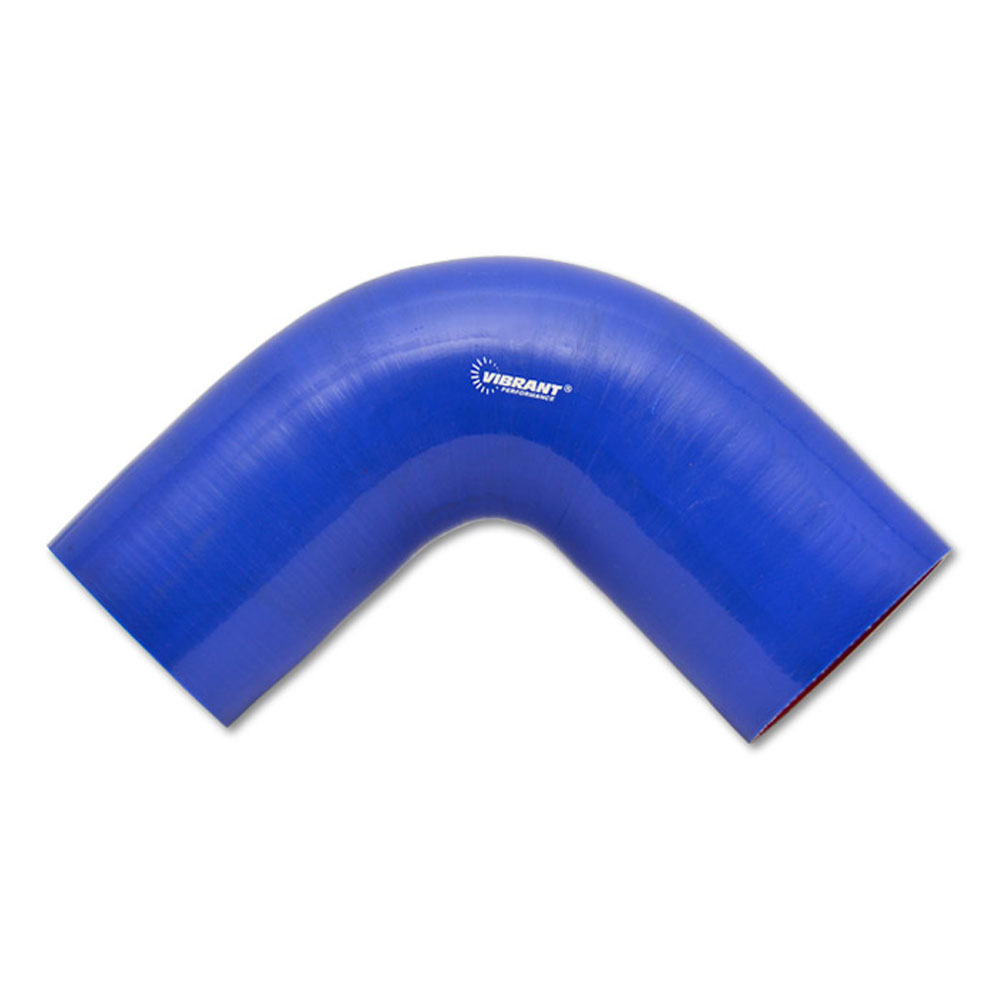

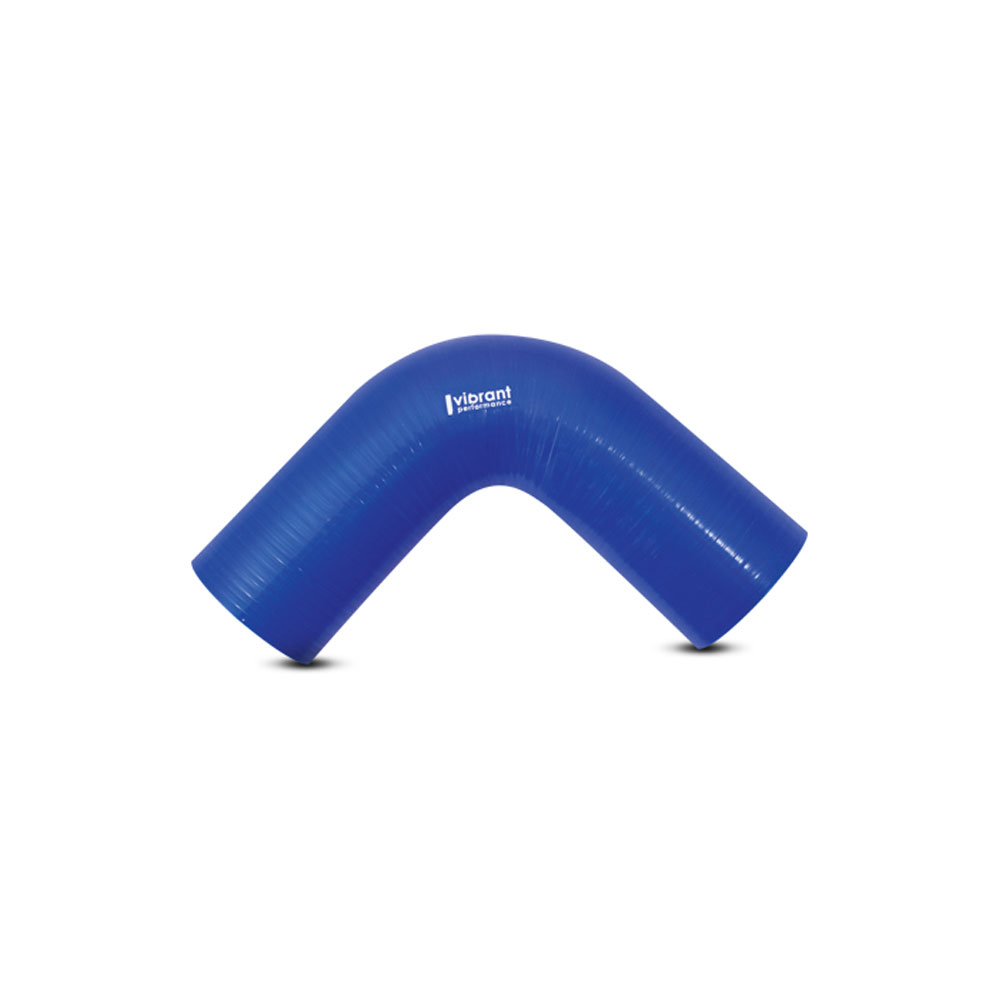

Vibrant Performance Aramid Reinforced Silicone 90 Degree Elbows feature Long leg lengths and a 1-to-1 bend ratio. This elbow is intended for use in applications where pressurized tubing and connection points require a tight radius bend to accommodate the installation of piping in limited space. Our Elbows are commonly found off of turbo compressor housings, intercooler end tanks and charge pipe assemblies.

Specifications

Coupler Style:
Elbow: Coupler Material:
4 Ply Aramid Reinforced Silicone: Coupler Finish:
Blue: Coupler Inlet ID:
2.000 in.: Coupler Outlet ID:
2.000 in.: Angle:
90 deg.: Leg 1 Length:
4.000 in.: Leg 2 Length:
4.000 in.: Centerline Radius:
2.000 in.: Maximum Operating Pressure:
67 PSI: Wall Thickness:
0.200 in.: Operating Temperature:
-60 to 500 deg. F: Externally Reinforced:
No: Quantity:
Sold As Each
