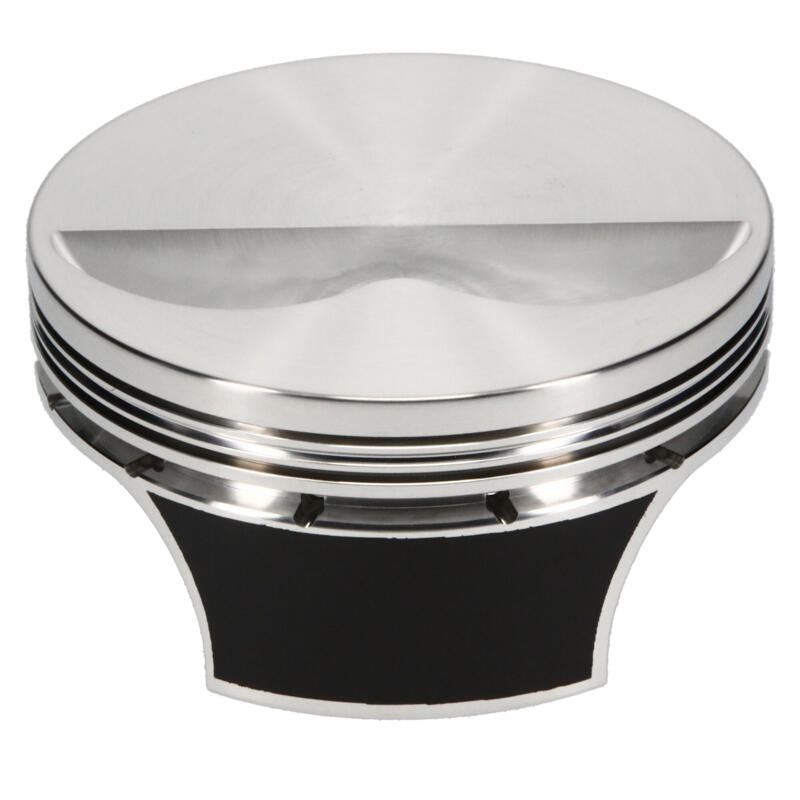

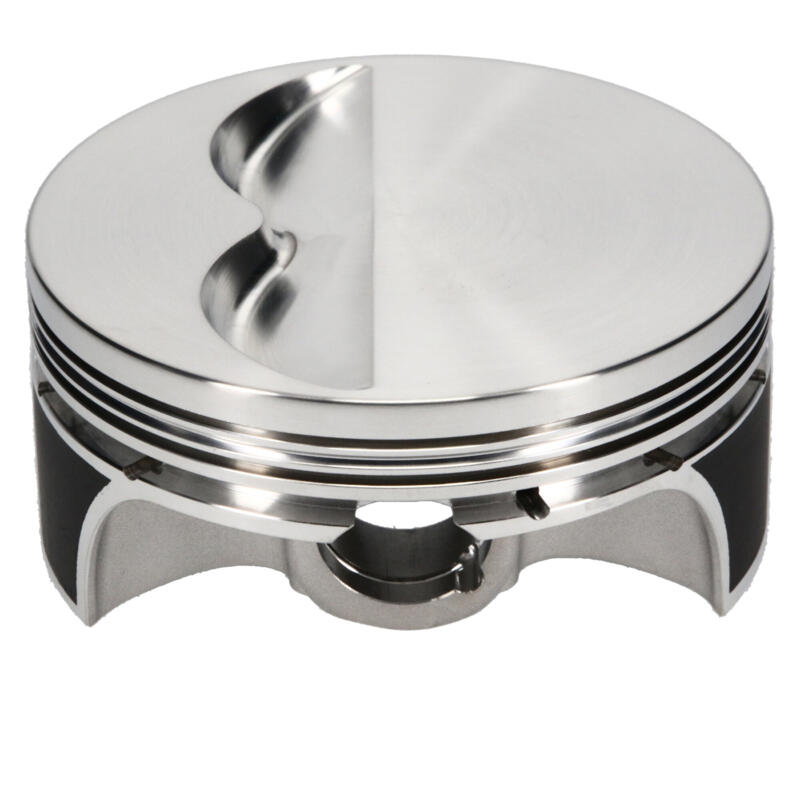

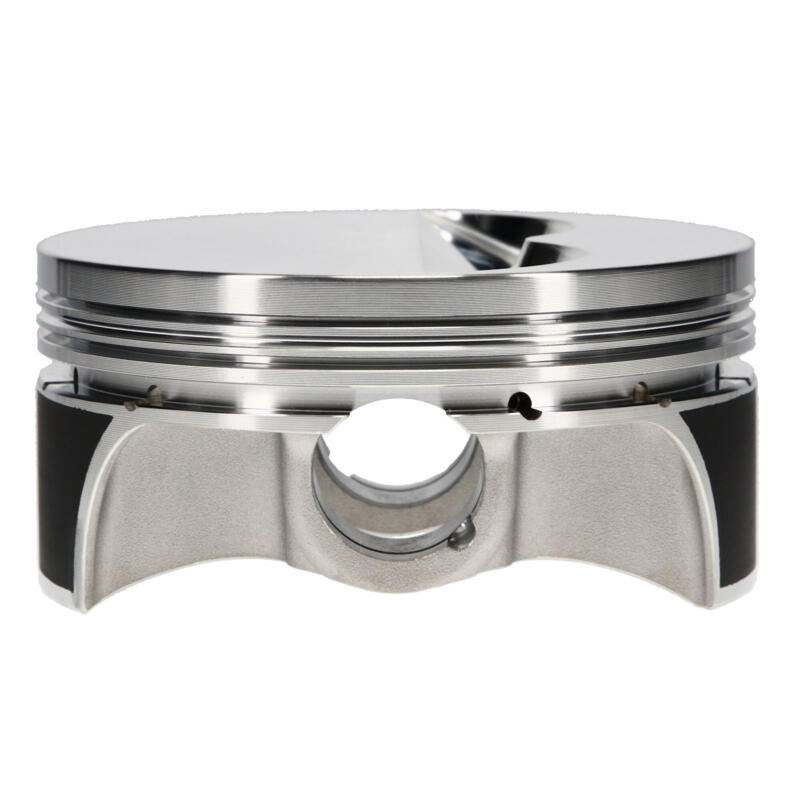

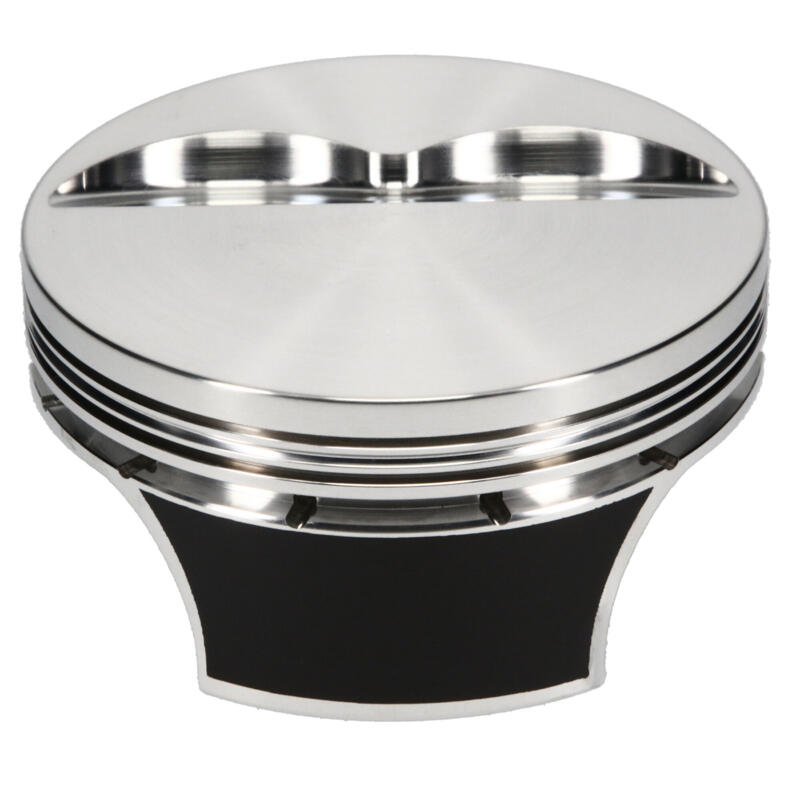

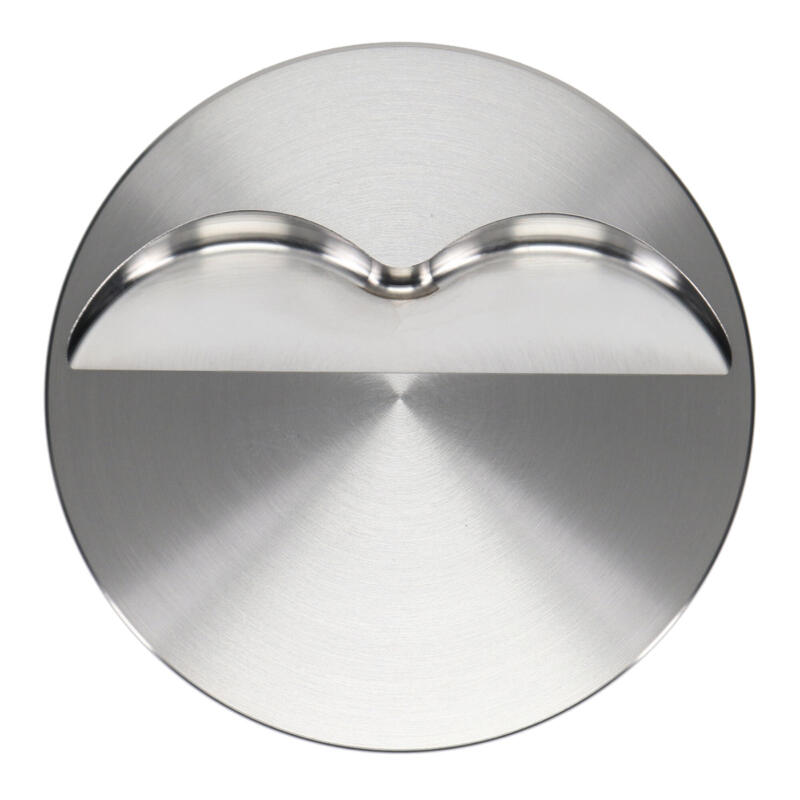

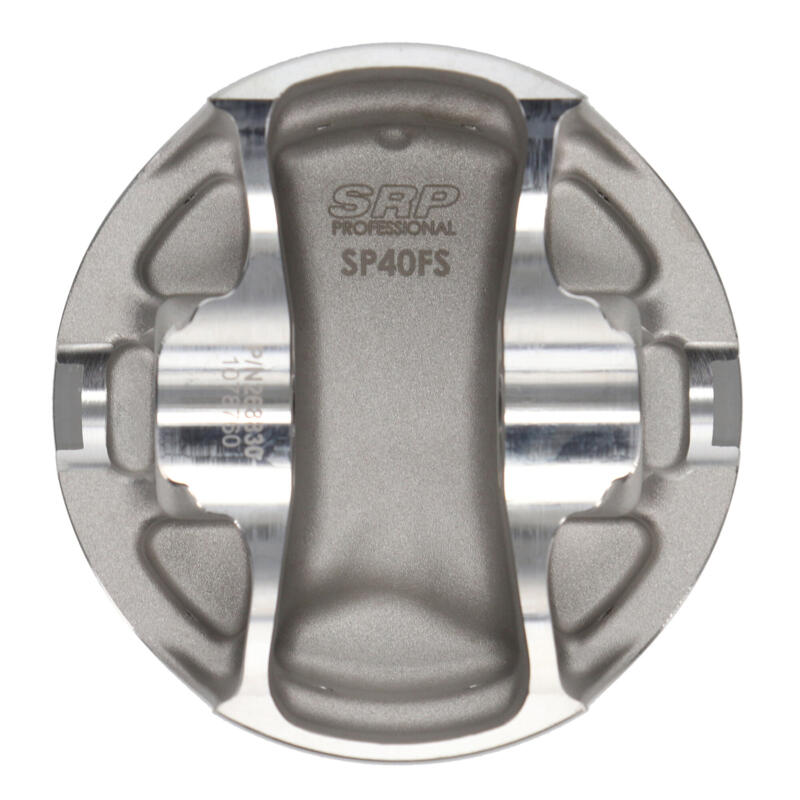

SRP Pistons (Sportsman Racing Products) Piston Set 329416; Professional Series FSR 23 deg. 4.005 in. -5.00 cc Flat Top (2V) for Chevy 350

$849.99

Part #: 329416

Brand: SRP Pistons (Sportsman Racing Products)

Estimated Ship Date: Special Order

Specifications

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

Recommended ring set JG3108-4000-7

Product Description

FSR (Forged Side Relief) forging designs feature a reduced skirt width and shorter wrist pin when compared to traditional “full round” style forgings. The narrow skirt helps minimize piston contact with the cylinder wall that can cause friction and power loss while the shortened wrist pins reduces the overall weight. Some FSR forgings feature internal and external bracing to provide a more rigid construction while minimizing overall weight. With thousands of race miles logged in the most demanding applications like NASCAR, NHRA Pro Stock and Indy Car, these pistons provide the ultimate combination of low-friction, lightweight design with increased stability and strength.

Specifications

Engine Piston Set Model or Series:
Professional Series FSR 23 deg.: Make:
Chevy: Engine:
350: Bore:
4.005 in.: Stroke:
3.875 in.: Rod Length:
6.000 in.: Compression Height:
1.062 in.: Crown Volume:
-5.00 cc Flat Top (2V): Weight:
376 g: Pin Diameter:
0.927 in.: Piston Material:
Forged 4032 Alloy: Ring Lands:
1.2, 1.5, 3.0 mm: Wrist Pin Fitment:
Floating: Rings Included:
No: Quantity:
Sold As Set (8/pkg)
