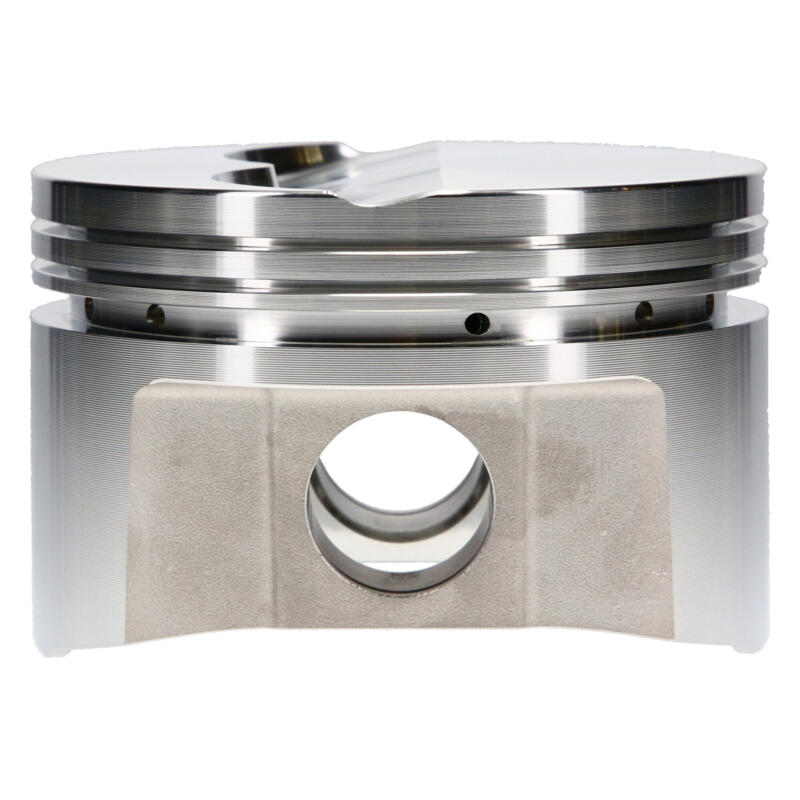

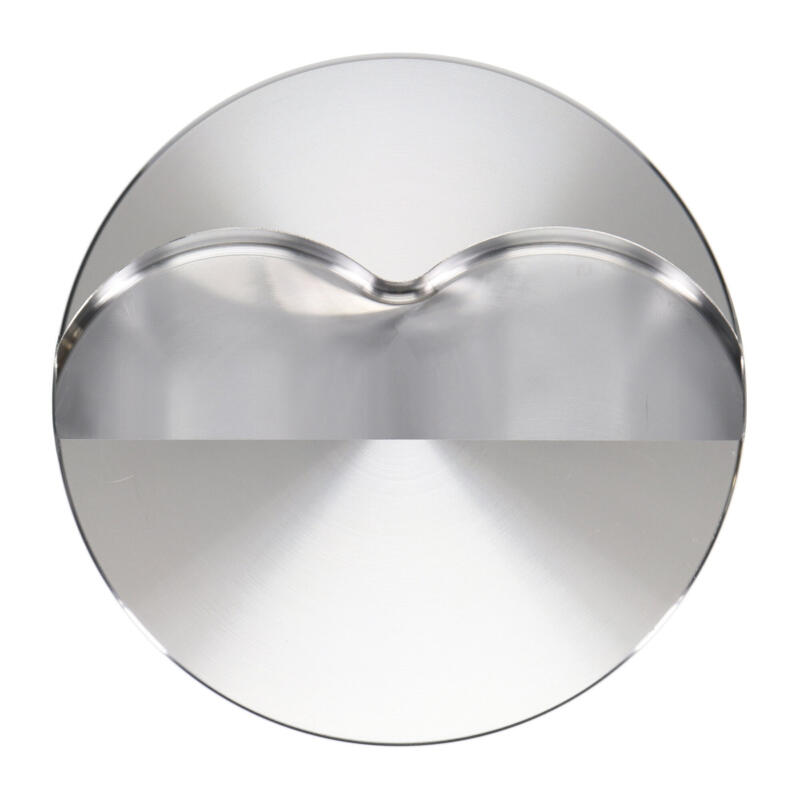

SRP Pistons Pistons 261496; 4.080 in. -5.00 cc Flat Top (2V) for Ford 390 FE
$589.77
$682.99 On Sale
Save 14%
This item is not eligible for our Free Freight program because either this part type is excluded or its price is already at our lowest. However, it will still count toward the total when you purchase other items that do qualify for Free Freight.
See our shipping policy for more details.
Details
- Recommended ring set J100F8-4080-5
Product Description
Born from the rich racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line proudly bridges the gap between high-quality forged piston performance and affordability. Forged from strong, 4032 aluminum alloy material, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance characteristics. These pistons are the perfect option for someone building a mild to moderate performance engine on a sportsman budget. As with all JE Pistons products, SRP pistons are made 100% in the USA.
Specifications
- Make:
- Ford
- Engine:
- 390 FE
- Bore:
- 4.080 in.
- Stroke:
- 3.980 in.
- Rod Length:
- 6.490 in.
- Compression Height:
- 1.670 in.
- Crown Volume:
- -5.00 cc Flat Top (2V)
- Weight:
- 534 g
- Pin Diameter:
- 0.975 in.
- Piston Material:
- Forged 4032 Alloy
- Ring Lands:
- 1/16, 1/16, 3/16 in.
- Gas Porting:
- No
- Skirt Type:
- Standard
- Wrist Pin Fitment:
- Floating
- Rings Included:
- No
- Notes:
- Edelbrock 6005/06 head
- Quantity:
- Sold As Set (8/pkg)
