SRP Pistons Pistons 139530; 4.280 in. 48.00 cc Dome (2V) for Chevy 454
$652.58
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Recommended ring set S100S8-4280-5
Product Description

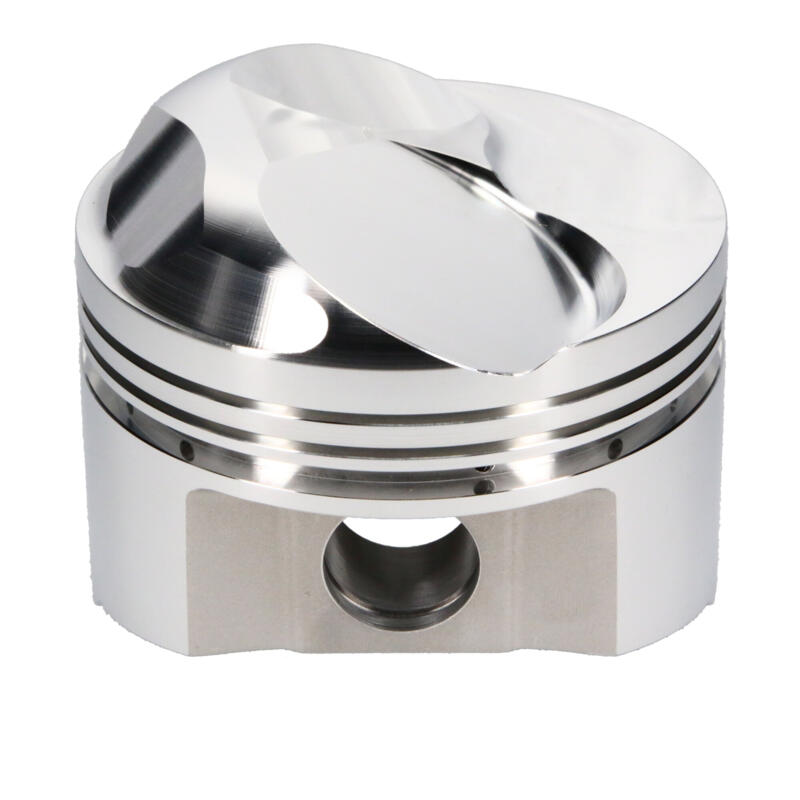

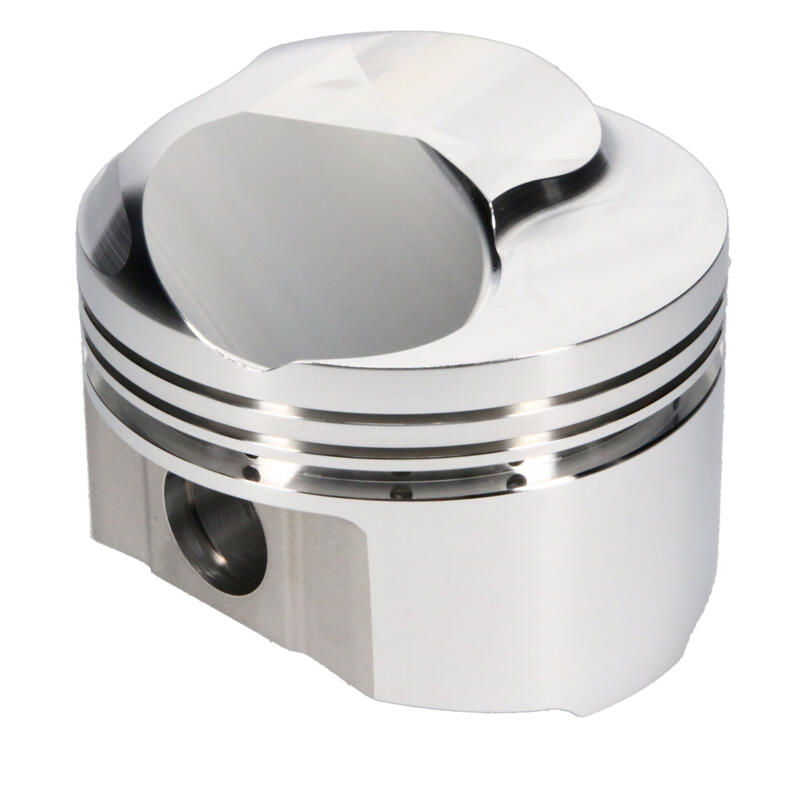

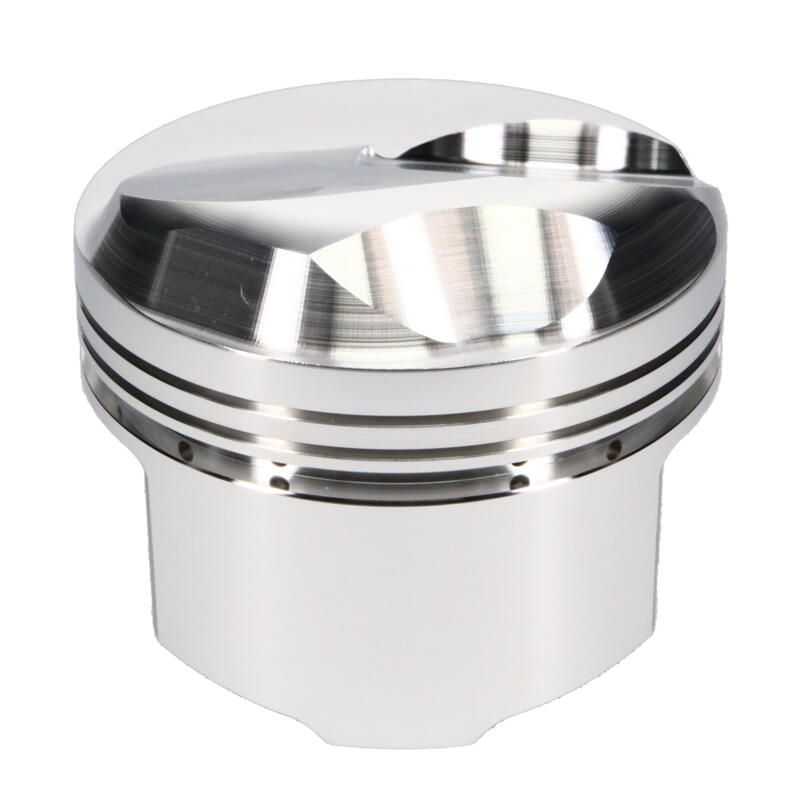

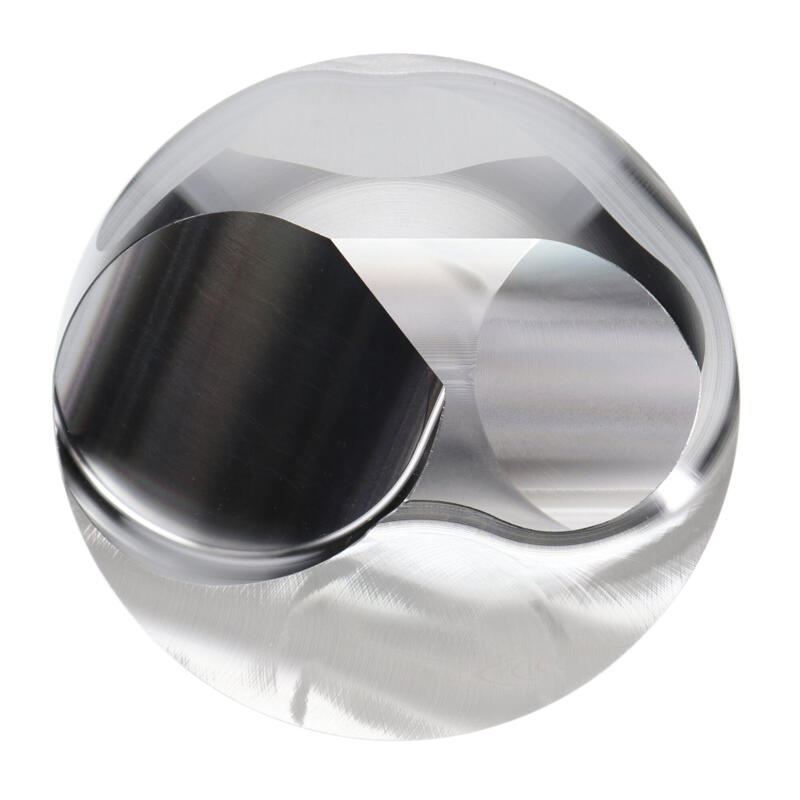

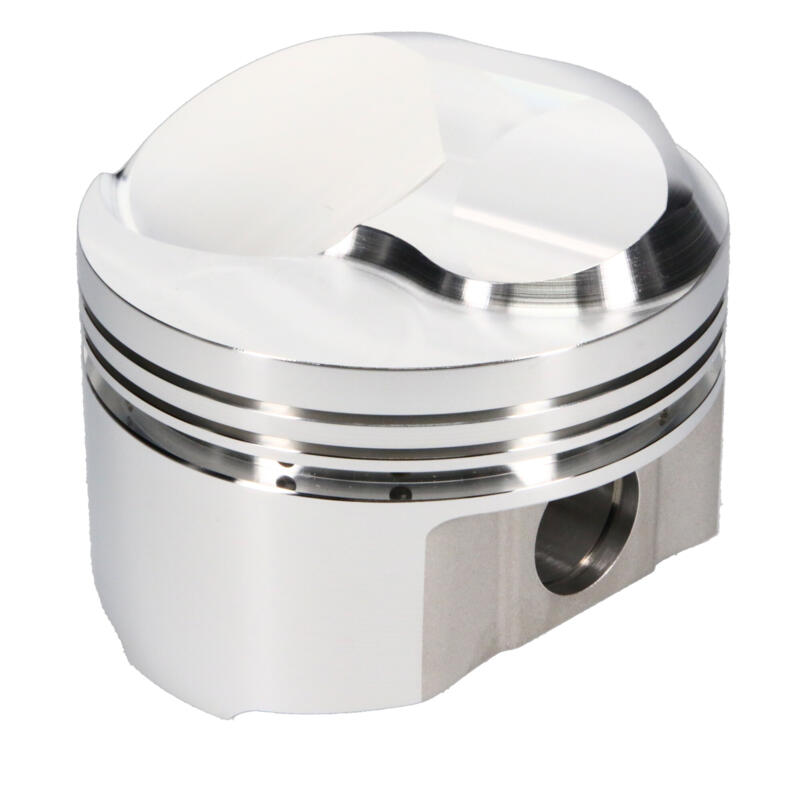

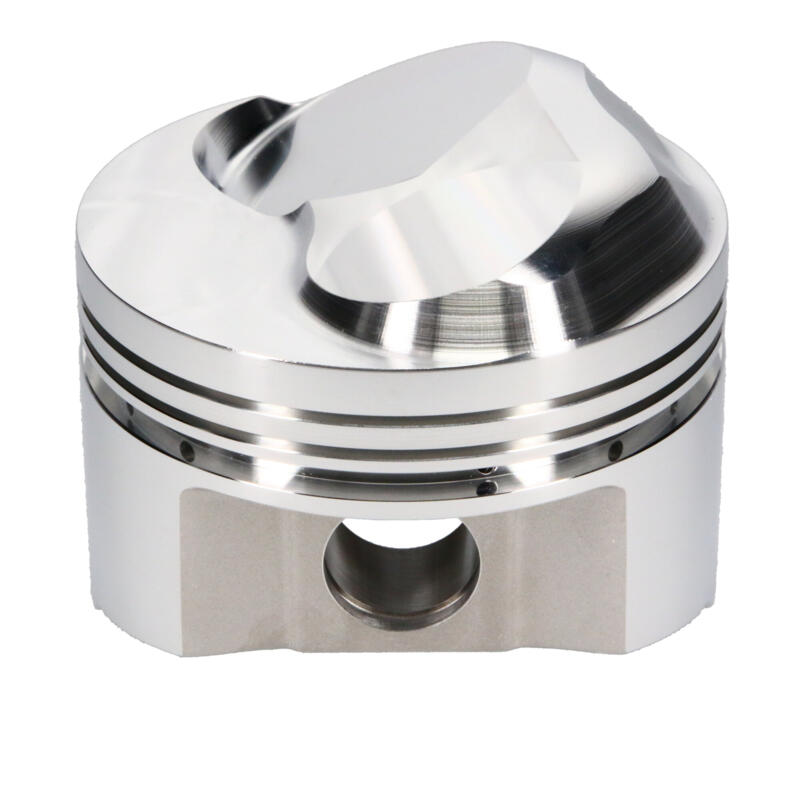

Hollow dome design fits most open chamber STD GM, Dart, and Brodix Heads Forged from Premium 2618 aluminum alloy CNC machined domes with radiused valve reliefs provide optimum flame travel Pin fitting and double spiro locks included 990-2930-150 wall wrist pin (150 grams) included CNC Machined ring grooves accept 1/16, 1/16, 3/16 rings (Rings Sold Seperately) Fits tall deck, when used with .400 long rods. Will not fit GM Signature Series or Edelbrock Cylinder Heads: P/N# 60549, 60559, 61559, 60449, 60459, 61459, 60479, 60499. All part numbers listed are for .030 over, please call for any other oversize. Priced per set of 8, please call to order individual pistons. Priced per set of 8, please call to order individual pistons.
Specifications
- Make:
- Chevy
- Engine:
- 454
- Bore:
- 4.280 in.
- Stroke:
- 4.000 in.
- Rod Length:
- 6.135 in.
- Compression Height:
- 1.645 in.
- Crown Volume:
- 48.00 cc Dome (2V)
- Weight:
- 664 g
- Pin Diameter:
- 0.990 in.
- Piston Material:
- Forged 4032 Alloy
- Ring Lands:
- 1/16, 1/16, 3/16 in.
- Wrist Pin Fitment:
- Floating
- Rings Included:
- No
- Quantity:
- Sold As Set (8/pkg)
