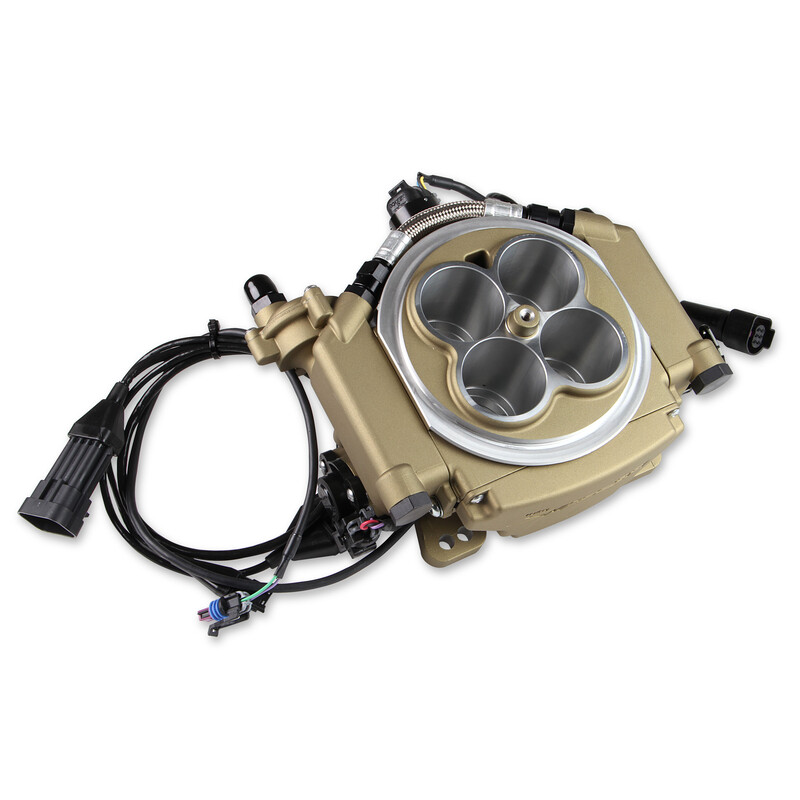

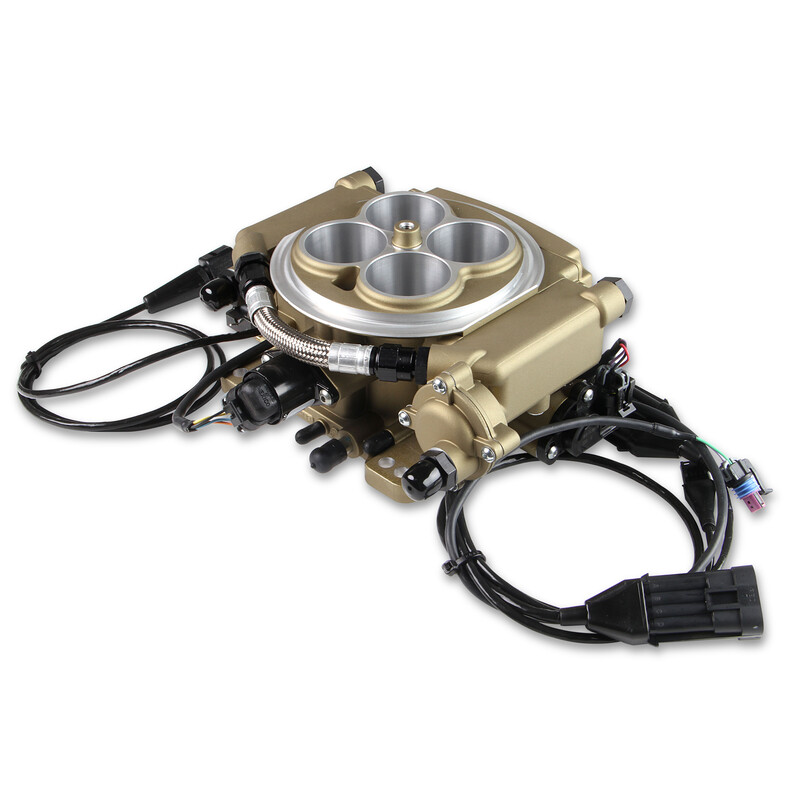

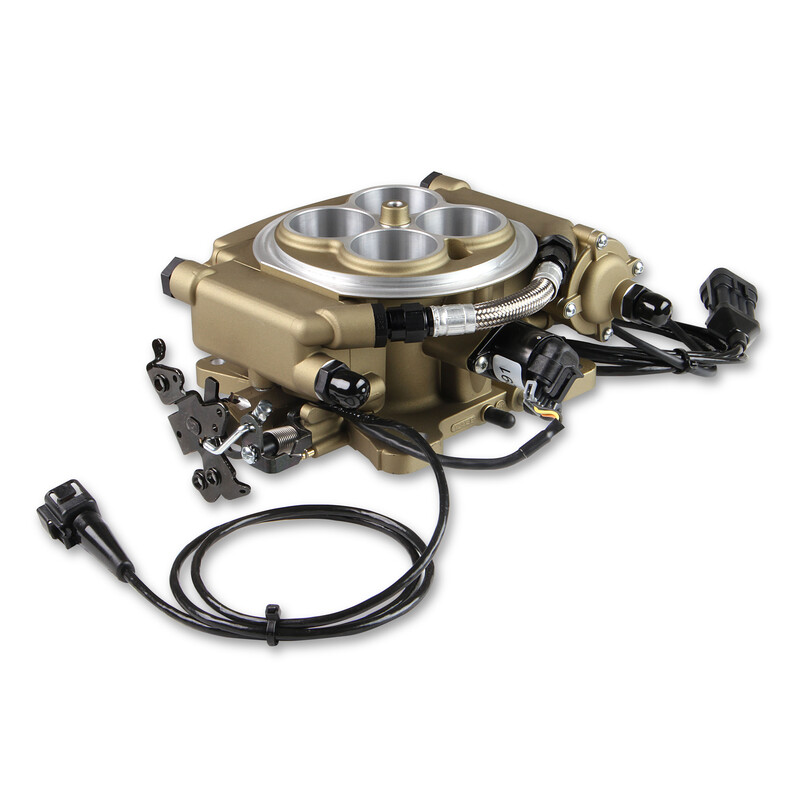

Sniper Fuel Injection System Kit 550-516K; 650 HP Self Tuning 650 HP Throttle Body 800 CFM Gold Aluminum
$1,389.99
$1,629.95
Save 15%
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Dual Pattern bolt on carburetor replacement, designed to fit 4150 Flange & Spread Bore manifolds - (Spread Bore Sealing Plate Part #9006 is recommended)
- Throttle body mounted ECU - no extra boxes to mount
- Supports up to 650hp with Four 100 Lb/Hr Injectors!
- Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)

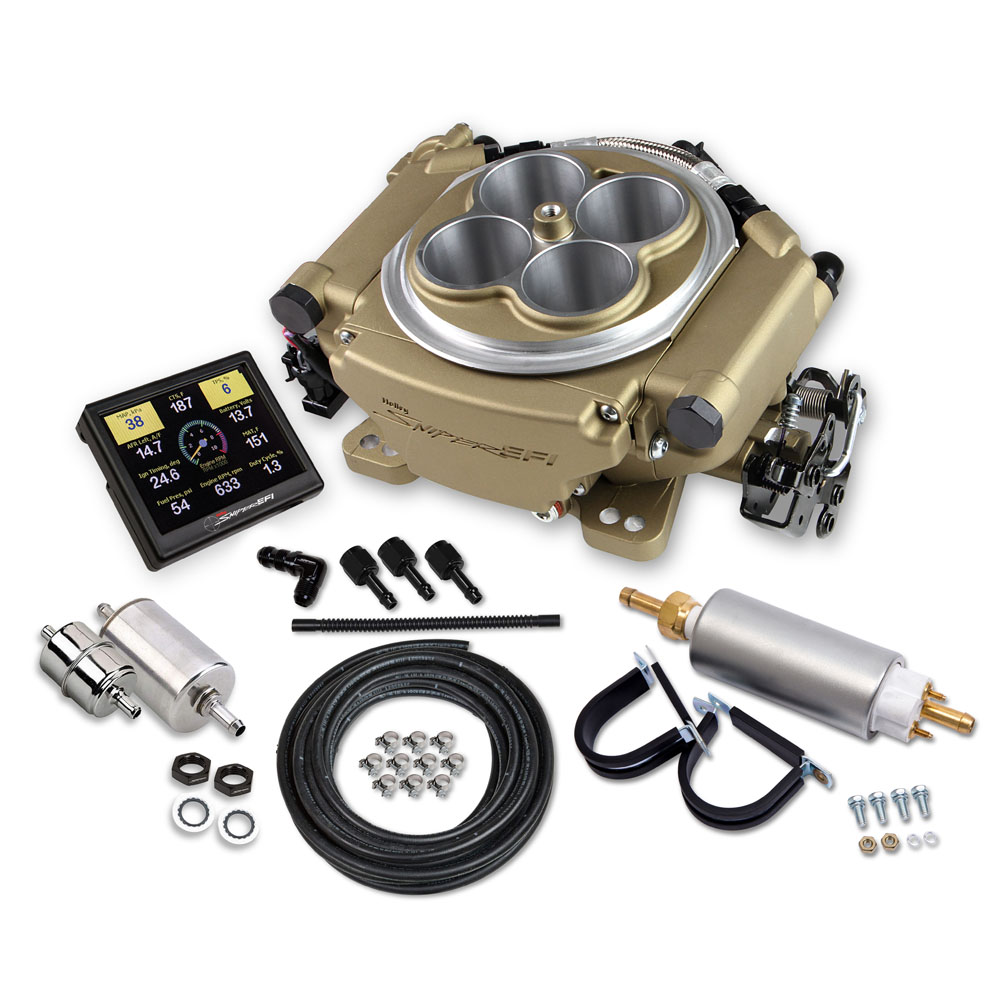

- Includes complete fuel system consisting of; 20ft of 3/8" Vapor Guard Fuel Hose, Fuel Pump, Filters, necessary hardware and bulkhead fitting to return fuel into the tank!
- Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI)
- Integrated ignition timing control & coil driver

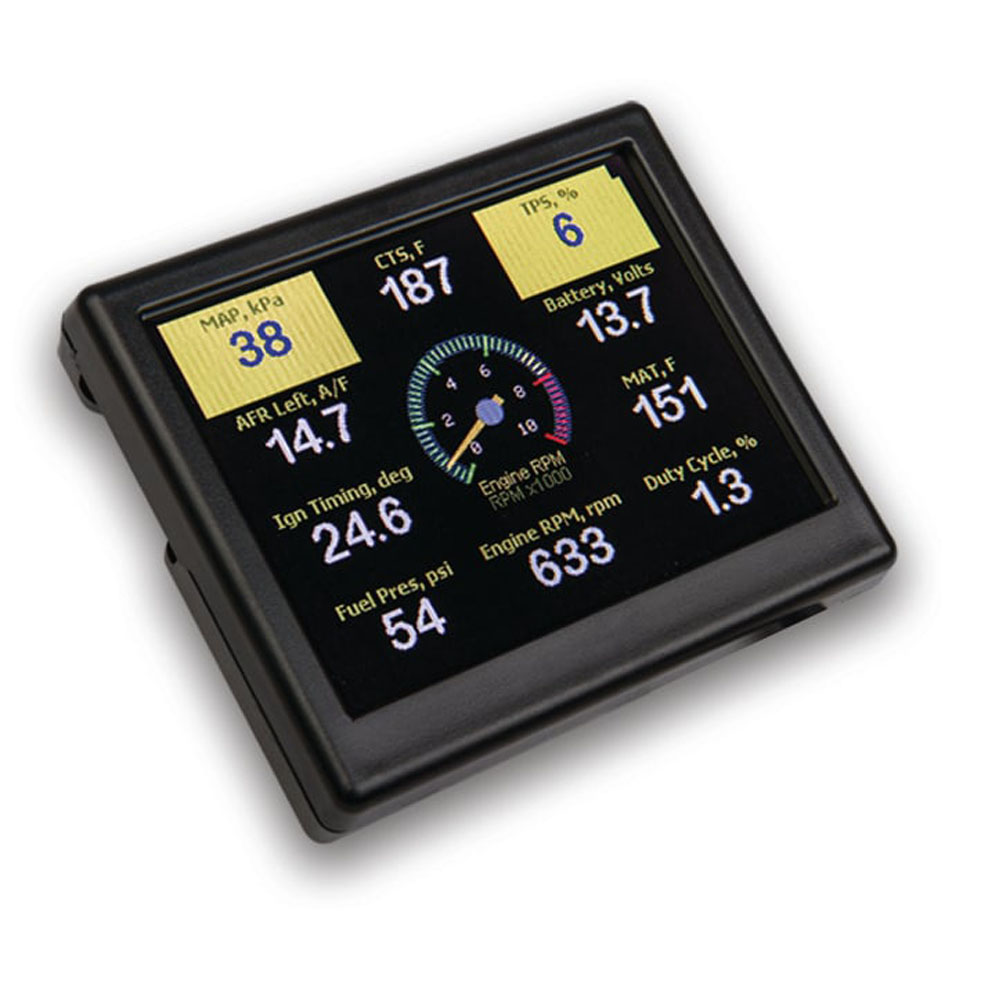

- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays.
- Simple Calibration Wizard (Answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- The included Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!
- OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service.
- Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
- Patent Pending
- Includes complete fuel system consisting of; 20ft of 3/8" Vapor Guard Fuel Hose, Fuel Pump, Filters, necessary hardware and bulkhead fitting to return fuel into the tank!
- Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI)
- Integrated ignition timing control & coil driver
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays.
- Simple Calibration Wizard (Answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- The included Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn!
- OEM Style TPS/IAC and Fuel Pressure regulator, for years of dependable service.
- Included clamp-on oxygen sensor kit ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
- Patent Pending
Product Description
Holley just brought EFI within range! Introducing Sniper EFI! It's economically priced so you can have all the benefits of EFI and still have money to finish or upgrade the rest of your ride! Perfect for street rods, muscle cars, off road trucks or nearly any carbureted vehicle. Put an end to cold start issues, hesitations, vapor lock, and flooding. Upgrade to Sniper EFI and get the tactical accuracy of EFI today!
Specifications
- Fuel Injection System Kit Series:
- 650 HP Self Tuning
- Injection Style:
- Throttle Body
- Supported Horsepower:
- 650 HP
- Includes Intake Manifold:
- No
- Includes Throttle Body:
- Yes
- Throttle Body Mounting Flange:
- 4150 Square Bore
- Throttle Body CFM:
- 800 CFM
- Throttle Body Material:
- Aluminum
- Throttle Body Finish:
- Gold
- Includes Fuel Rails:
- No
- Number of Injectors Included:
- 4 Injector
- Injector Flow Rate:
- 100 lbs/hr.
- Includes Hand-Held Calibration Module:
- Yes
- Includes ECM:
- Yes
- Includes Fuel Pump:
- Yes
- Includes Fuel Pressure Regulator:
- Yes
- Sensors Included:
- O2, MAP, IAT, TPS
- Quantity:
- Sold As Kit
