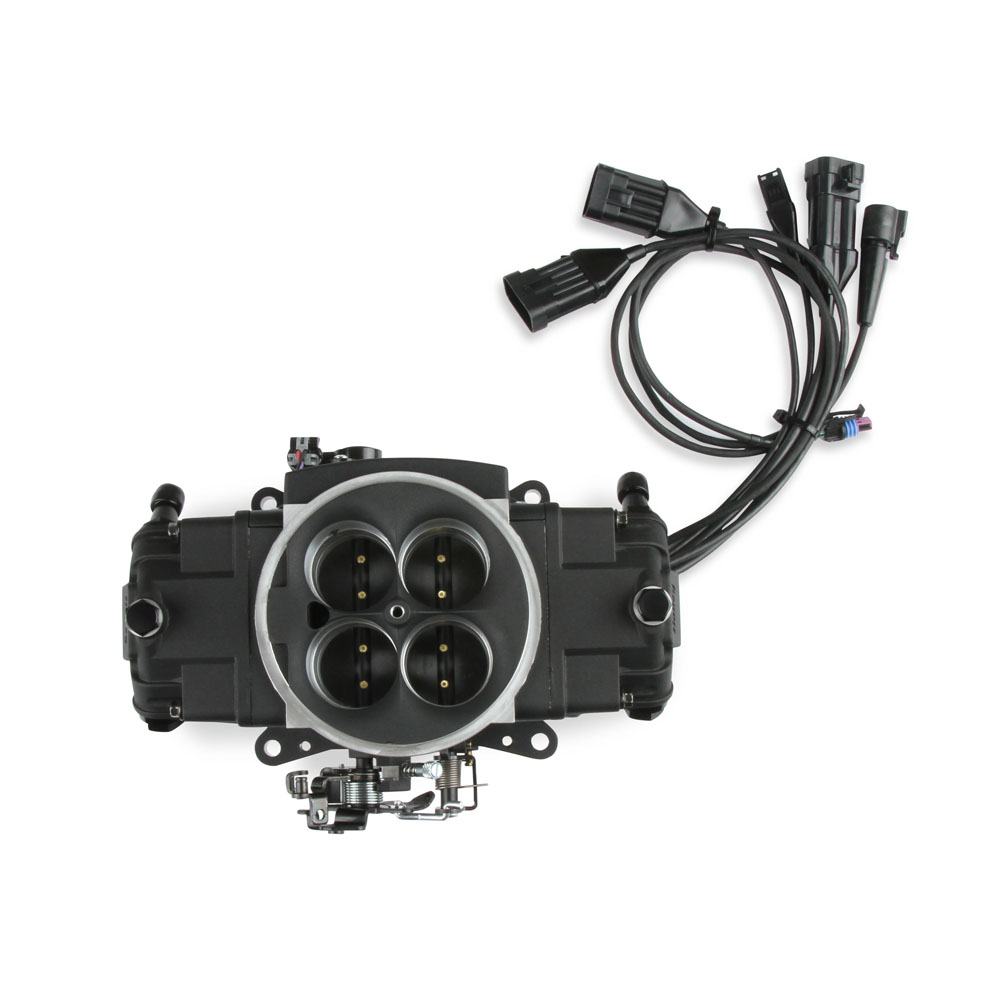

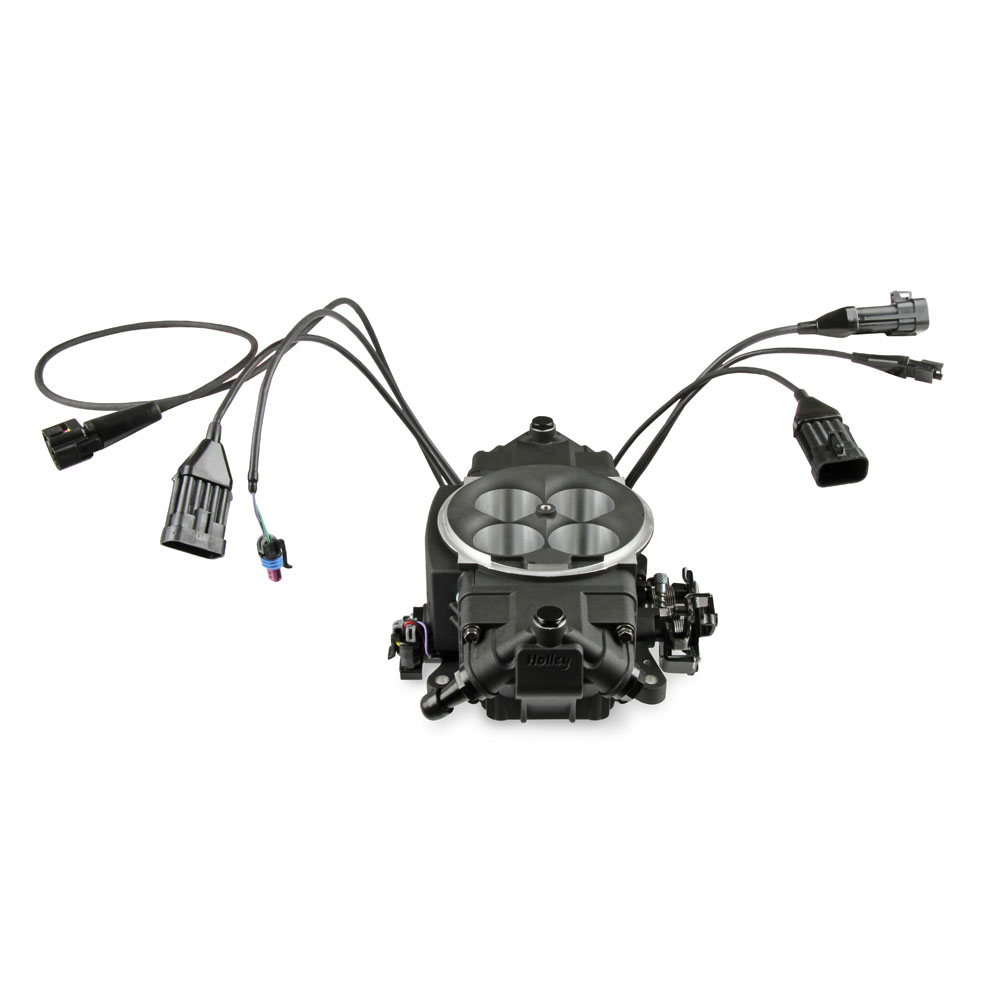

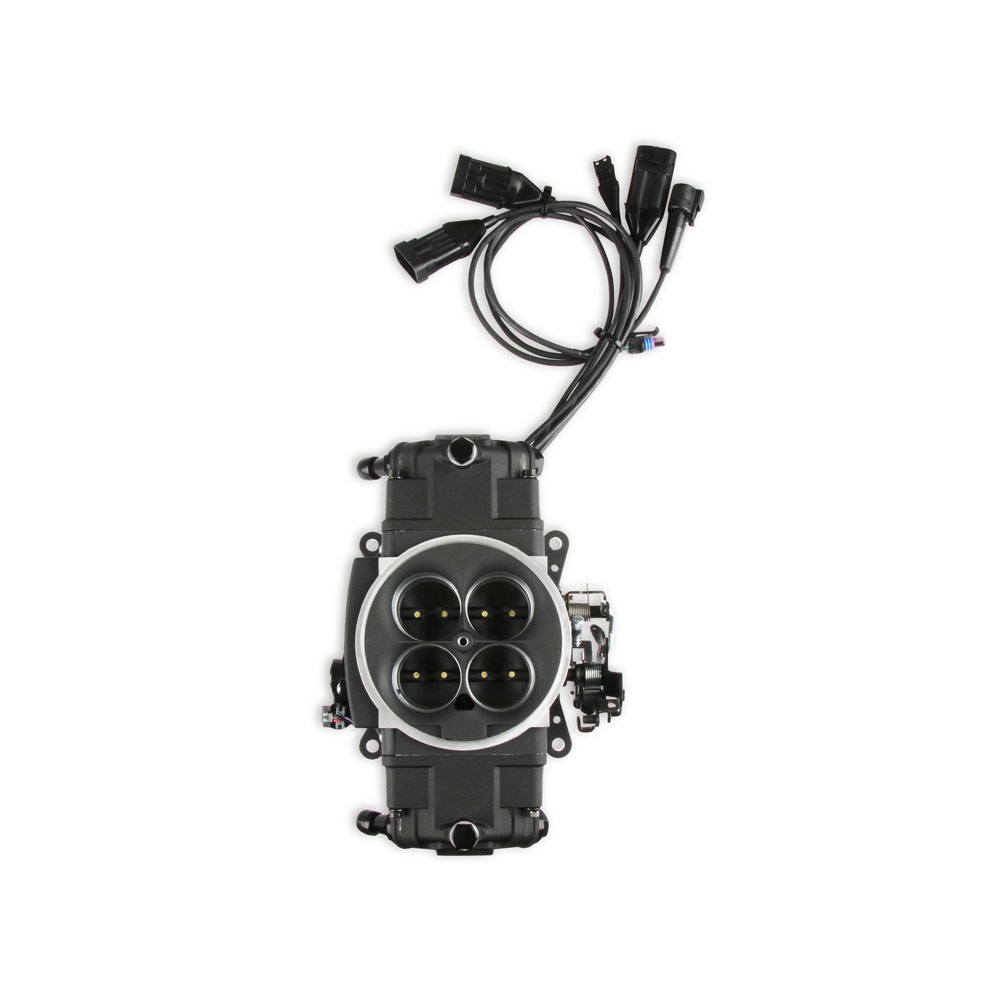

Sniper Fuel Injection System 550-877; Super Sniper EFI Stealth 1250 Forced Induction, 650 Naturally Aspirated Throttle Body 870 CFM Black Aluminum
$1,949.77
$2,149.95 On Sale
Save 9%
This item is not eligible for our Free Freight program because either this part type is excluded or its price is already at our lowest. However, it will still count toward the total when you purchase other items that do qualify for Free Freight.
See our shipping policy for more details.
Details
- Bolt on 4150 Flange Carburetor Replacement
- Throttle body mounted ECU - no extra boxes to mount
- Supports up to 1250 horsepower Forced Induction, 650 horsepower naturally aspirated with Eight 100 Lb/Hr Injectors!
- All of the wiring exits below the rear fuel injector cover, for a completely stealth installation.
- Timed spark part for vacuum advanced distributors located under the front fuel bowl, for easy access to the distributor.
- Programmable inputs and outputs
- Three Programmable 0-5V Sensor Inputs for Oil/Fuel/Dome or Nitrous Pressure Sensors
- Six Programmable Ground Outputs
- One +5v Reference Output - +5V Power Supply for 0-5v Sensors
- One Sensor Ground - Ground supply for 0-5v Sensors
- Air entry is machined to fit most stock style air cleaners with air cleaner locator provisions.
- Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
- External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as 12-886.
- Integrated ignition timing control

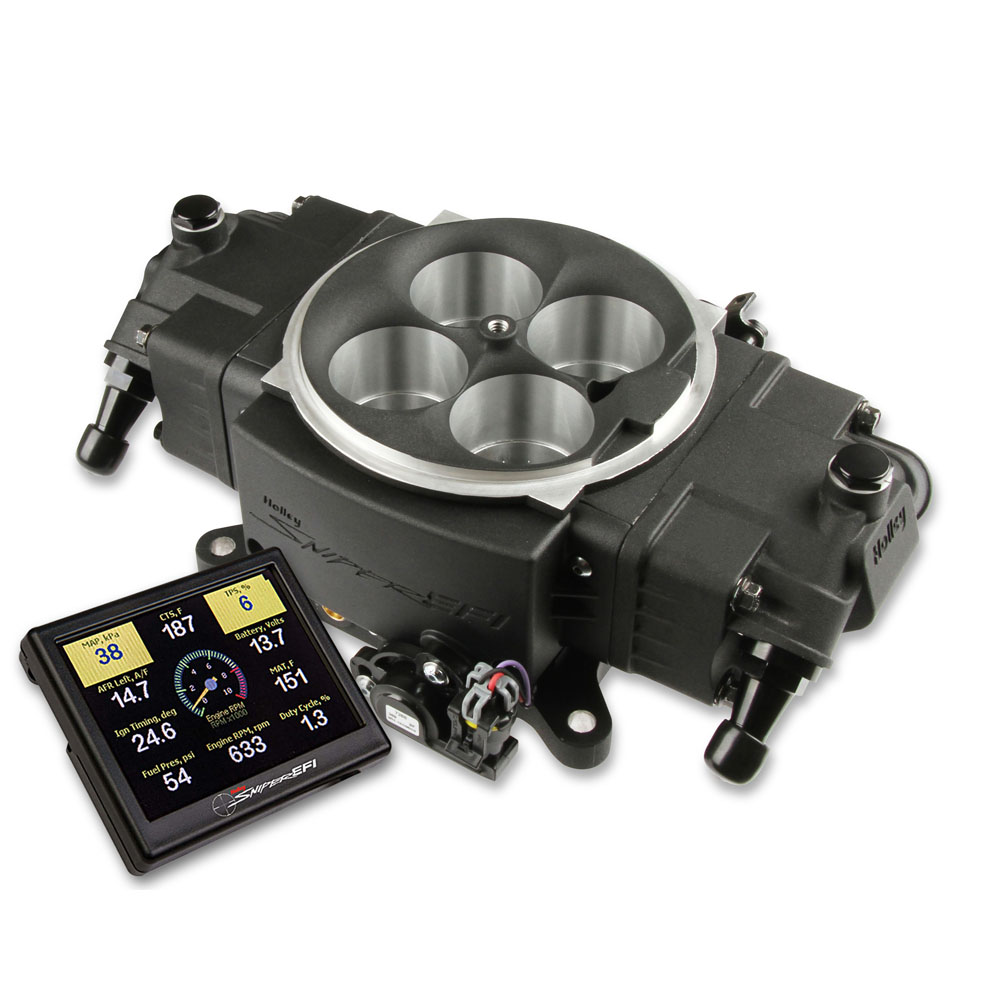

- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
- OEM Style TPS/IAC, for years of dependable service.
- Available in 3 finishes: Shiny, Black and coming soon, Gold
- Included clamp-on oxygen sensor kit for 2.25" exhaust ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
- Timed spark part for vacuum advanced distributors located under the front fuel bowl, for easy access to the distributor.
- Programmable inputs and outputs
- Three Programmable 0-5V Sensor Inputs for Oil/Fuel/Dome or Nitrous Pressure Sensors
- Six Programmable Ground Outputs
- One +5v Reference Output - +5V Power Supply for 0-5v Sensors
- One Sensor Ground - Ground supply for 0-5v Sensors
- Air entry is machined to fit most stock style air cleaners with air cleaner locator provisions.
- Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
- External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as 12-886.
- Integrated ignition timing control
- High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
- Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
- Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
- The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
- OEM Style TPS/IAC, for years of dependable service.
- Available in 3 finishes: Shiny, Black and coming soon, Gold
- Included clamp-on oxygen sensor kit for 2.25" exhaust ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
Product Description
Sniper EFI is part of a complete ecosystem! Your new Sniper kit pair's seamlessly together with Holley's Sniper Hyperspark Ignition, Fuel System's, Air Cleaners, Throttle Body & Digital Dash to unlock the full potential of your build. Complete your fuel injection journey by checking out our full offer of ignition, fueling and accessories!We want everything to be as simple as it can be for you! Sniper kits are built and designed to be installed at home in your garage or driveway with limited tools and the support of Holley's comprehensive installation manual and videos. An afternoon in the garage and you will be enjoying improved engine performance, better MPG's and easier starting. After the simple installation it's time to let your Sniper begin the self-tuning process. Our user-friendly calibration wizard allows you to just answer a few questions about your engine and the system will begin self-tuning with no laptop required. You don't have to be a computer wiz or specialize in tuning to use a Sniper EFI system! Use the high resolution 3.5" full color touchscreen for tuning and gauge displays.
Specifications
- Fuel Injection System Series:
- Super Sniper EFI Stealth
- Injection Style:
- Throttle Body
- Supported Horsepower:
- 1250 Forced Induction, 650 Naturally Aspirated
- Includes Intake Manifold:
- No
- Includes Throttle Body:
- Yes
- Throttle Body Mounting Flange:
- Square Flange
- Throttle Body CFM:
- 870 CFM
- Throttle Body Material:
- Aluminum
- Throttle Body Finish:
- Black
- Includes Fuel Rails:
- No
- Number of Injectors Included:
- 4 Injector
- Injector Flow Rate:
- 100 lbs/hr.
- Includes Hand-Held Calibration Module:
- Yes
- Includes ECM:
- Yes
- Includes Fuel Pump:
- No
- Includes Fuel Pressure Regulator:
- No
- Sensors Included:
- O2, MAP, IAT, TPS
- Quantity:
- Sold As Kit
