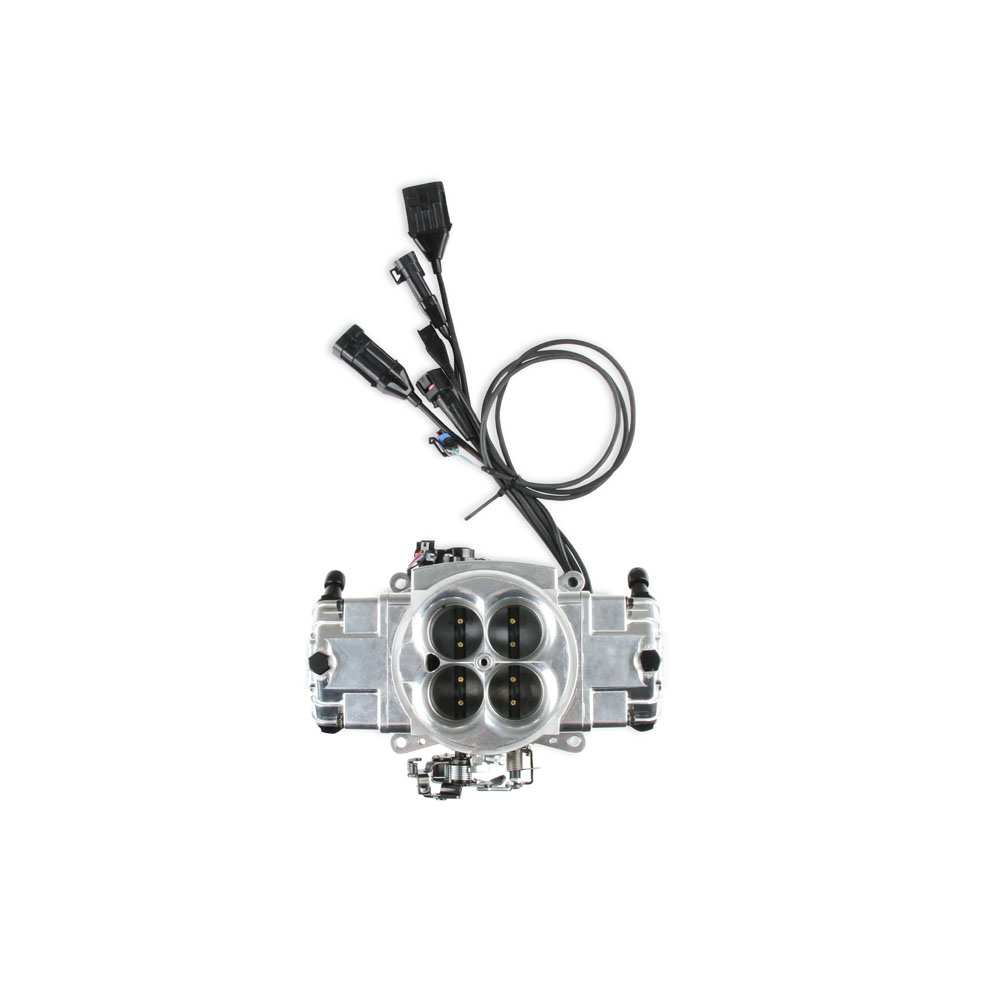

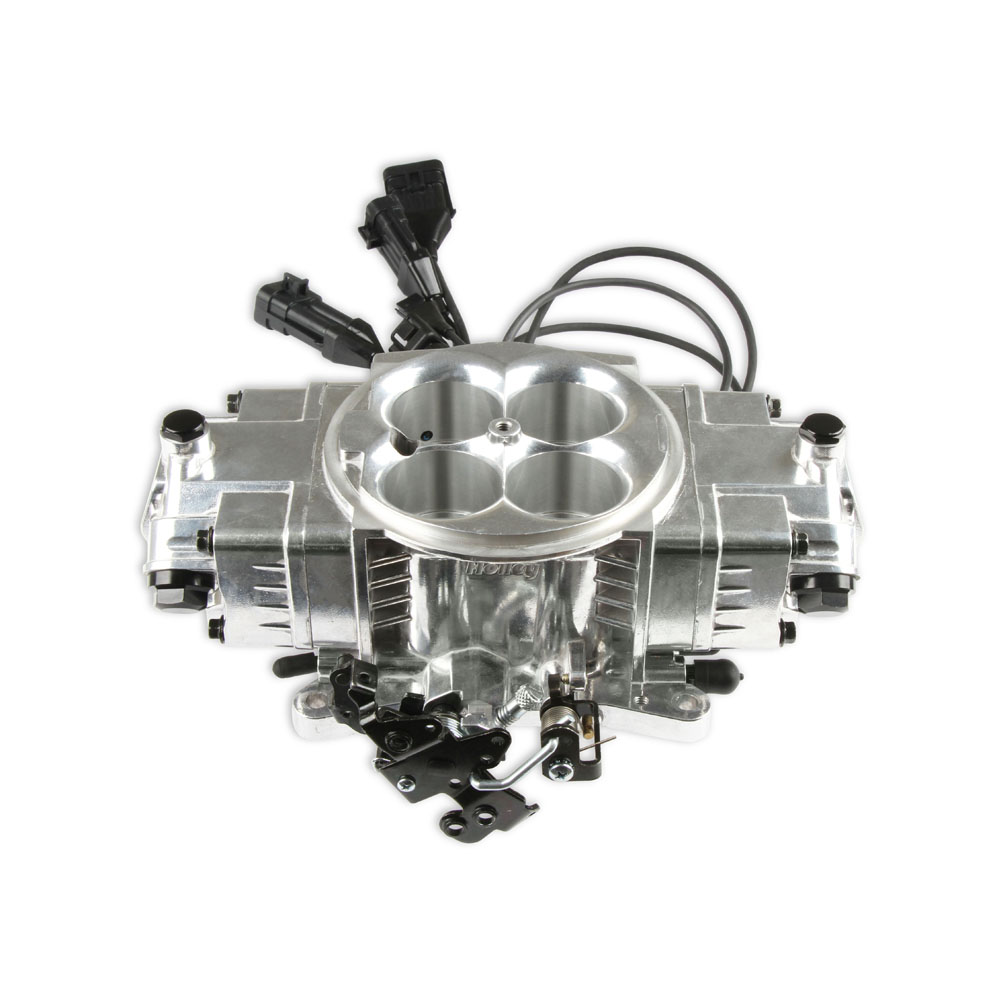

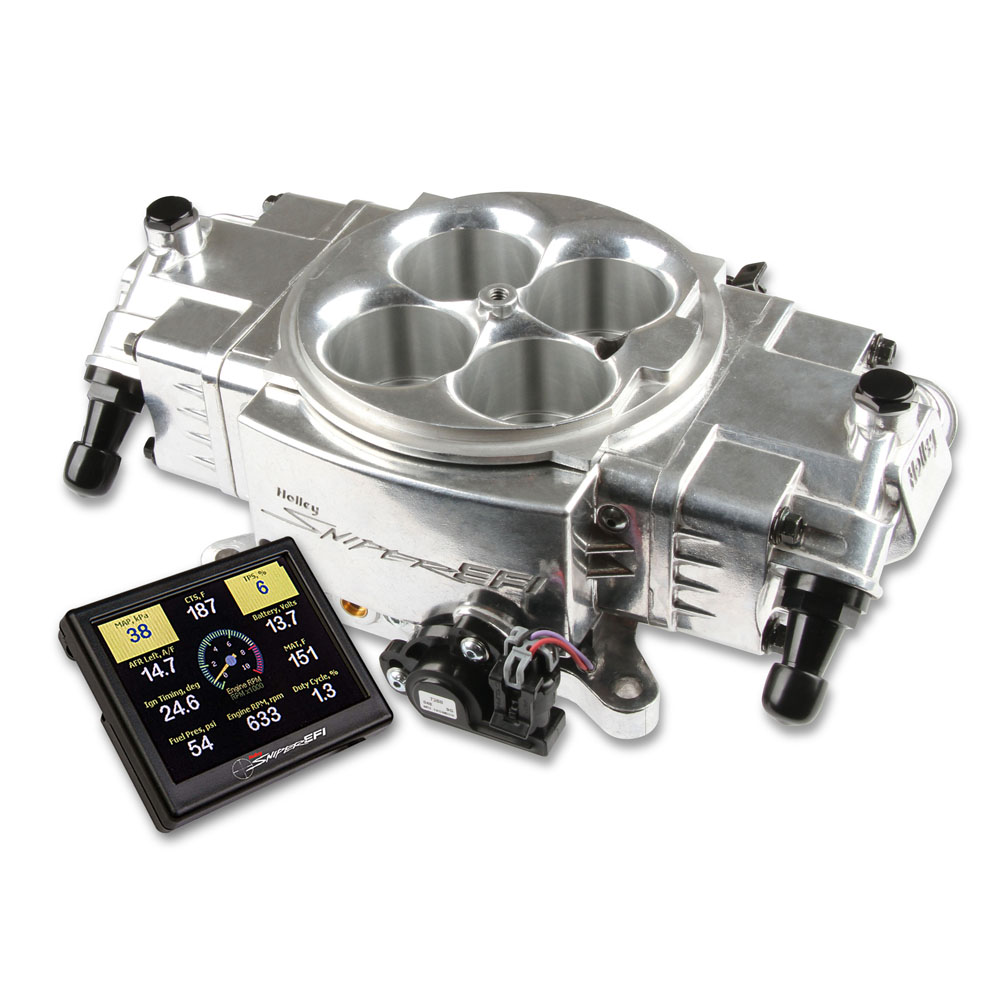

Sniper Fuel Injection System 550-870; Stealth 4150 650 HP Throttle Body 870 CFM Polished Aluminum

Details

• Bolt on 4150 Flange Carburetor Replacement
• Throttle body mounted ECU - no extra boxes to mount
• Supports up to 650hp with Four 100 Lb/Hr Injectors!
• All of the wiring exits below the rear fuel injector cover, for a completely stealth installation.
• Timed spark part for vacuum advanced distributors located under the front fuel bowl, for easy access to the distributor.
• Air entry is machined to fit most stock style air cleaners with air cleaner locator provisions.
• Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
• An external fuel pressure regulator is required, set to a base pressure of 58.5 PSI, e.g. 12-886.
• Integrated ignition timing control
• High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
• Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
• Self-tuning ECU means you don‚Äôt have to be a computer/tuning wiz to have EFI!
• The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
• OEM Style TPS/IAC for years of dependable service.
• Included clamp-on oxygen sensor kit for 2.25" exhaust ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
• vailable in 3 finishes: Shiny, Black and coming soon, Gold

• Timed spark part for vacuum advanced distributors located under the front fuel bowl, for easy access to the distributor.
• Air entry is machined to fit most stock style air cleaners with air cleaner locator provisions.
• Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
• An external fuel pressure regulator is required, set to a base pressure of 58.5 PSI, e.g. 12-886.
• Integrated ignition timing control
• High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
• Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
• Self-tuning ECU means you don‚Äôt have to be a computer/tuning wiz to have EFI!
• The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
• OEM Style TPS/IAC for years of dependable service.
• Included clamp-on oxygen sensor kit for 2.25" exhaust ensures a leak free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange
• vailable in 3 finishes: Shiny, Black and coming soon, Gold
