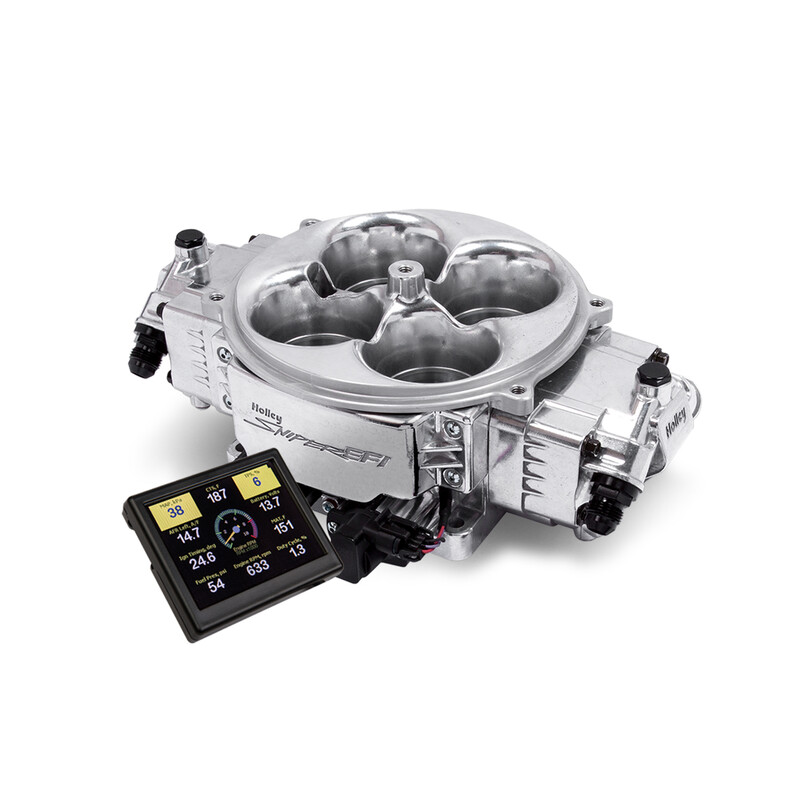

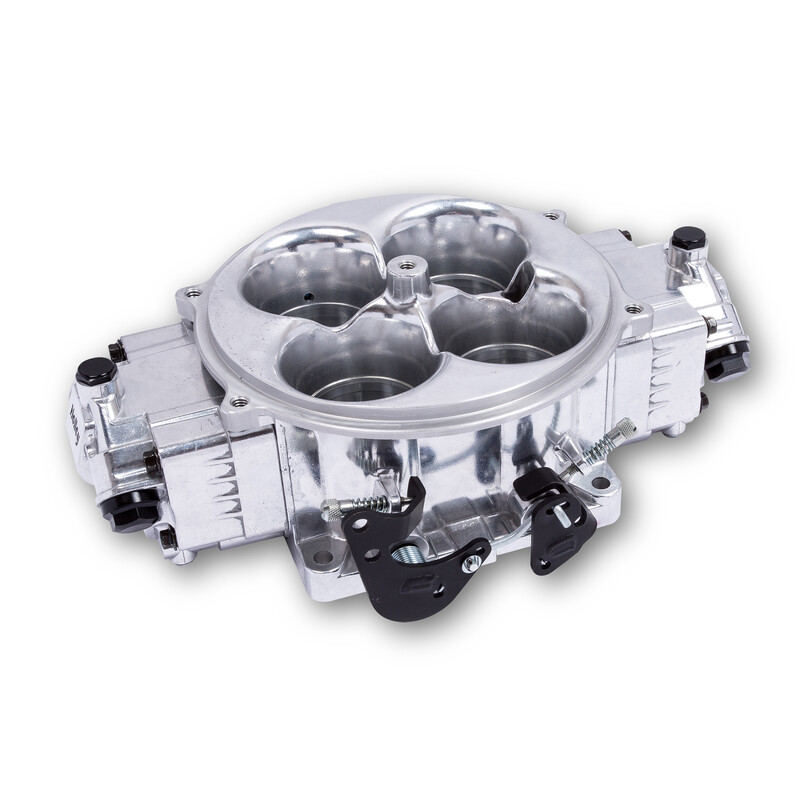

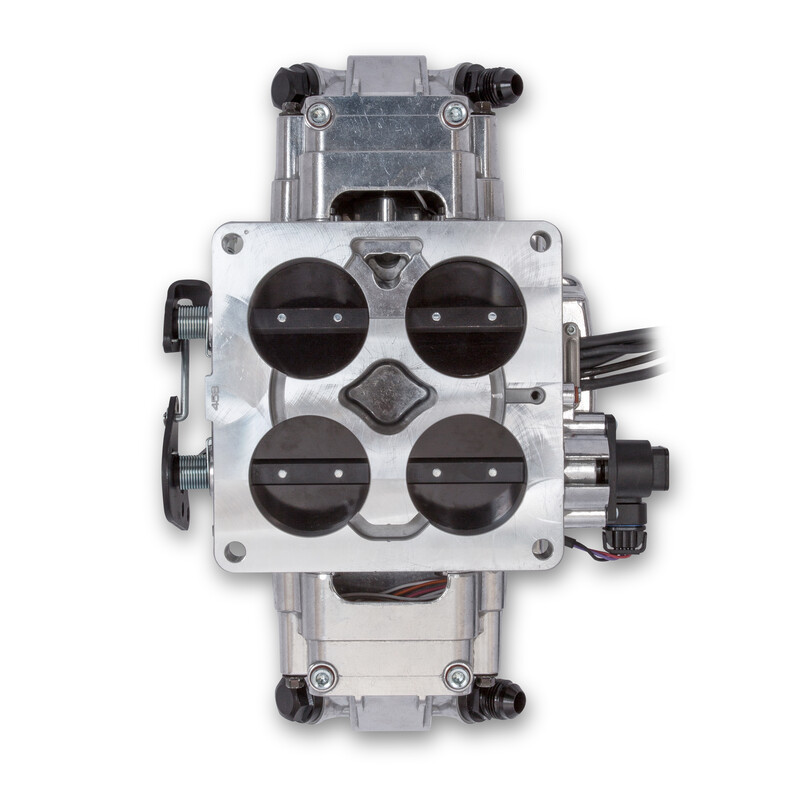

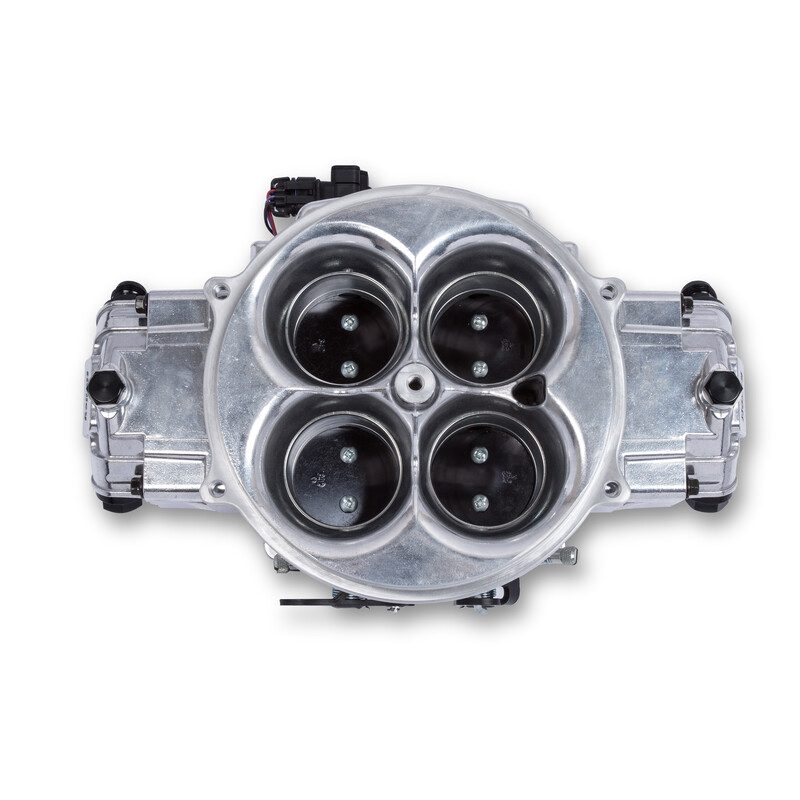

Sniper Fuel Injection System 550-841; Stealth 4500 1500 HP Throttle Body 1440 CFM Shiny Aluminum

$2,109.95

Part #: 550-841

Brand: Sniper EFI

UPC: 090127045268

Estimated Ship Date: 5/19/2025 (From manufacturer)

Specifications Videos

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

Supports up to 1500 HP Naturally Aspirated or 1250 HP Forced Induction with Eight 100 Lb/Hr Injectors
Compatible with Draw through or Blow through forced induction applications
2.125" Throttle Plates, Flow 1440 CFM for large cubic inch engines
2.5Bar MAP Sensor
Integrated ignition timing control
Programmable launch control via 2-step and timing retard. Both can be triggered by a trans-brake input
Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange
-8AN Fuel Inlets
High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
Simple Calibration Wizard (Answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required
Self-tuning ECU means you don‚Äôt have to be a computer/tuning wiz to have EFI!
The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn
Built-in Single Stage Wet or Dry progressive nitrous control
Three Programmable 0-5V Sensor Inputs for Oil/Fuel/Dome or Nitrous Pressure or other critical information
Six Programmable Ground Outputs, Five programmable ground inputs. These can be used to trigger or control external devices such as nitrous solenoids, boost control solenoids. Or to provide the ECU with an Input to turn on function such as an ignition timi
One +5v Reference Output - +5V Power Supply for 0-5v Sensors, One Sensor Ground - Ground supply for 0-5v Sensors
Throttle body mounted ECU - no extra boxes to mount
Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
Required external fuel pressure regulator, 12-848 is recommended
Customizable secondary fuel pump output (TPS, RPM or Boost enabled)
User friendly Boost Control with handheld adjustability
Free Software included comprehensive datalogging tool to help you maximize the performance of your engine

Integrated ignition timing control
Programmable launch control via 2-step and timing retard. Both can be triggered by a trans-brake input
Gen 3 Ultra Dominator Style 4 Bolt Air Cleaner Flange
-8AN Fuel Inlets
High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
Simple Calibration Wizard (Answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required
Self-tuning ECU means you don‚Äôt have to be a computer/tuning wiz to have EFI!
The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides realtime Fuel Map Learn
Built-in Single Stage Wet or Dry progressive nitrous control
Three Programmable 0-5V Sensor Inputs for Oil/Fuel/Dome or Nitrous Pressure or other critical information
Six Programmable Ground Outputs, Five programmable ground inputs. These can be used to trigger or control external devices such as nitrous solenoids, boost control solenoids. Or to provide the ECU with an Input to turn on function such as an ignition timi
One +5v Reference Output - +5V Power Supply for 0-5v Sensors, One Sensor Ground - Ground supply for 0-5v Sensors
Throttle body mounted ECU - no extra boxes to mount
Only 4 Wiring Connections Required! (Battery +, Battery - , Switched Ignition & RPM)
Required external fuel pressure regulator, 12-848 is recommended
Customizable secondary fuel pump output (TPS, RPM or Boost enabled)
User friendly Boost Control with handheld adjustability
Free Software included comprehensive datalogging tool to help you maximize the performance of your engine

Product Description

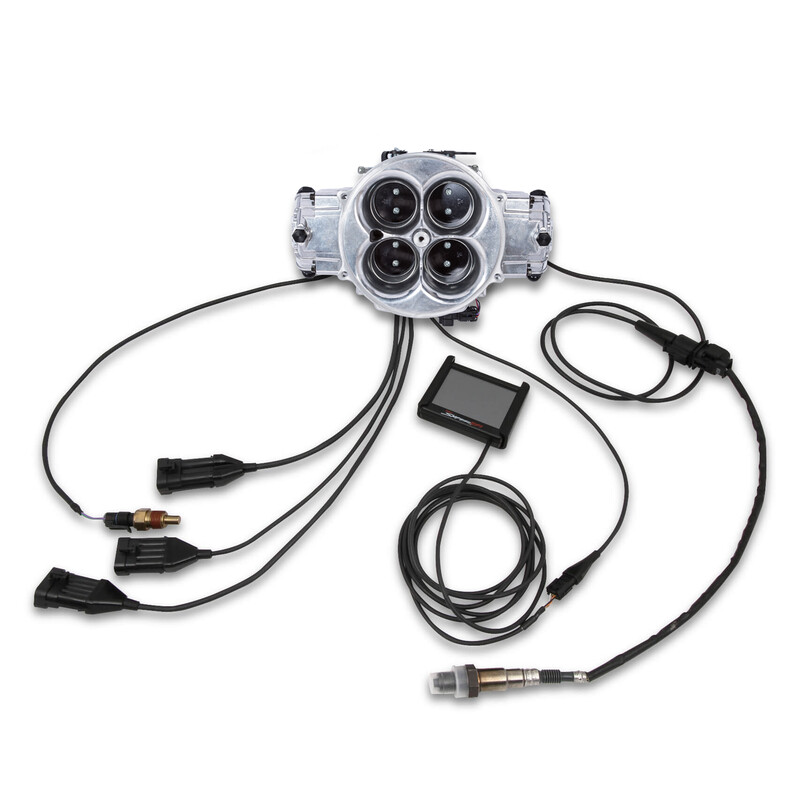

Introducing the Sniper Stealth 4500 EFI System! Wanting to convert your Dragster or Pro-street vehicle to Fuel Injection? Look no further! The Sniper Stealth 4500 EFI system from Holley features 8, 100LB/HR Fuel Injectors capable of supporting 800 to 1500 HP naturally aspirated, or 800-1250 HP on forced induction applications. The Sniper Stealth 4500 also features multiple Input and Output options for sensor inputs and switched outputs to control external relays. This system also comes with a USB to CAN tuning cable and free downloadable Sniper EFI Software give you unlimited control of your engine

Specifications

Fuel Injection System Model or Series:
Stealth 4500: Injection Style:
Throttle Body: Supported Horsepower:
1500 HP: Includes Intake Manifold:
No: Includes Throttle Body:
Yes: Throttle Body Mounting Flange:
4500 Dominator: Throttle Body CFM:
1440 CFM: Throttle Body Material:
Aluminum: Throttle Body Finish:
Shiny: Includes Fuel Rails:
Yes: Injector Flow Rate:
100 lbs/hr.: Includes Hand-Held Calibration Module:
Yes: Includes ECM:
Yes: Includes Fuel Pump:
No: Includes Fuel Pressure Regulator:
No: Sensors Included:
2.5 Bar MAP, TPS, IAC: Notes:
Not for use with engines producing less than 800 horsepower; Gasoline Only; Use of leaded race fuels may shorten the service life of the WBO2 sensor: Quantity:
Sold As Kit
