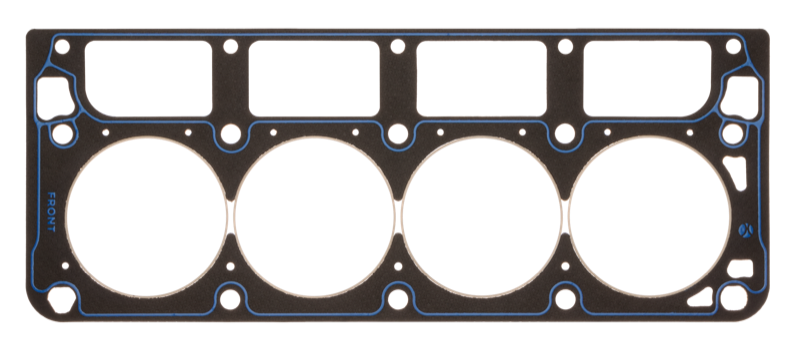

SCE Gaskets Head Gasket CR201559; Vulcan Cut Ring Perforated Metal Core Composite 0.059 in. 4.150 in. for 1997 to 2014 GM Corvette, Camaro LS

$183.39

Part #: CR201559

Brand: SCE Gaskets

UPC: 679002233497

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Product Description

A hybrid design forged to harness the best sealing properties of two head gasket types - Composite abnd Stainless Steel. Pliable, perforated metal-core composite gasket body eliminates coolant and oil leaks. No sealant needed! Solid stainless cut-ring bites into the cylinder head forming a positive barrier against combustion pressure leaks. No machining required! Designed for use with high static compression or forced-induction engines which are prone to combustion pressure leaks when using typical composite or MLS head gaskets. Especially 4-bolt-per-cylinder patterns such as BMW, Subaru, Toyota and Chevrolet LS series. Engine Sealing Capability Exceeds: 16:1 Static Compression Ratio 35 lbs. Supercharged or Turbocharged forced induction 250 Shot of Nitrous Oxide

Specifications

Head Gasket Series:
Vulcan Cut Ring
Year:
1997 to 2014
Make:
GM
Model:
Corvette, Camaro
Engine:
LS
Material:
Perforated Metal Core Composite
Compressed Thickness:
0.059 in.
Bore Size:
4.150 in.
Cylinder Ring Type:
Stainless Steel Cut Ring
Quantity:
Sold As Each
