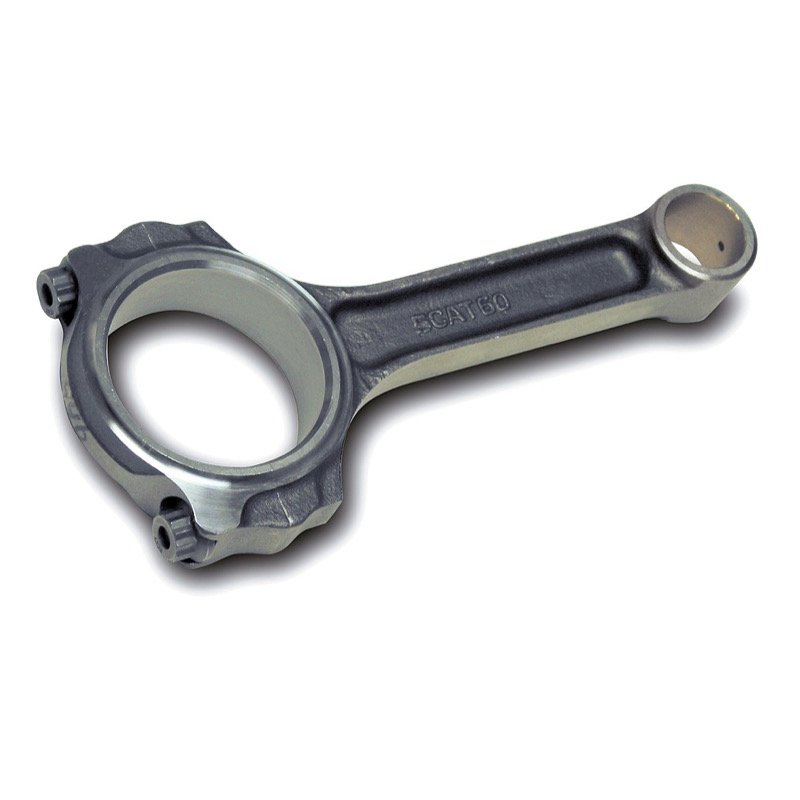

Scat Connecting Rods 26135716; Pro Series I-Beam 6.135 in. Bushed for Chevy 396 to 454
$423.85
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Single rib cap design for added strength and bearing support
- Polished and shot peened beams to eliminate stress risers
- Special hollow dowels and huge 7/16" cap screw bolts greatly increase strength and horsepower capabilities
- Stroker clearanced (light weight)
Product Description
SCAT connecting rods feature the same high quality craftsmanship that has led them to the fore front of the performance industry. SCAT rods are made from a 2-piece chromoly steel forging to ensure maximum strength and durability. SCAT offers a complete line of small-and big-block Chevy, small and big-block Ford, Honda and many more in both the I-Beam and H-Beam designs. Precision finished at SCAT on the newest and most modern machinery available by SCAT's master machinists.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Connecting Rods Series:
- Pro Series
- Make:
- Chevy
- Engine:
- 396 to 454
- Beam Style:
- I-Beam
- Rod Length:
- 6.135 in.
- Material:
- Forged 4340 Steel
- Weight:
- 780 g
- Rod Journal Diameter:
- 2.200 in.
- Wrist Pin Diameter:
- 0.990 in.
- Wrist Pin Style:
- Bushed
- Rod Bolt Style:
- Cap Screw
- Rod Bolt Diameter:
- 7/16 in.
- Stroker Clearanced:
- Yes
- Big End Width:
- 0.992 in.
- Connecting Rod Finish:
- Polished and Shot Peened
- Big End Bore:
- 2.325 in.
- Notes:
- Long Number 2-ICR6135-7/16
- Quantity:
- Sold As Set (8/pkg)
