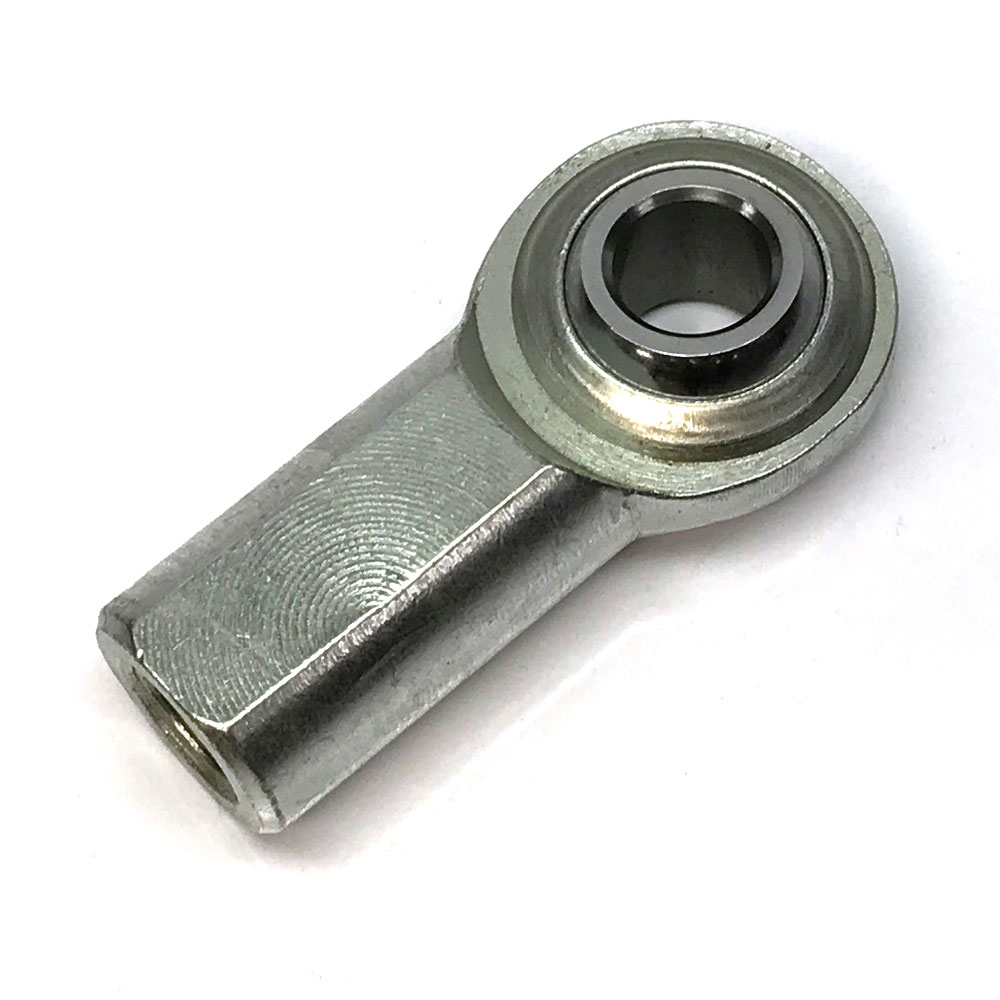

Rod End Supply Suspension Rod End Bearing EFR8; Economy 1/2 in. 1/2 in. -20 Right Hand Female C1045 Steel Body, 52100 Steel Bearing 20 deg.

$6.17

Part #: EFR8

Brand: Rod End Supply

Estimated Ship Date: This part is unavailable with no ETA

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • 2-Piece design
  • Precision ground, hard chromed and heat treated 52100 Bearing Steel ball
  • Heat treated and coated carbon steel body
  • Very low friction, free moving ball
  • Requires lubrication
  • Economically priced

Product Description

For a self-lubricating version of a traditional carbon steel two-piece female rod end, QA1 offers its CF-T Carbon Steel Series rod ends with a PTFE liner. These rod ends are protective coated for corrosion resistance and are available in inch dimensions with left and right hand threads. Stud configurations are available by calling 800-721-7761. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , BODY, Carbon Steel, Protective Coated for Corrosion Resistance, PTFE Lined.

Specifications

Suspension Rod End Bearing Series:
Economy
Material:
C1045 Steel Body, 52100 Steel Bearing
Finish:
Zinc Plated
Construction:
2 Piece
Heat Treated:
Yes
Greasable:
No
Bore:
1/2 in.
Ball Diameter:
0.937 in.
Ball Width:
0.625 in.
Housing Width:
0.453 in.
Housing OD:
1.312 in.
Centerline Length:
2.125 in.
Shank Style:
Right Hand Female
Shank Thread Size:
1/2 in. -20
Shank Thread Length:
1.062 in.
Includes Jam Nut:
No
Load Capacity:
12,224lbs.
Misalign Angle:
20 deg.
Quantity:
Sold As Each
