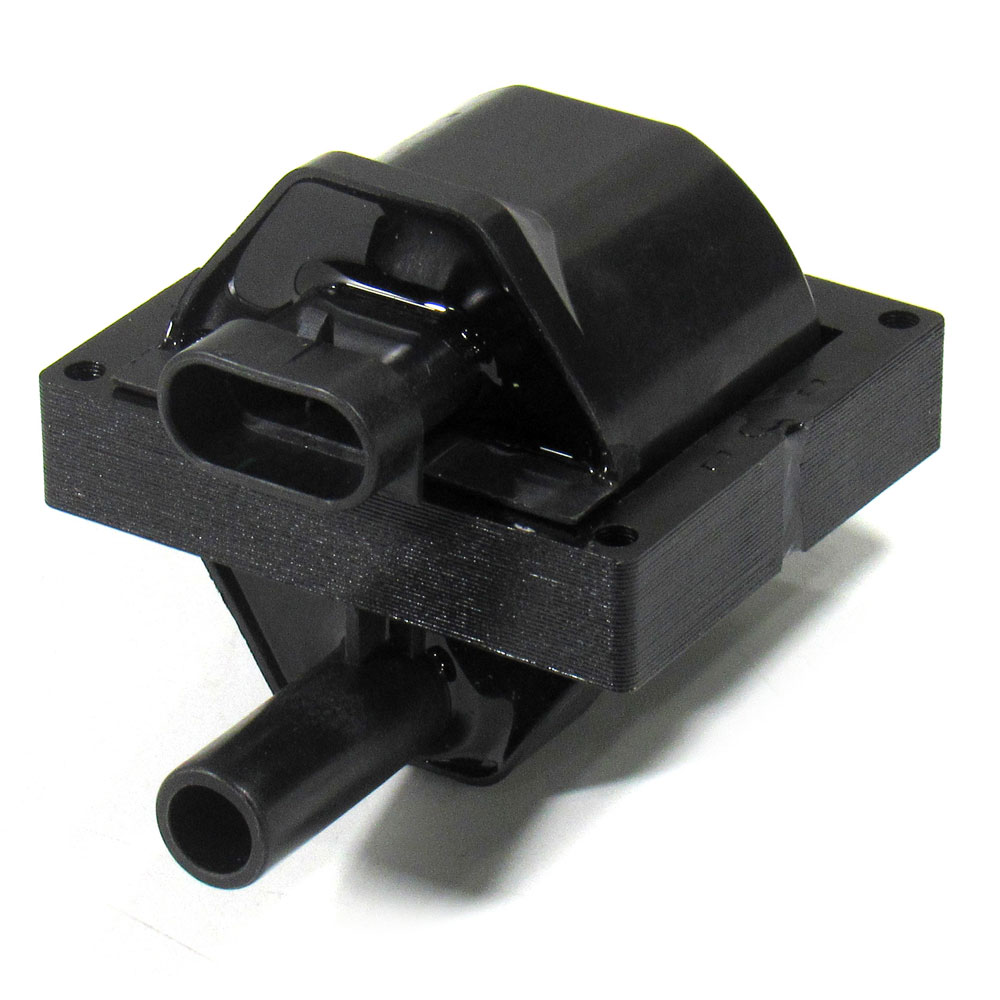

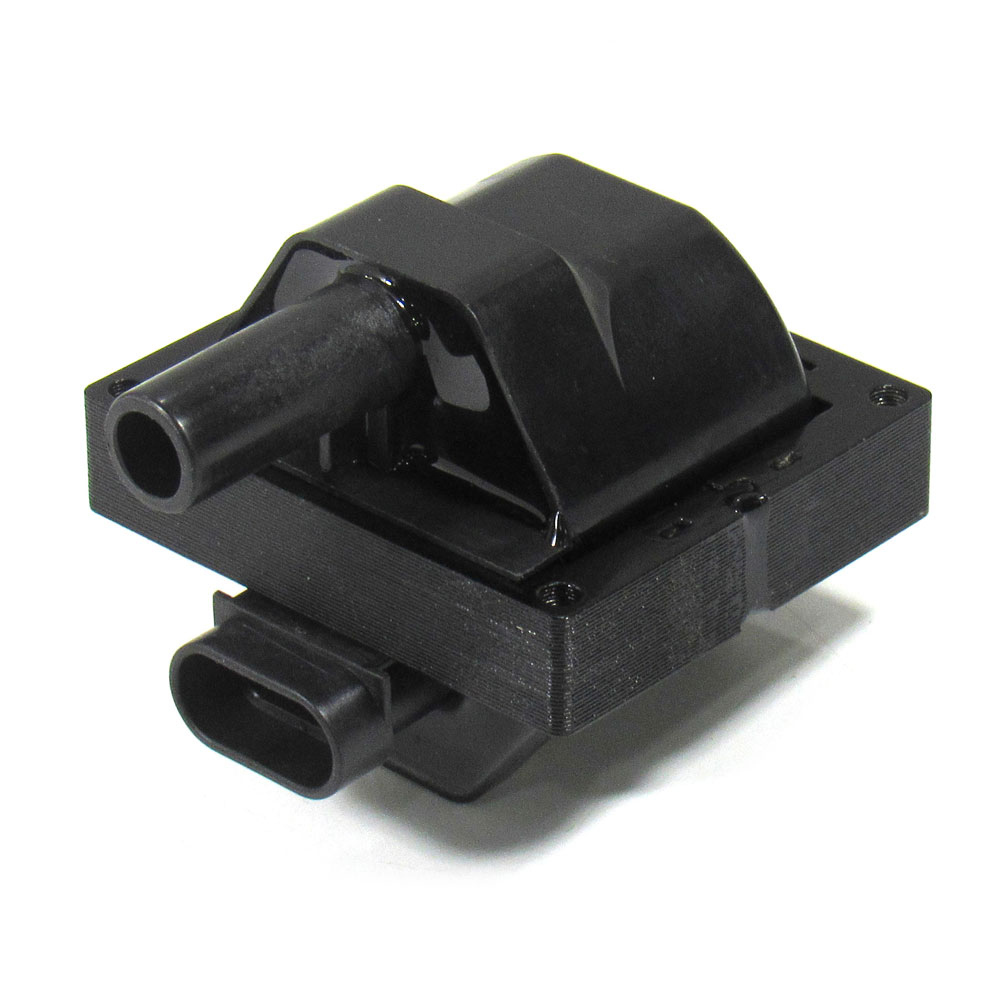

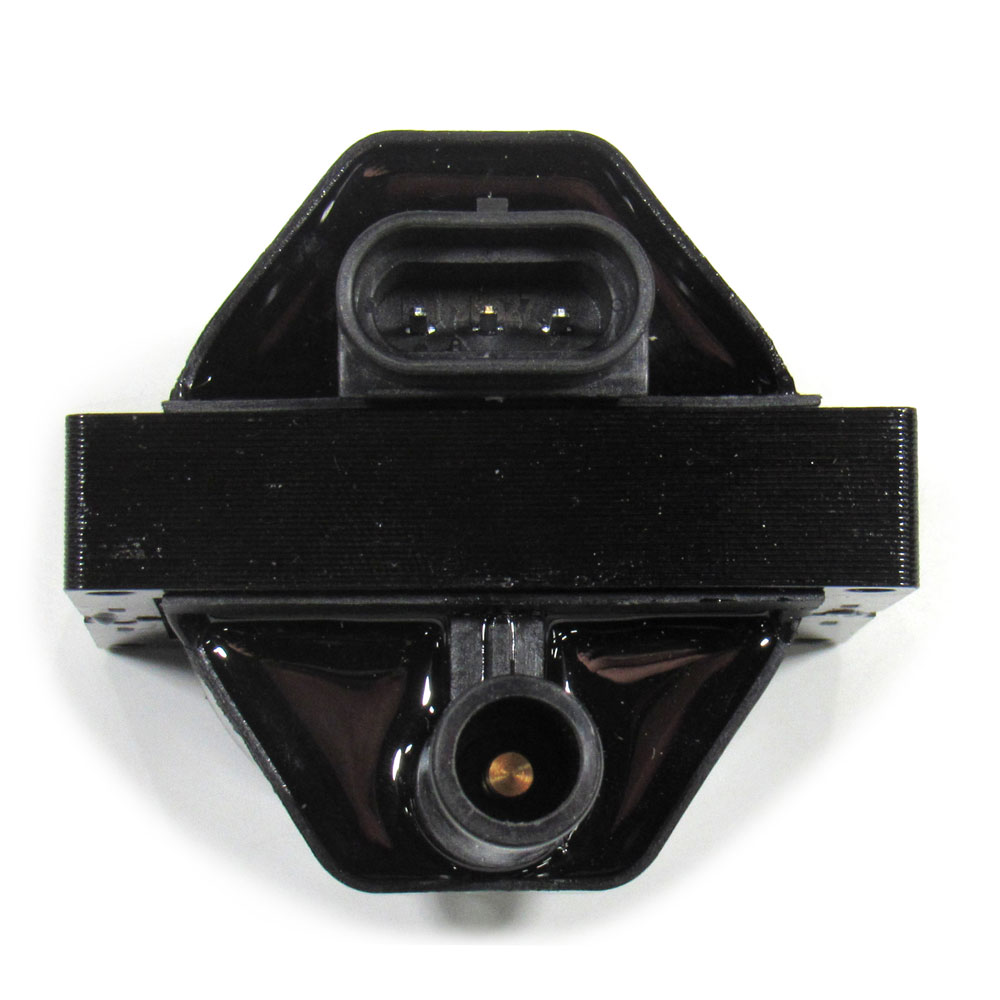

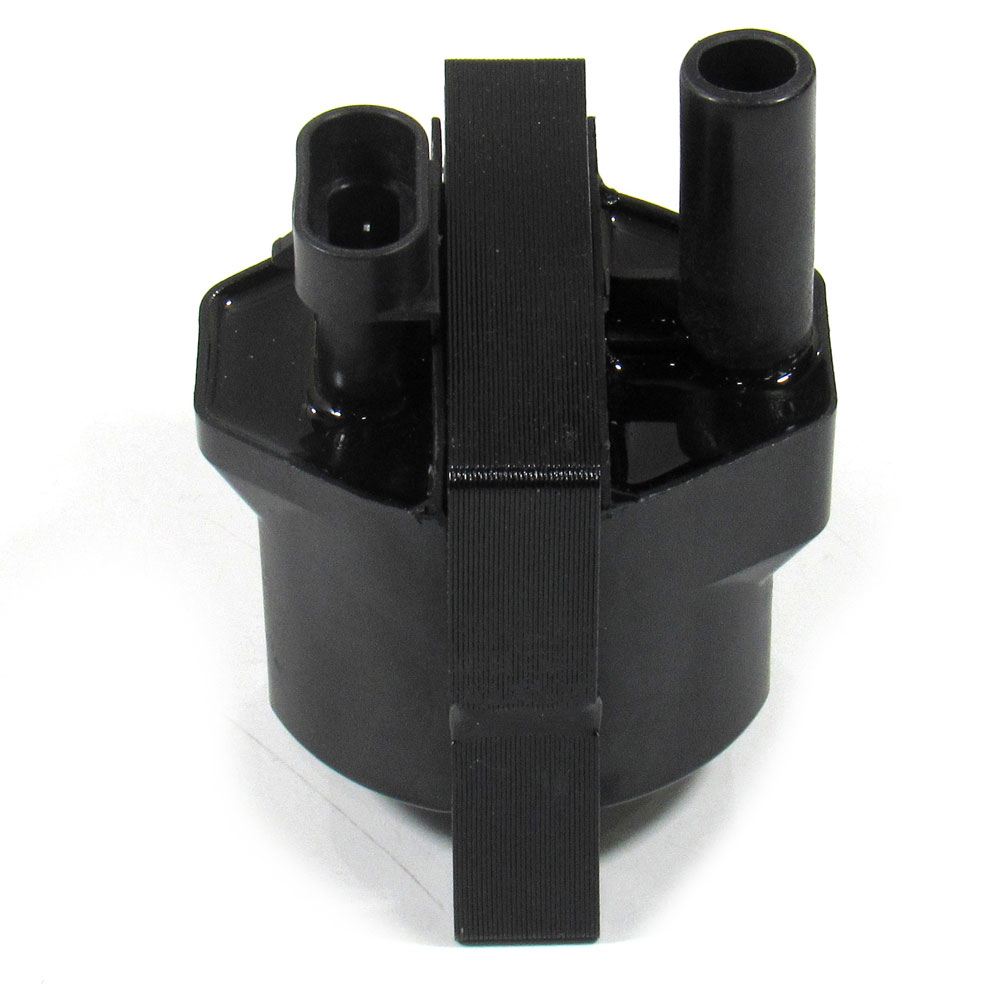

Revolution Ignition Coil 68231BK; GM Single Connector Black 45000 Volt EST, EFI Remote Mount Female Tower for 1996 to 2007 GM
$16.99
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Need It Faster?

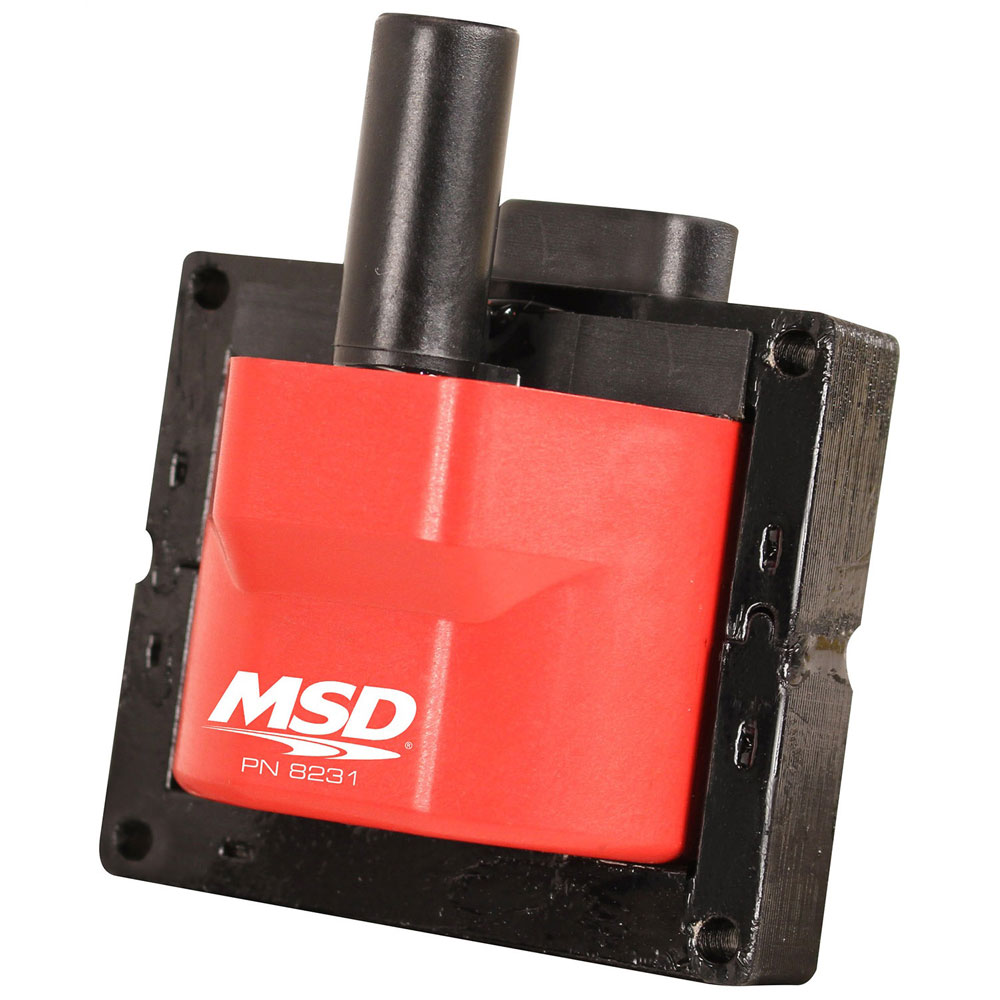

We recommend this alternative part:
Details
- Direct performance replacement coil for GM 1996-1999
- 80:1 turns ratio
- Lower Primary Resistance Produces High Voltage Output
- Works with Stock Ignition As Well As MSD Ignitions
- CARB E.O. Approved
Product Description
When it comes to late model performance parts, nothing beats bolt-on and direct connection components. These new bolt-in coils are designed with improved materials and windings to produce a stronger output. GM single connector coil PN 8231. Used on 1996 to 1999 General Motors vehicles. Installation tip: if you plan to install an MSD Ignition with this coil, use a PN 8877 harness for a direct plug-in installation.
Specifications
- Ignition Coil Series:
- GM Single Connector
- Year:
- 1996 to 2007
- Make:
- GM
- Coil Type:
- EST, EFI Remote Mount
- Maximum Voltage:
- 45000 Volt
- Primary Resistance:
- 0.200 Ohms
- Secondary Resistance:
- 6.7K Ohms
- Coil Wire Attachment:
- Female Tower
- Finish:
- Black
- Internal Construction:
- Epoxy Filled
- Primary Inductance:
- 3.90 mH
- Turns Ratio:
- 91:1
- Includes Mounting Bracket:
- No
- Includes Ballast Resistor:
- No
- Includes Hardware:
- No
- Quantity:
- Sold As Each
