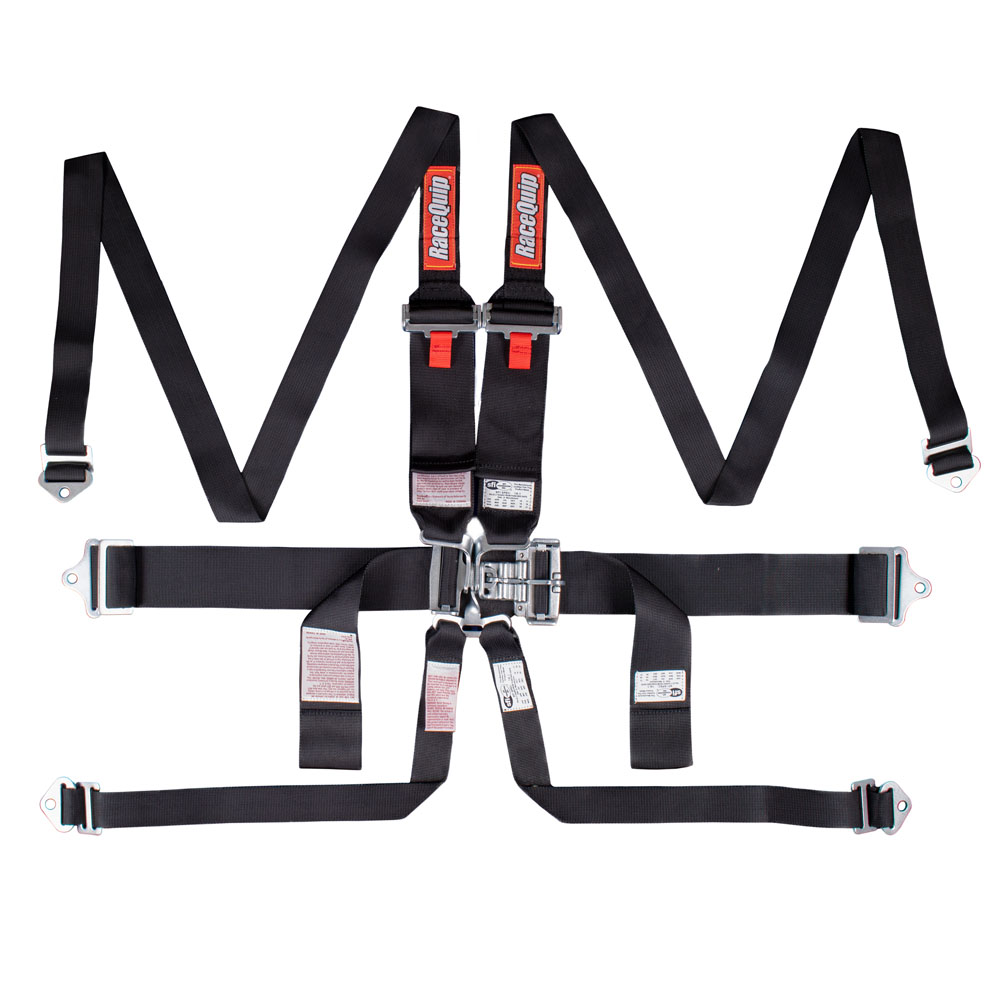

RaceQuip Seat Belt Harness 718008; Latch and Link HANS 6 Point 3.000 in. Black 6 Point Latch

$159.95

Part #: 718008

Brand: RaceQuip

UPC: 887753137104

Estimated Ship Date: Please Call

Specifications

Details

SFI 16.1 Rated (Tags Affixed)
Color: Black
Size: 3" Lap, 3" to 2" Shoulder, 2" Sub
NOT D.O.T. / FMVSS Certified for On Highway Use
Premium 3" Polyester Webbing
Pull Down Style Lap Belt
6 Point Design - Dual 2" Crotch Strap
3" Hardware Ends Installed
Double Adjustable for Ease of Installation
Wrap Around or Bolt-in Mounting
Drop-Forged Steel Hardware
Shoulders Adjust from 20" to 62"
Lap Belt Adjusts 20" to 60"
Twin Individual Shoulder Belts
2" Shoulder Accomodates HNR / HANS Device

Product Description

RaceQuip’s Latch & Link 6-point HANS / HNR auto racing harness set has twin individual shoulder belts that are reduced to 2" above the adjusters to more easily accomodate a HANS or Head and Neck Restraint Device. These belts are manufactured using premium 3" polyester webbing and drop forged steel hardware to exceed the SFI 16.1 rating. Shoulders adjust from 20" to 62" and the lap belt adjusts from 20" to 60". All RaceQuip 718 series belts come as a "pull down lap" design, which means that the lap belts must be pulled down and away from the center latch & link buckle mechanism to tighten. All RaceQuip Latch & Link motorsports harness sets are distinguished by a pivoting "hammer," called a Duckbill, which is located on the lap belt and locks all of the belts into place by snapping down into a detent. Both shoulder belts and the dual sub-belt are hooked over the link; the link is inserted into the latch on the lap belt; the Duckbill is then brought down into and over the link, securely holding all of the pieces in place. Since RaceQuip seat belt sets are "double adjustable", lengths are simply adjusted on either end for ease of installation. Using the included three bar slide you can mount the belts by either wrapping them around a rollbar or by bolting them in place with the suppl(more...)

Specifications

Seat Belt Harness Series:
Latch and Link HANS 6 Point: Belt Material:
Polyester: Color:
Black: Mounting Points:
6 Point: Latch Style:
Latch: Lap Belt Width:
3.000 in.: Shoulder Belt Width:
2.000 in.: Submarine Belt Width:
2.000 in.: Safety Rating:
SFI 16.1: Lap Belt Adjustment Type:
Pull Down: Lap Belt Mounting Style:
Bolt In or Wrap Around: Shoulder Harness Type:
Individual Straps: Shoulder Belt Mounting Style:
Bolt In or Wrap Around: Shoulder Belt Mounting Location:
Roll Bar: Shoulder Belt Adjustment Type:
Pull Down: Includes Mounting Brackets:
Yes: Includes Hardware:
No: Quantity:
Sold As Each
