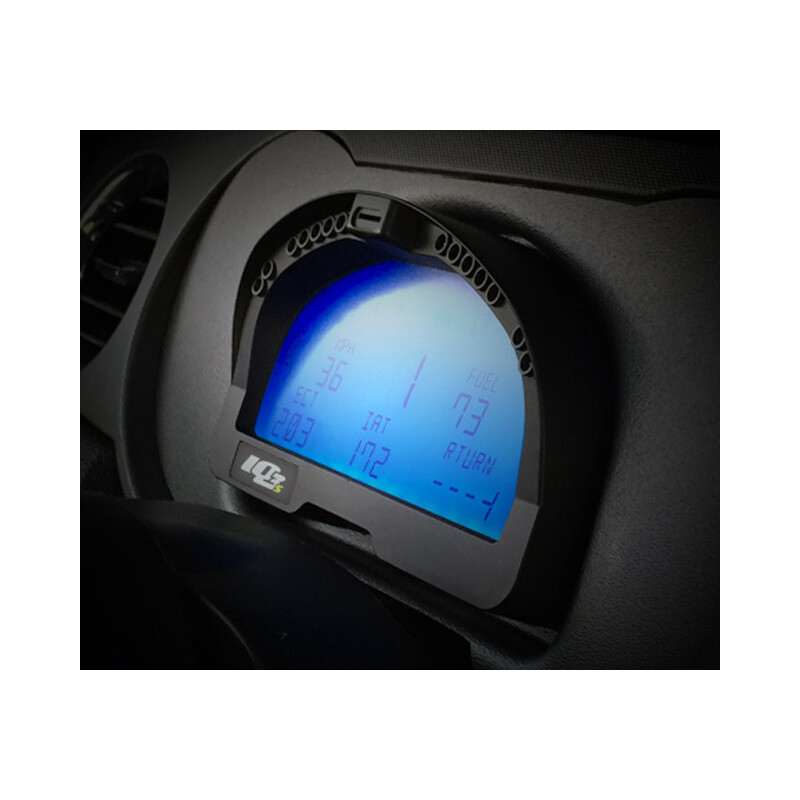

Racepak Instrument Cluster 250-DS-IQ3SL;

The IQ3SL Street Logger Dash adds data logging to the popular IQ3S Street Display Dash. It's an ideal solution for any vehicle that needs full road instrumentation and the ability to record data, putting both into one easy to use unit. Standard data, such as speed, odometer, turn signals, hi/low beam and parking brake indicators are displayed, along with programmable shift and warning lights. Plus, it features internal processing to read data from OBDII and most aftermarket ECU and EFI systems, making it ideal for modern cars, or vehicles with modern EFI engine swaps. In addition to data provided from OBDII, ECU or EFI (if connected), the IQ3SL records engine RPM, speed, gear, coolant and oil temp, oil pressure, and up to six additional V-Net channels. The display features four user-definable pages of information, and data is collected on a front-mounted MicroSD card for convenience. The box includes: IQ3s dash, wiring harness (includes 2 programming buttons), 1 - oil pressure sensor, 2 - fluid temperature sensors (coolant and transmission), USB programming cable, micro SD card, USB SD card adapter and Racepak Datalink II software. It is compatible with AEM V2/EMS-4/Infinity EMS, Big Stuff 3, Electromotive TECGT, EMS EM-Tech ECU, Emtron ECU, FAST XFI, Fuel Tech, Holley Dominator, InjPro, Life Racing F88, Link G4+ Series, MaxxECU, MEFI-4B, MegaSquirt-III (DIY Autotune), MicroTech, MoTeC CAN (Data set 3), MSD Atomic LS, MSD Atomic TBI, OBD-II, Pro EFI and user configured. The IQ3SL connects to these ECU systems using EFI adapter cables. Specifications: display standard road functions / user defined shift light output / display up to 28 inputs via 4 page / shielded, low luster display for sunlight viewing / blue dimmable backlight / metric and English capable / gear indicator / CAN-based and OBD2 compatible / four user defined alarms / connect to any Racepak V-Net data logger / user defined 5 character sensor input names / optional GPS module for speed
