Quick Time Clutch Bellhousing RM-6020; for Chevy 262 to 400, 396 to 454 Muncie, Richmond, TKO, BWT10
$655.95
Part #: RM-6020
Brand: Quick Time
UPC: 084041027844
Estimated Ship Date: 5/23/2025 (From manufacturer)
This item has a $54.01 oversized shipping charge.
See our shipping policy for more details.
Details
- Patent On 16 Points Of Bellhousing Design And Process
- For Appls. with Stock Shifter Fork And Throwout Bearings
- Muncie Richmond Chevy TKO BW-T10 Transmissions

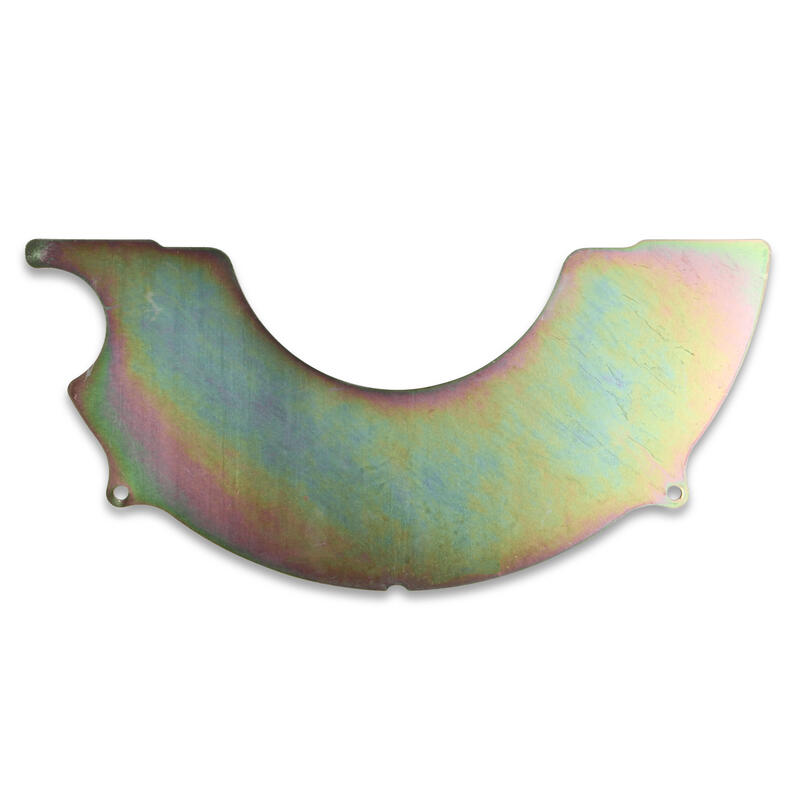

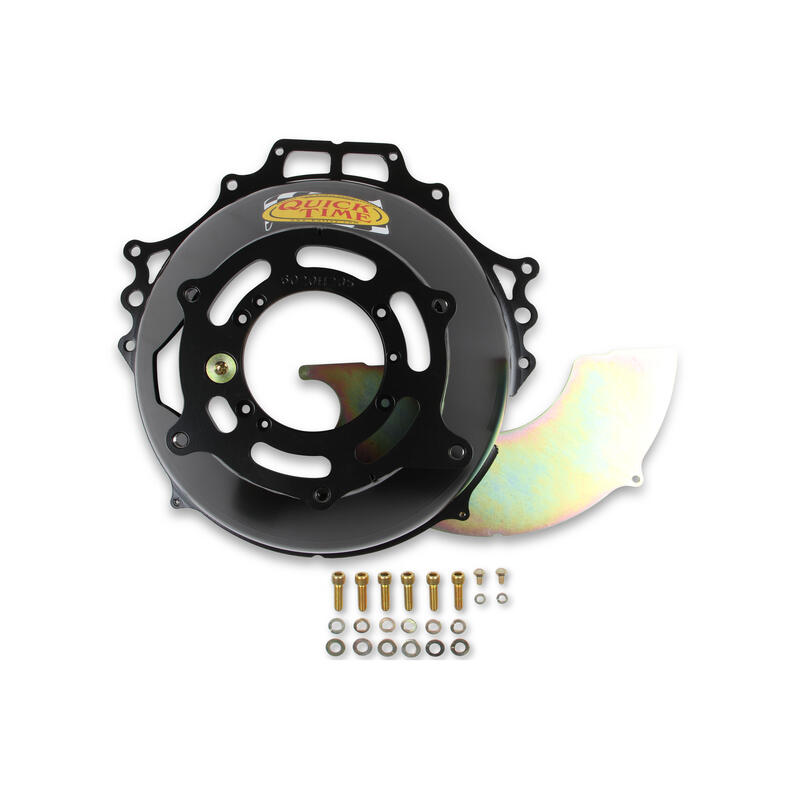

- Full Engine Plate/Grade 8 Bolts/Pivot Ball Included
- Shifter Fork Not Included
- Cone Spun Not Stamped Or Rolled
- Must Use Mini Starter
- Shifter Fork Not Included
- Cone Spun Not Stamped Or Rolled
- Must Use Mini Starter
Product Description

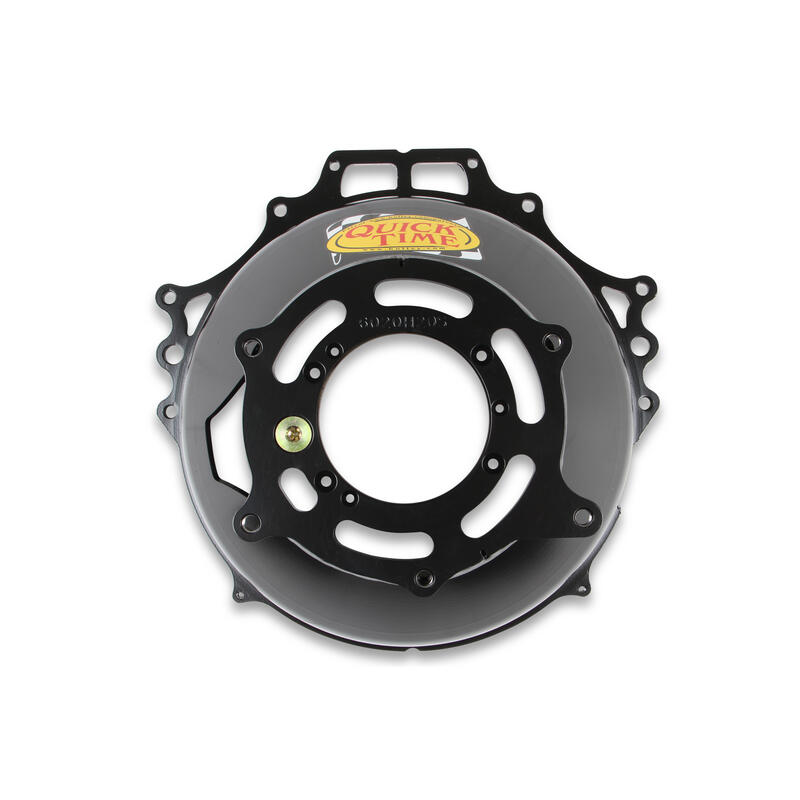

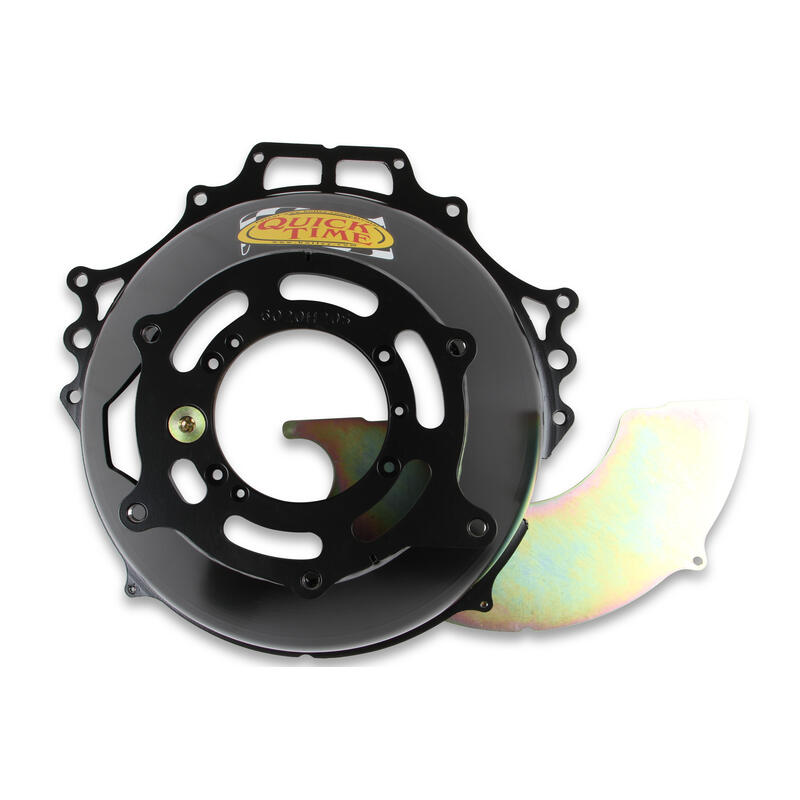

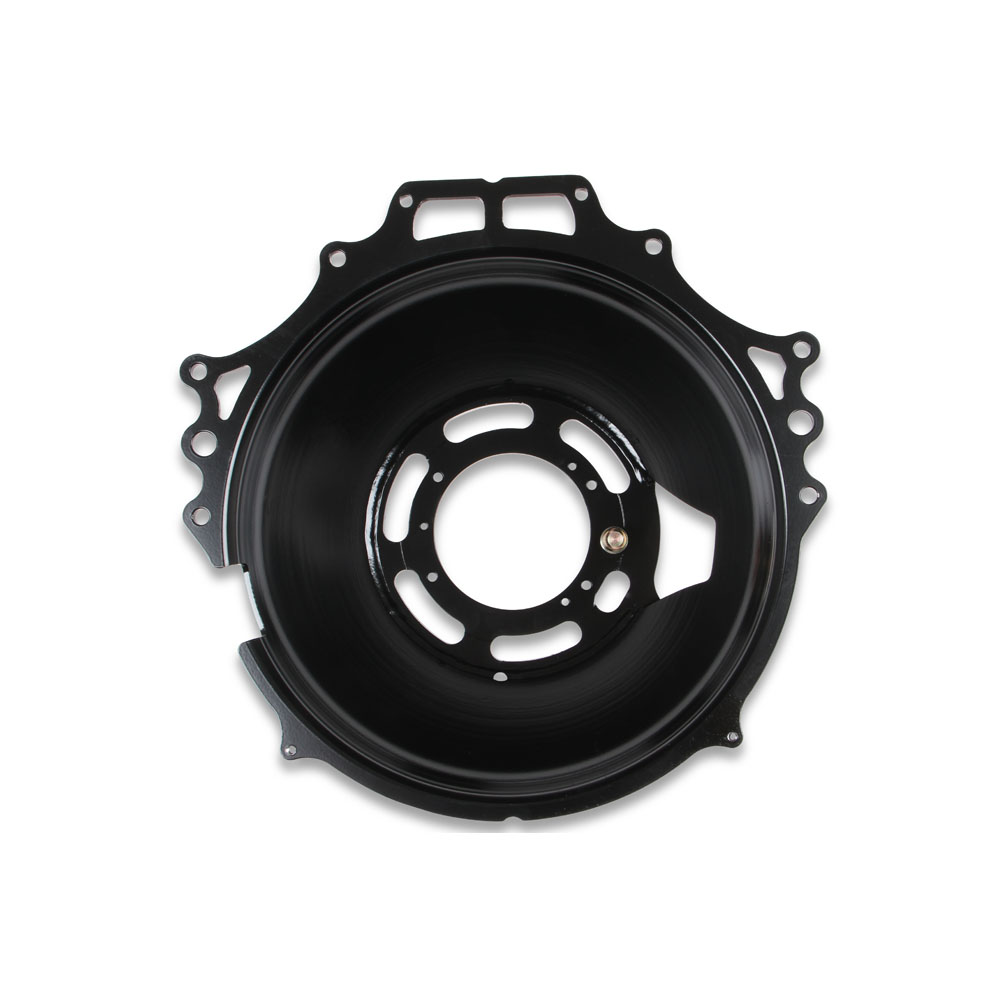

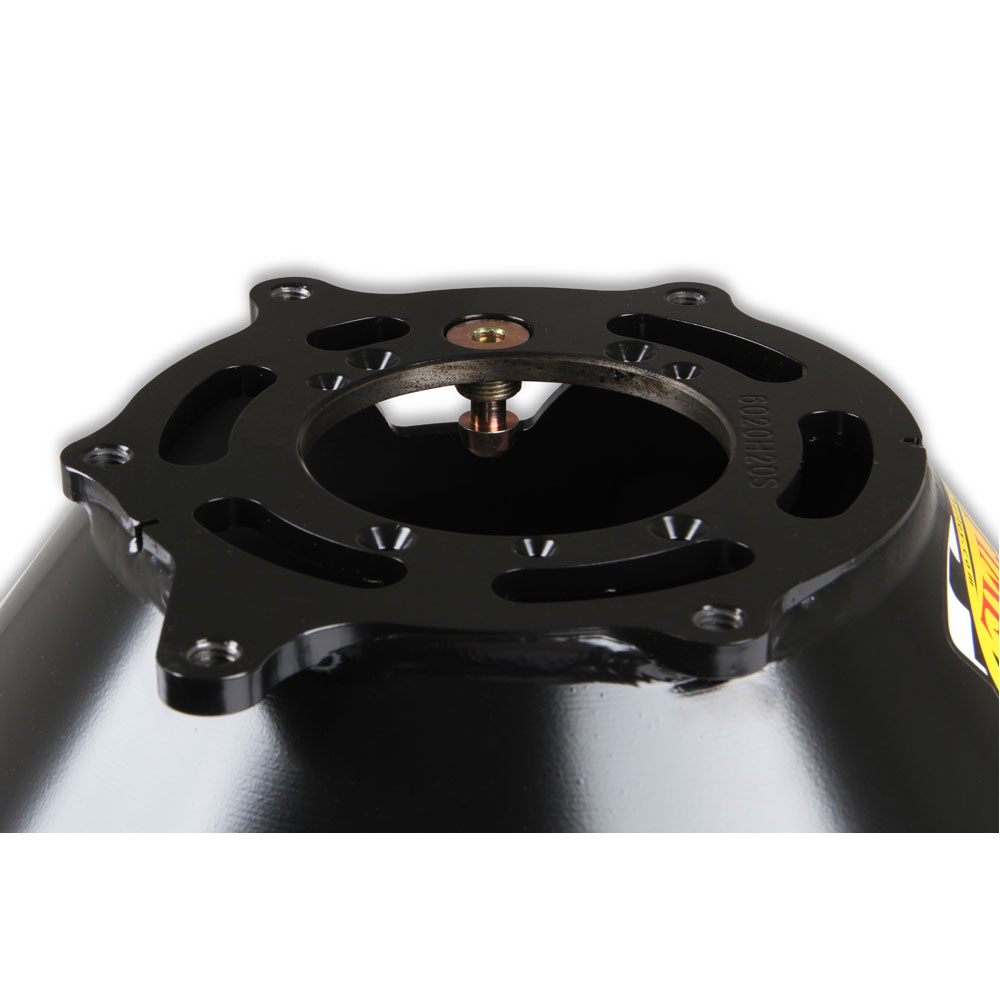

This bellhousing is designed for circle track, strip or street application. This bellhousing fits Small Block Chevy 265-400 CID & Big Block Chevy 396-454 CID engines to Muncie, Richmond, Chevy TKO, BW-T10. Fits 153 tooth flywheel and 10.5 in clutch. Is 6.29 in deep. Built from high grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. Transmission bore is 4.685 in. This bellhousing weighs 18 pounds. Pivot ball, block plate and Grade 8 hardware included. Note: Must use mini starter. Non S.F.I. approved.
Specifications
- Make:
- Chevy
- Engine:
- 262 to 400, 396 to 454
- Transmission:
- Muncie, Richmond, TKO, BWT10
- Color:
- Black
- SFI Certification:
- Non SFI
- Includes Engine Plate:
- Yes
- Fits Clutch Size(s):
- 10.500 in.
- Clutch Operation:
- Hydraulic
- Fits Flywheel(s):
- 153 Tooth
- Bellhousing Depth:
- 6.290 in.
- Transmission Bore Diameter:
- 4.687 in.
- Notes:
- Must use mini starter
- Quantity:
- Sold As Each
