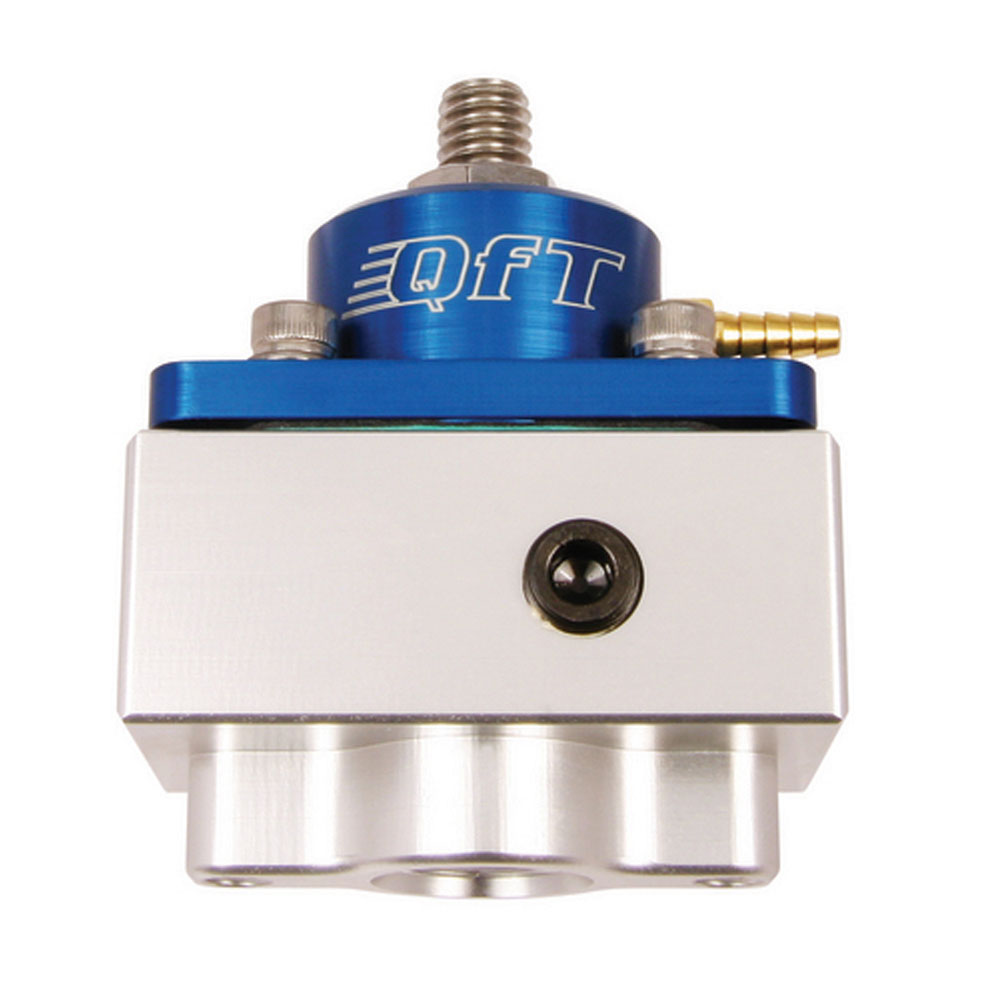

Quick Fuel Technology Fuel Pressure Regulator 30-1900QFT; Billet Bypass 4.5 to 9 PSI Return Gasoline, Alcohol, E85 Billet Aluminum
$205.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Designed To Operate Within 4.5-9 PSI
- 7 PSI Preset
- .350 in. [7/20 in.] Restriction
- Can Be Used With Gas - Alcohol - E85 Fuels
- Compatible with QFT™ Billet Fuel Pressure Regulator Logs
Product Description
Billet Bypass Regulator - Designed for use with an electric fuel pump where fuel pressure is steadily delivered. By-Pass feature is unrestricted and anodized top has a fitting for boost referenced applications. Comes with laser cut stainless mounting bracket and hardware. #8 AN O-Ring fittings required.
Specifications
- Fuel Pressure Regulator Series:
- Billet Bypass
- Regulator Pressure Range:
- 4.5 to 9 PSI
- Regulator Style:
- Return
- Compatible Fuels:
- Gasoline, Alcohol, E85
- Rebuildable:
- Yes
- Regulator Material:
- Billet Aluminum
- Regulator Spring Chamber Finish:
- Red
- Regulator Fuel Chamber Finish:
- Clear ANodized
- Number of Inlet Ports:
- 1 Inlet
- Inlet Port Size:
- -08AN ORB Female
- Number of Outlet Ports:
- 1 Port
- Outlet Port Size:
- -08AN ORB Female
- Return Port Size:
- -08AN ORB Female
- Includes Pressure Port:
- Yes
- Pressure Port Size:
- 1/8 in. NPT
- Includes Boost/Vacuum Reference Port:
- No
- Includes Pressure Gauge:
- No
- Includes Fittings:
- No
- Quantity:
- Sold As Each
