Quick Fuel Technology Carburetor SQ-650; Street Q 650 CFM 4-Barrel No Choke

$642.95

Part #: SQ-650

Brand: Quick Fuel Technology

UPC: 849804016073

Estimated Ship Date: 5/20/2025 (From manufacturer)

Specifications

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • 1 11/16 in. Throttle Bore Size
  • 22-68 Primary Jet
  • 22-76 Secondary Jet
  • 26-73 Idle Bleed
  • 26-31 Hi Speed Bleed
  • 26-33 Hi Speed Bleed
  • 25-45 Power Valve
  • 18-2 Needle And Seat
  • Gas Fuel

Product Description

Street Q-Series - The SQ-Series is the ultimate street/strip performance carburetor. It is constructed of lightweight die-cast aluminum components and provides many of the performance features found in the Q-Series carburetors, including changeable bleeds and 4-corner idle. The Street Q includes cast aluminum, dual metering blocks and

Specifications

Carburetor Model or Series:
Street Q
CFM:
650 CFM
Number of Barrels:
4-Barrel

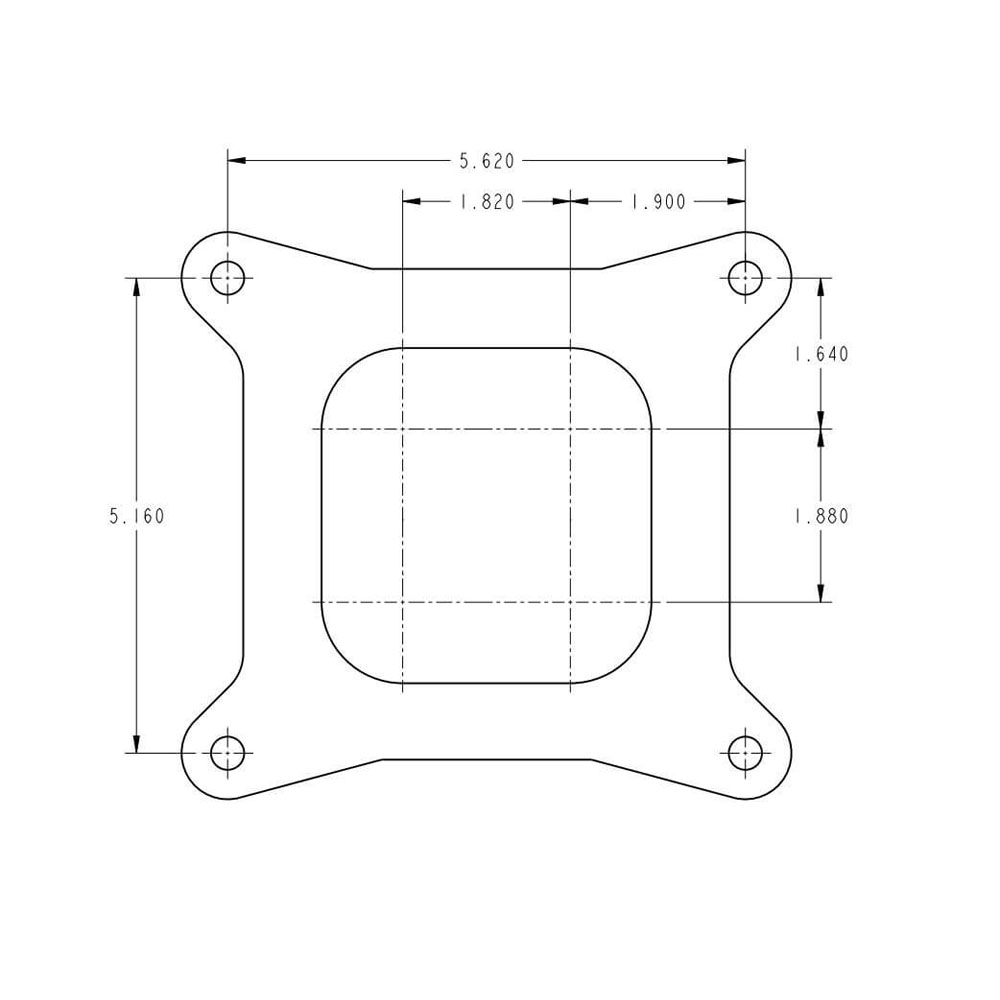

Flange:
4150 Square Bore
Secondary:
Mechanical
Choke:
No Choke
Main Body/Fuel Bowl Material:
Die Cast Aluminum
Main Body/Fuel Bowl Finish:
Shiny
Metering Block Material:
Aluminum
Metering Block Finish:
Shiny
Throttle Plate Material:
Die Cast Aluminum
Throttle Plate Finish:
Shiny
Metering Block Circuits:
2 Circuit
Booster Type:
Down Leg
Compatible Fuels:
Gasoline
Fuel Inlet:
Dual
Primary Power Valve Size (from Factory):
4.5 inHg.
Throttle Bore Size:
1.688 in.
Quantity:
Sold As Each
