Photo for Quick Fuel Technology Carburetor M-650; Marine 650 CFM 4-Barrel Electric Choke

Quick Fuel Technology Carburetor M-650; Marine 650 CFM 4-Barrel Electric Choke

$791.95

Part #: M-650

Brand: Quick Fuel Technology

UPC: 849804000485

Estimated Ship Date: This part is unavailable with no ETA

Specifications

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Exclusive Black Diamond Coating For Enhanced Corrosion Protection
  • Coating Provides a 6% Reduction In Fuel Temperature
  • Electric Choke - Fully Adjustable One Wire Hookup
  • J Tubes To Prevent Spillage
  • PTFE-Coated Throttle Shafts with PTFE Bearing Ribbons
  • Built In Sight Glass Windows For Easy Float Adjustment
  • Changeable Primary Idle Feed And Power Valve Channel Restrictions
  • Changeable Idle Air And High Speed Bleeds
  • QuickLink Secondary Adj. For Fast/Easy Changing Of Opening Rates

Product Description

Marine-Series - Quick Fuel Technology(R) brings its racing heritage to the marine market with a line of carburetors specifically engineered for the marine enthusiast. M-Series marine carburetors come in a variety of sizes from 350-1050 CFM, and are available in both 4150 and 4500-style configurations. All M-Series carburetors come with QFT's exclusive Black Diamond(R) coating which protects the carburetor from corrosion and harsh marine environments. QFT(TM) also offers a couple of special M-Series carburetors, such as an 850 CFM model calibrated for roots-style 2x4 supercharged engines, and a huge 1050 CFM 2-Circuit QFX-Series model for large displacement engines found in off-shore race boats.

Specifications

Carburetor Series:
Marine
CFM:
650 CFM
Number of Barrels:
4-Barrel

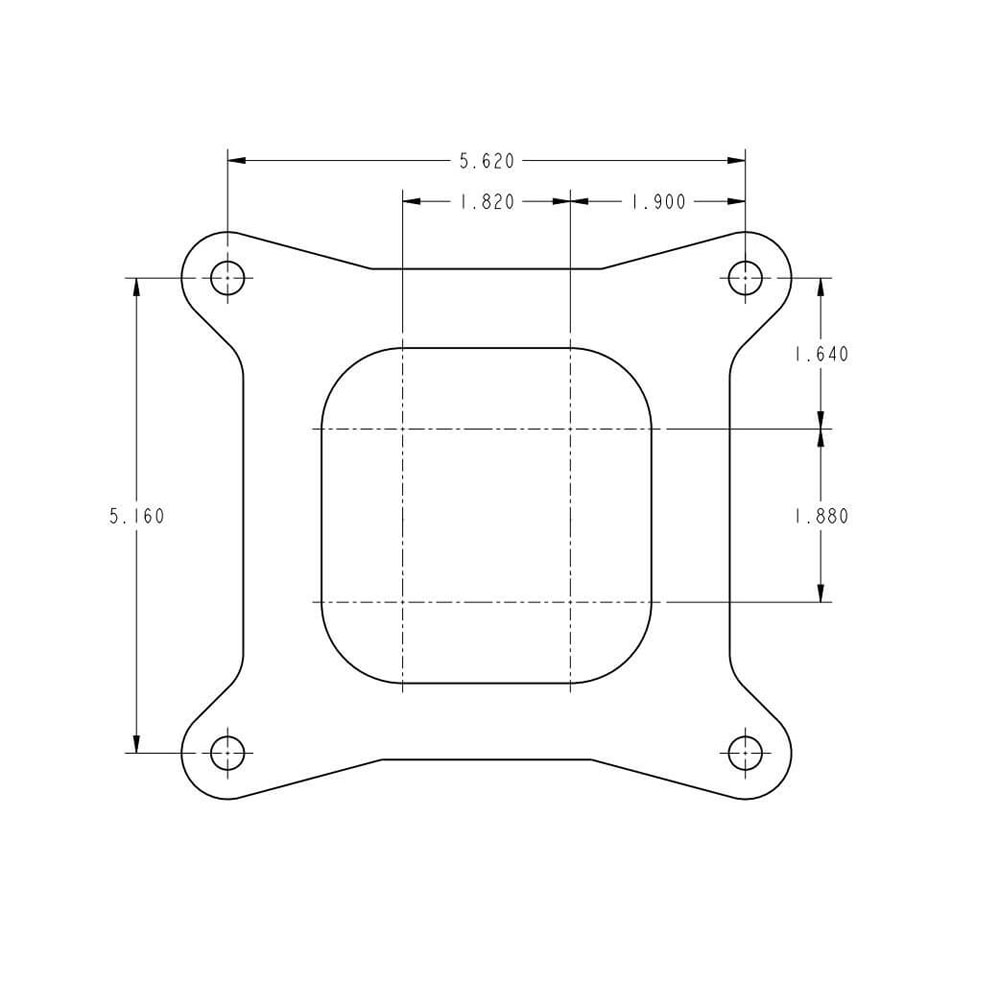

Flange:
4150 Square Bore
Secondary:
Mechanical
Choke:
Electric Choke
Main Body/Fuel Bowl Material:
Die Cast Aluminum
Main Body/Fuel Bowl Finish:
Black
Metering Block Material:
Aluminum
Throttle Plate Material:
Die Cast Aluminum
Metering Block Circuits:
2 Circuit
Booster Type:
Down Leg
Compatible Fuels:
Gasoline
Fuel Inlet:
Dual
Primary Power Valve Size (from Factory):
6.5 inHg.
Throttle Bore Size:
1.688 in.
Quantity:
Sold As Each
