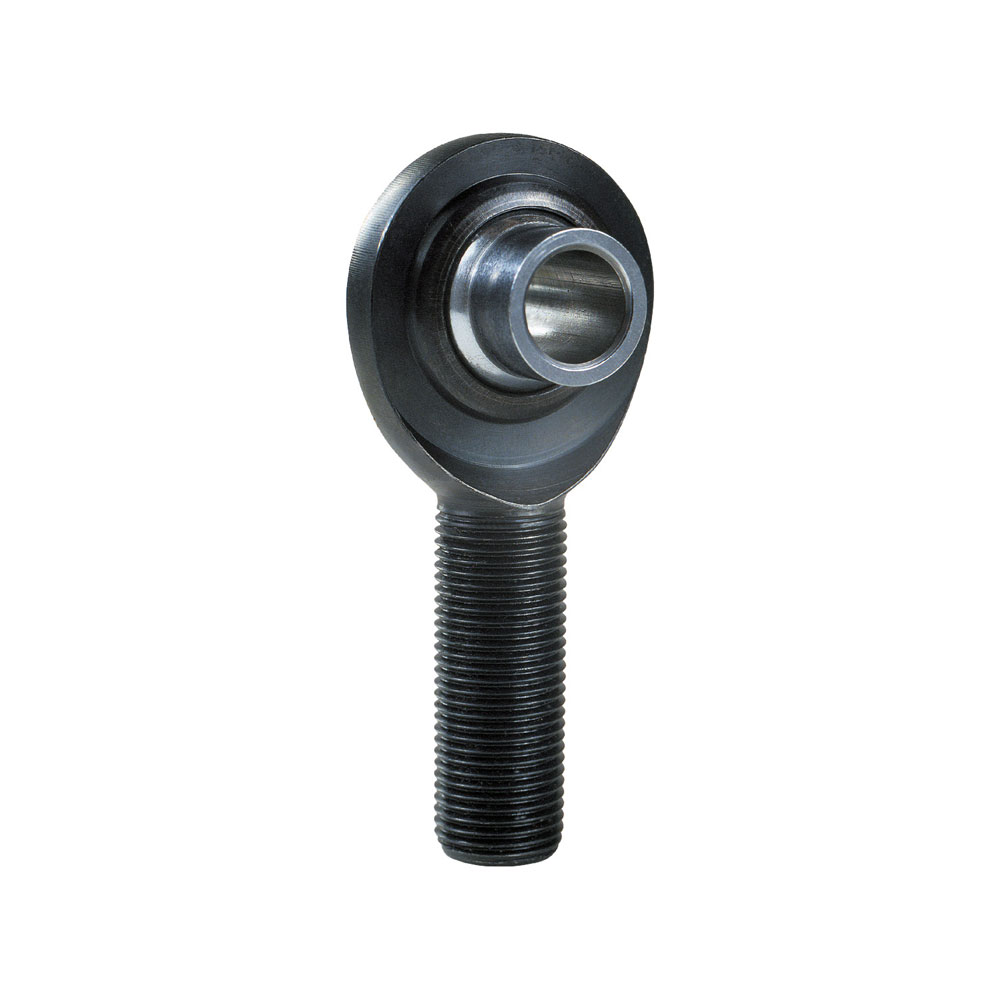

QA1 Suspension Rod End Bearing PCYML10T; PCYT Series High Misalign 0.625 in. 5/8 in. -18 Left Hand Male Chromoly Steel Body, Bearing Steel Ball
$19.23
Part #: PCYML10T
Brand: QA1
UPC: 806990034960
Estimated Ship Date: This part is unavailable with no ETA
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- 2-piece design
- Precision ground, hard chromed and heat treated 52100 Bearing Steel ball
- Heat treated and coated PTFE-lined chromoly steel body
- Very low friction, free moving ball
- Does not require lubrication
- Chromoly body for extra strength
- Does not require lubrication
- Chromoly body for extra strength
Product Description
QA1 offers its 2-piece PCYM-T Chromoly Steel Series rod ends for applications requiring high misalignment. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and PTFE liner. The PCYM-T is an ideal choice for high misalignment applications with the highest misalignment available in the industry. Other sizes are available in the PCYM-T Series. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The body is chromoly steel that has beed heat treated and black oxide coated. There is also a self-lubricating PTFE liner.
Specifications
- Suspension Rod End Bearing Series:
- PCYT Series High Misalign
- Material:
- Chromoly Steel Body, Bearing Steel Ball
- Construction:
- 2 Piece
- Bore:
- 0.625 in.
- Ball Diameter:
- 1.312 in.
- Ball Width:
- 1.375 in.
- Housing Width:
- 0.000 in.
- Housing OD:
- 1.750 in.
- Centerline Length:
- 2.875 in.
- Shank Style:
- Left Hand Male
- Shank Thread Size:
- 5/8 in. -18
- Shank Thread Length:
- 1.750 in.
- Load Capacity:
- 21,219 lbs.
- Misalign Angle:
- 64 deg.
- Notes:
- With PTFE Lining
- Quantity:
- Sold As Each
