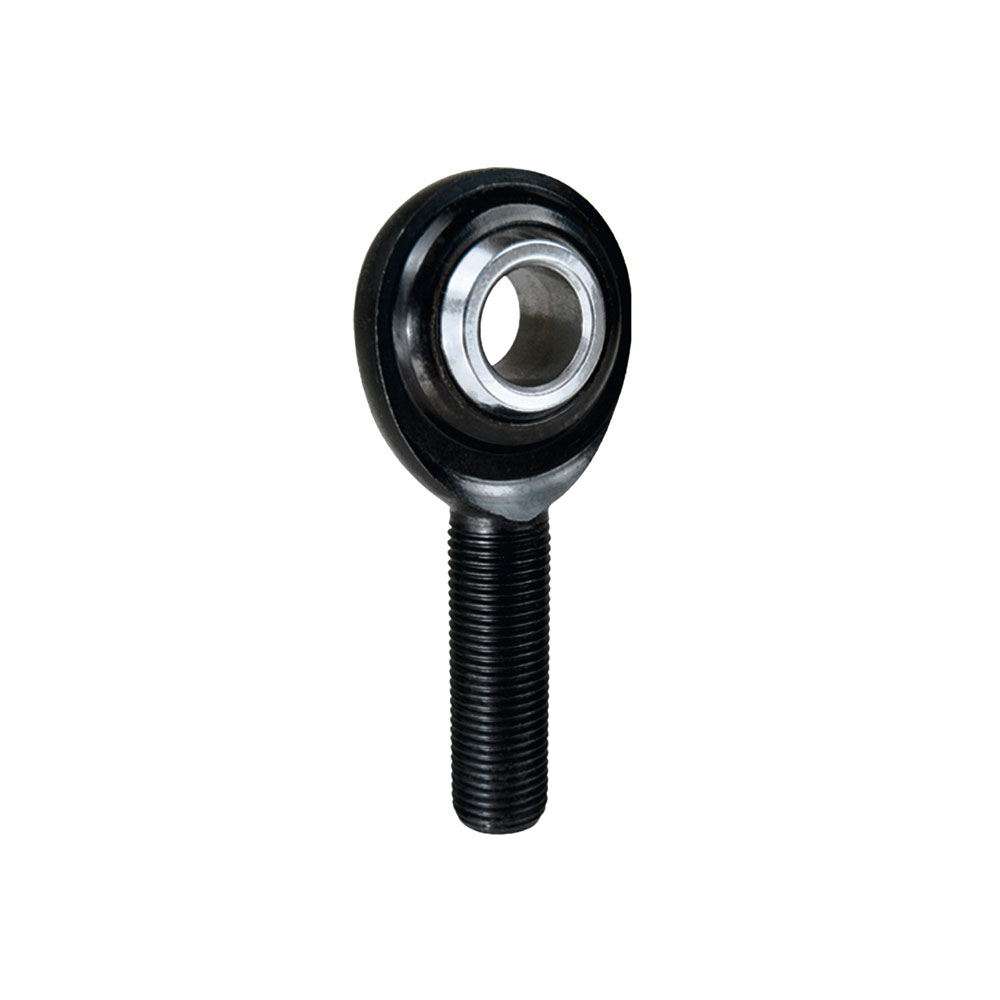

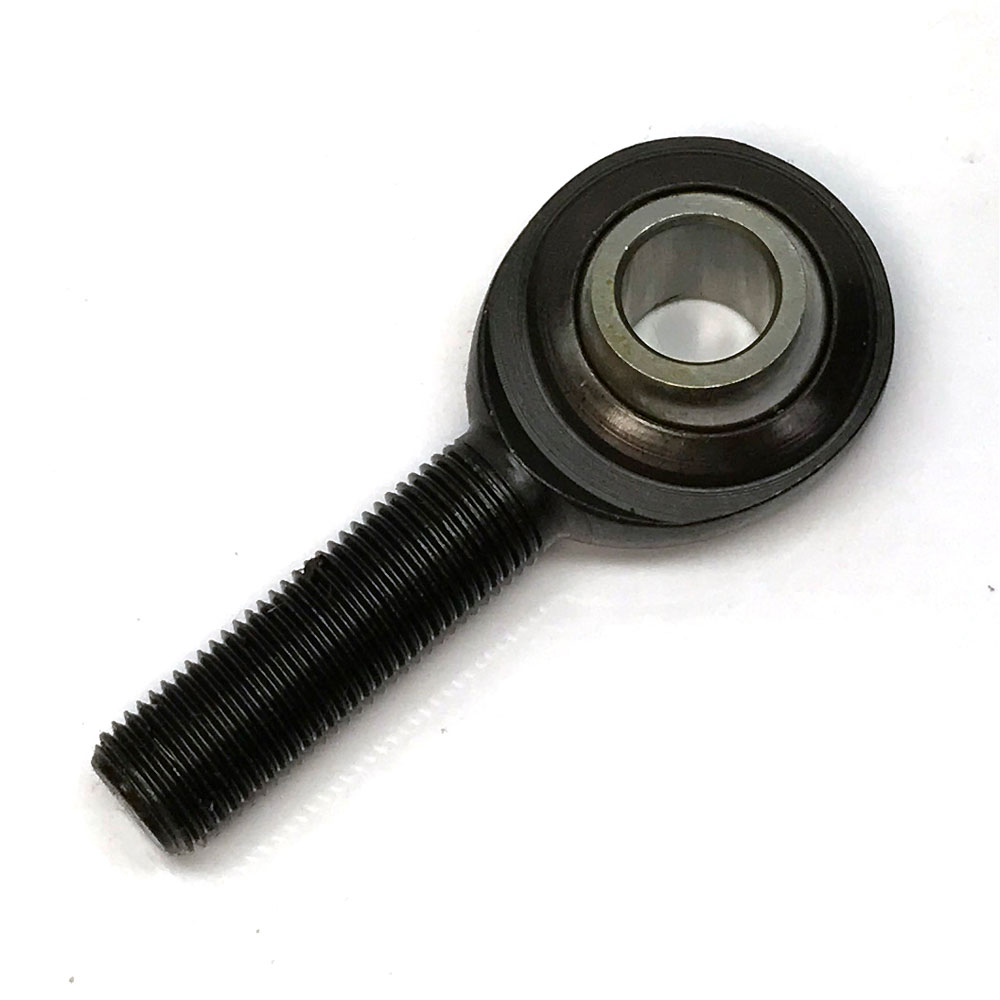

QA1 Suspension Rod End Bearing PCML8; PC Series 0.500 in. 1/2 in. -20 Left Hand Male Chromoly Steel Body, Bearing Steel Ball
$9.96
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- 2-piece design
- Precision ground, hard chromed and heat treated 52100 Bearing Steel ball
- Heat treated and coated chromoly steel body
- Very low friction, free moving ball
- Requires lubrication
- Chromoly body for extra strength
- Requires lubrication
- Chromoly body for extra strength
Product Description
For a variety of options in a two-piece design, QA1 offers its PCM Chromoly Steel Series rod ends. These black oxide coated rod ends offer superior load ratings over carbon steel two-piece rod ends and are available as metal-to-metal or PTFE lined. The ball is made from 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The body is chromoly steel that has beed heat treated and black oxide coated.
Specifications
- Suspension Rod End Bearing Model or Series:
- PC Series
- Material:
- Chromoly Steel Body, Bearing Steel Ball
- Finish:
- Black
- Construction:
- 2 Piece
- Heat Treated:
- Yes
- Greasable:
- No
- Bore:
- 0.500 in.
- Ball Diameter:
- 0.937 in.
- Ball Width:
- 0.625 in.
- Housing Width:
- 0.453 in.
- Housing OD:
- 1.312 in.
- Centerline Length:
- 2.438 in.
- Shank Style:
- Left Hand Male
- Shank Thread Size:
- 1/2 in. -20
- Shank Thread Length:
- 1.500 in.
- Includes Jam Nut:
- No
- Load Capacity:
- 14,500 lbs.
- Misalign Angle:
- 20 deg.
- Quantity:
- Sold As Each
