QA1 Suspension Ball Joint 1210-105; Ultimate Ball Joints 1.837 64 deg. Satin Steel for 1962 to 1978 Chrysler B Body, E Body
$86.95
Part #: 1210-105
Brand: QA1
UPC: 806990053077
Estimated Ship Date: This part is unavailable with no ETA
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- Ultimate Low Friction Operation - Infinite Preload adjustment allows breakaway torque to be set as low as 0 ft. lbs. for a completely smooth, bind-free operation.
- Wear Resistant Design - Precision tolerance ball-to-race conformity results in even load distribution for unsurpassed wear resistance. Precision ground 52100 bearing steel race ensures long life and ultra-smooth operation.
- On-the-Car Adjustability - Infinite preload adjustment. No need to remove the ball joint from the car for adjustment.
- Self-Lubricating - Fully greasable enhanced by self-lubricating components to ensure smooth operation.
- Multiple Stud Lengths Available - Various ball studs are available for easy geometry changes. Fine tune your roll center.
- Owner Rebuildable - Rebuilding is simple. All parts are replaceable at economical prices.
- Compare to Moog K772, Afco 20034LF, Howe 22320
- Multiple Stud Lengths Available - Various ball studs are available for easy geometry changes. Fine tune your roll center.
- Owner Rebuildable - Rebuilding is simple. All parts are replaceable at economical prices.
- Compare to Moog K772, Afco 20034LF, Howe 22320
Product Description

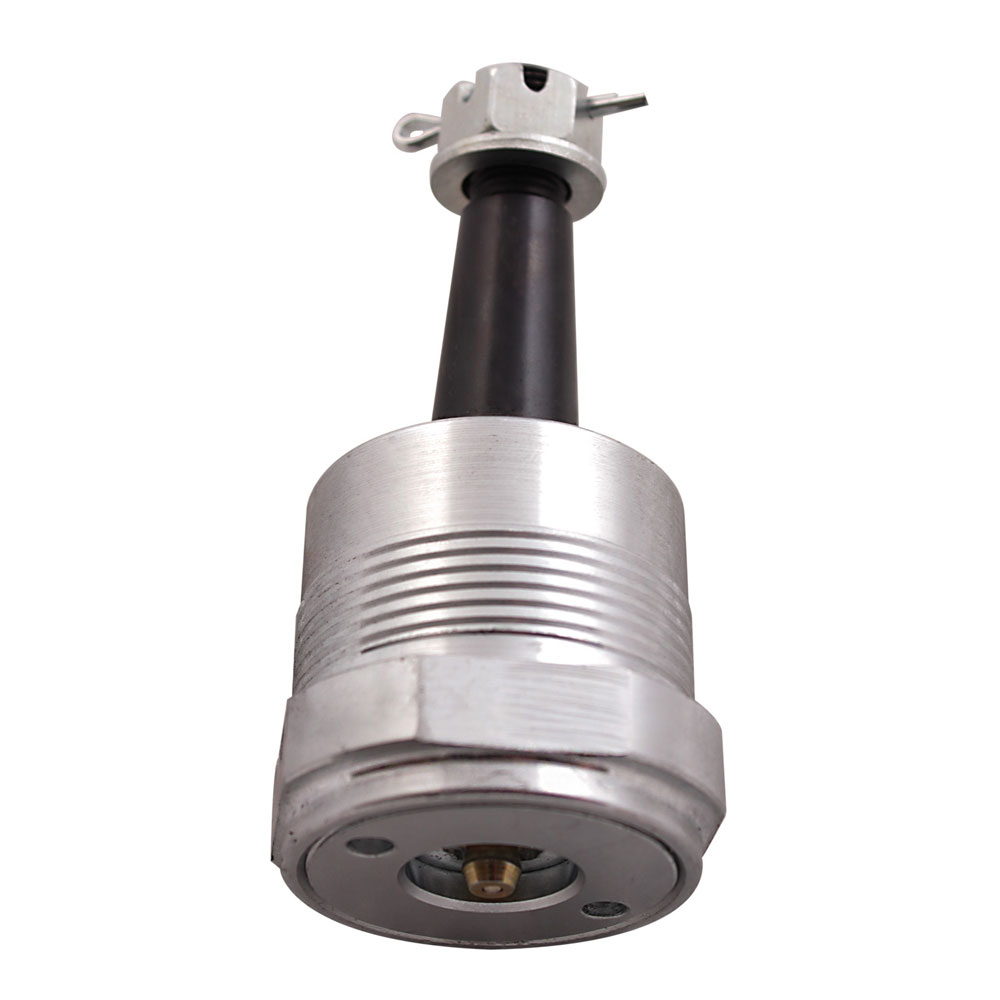

For a variety of racing applications, QA1's Screw-In Style Ultimate Ball Joint is a great choice. This patented, self-lubricating design is 100% owner rebuildable and is exclusive to QA1. Multiple stud lengths are also available, allowing for easy geometry changes. Infinite preload adjustment allows breakaway torque to be set as low as 0 ft. lbs. for a completely smooth, bind-free operation. Precision tolerance ball-to-race conformity results in even load distribution for unsurpassed wear resistance. Precision ground 52100 bearing steel race ensures long life and ultra-smooth operation. No need to remove the ball joint from the car for adjustment. Enhanced by self-lubricating components to ensure smooth operation. Fine tune your roll center. QA1 ball joints are owner rebuildable, and all parts are replaceable at economical prices.
Specifications
- Suspension Ball Joint Series:
- Ultimate Ball Joints
- Year:
- 1962 to 1978
- Make:
- Chrysler
- Model:
- B Body, E Body
- Ball Joint Style:
- Screw In
- MisAlign Angle:
- 64 deg.
- Housing Material:
- Steel
- Housing Finish:
- Satin
- Housing OD:
- 1.811 in.
- Housing Thread:
- 1.837
- Under Shoulder Length
- 1.250 in.
- Housing Depth:
- 1.840 in.
- Shoulder OD:
- 2.110 in.
- Ball Joint Stud Length:
- 3.542 in.
- Stud Thread:
- 1/2 in. -20
- Stud Taper:
- .724
- Rebuildable:
- Yes
- Greasable or Non-Greasable:
- Greasable
- Includes Dust Boot:
- No
- Fits Control Arm(s):
- Upper
- Notes:
- Fits upper and lower tapers in Pinto spindle
- Quantity:
- Sold As Each
