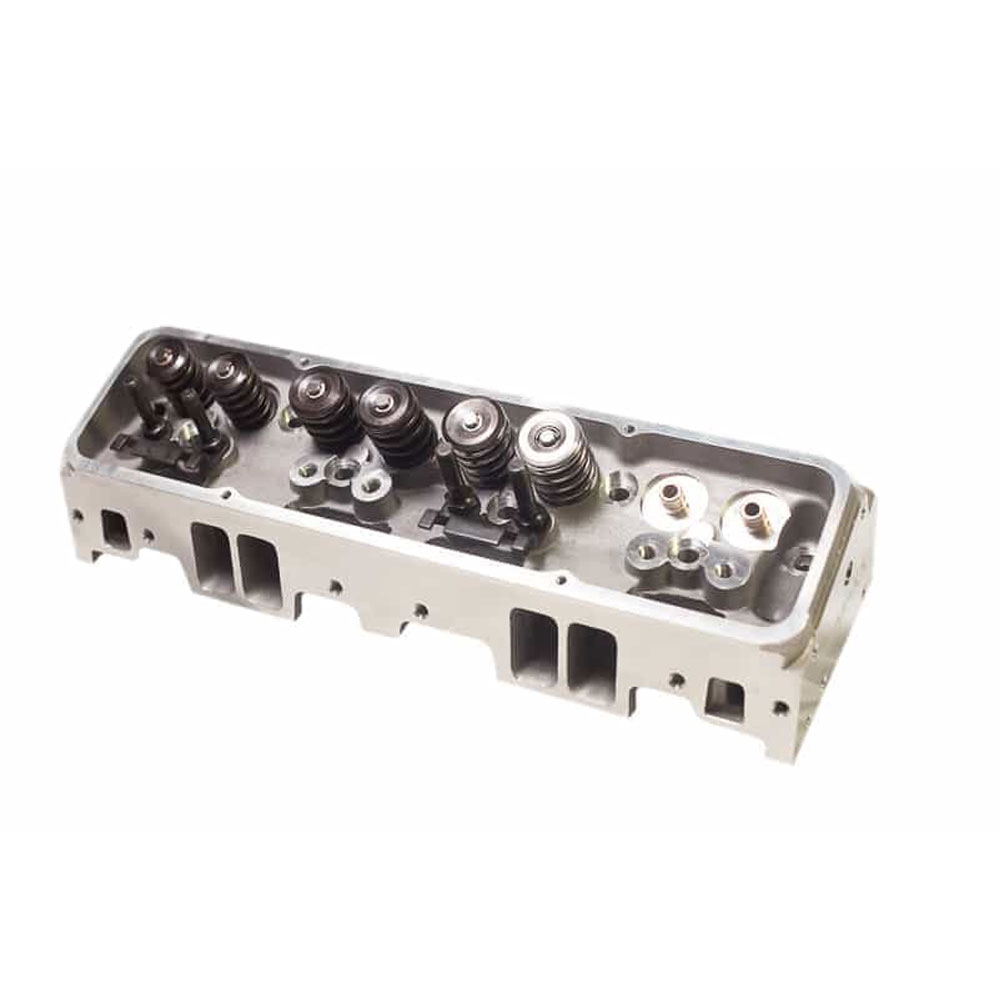

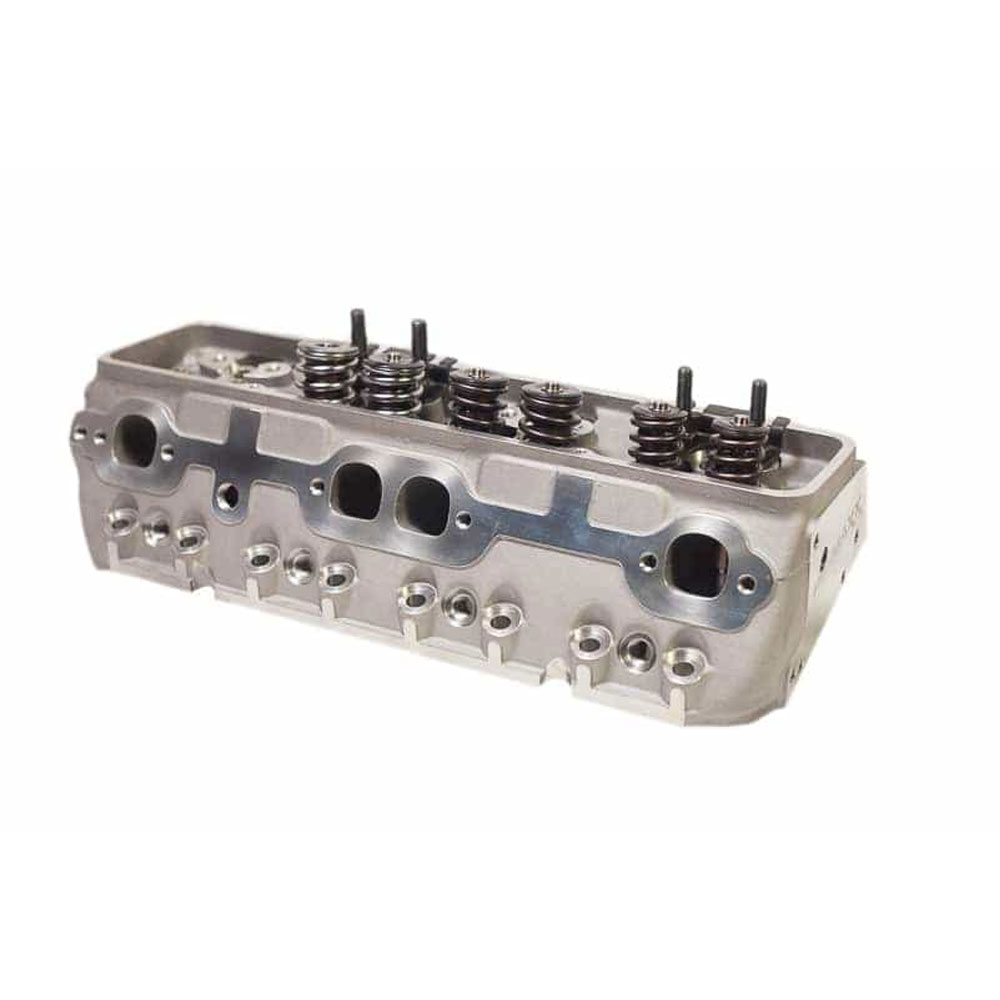

ProMAXX Cylinder Head Assembly 9183; Maxx 183.00 cc Aluminum 64 cc for Chevy 262 to 400
$1,089.77
$1,236.00 On Sale
Save 12%
This item has been reduced to our lowest price and cannot be part of our $150 Free Freight program. However, it will still count toward any other qualifying parts you buy that are eligible for Free Freight.
See our shipping policy for more details.
Specifications
- Cylinder Head Assembly Series:
- Maxx
- Make:
- Chevy
- Engine:
- 262 to 400
- Material:
- Aluminum
- Combustion Chambers:
- 64 cc
- Intake Valve Diameter:
- 2.020 in.
- Exhaust Valve Diameter:
- 1.600 in.
- Spark Plug Angle:
- Straight
- Intake Runners:
- 183.00 cc
- Exhaust Runners:
- 72.00 cc
- Port Style:
- Rectangular
- Cam Type Recommended:
- Hydraulic Flat Tappet
- Max Valve Lift:
- 0.575 in.
- Valve Spring OD:
- 1.430 in.
- Closed Spring Pressure:
- 115 lbs. @ 1.800 in.
- Open Spring Pressure:
- 310 lbs. @ 1.225 in.
- Valve Spring Retainer Material:
- Stainless Steel
- Valve Material:
- Steel
- Notes:
- Hand Blended Bowl
- Quantity:
- Sold As Pair
