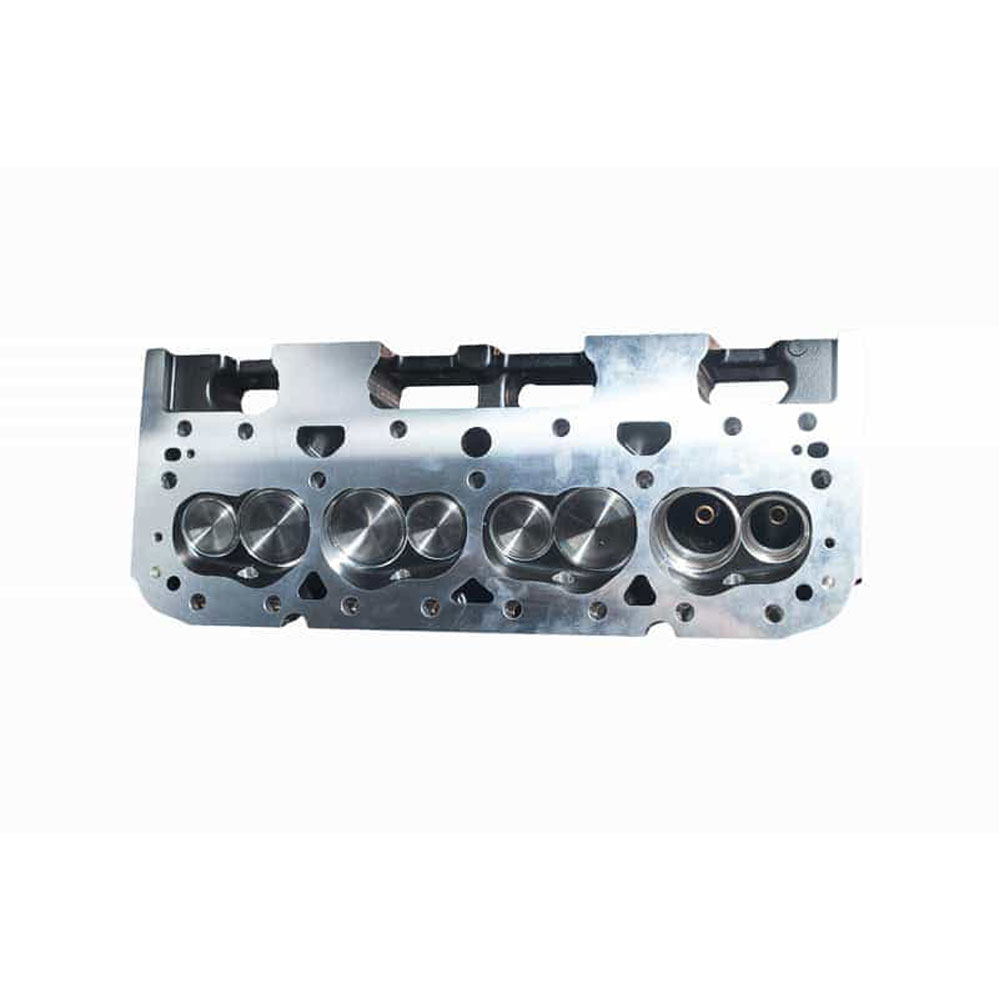

ProMAXX Cylinder Head Assembly 2169; Series One 185.00 cc Aluminum 64 cc for Chevy 262 to 400

$1,029.77

$1,168.00 On Sale

Save 12%

Part #: 2169

Brand: ProMAXX

Estimated Ship Date: Today

Specifications

Please note that this part is not included in any pre-paid freight agreement.
See our shipping policy for more details.

Product Description

The 185cc series 1 heads are perfect for that budget build. Making great power at a price that cannot be matched. Machined and assembled in the USA. Dyno results show 20 to 35 hp gains over the competition.

Specifications

Cylinder Head Assembly Series:
Series One: Make:
Chevy: Engine:
262 to 400: Material:
Aluminum: Combustion Chambers:
64 cc: Intake Valve Diameter:
2.020 in.: Exhaust Valve Diameter:
1.600 in.: Spark Plug Angle:
Straight: Intake Runners:
185.00 cc: Exhaust Runners:
72.00 cc: Port Style:
Rectangular: Cam Type Recommended:
Hydraulic Flat Tappet: Max Valve Lift:
0.575 in.: Valve Spring OD:
1.270 in.: Closed Spring Pressure:
115 lbs. @ 1.800 in.: Open Spring Pressure:
310 lbs. @ 1.225 in.: Valve Spring Retainer Material:
Steel: Valve Material:
Stainless Steel: Quantity:
Sold As Pair
