Proform Fan Controller 69595; Variable Speed 60 Amp 180 to 240 deg. F Single or Dual Thermal
$141.17
Details
- Increased Amp Capacity (30 Amps per fan or 60 Amps total)
- Short Circuit Overload Protection (E-fuse, One-click Reset)
- Digital display shows Amps, as well as temp in either F or C

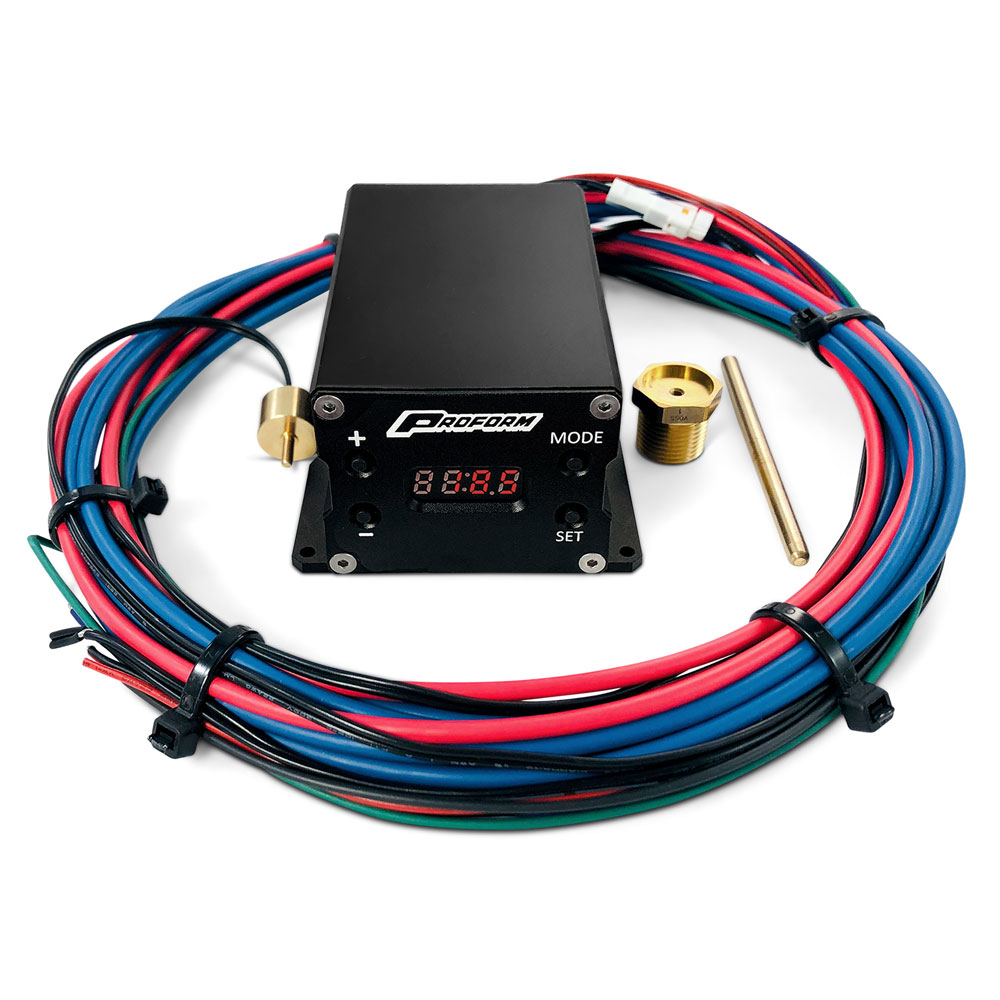

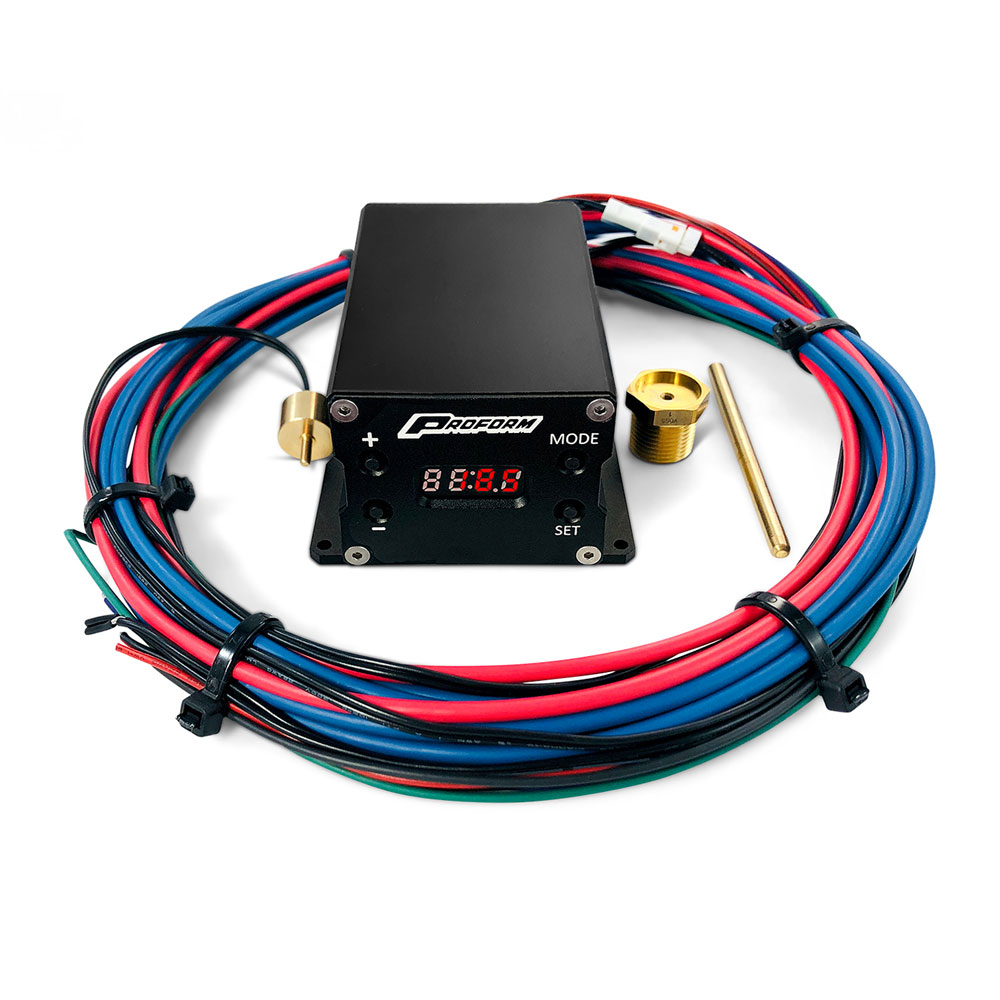

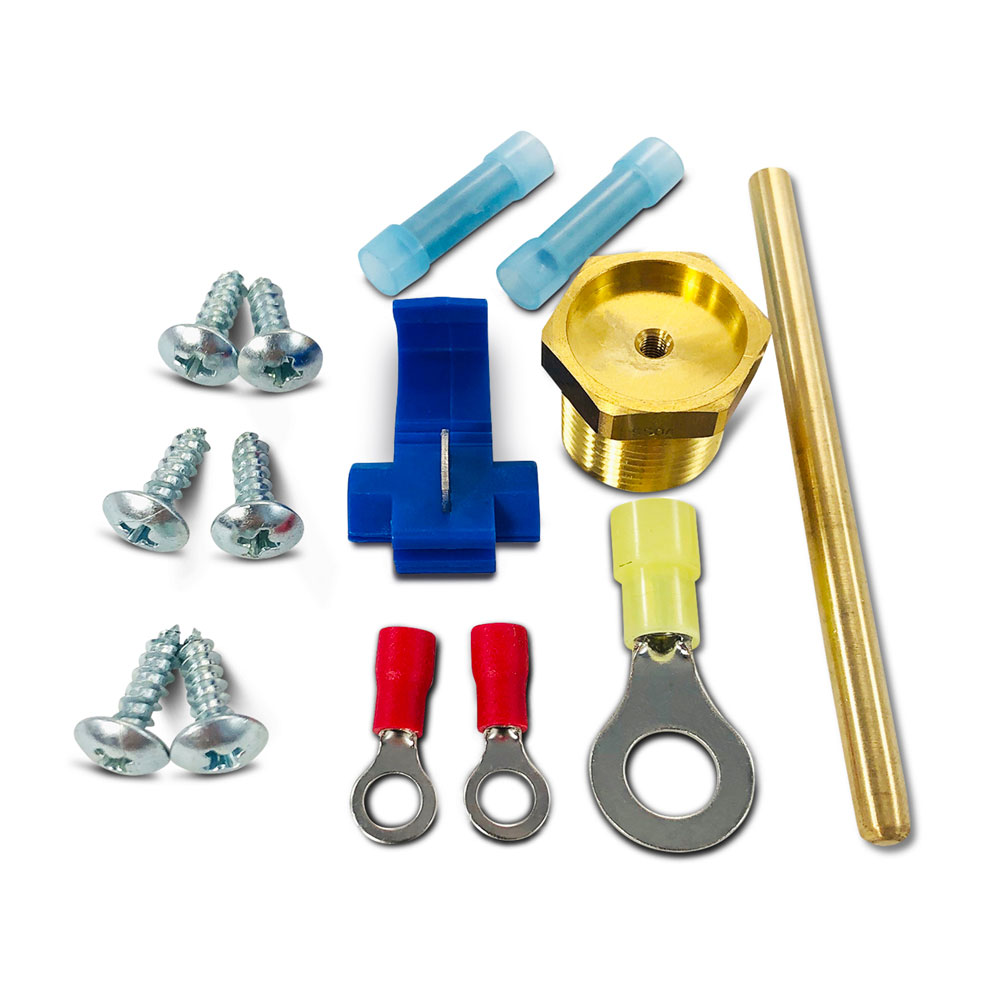

- Push-in & Thread in probes are included
- Manual Override On/Off Wire
- Air Conditioning On/Off Wire
- Warning Light Wire for optional light
- Manual Override On/Off Wire
- Air Conditioning On/Off Wire
- Warning Light Wire for optional light
Product Description
Maintaining a consistent engine temperature is a more efficient way to keep your engine cool. Many other fan controllers turn the fan on when the engine is getting too hot, and turn off after expending a lot of energy cooling it. This can lead to amperage spikes, excessive fan wear, and plenty of undesired fan noise. These problems can all be reduced substantially with PROFORM's new variable speed controller. This variable speed fan controller makes the fan or fans run at whatever speed is needed to maintain a consistent temperature. The controller receives a temperature signal from the radiator with either a push-in, or thread-in brass probe. The fan controller processes this signal and runs the fan(s) at the correct speed needed to maintain the desired temperature. The weather resistant billet aluminum housing with bright digital display ensures easy setting by simply pushing + or - to set the temperature. By simply pressing the Mode button, the digital display will show temperature in F.
Specifications
- Fan Controller Series:
- Variable Speed
- Activation Style:
- Thermal
- Number of Fans:
- Single or Dual
- Adjustable or Non-Adjustable:
- Adjustable
- Temperature Range:
- 180 to 240 deg. F
- Includes Sending Unit:
- Yes
- Sending Unit Style:
- Push In, Thread In
- Sending Unit Thread:
- 3/8 in. NPT
- Includes Wiring Harness:
- Yes
- Includes Manual Activation Switch:
- Yes
- Includes A/C Relay:
- Yes
- Current Rating:
- 60 Amp
- Quantity:
- Sold As Each
