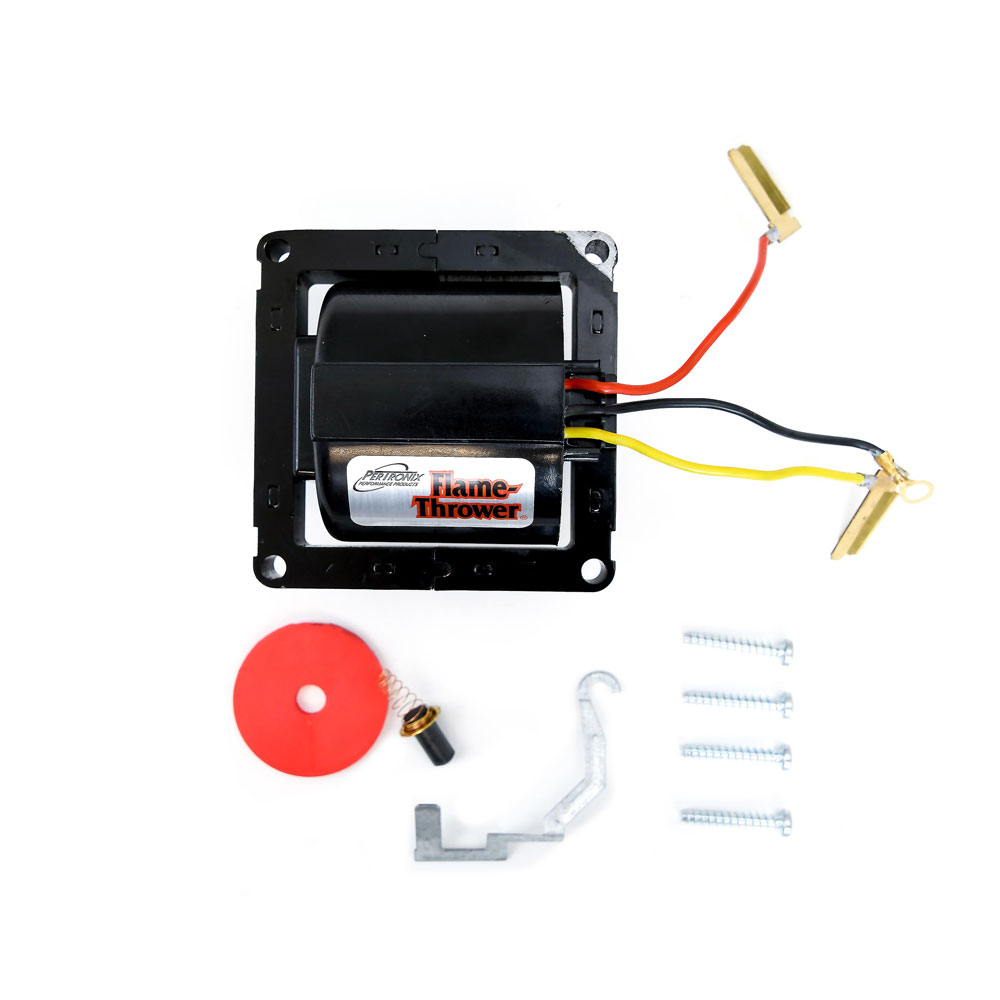

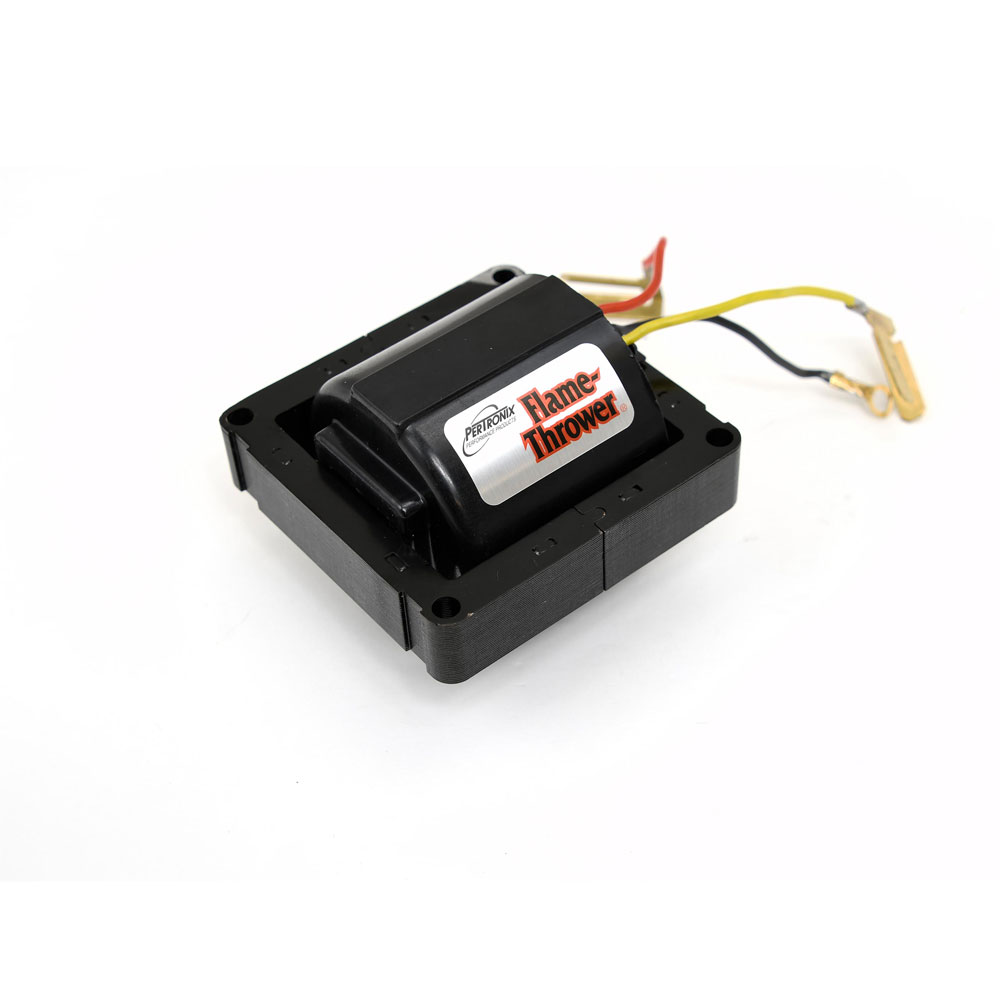

Pertronix Ignition Coil D3000; Flame Thrower HEI Black 50000 Volt In Cap for GM
$79.30
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- 50,000 volts.
- Ultra low primary resistance values.
- Legal in all 50 states and Canada. (C.A.R.B. E.O. P/N D-57-21)*
- Limited 90 Day Warranty.
Product Description
Flame thrower HEI coils are designed to provide more spark energy and sustain higher RPM than standard hei ignition coils. Available in street/strip or race only version. When used in conjunction with race only module they produce 42 percent more energy than the street version along with 48 percent more peak current which will reach the spark plugs between 6000 and 8500 RPM.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Ignition Coil Series:
- Flame Thrower HEI
- Make:
- GM
- Coil Type:
- In Cap
- Maximum Voltage:
- 50000 Volt
- Primary Resistance:
- 0.500 Ohms
- Secondary Resistance:
- 8.3k Ohms
- Length:
- 3.080 in.
- Width:
- 3.080 in.
- Height:
- 2.440 in.
- Finish:
- Black
- Internal Construction:
- Epoxy Filled
- Primary Inductance:
- 4.40 mH
- Turns Ratio:
- 80:1
- Includes Mounting Bracket:
- No
- Includes Ballast Resistor:
- No
- Includes Hardware:
- Yes
- Notes:
- Replaces GM coils with yellow, black, and red wires. CARB EO: D-57-21
- Quantity:
- Sold As Each
