Pertronix Distributor D132711; Ignitor III Flame Thrower Vacuum, Mechanical Hall Effect for Ford 351C, 351M, 400, 429, 460

$325.76

Part #: D132711

Brand: Pertronix

UPC: 694342014384

Estimated Ship Date: This part is unavailable with no ETA

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Need It Faster?

We recommend this alternative part:

MSD Distributor 8580; Billet Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460

MSD Distributor 8580; Billet Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460

MSD8580

$394.95

Estimated Ship Date: Today

Details

  • CNC machined billet aluminum housing and Dupont Rynite base
  • No CARB Exemption Order Number
  • Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
  • Must be used with an MSD Ignition Control
  • Mechanical advance assembly can be locked out for crank trigger systems
  • Nylon pads ensure smooth operation of the advance weights
  • Advance weight pins are staked and tig welded to the plate
  • Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
  • Polished steel shaft is QPQ coated and guided by a sealed ball bearing
  • Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
  • Easy-to-adjust mechanical advance with supplied springs and stop bushings

Product Description

MSD engineers fit all of their high performance distributor experience into a special compact housing designed to be less obtrusive for Ford engines. The diameter of the special black cap and housing are 5/8" smaller than stock Ford distributors providing extra room in front of the engine. The new MSD Black Cap features Stainless Steel spark plug style terminals and is firmly screwed down to the housing. The distributor relies on MSD's race proven magnetic pickup and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout high rpm. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance. Mounted to the top of this shaft is a fully adjustable mechanical advance assembly. The rate at which the chromoly assembly advances the timing is easily controlled by changing the supplied advance springs and stop bushing for total advance. Must be used with an MSD 6, 7 or 8-series ignition.WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specifications

Distributor Series:
Ignitor III Flame Thrower
Make:
Ford
Engine:
351C, 351M, 400, 429, 460
Trigger Type:
Hall Effect
Advance Type:
Vacuum, Mechanical
Cap Style:
HEI/Male
Cap Color:
Red
Housing Material:
Aluminum
Housing Finish:
Polished
Requires Ignition Box:
No
Distributor Gear Material:
Steel
Rotation:
Standard
Shaft Material:
Steel
Quantity:
Sold As Each

Alternative Parts

MSD Distributor 8580; Billet Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460
MSD Distributor 8580; Billet Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460

MSD Distributor 8580; Billet Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460

MSD8580

$394.95

Estimated Ship Date: Today

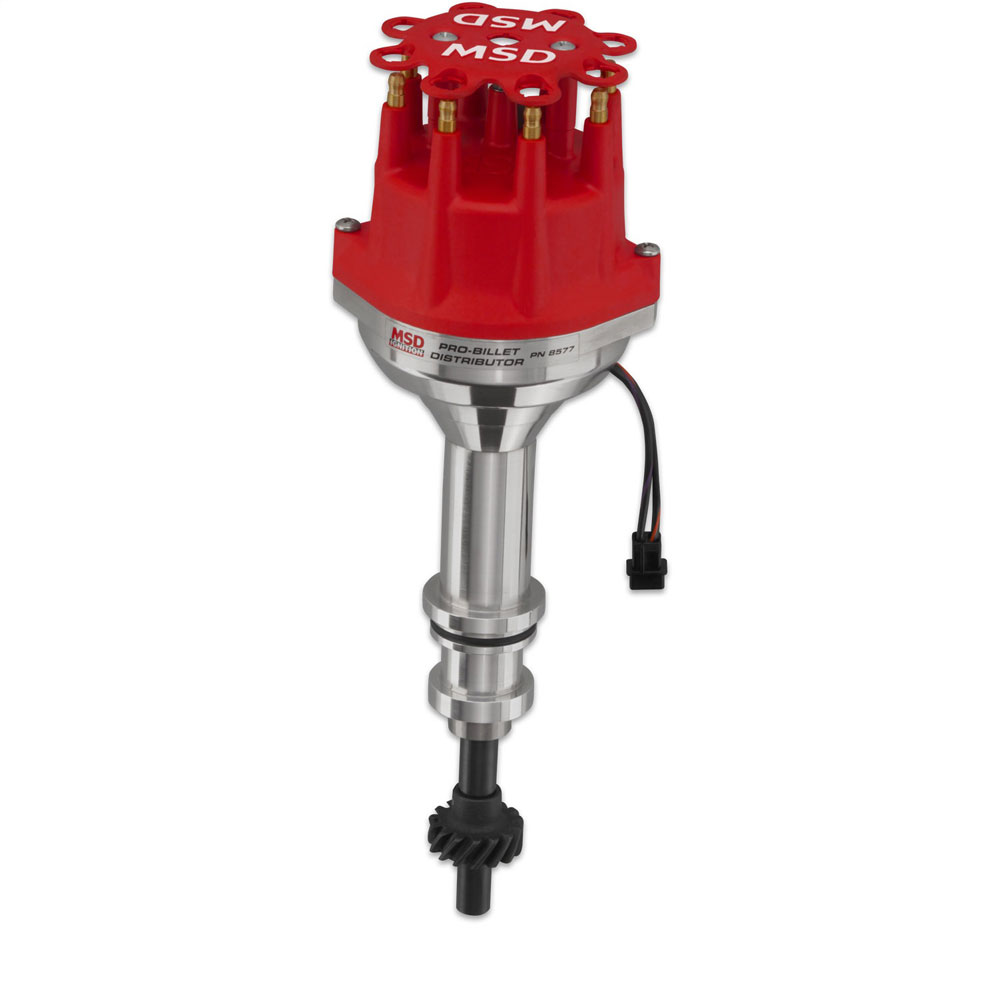

MSD Distributor 8577; Pro Billet Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460
MSD Distributor 8577; Pro Billet Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460

MSD Distributor 8577; Pro Billet Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460

MSD8577

$395.95

Estimated Ship Date: Today

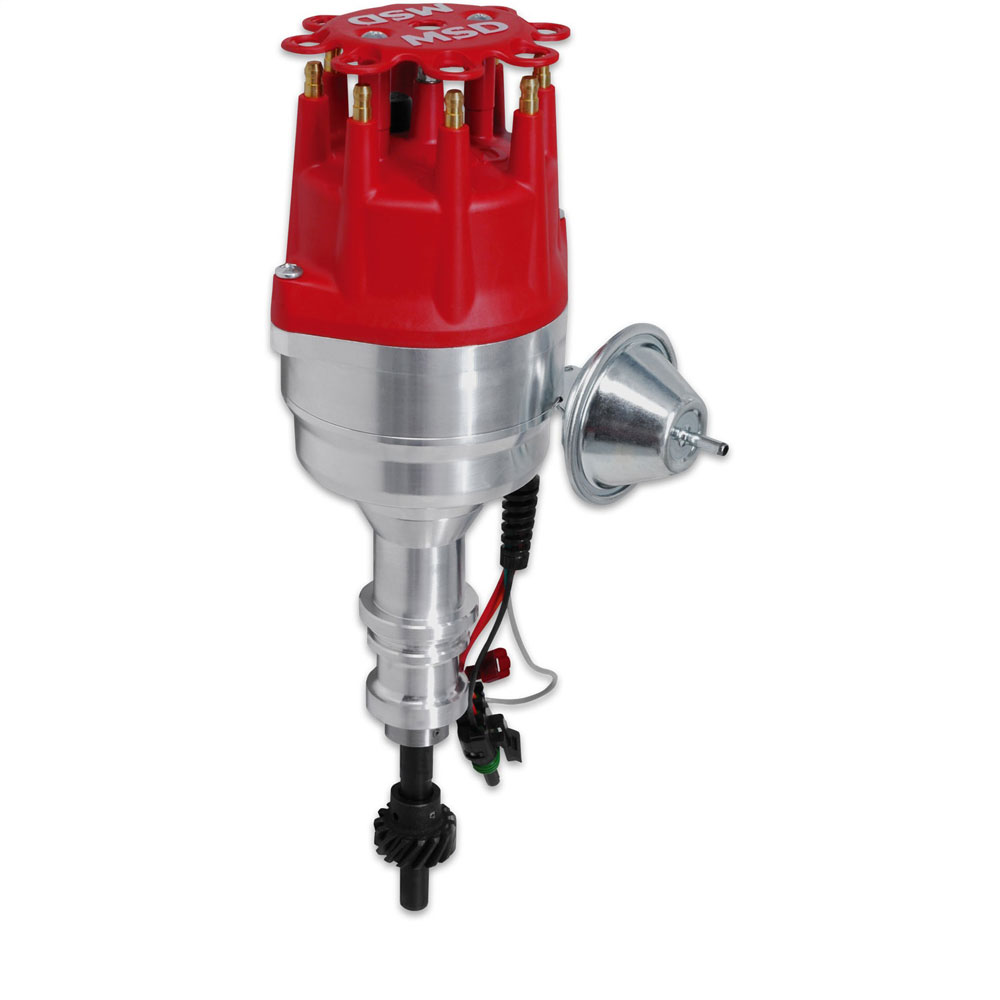

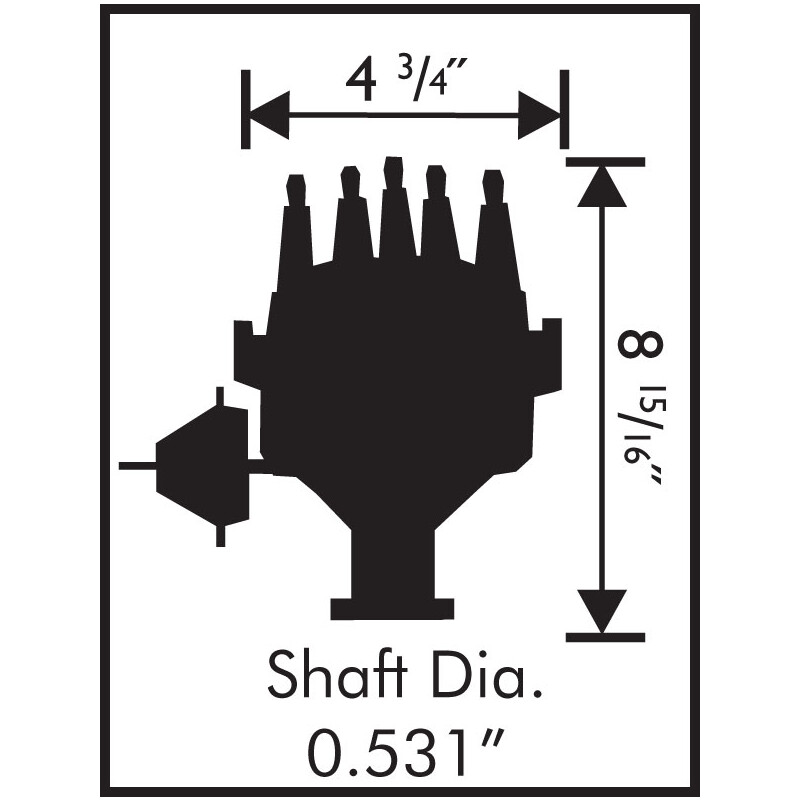

MSD Distributor 8350; Pro Billet, Ready to Run Vacuum, Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460
MSD Distributor 8350; Pro Billet, Ready to Run Vacuum, Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460

MSD Distributor 8350; Pro Billet, Ready to Run Vacuum, Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460

MSD8350

$511.95

Estimated Ship Date: Today

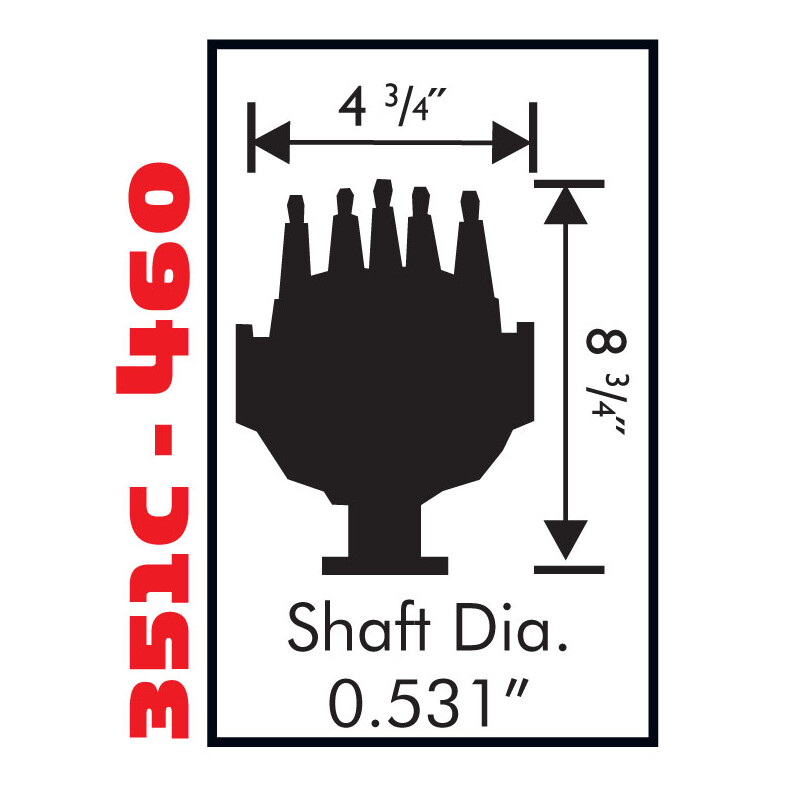

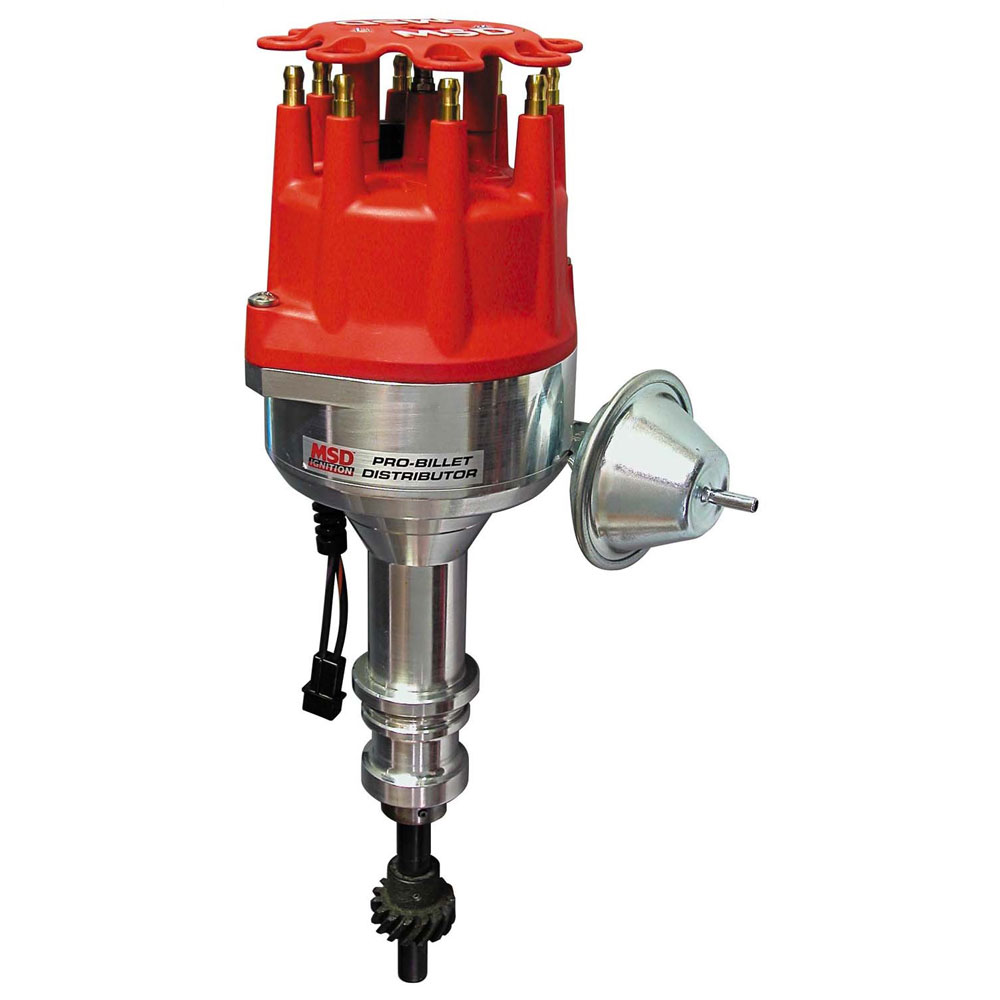

MSD Distributor 8477; Pro Billet Vacuum, Mechanical Magnetic for Ford 351C, 351M, 400, 429, 460
