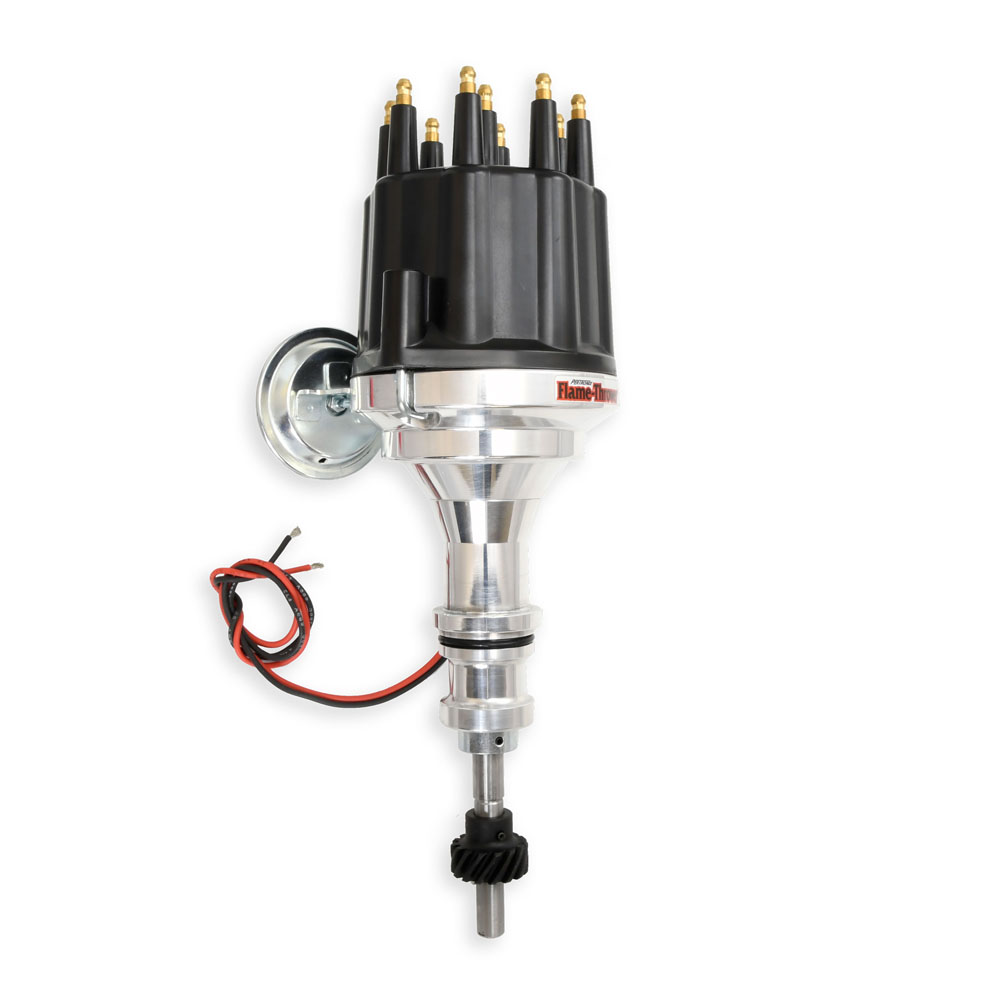

Pertronix Distributor D130710; Flame Thrower Vacuum, Mechanical Magnetic for Ford 221 to 302
$352.65
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Need It Faster?

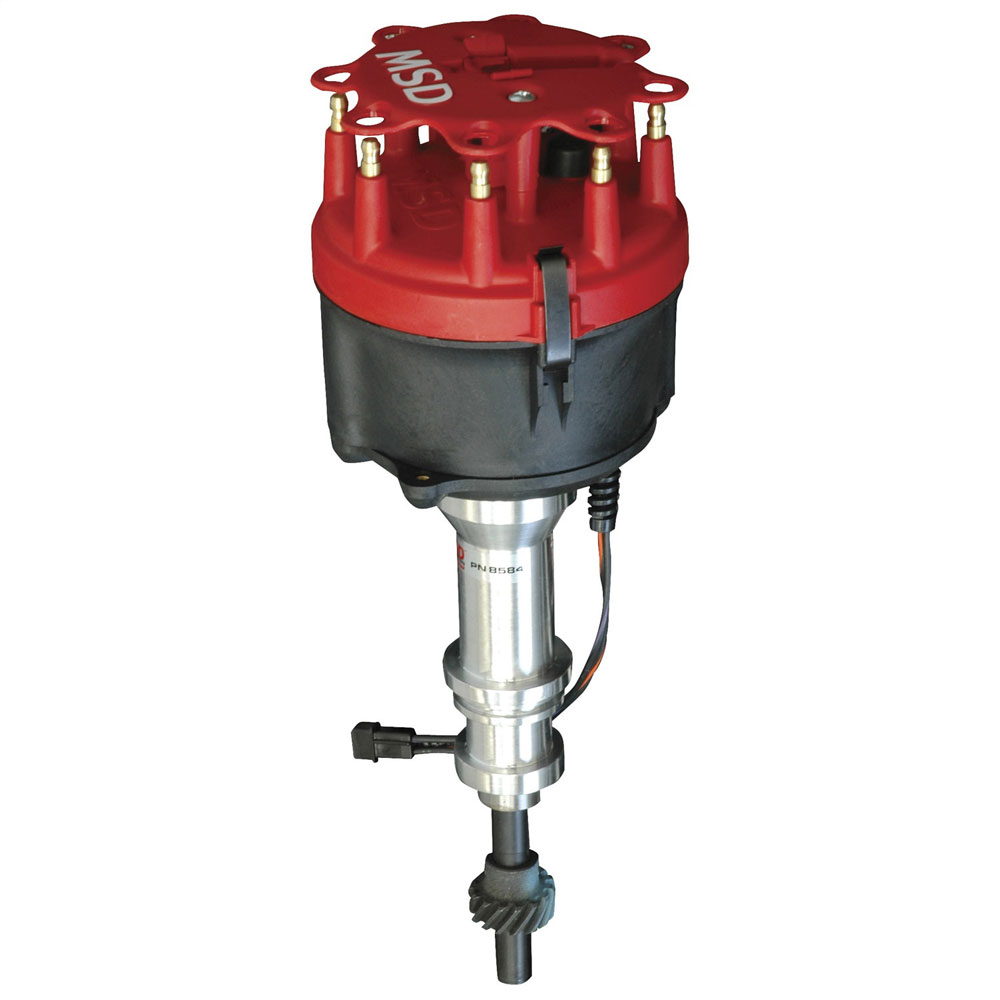

We recommend this alternative part:
Details

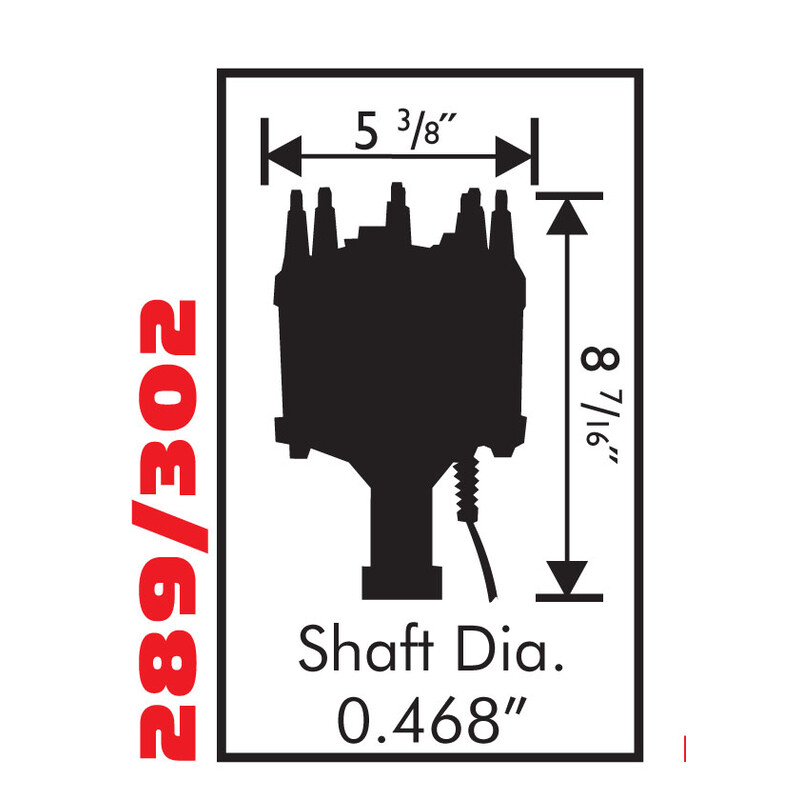

- Billet housing is 5/8" smaller in diameter than stock Ford distributors
- Must be used with an MSD Ignition Control

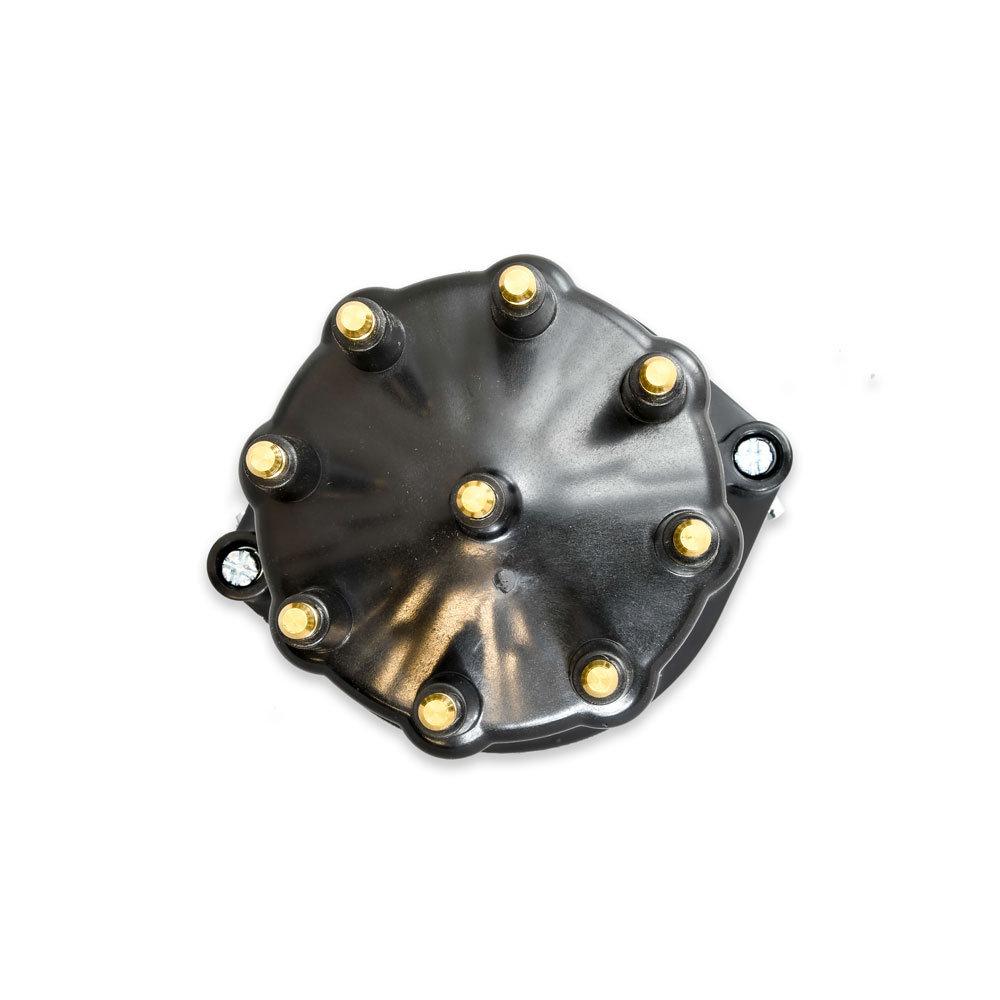

- Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing

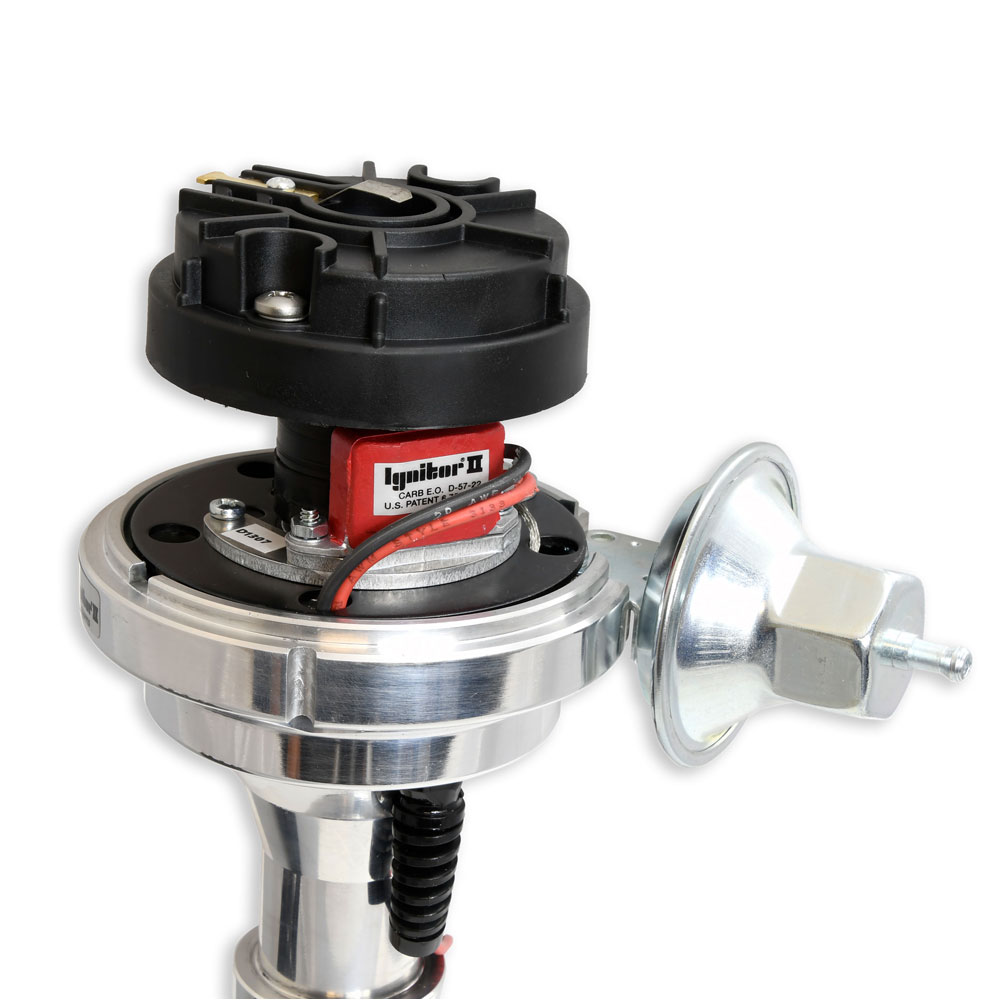

- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- CNC machined billet aluminum housing and billet aluminum base
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- No CARB Exemption Order Number
- Advance weight pins are staked and tig welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- CNC machined billet aluminum housing and billet aluminum base
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- No CARB Exemption Order Number
Product Description
MSD engineers fit all of their high performance distributor experience into a special compact housing designed to be less obtrusive for Ford engines. The diameter of the special cap and housing are 5/8" smaller than stock Ford distributors providing extra room in front of the engine. The new MSD cap features spark plug style terminals and is firmly screwed down to the housing. The distributor relies on MSD's race proven magnetic pick-up and precision reluctor to deliver accurate trigger signals to the MSD Ignition throughout high rpm. The reluctor assembly is turned by a hardened steel shaft which rides in a sealed ball bearing for high rpm stability and endurance. Mounted to the top of this shaft is a fully adjustable mechanical advance assembly. The rate at which the chro-moly assembly advances the timing is easily controlled by changing the supplied advance springs and stop bushing for total advance.WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Distributor Model or Series:
- Flame Thrower
- Make:
- Ford
- Engine:
- 221 to 302
- Trigger Type:
- Magnetic
- Advance Type:
- Vacuum, Mechanical
- Cap Style:
- HEI/Male
- Cap Color:
- Black
- Housing Material:
- Billet Aluminum
- Requires Ignition Box:
- No
- Quantity:
- Sold As Each
