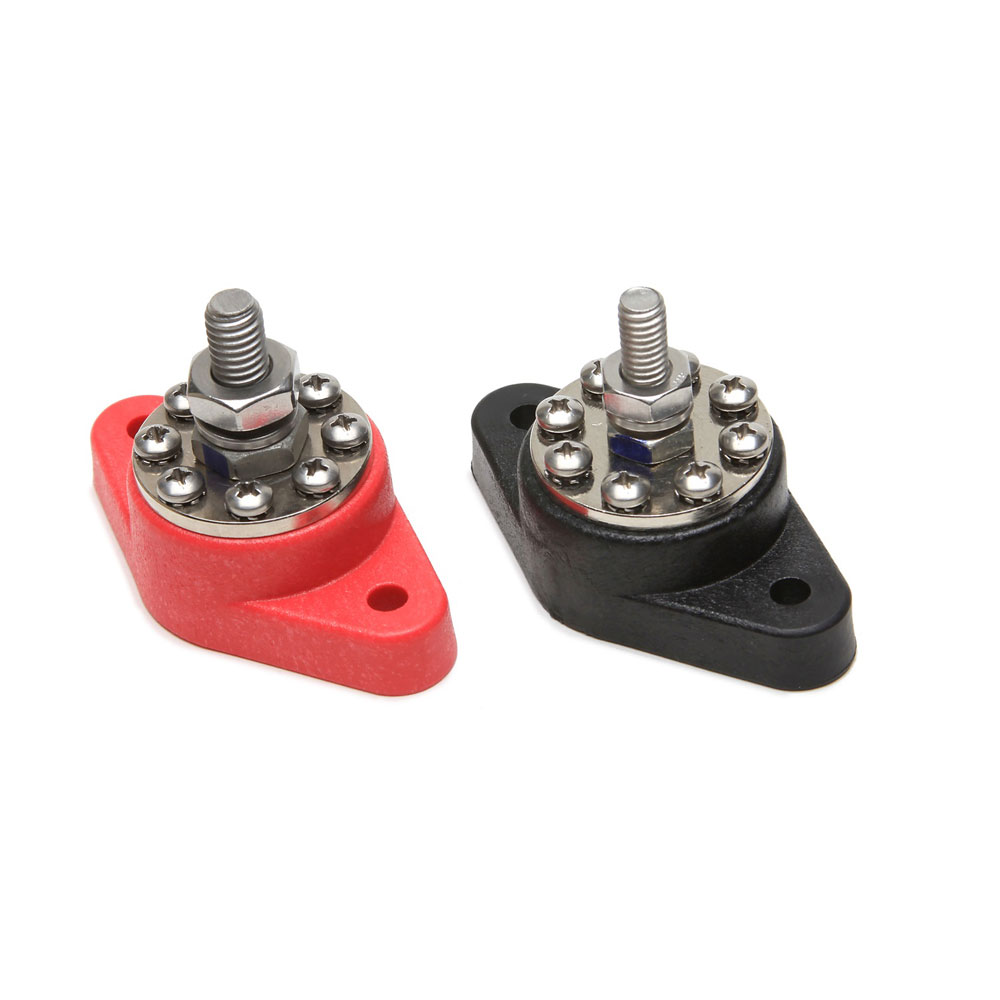

Painless Wiring Power Distribution Block 80116; 8 Point Distribution Blocks Black, Red Glass Filled Nylon Panel Mount Stainless Steel
$34.99
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Product Description
Painless Performance 8-point distribution blocks provide a need for a common place. These blocks offer a place for common grounding points and a common place to source power from. Painless 8-point distribution blocks feature one main stud that makes it easy to supply power or ground directly to the block. They have eight screws positioned around the stud, making it easy to redirect the main source to components on your chassis harness. The blocks come with either a 3/8 in. main stud (red) or 5/16 in. main stud (black), plus self-tapping mounting screws are provided with each kit. You'll have no more worrying about overloading battery terminals with numerous feeds to different components with these 8-point distribution blocks from Painless Performance--the people who make wiring your project... well, painless!WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Specifications
- Power Distribution Block Series:
- 8 Point Distribution Blocks
- Block Style:
- Panel Mount
- Block Body Material:
- Glass Filled Nylon
- Block Body Color:
- Black, Red
- Block Conductor Material:
- Stainless Steel
- Block Conductor Finish:
- Natural
- Input Style:
- Threaded Stud
- Input Size:
- 3/8 in. (Red), 5/16 in. (Black)
- Input Stud Length:
- 5/8 in.
- Number of Outputs:
- 8 Output
- Output Size:
- 8-32
- Output Connection Style:
- Terminal Screw
- Block Overall Height:
- 2.190 in.
- Block Overall Length:
- 3.300 in.
- Max Amperage:
- 20 Amp
- Max Voltage:
- 48 Volt
- Includes Mounting Hardware:
- Yes
- Includes Cover:
- No
- Quantity:
- Sold As Pair
