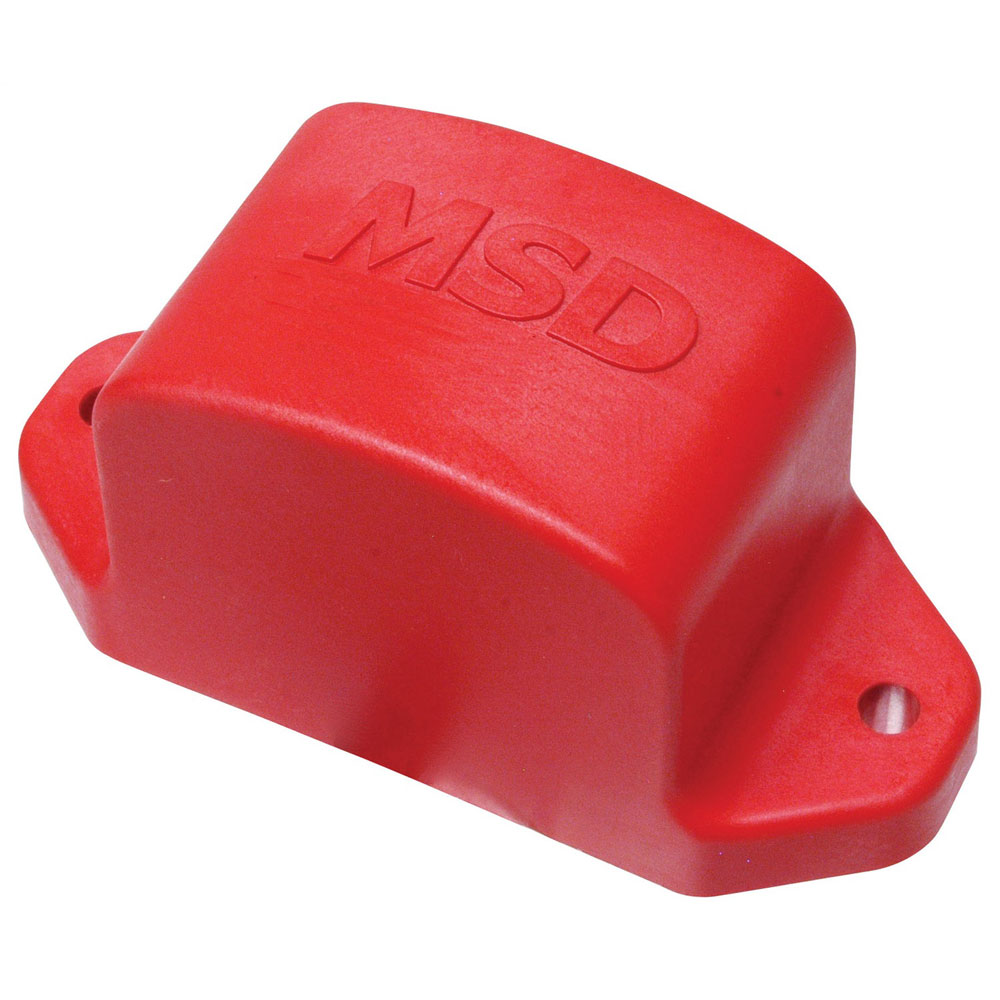

Photo for MSD Tachometer Adapter 8910; Non Current Limited Ignition Tach Adapter

MSD Tachometer Adapter 8910; Non Current Limited Ignition Tach Adapter

$99.95

Part #: 8910

Brand: MSD

UPC: 085132089109

Estimated Ship Date: Today

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • Designed for non-current limiting ignitions
  • Size Non-Current Limiting Ignitions

Product Description

In some instances when you install an MSD ignition, the factory ECU may not be able to distinguish when the coil fires. This is the signal that is also responsible for firing the injectors (or the tachometer), which may cause a no-run situation. The dual channel ignition adapter simulates the original coil trigger signal thus allowing the ECU to properly trigger both the tach and fuel injection with the MSD DIS ignition installed. In most cases, the adapter plugs directly into the MSD's harness. For vehicles using an MSD DIS-2 ignition, only one PN 8912 is required. For DIS-4 applications, two PN 8912's are required.

Specifications

Tachometer Adapter Series:
Non Current Limited Ignition Tach Adapter
Compatible Ignition:
Blaster, 5, 6, 7 or SCI
Material:
Plastic
Notes:
For Blaster 5/6/7/SCI series.
Quantity:
Sold As Each

Tech Resources

  • 8910_frm28850.pdf
