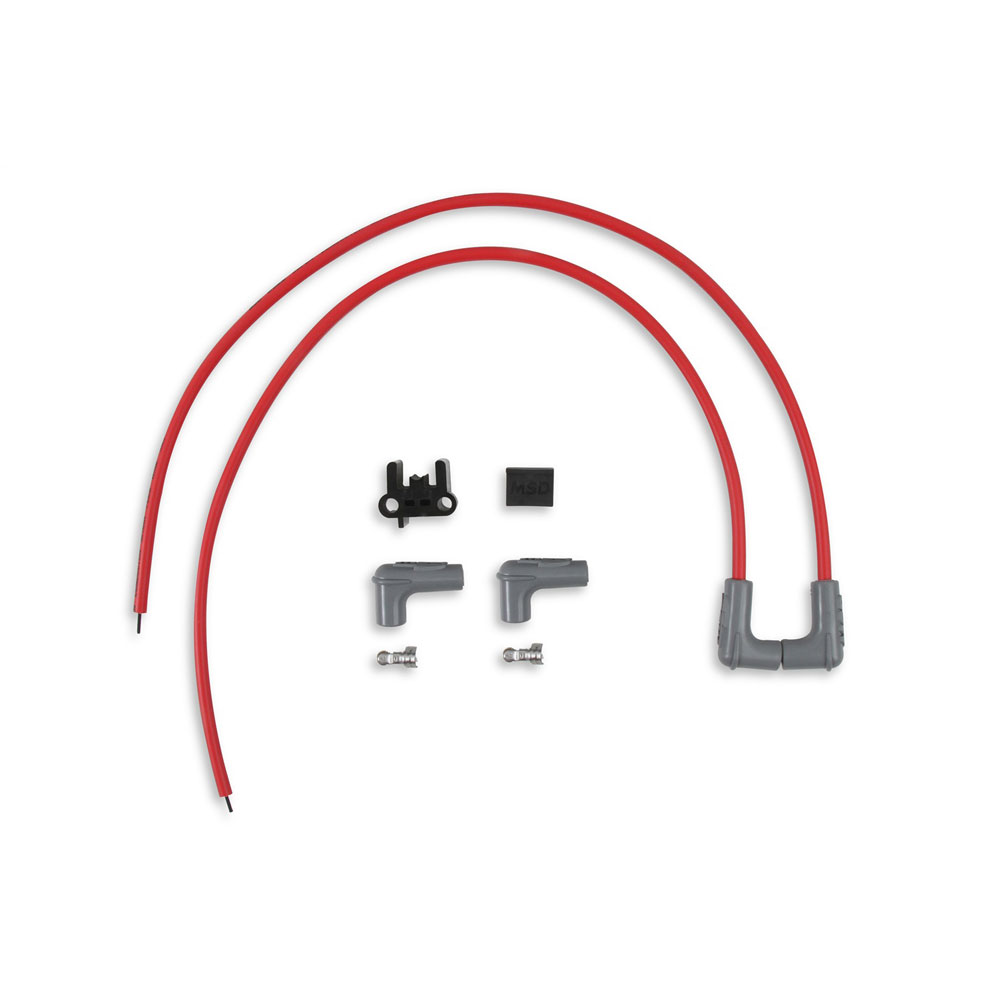

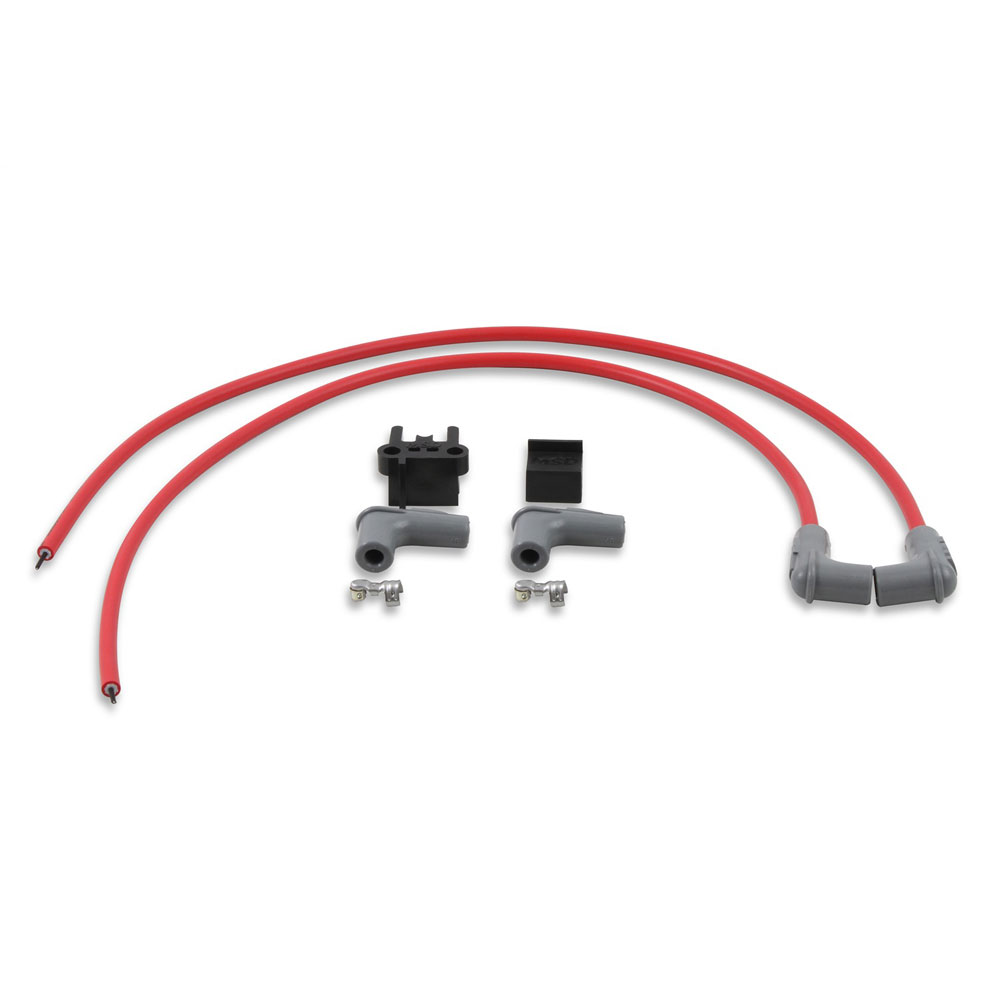

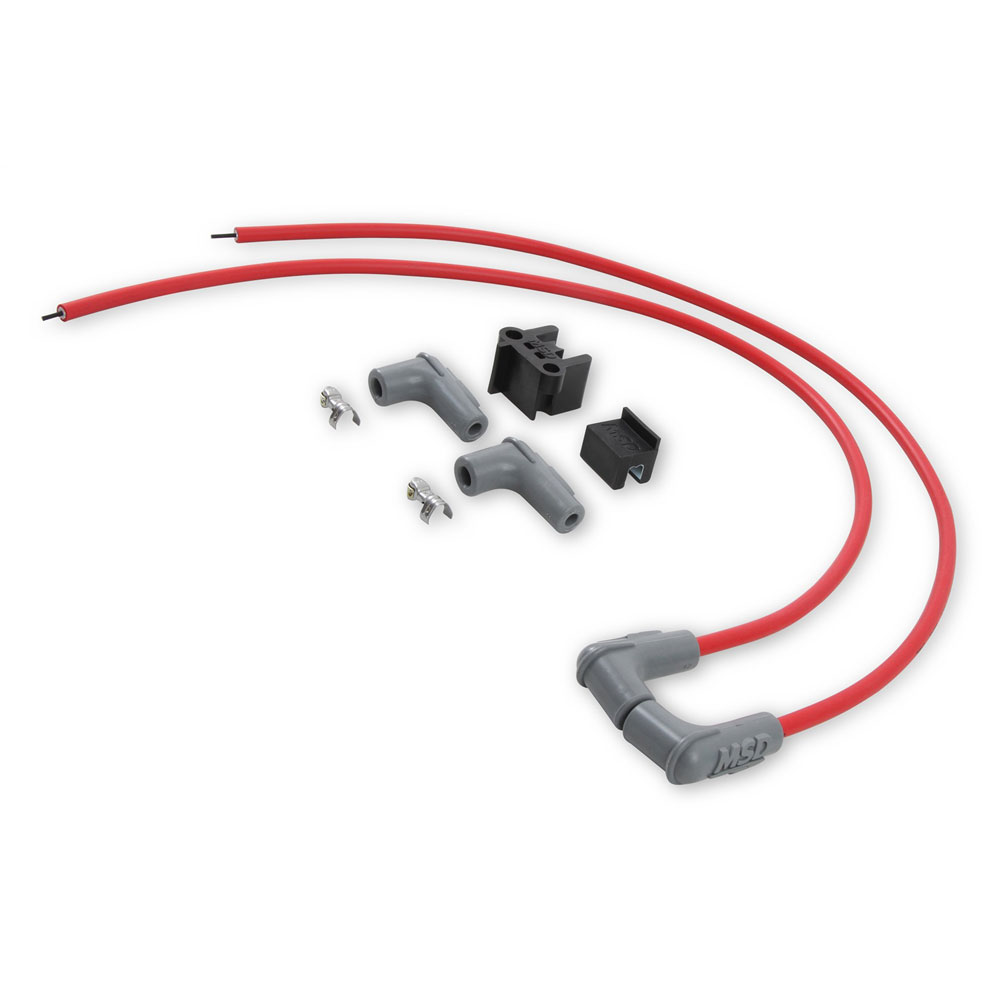

MSD Spark Plug Wire Set 31009; Super Conductor 8.500 mm Red Spiral Core 90 deg. HEI/Male for Watercraft

$48.05

Part #: 31009

Brand: MSD

UPC: 085132310098

Estimated Ship Date: 6/10/2025 (From manufacturer)

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

  • PSI Pressure Sensor Replacement
  • Extra Heavy Glass Braid
  • Strong Dielectric Insulator
  • Helically Wound Copper Alloy Conductor
  • 40 ft. Of Conductor Wound In One Foot Of Wire
  • 8.5mm Jacket Protects From High Heat Or Abrasion

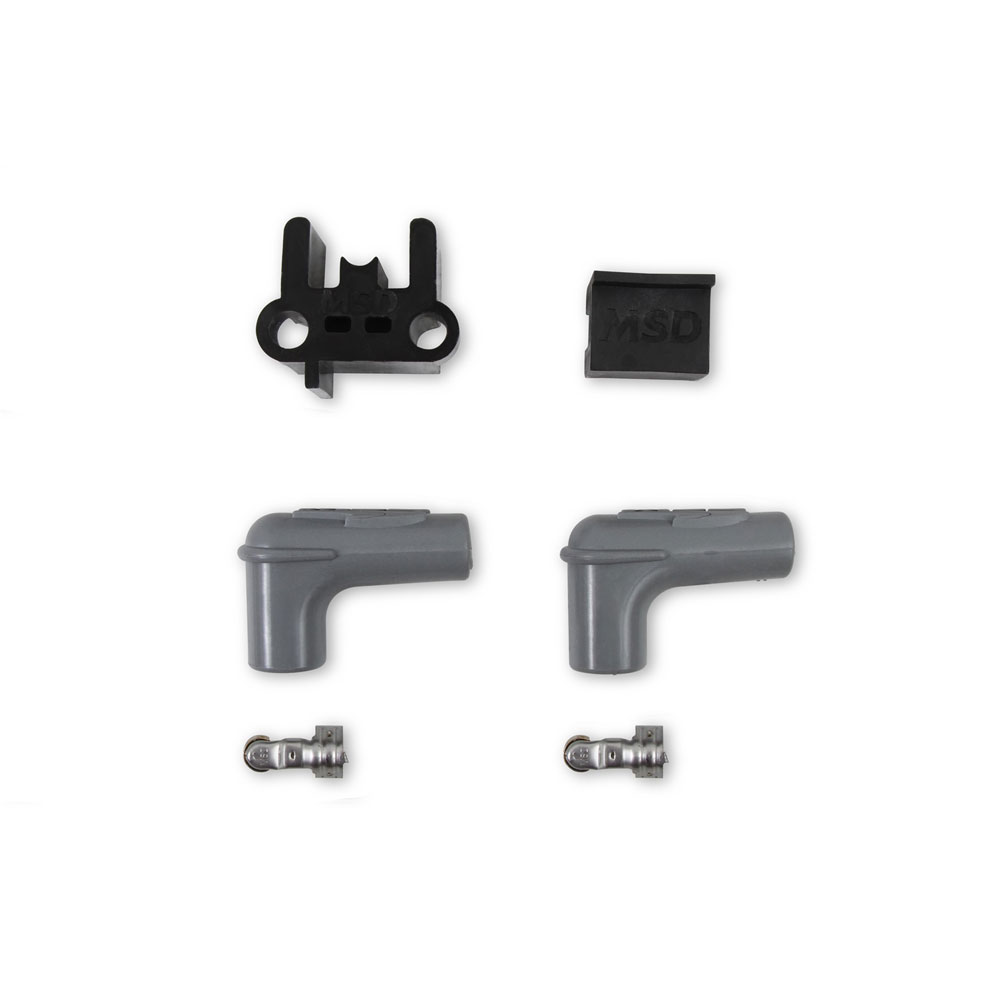

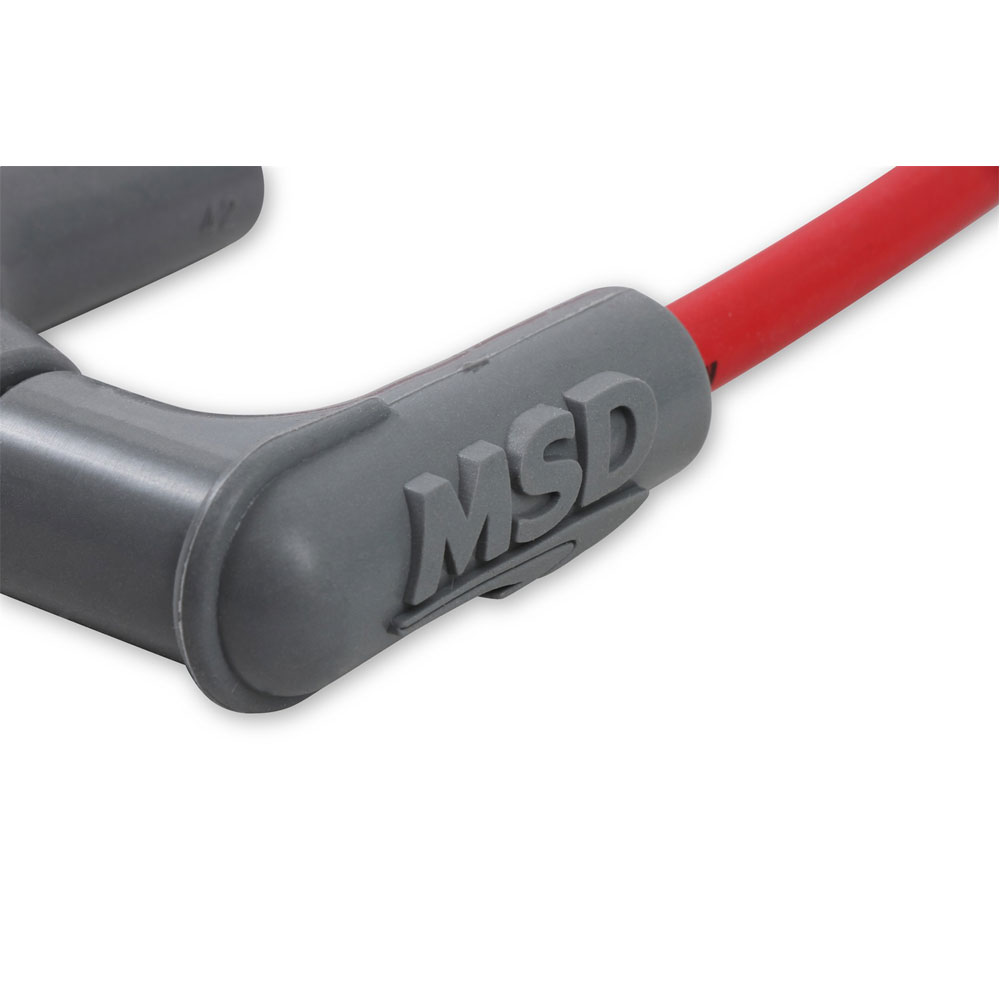

  • Silicone And Synthetic Heat Resistant Boot
  • Ferro-Magnetic Impregnated Core Creates EMI Choke
  • Core Made with DuPont Kevlar To Add Tensile Strength

Product Description

The MSD 8.5mm super conductor wire is the performance wire. Engineered from the inside out, the 8.5 offers everything you have ever wanted in a wire; incredibly low resistance without electronic interference. In a single 12 inch length of super conductor wire there is only 40 - 50 ohms of resistance. That is the lowest resistance of any helically wound wire. To accomplish this, we use a copper alloy conductor due to it's great voltage carrying capabilities. The low resistance results in less loss in spark energy so more reaches the spark plug. The conductor is wound extremely tight around a special center core. So tight in fact, that there is over 40 feet of conductor wrapped into a single foot of plug wire. This winding procedure, combined with a ferro-magnetic impregnated center core, produces an extremely effective electro magnetic interference (EMI) or choke. This choke, or suppression capability, keeps the EMI inside the wire where it cannot interfere with other electronics on your vehicle.The outer sleeve that surrounds the conductor assembly is just as impressive. A proprietary blend of silicone and synthetic material produce a sleeve that is highly resistant to high heat as well as abrasion and tears. Available in universal kits and bulk lengths.

Specifications

Spark Plug Wire Set Series:
Super Conductor
Make:
Watercraft
Assembled:
Yes
Diameter:
8.500 mm
Distributor Boot Style:
HEI/Male
Spark Plug Boot Style:
90 deg.
Includes Coil Wire:
No
Color:
Red
Core Type:
Spiral Core
Number of Cylinders:
2 Cylinder
Quantity:
Sold As Set
