MSD Multi Purpose Relay Kit 75643; Solid State Relay Block
$161.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details
- 4 Channels 20 Amps Each
- Activate with Power Or Ground
- Clean Easy Install with Minimum Wiring
- Diagnostic LEDs
- Multiple Mounting Options
- Over Temp/Short Circuit/Overload Protection
- Black
- Multiple Mounting Options
- Over Temp/Short Circuit/Overload Protection
- Black
Product Description

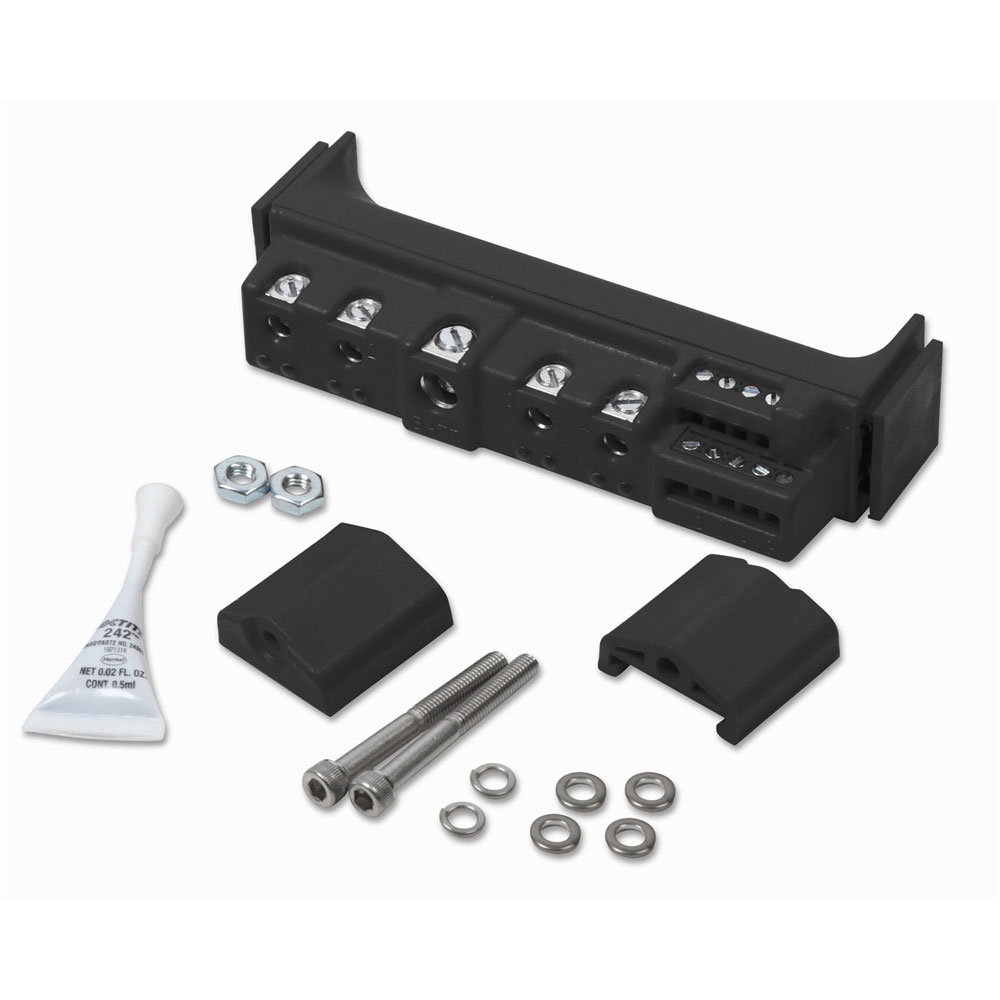

Clean up your wiring with an MSD Solid State Relay Block. This module takes the place of 4 standard relays and eliminates unsightly wiring. 4 independent channels can be activated using either power or ground. Each channel is capable of handling up to 20 Amps of continuous current providing up to 80 Amps of power. Controls electric fans, water pumps, nitrous solenoids, auxiliary lighting and any other electrical accessories that would normally require a relay.
Specifications
- Multi Purpose Relay Kit Model or Series:
- Solid State Relay Block
- Amp Rating:
- 20 Amps
- Voltage:
- 5 to 20 Volt
- Terminal Type:
- Screw
- Wiring Harness Included:
- No
- Notes:
- (4) 20amp channels
- Quantity:
- Sold As Each
