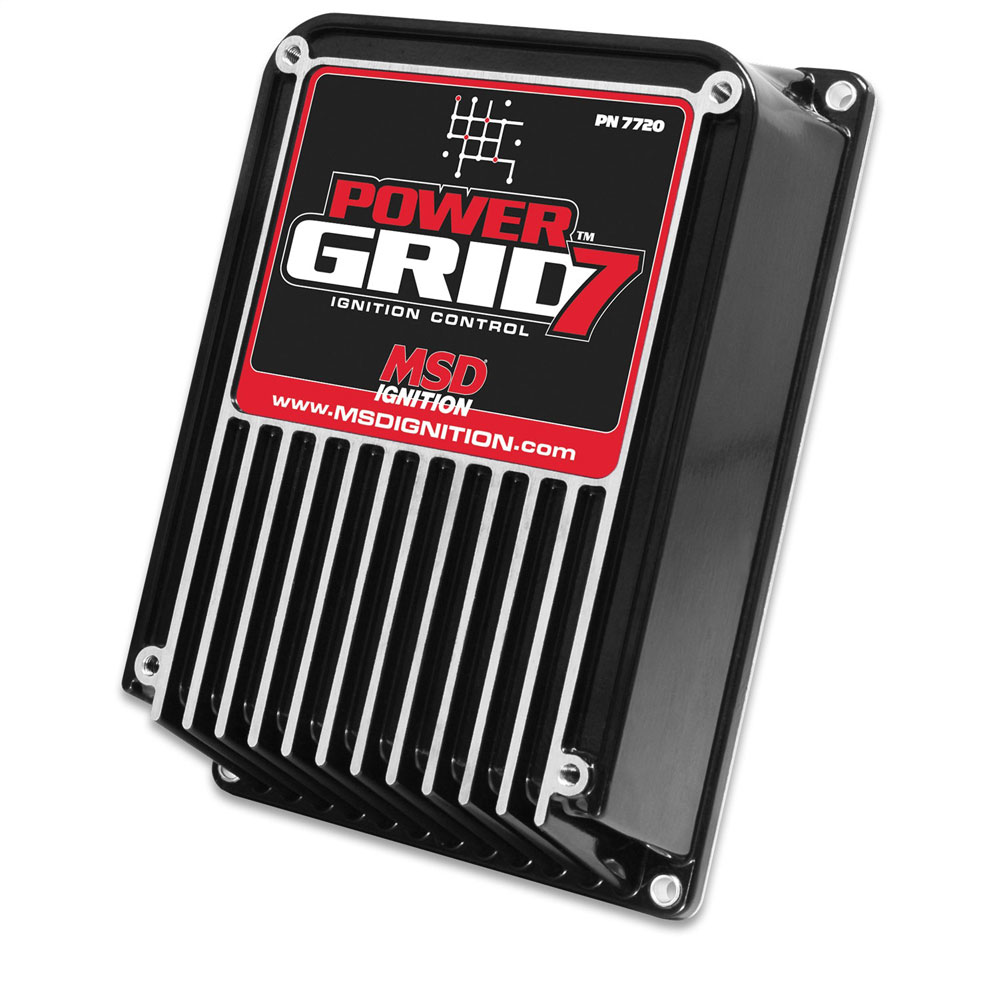

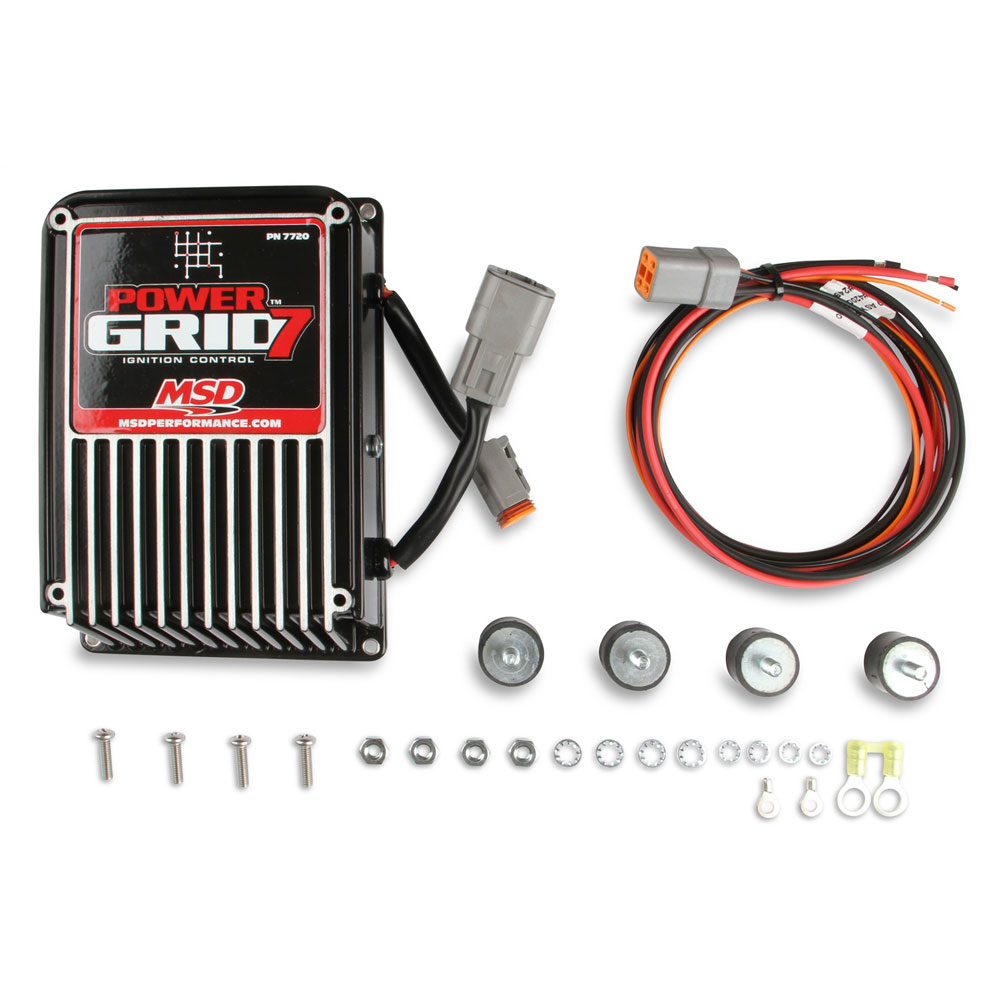

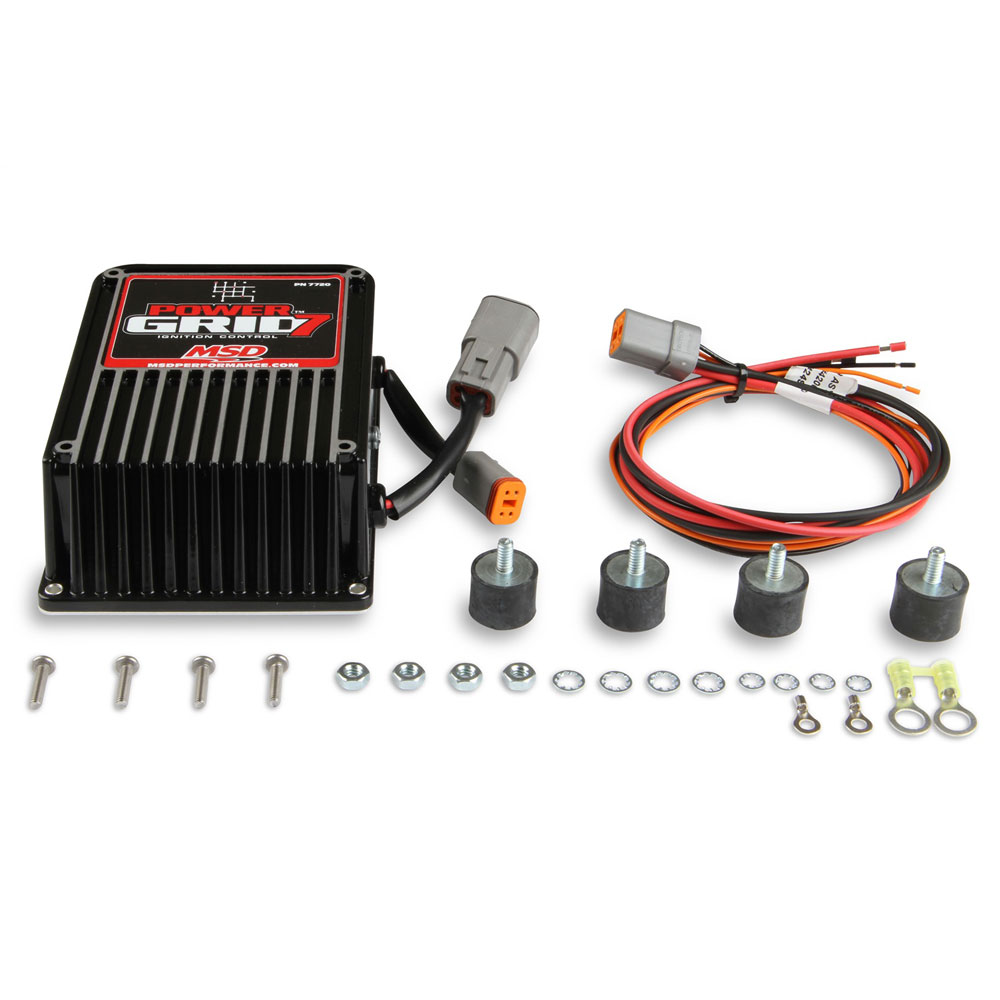

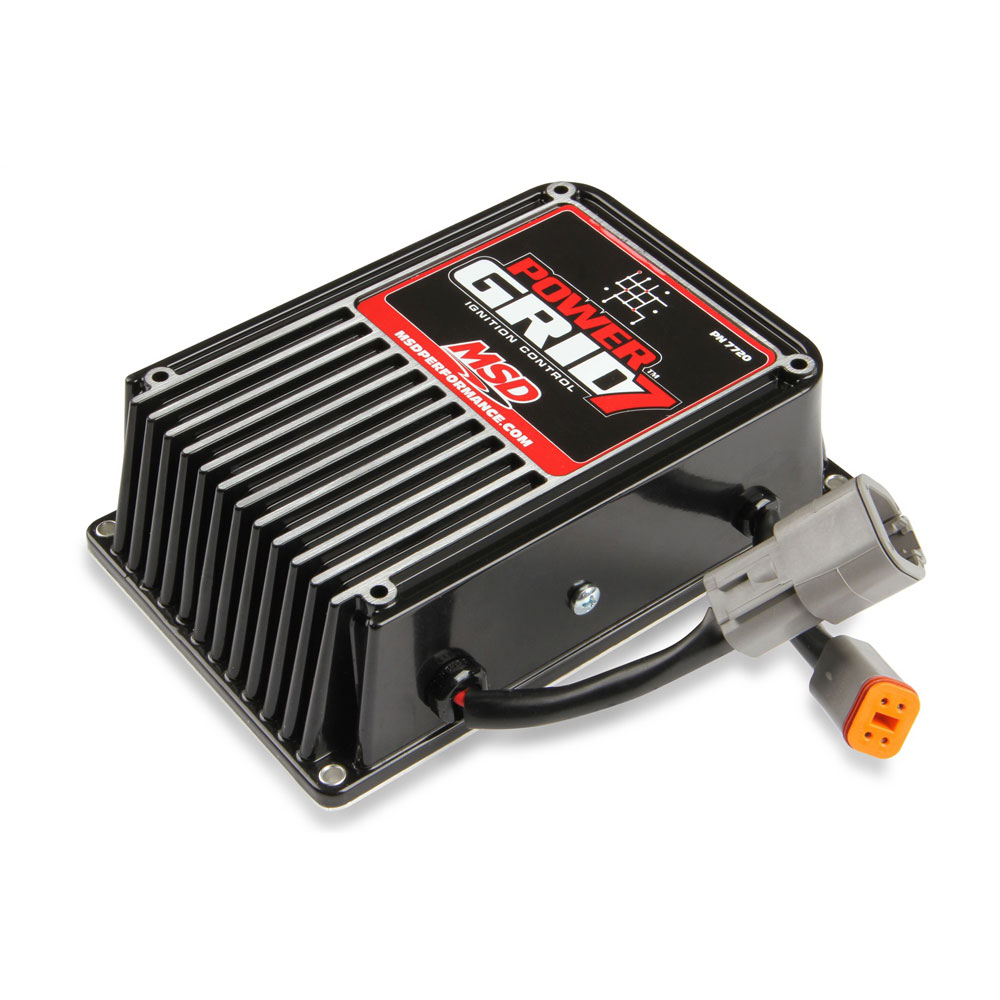

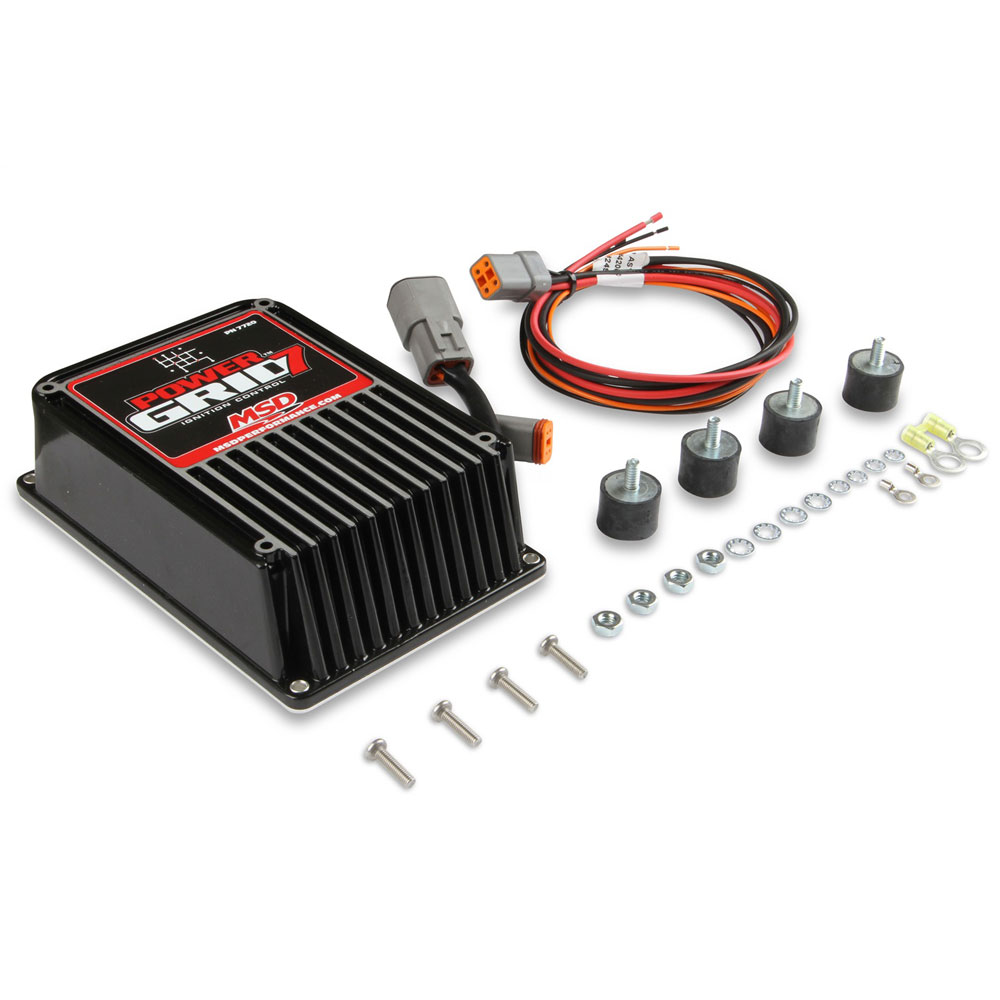

MSD Ignition Control Box 7720; Power Grid 7 Digital 200 mJ Black Aluminum
$659.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details

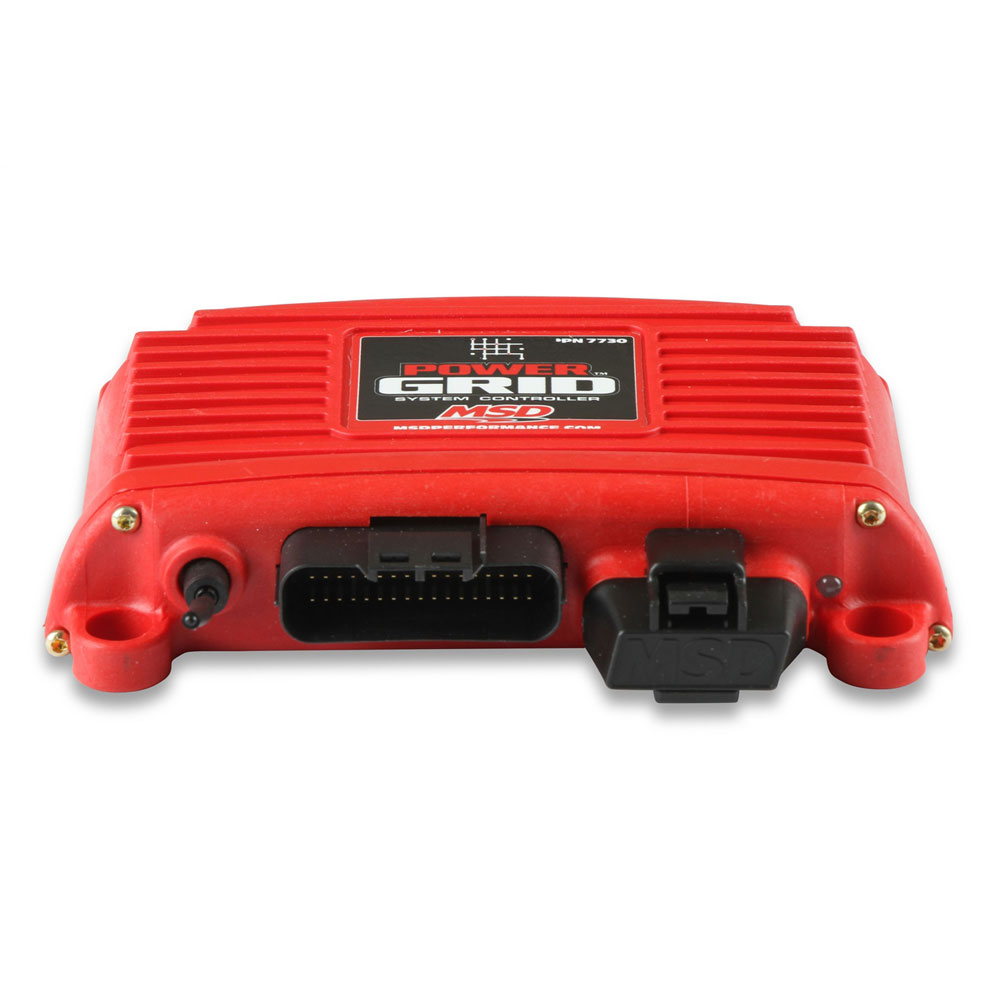

- For Use with Power Grid PN[7730] Only
- High output spark for Power Grid System

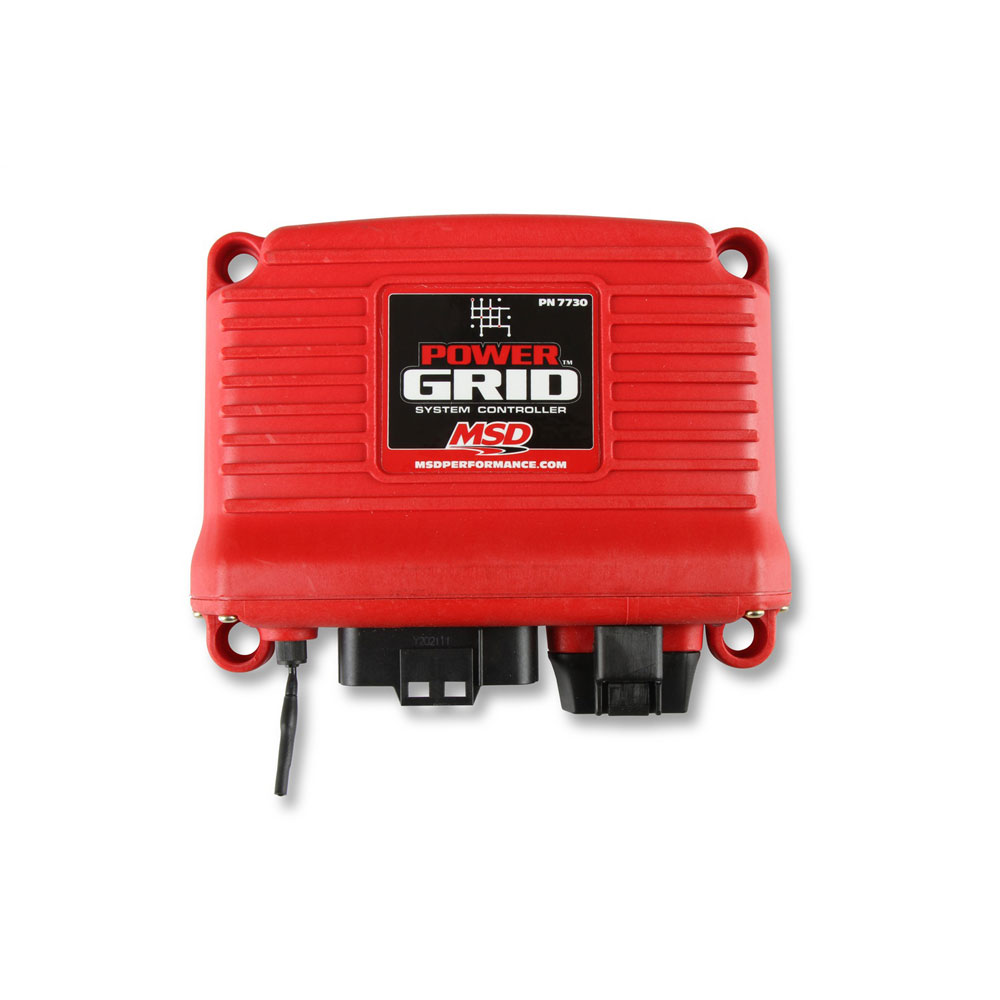

- Power Grid PN[7730] mounts directly on top
Product Description

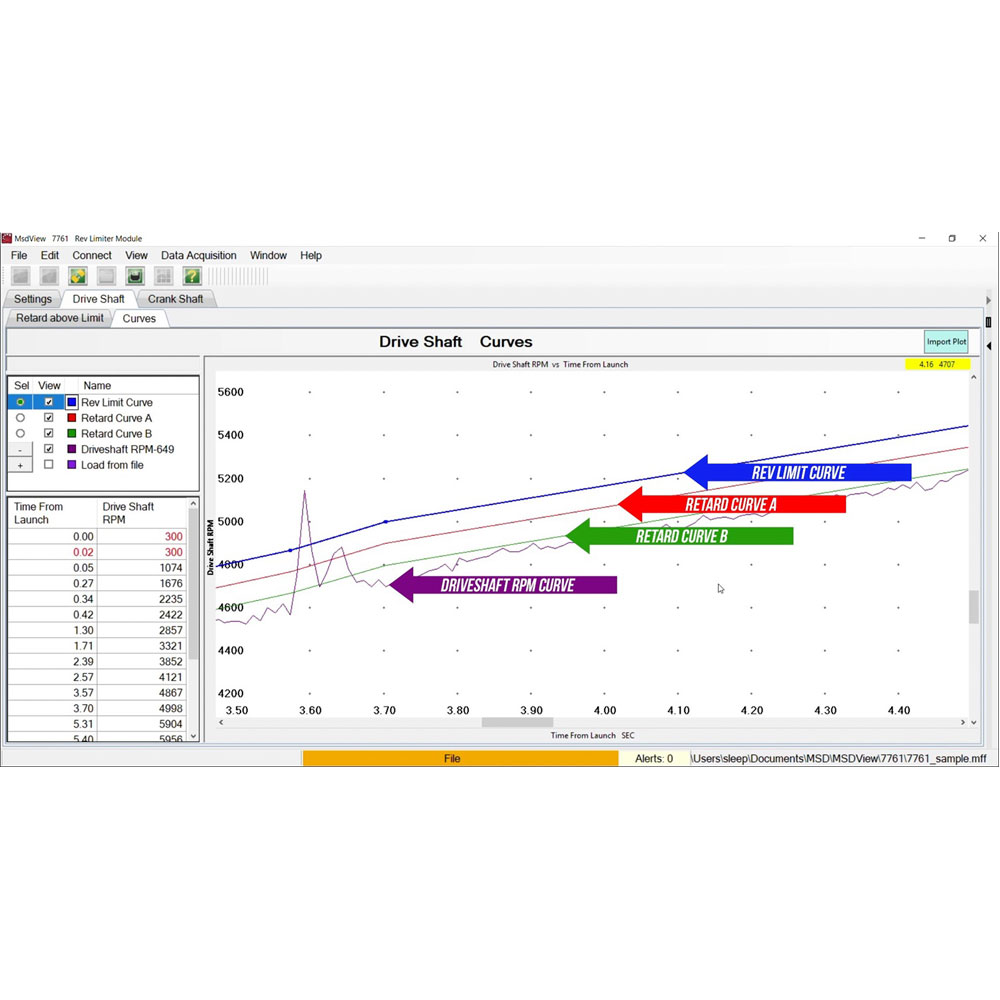

MSD set the standard in programmable ignition systems. In fact, every NHRA pro stock championship in the last few years has been with an MSD programmable 7. Drag radial, twin turbo outlaw cars and 10.5-tire classes all rely on the advanced programming of MSD's programmable 7 ignitions. Wait until they see the power grid. The power grid ignition system is the next evolution of our programmable 7-series ignition controls. The grid incorporates an efficient 32 bit micro controller and an all new software program, called MSD View, and is USB compatible. The windows based software is designed with tabs to help racers easily select different programming windows and parameters. Also, the data acquisition files of the ignition are now captured on a micro SD card for ease of storage and reviewing. The power grid ignition incorporates CAN-Bus technology which reduces the amount of wiring and simplifies the addition of accessory modules. All modules connect via CAN-Bus technology.
Specifications
- Ignition Control Box Model or Series:
- Power Grid 7
- Circuitry:
- Digital
- Spark Energy:
- 200 mJ
- Spark Duration:
- 20 deg.
- Primary Voltage:
- 550 Volt
- Secondary Voltage:
- 50,000 Volt
- Single or Dual Coil Output:
- Single
- Maximum RPM:
- 15,000 RPM
- Rev Limiter:
- No
- Case Material:
- Aluminum
- Case Finish:
- Black
- Launch Control:
- No
- Vacuum Advance:
- No
- Boost Retard:
- No
- Data Logging:
- No
- Notes:
- To be used with #7730
- Quantity:
- Sold As Each
