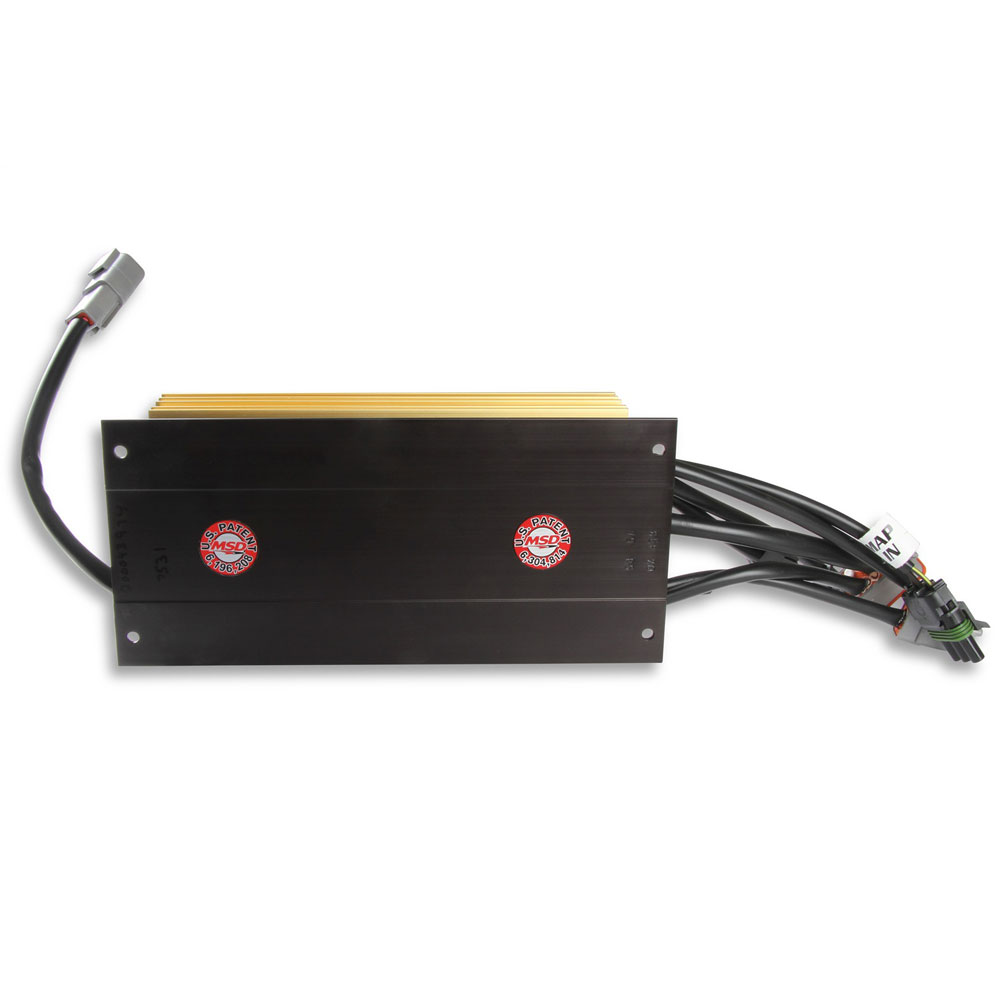

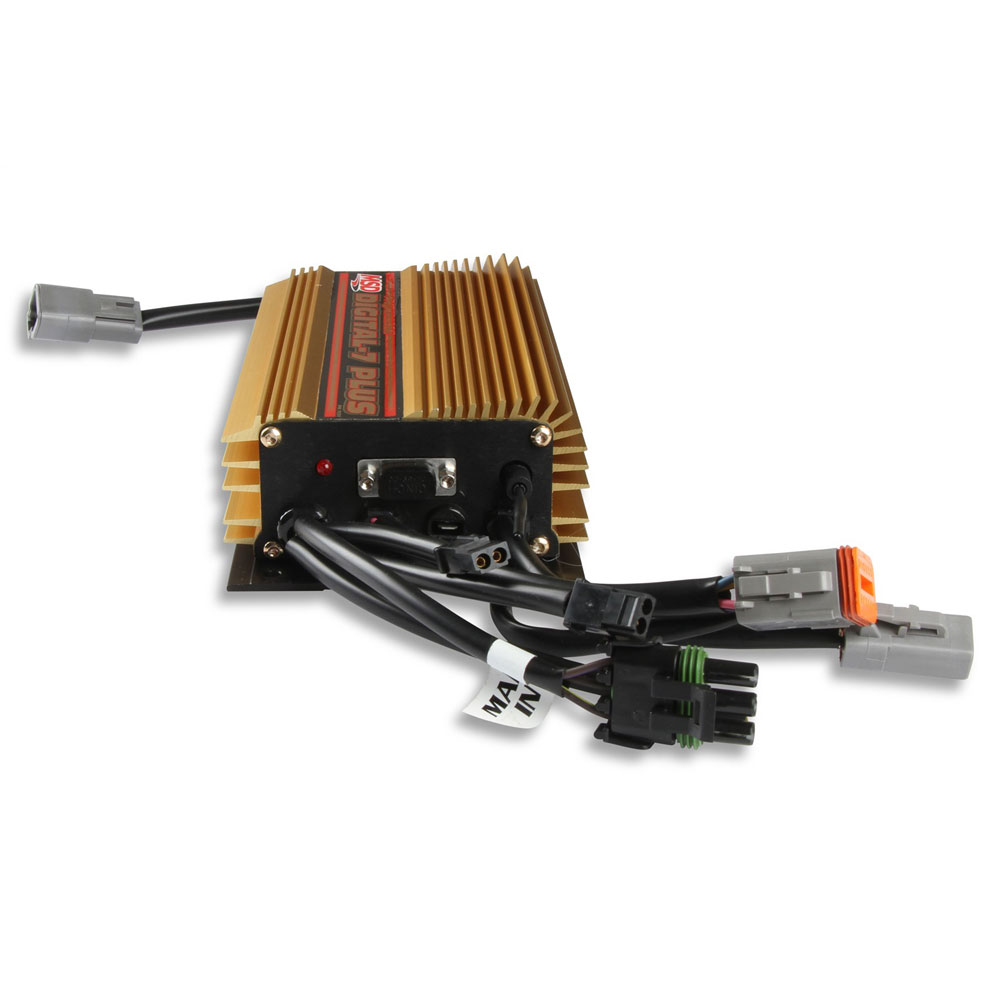

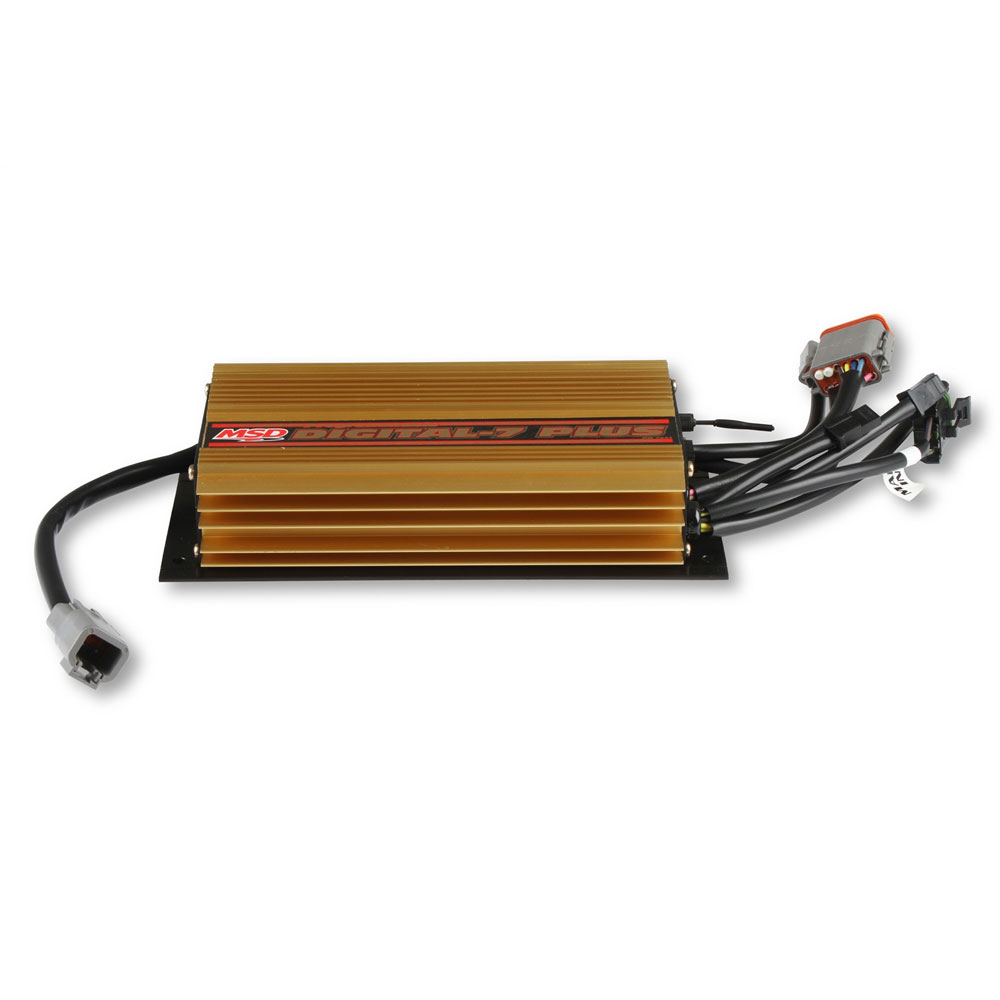

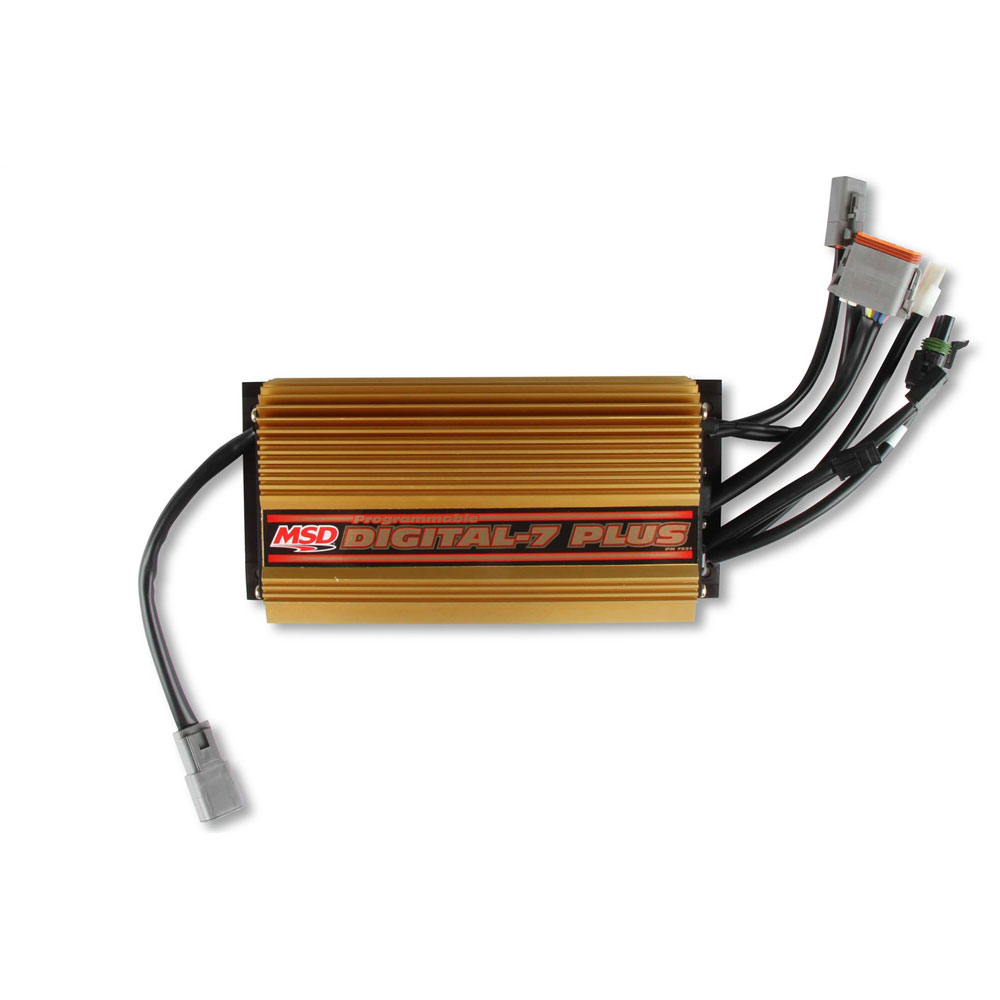

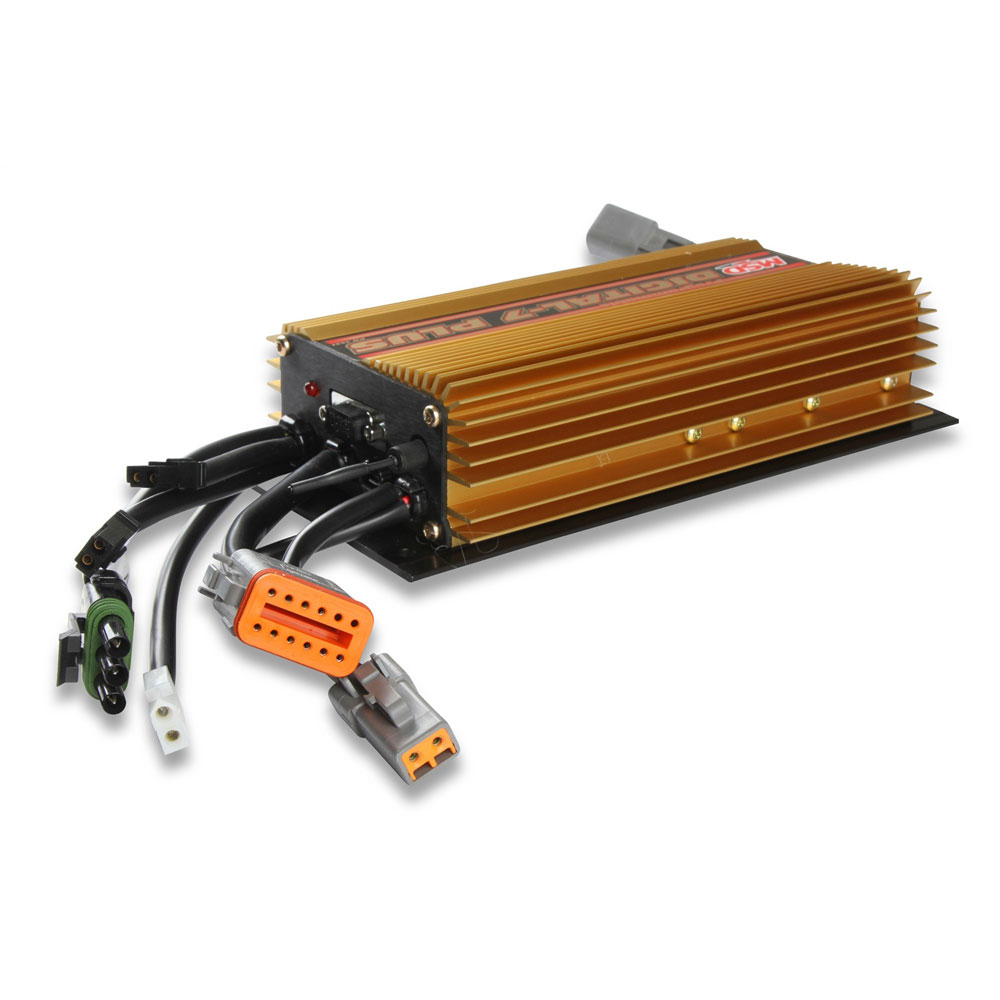

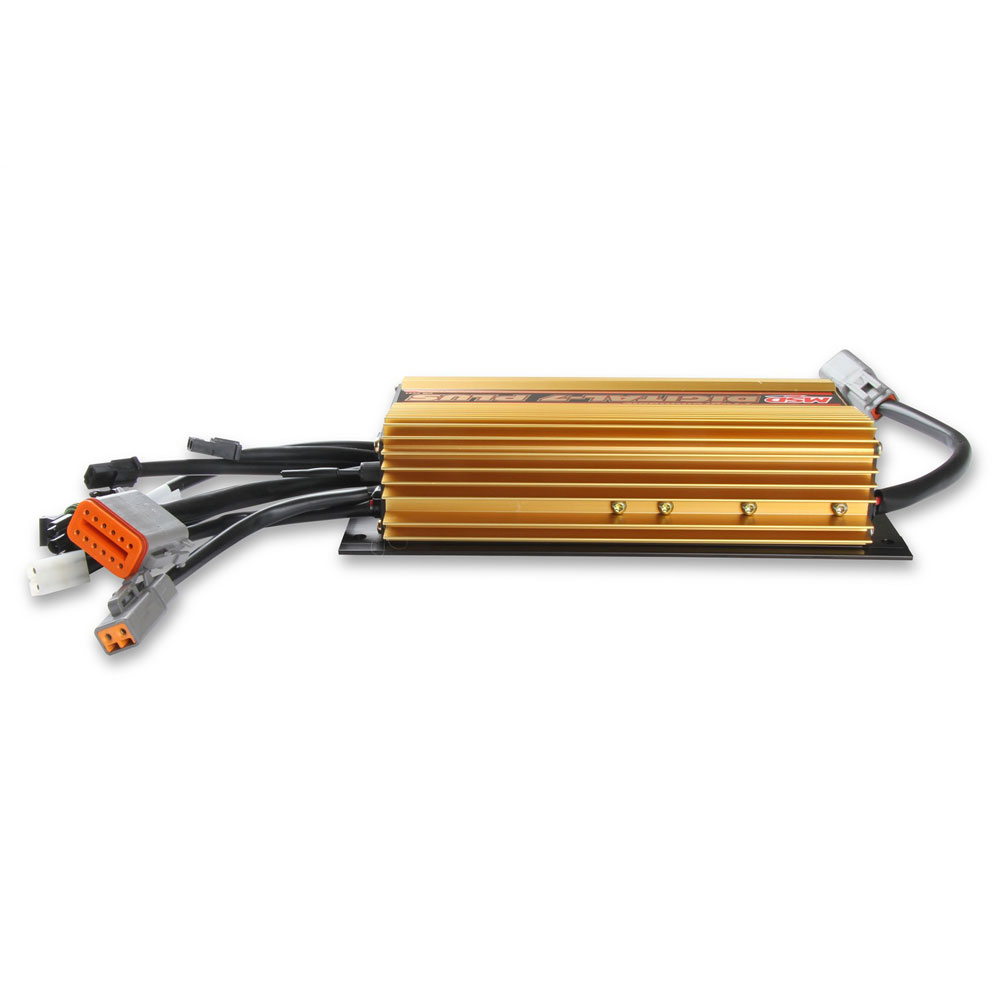

MSD Ignition Control Box 7531; Digital 7 190 mJ

$908.95

Part #: 7531

Brand: MSD

UPC: 085132075317

Estimated Ship Date: This part is unavailable with no ETA

Specifications Tech Resources Recommended

This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.

Details

Map a complete timing curve for every gear.
Select the rpm limiter value in rpm/seconds.
Acquire 20 seconds of run data incl. two seconds prior to launch.
View ignition events in a new Launch History window
Output to activate a device through rpm
time or pressure inputs.
Automatic magnetic pickup compensation
For crank triggers or distributor pick- ups.
Program your engines firing order
Ease the setting of cylinder-to-cylinder timing.
Cam sync output for fuel controllers or data acquisition.
Vacuum advance/boost retard is selectable through a MAP sensor.
Program an rpm limit that is ramped in during the launch.

Product Description

If you're a consummate engine tuner and know how to take advantage of minute changes in timing during a quarter mile pass, then the programmable digital-7 plus is the ignition for you. All of the standard programmable features such as individual cylinder management, step retards, rev limits, shift points and more are included in the plus version but you also get more. A MAP sensor is required for the boost circuit. The ignition is supplied with wiring harnesses, mounting hardware, an RS232 computer harness and the pro-data plus software on a mini CD.

Specifications

Ignition Control Box Series:
Digital 7: Spark Energy:
190 mJ: Spark Duration:
20 deg.: Primary Voltage:
535 Volt: Secondary Voltage:
40,000 Volt: Maximum RPM:
12,500 RPM: Quantity:
Sold As Each
