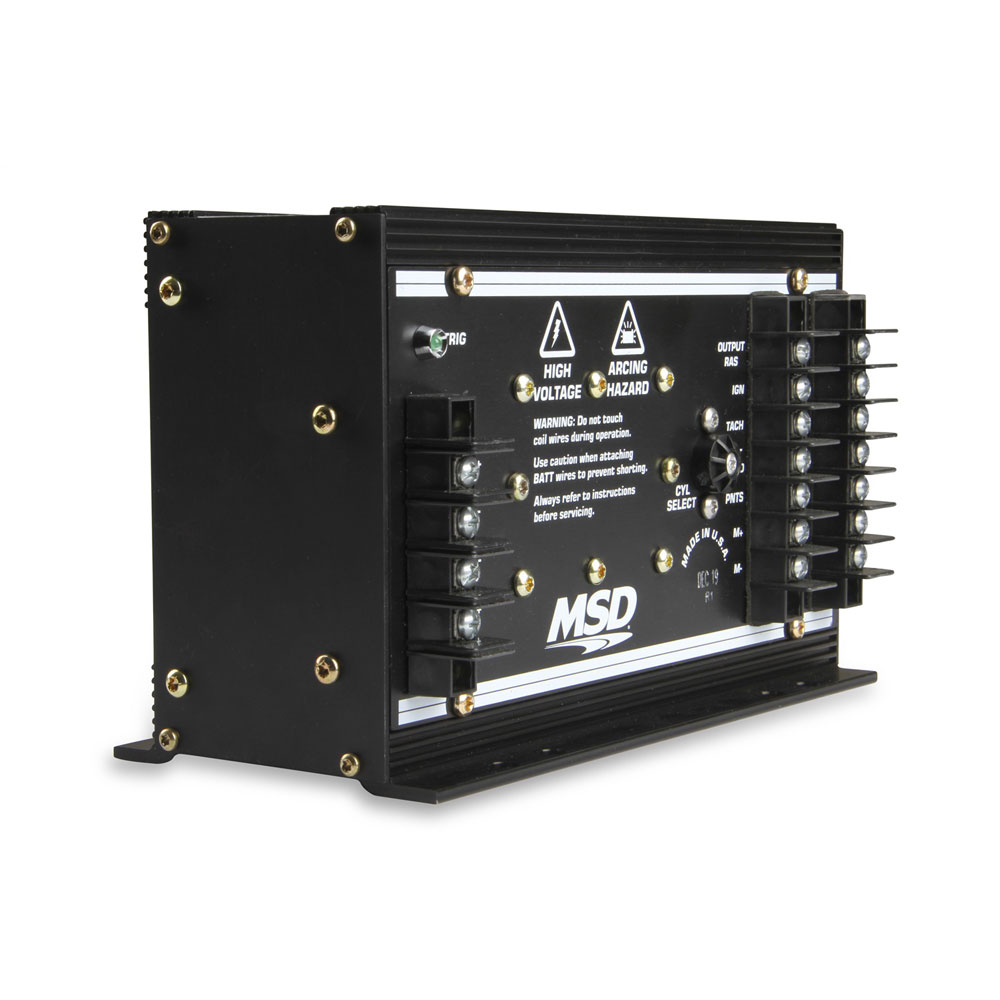

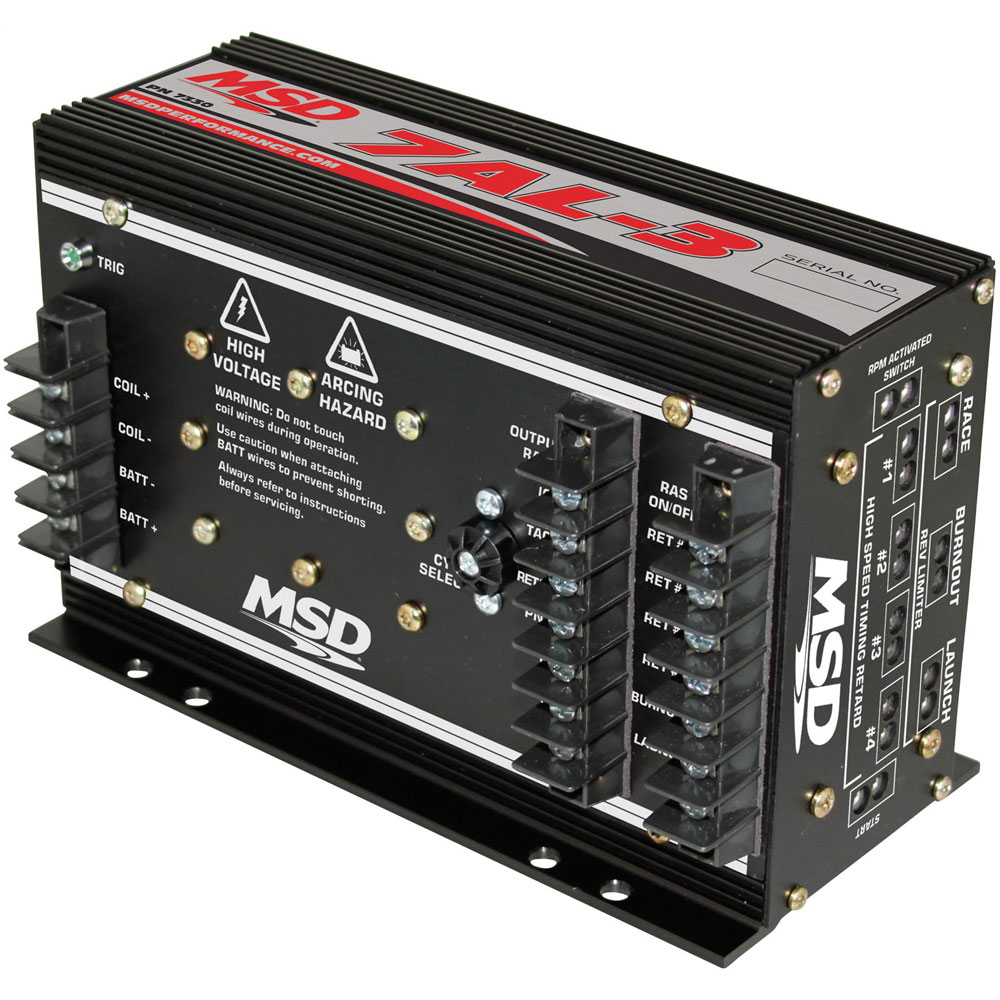

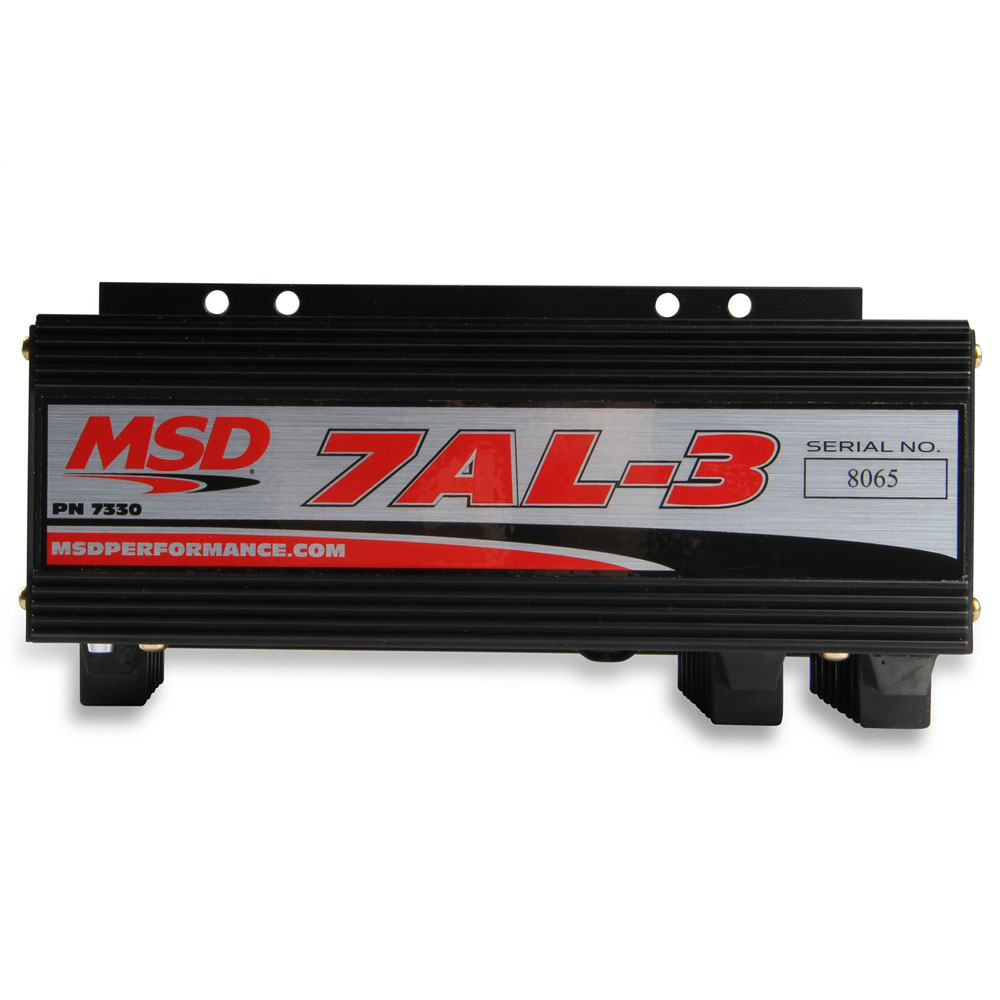

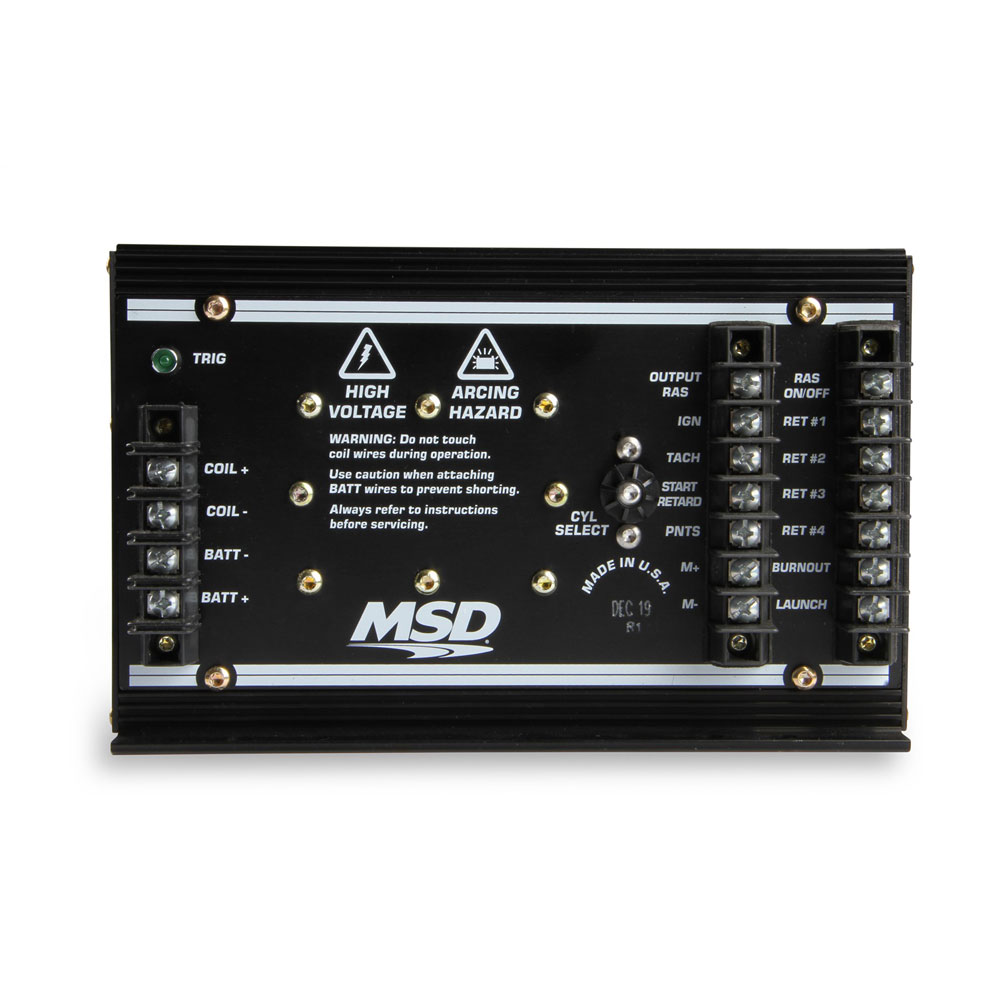

MSD Ignition Control Box 7330; 7AL3 Analog 160 mJ Black Aluminum
$898.95
This item ships free with qualifying orders of $150 or more.
See our shipping policy for more details.
Details

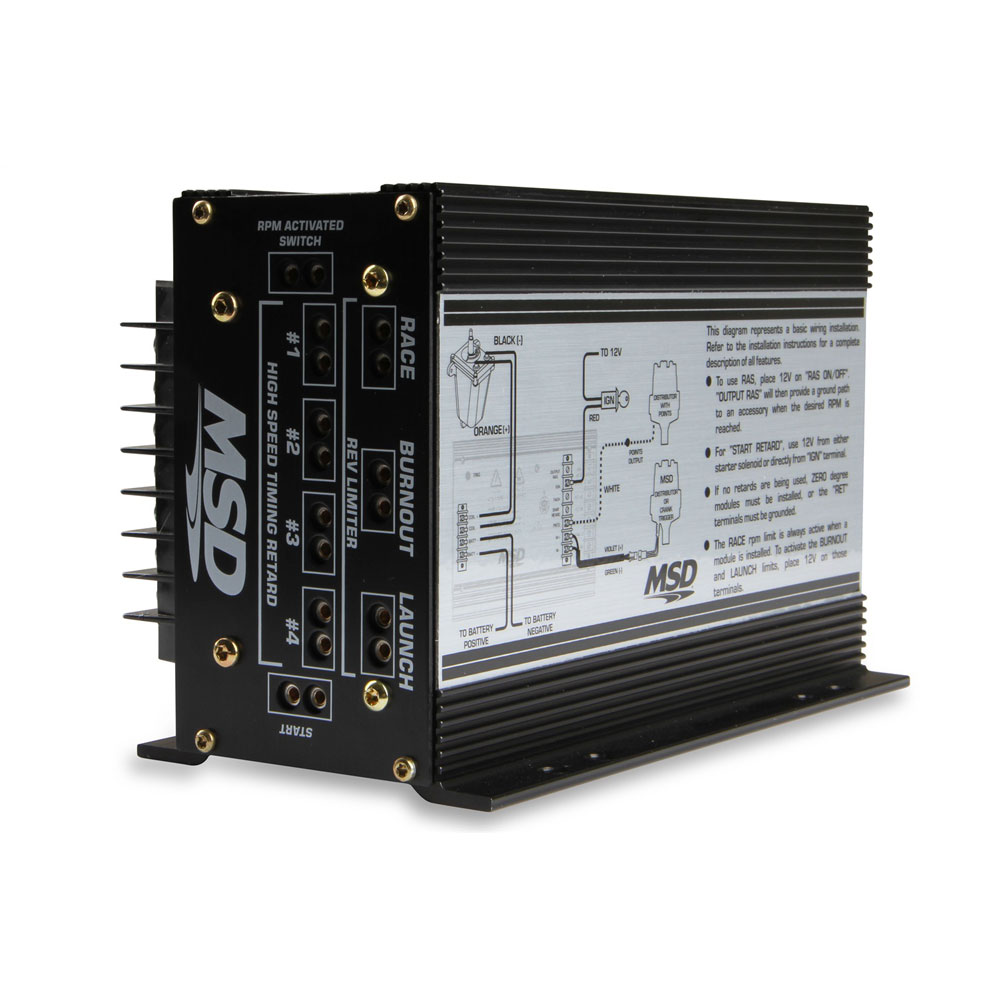

- 3-Step Rev Limiter
- 4-Stage Multi-Step Retard
- RPM Activated Switch
- Adjustable Start Retard
Product Description

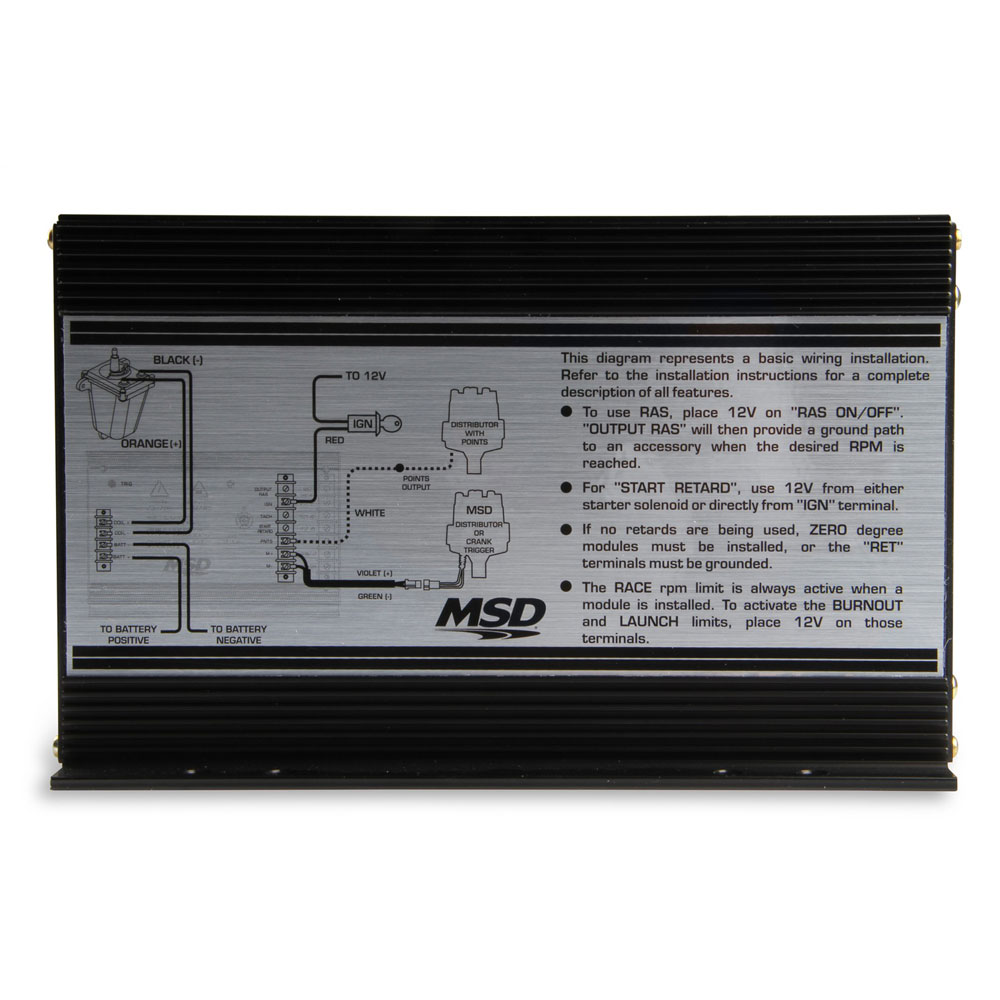

The MSD 7AL-3(TM) is based off the well proven MSD 7AL-2 plus. It features a host of the most popular drag racing accessories. A built-in three step rev control provides three different rpm limits that can be used for the burnout, hole shot and top end overrev protection. There is also a multi-step retard with four different modules that can be activated at different times. Four 0 degree modules and a 2 degrees, 3 degrees and 4 degrees module are supplied. Many race engines with crank trigger systems or locked-out distributors will benefit from the 7AL-3's built-in start retard option. during cranking the start retard will retard the timing 25 degrees allowing the engine to turn over easier. When the engine starts, the timing will automatically go back to its mechanical setting. One last option is an RPM activated switch that allows you to activate a solenoid or shift light at an adjustable rpm. When the engine hits the desired rpm the RAS circuit provides a ground to the component to activate it. Vibration mounts, wires and detailed instructions are supplied.
Specifications
- Ignition Control Box Series:
- 7AL3
- Circuitry:
- Analog
- Programmable:
- No
- Spark Energy:
- 160 mJ
- Spark Duration:
- 20 deg.
- Primary Voltage:
- 570 Volt
- Secondary Voltage:
- 50,000 Volt
- Single or Dual Coil Output:
- Single
- Maximum RPM:
- 14,000 RPM
- Rev Limiter:
- Yes
- Rev Limiter Adjustment:
- Module
- Case Material:
- Aluminum
- Case Finish:
- Black
- Launch Control:
- Yes
- Vacuum Advance:
- No
- Boost Retard:
- No
- Data Logging:
- No
- Quantity:
- Sold As Each
